2 Explore Data

2.1 Data

Site information

Code

siteinfo <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_SiteInformation.csv")
siteinfo_sp <- st_as_sf(siteinfo, coords = c("long", "lat"), crs = 4326)

Little g’s

Code

dat_clean <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/LittleG_data_clean.csv")

Big G’s

Code

dat_clean_big <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_data_clean.csv")

Watersheds (filter to Snake River only)

Code

sheds_list <- list()
myfiles <- list.files(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", pattern = ".shp")
for (i in 1:length(myfiles)) {
  sheds_list[[i]] <- st_read(paste("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", myfiles[i], sep = ""))
}
sheds <- do.call(rbind, sheds_list) %>%
  mutate(site_id = ifelse(site_id == "SP01", "SP07", ifelse(site_id == "SP07", "SP01", site_id))) %>%
  left_join(siteinfo) %>%
  filter(basin == "Snake River")

sheds <- vect(st_transform(sheds, crs = crs(siteinfo_sp)))
#mapview(sheds %>% arrange(desc(area_sqmi)), alpha.regions = 0.2)

Spring prevalence (Snake only)

Code

springprev <- rast("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Snake Groundwater/SpringPrev_UpperSnake_BedSurf_nolakes_flowbuff100.tif")
#plot(springprev)

Diel PASTA derived parameters (for EcoDrought sites) - summarize as July-September site-specific means:

Code

pasta <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Covariates/pasta_derived_parameters_daily.csv") %>%
  mutate(Month = month(date)) %>%
  rename(CalendarYear = year) %>%
  filter(Month %in% c(7:9)) %>%
  group_by(site_name, CalendarYear) %>%
  summarize(meanRatio = mean(meanRatio, na.rm = TRUE),
            phaseLag = mean(phaseLag, na.rm = TRUE),
            amplitudeRatio = mean(amplitudeRatio, na.rm = TRUE)) %>%
  ungroup()
pasta

# A tibble: 432 × 5
   site_name      CalendarYear meanRatio phaseLag amplitudeRatio
   <chr>                 <dbl>     <dbl>    <dbl>          <dbl>
 1 Avery Brook            2020     0.886     1.48          0.230
 2 Avery Brook            2021     0.904     2.89          0.290
 3 Avery Brook            2022     0.876     1.68          0.208
 4 Avery Brook            2023     0.903     3.21          0.332
 5 Avery Brook            2024     0.855     2.26          0.243
 6 BigCreekLower          2017     1.29      1.81          0.396
 7 BigCreekLower          2018     0.826     2.43          0.313
 8 BigCreekLower          2019     1.06      2.45          0.383
 9 BigCreekLower          2020     0.868     1.85          0.428
10 BigCreekMiddle         2018     0.933     1.20          0.338
# ℹ 422 more rows

2.2 Flow by PASTA

Create plotting function

Code

mdaystib <- tibble(Month = c(1:12), mdays = c(31,28,31,30,31,30,31,31,30,31,30,31))

gwflowfun <- function (subbas, years, dropsites, months = c(7:9)) {
  dat_clean %>%
  filter(subbasin == subbas, CalendarYear %in% years, Month %in% months) %>%
  group_by(site_name, subbasin, designation, CalendarYear) %>% #, Month, MonthName) %>%
  summarise(ss = n(),
            logYield = mean(logYield, na.rm = TRUE)) %>%
  ungroup() %>%
  #left_join(mdaystib) %>%
  mutate(pdays = ss/92#,
         #YearMonth = paste(CalendarYear, "_", Month, sep = "")
         ) %>%
  filter(pdays > 0.9,
         !site_name %in% dropsites) %>%
  group_by(CalendarYear) %>%
  #mutate(z_logYield = scale(logYield, center = TRUE, scale = TRUE)[,1]) %>%
  ungroup() %>%
  left_join(pasta) %>%
  ggplot(aes(x = amplitudeRatio, y = logYield)) +
  geom_abline(intercept = 0, slope = 0, linetype = 2) +
  geom_smooth(method = "lm", color = "black") +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear, nrow = 1) +
  #facet_wrap2(~CalendarYear, nrow = 1, ncol = 5, trim_blank = FALSE) +
  #facet_grid(cols = vars(Month), rows = vars(CalendarYear)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())
}

Get unique basins

Code

unique(dat_clean$basin)

[1] "West Brook"     "Paine Run"      "Staunton River" "Flathead"
[5] "Snake River"    "Shields River"  "Donner Blitzen"

Plot the relationship between annual summer mean discharge and amplitude ratio from PASTA, where lower amplitude ratio values are indicative of greater groundwater availability. Mean flow for each site is standardized by year to remove interannual variation in climate/regional water availability

Code

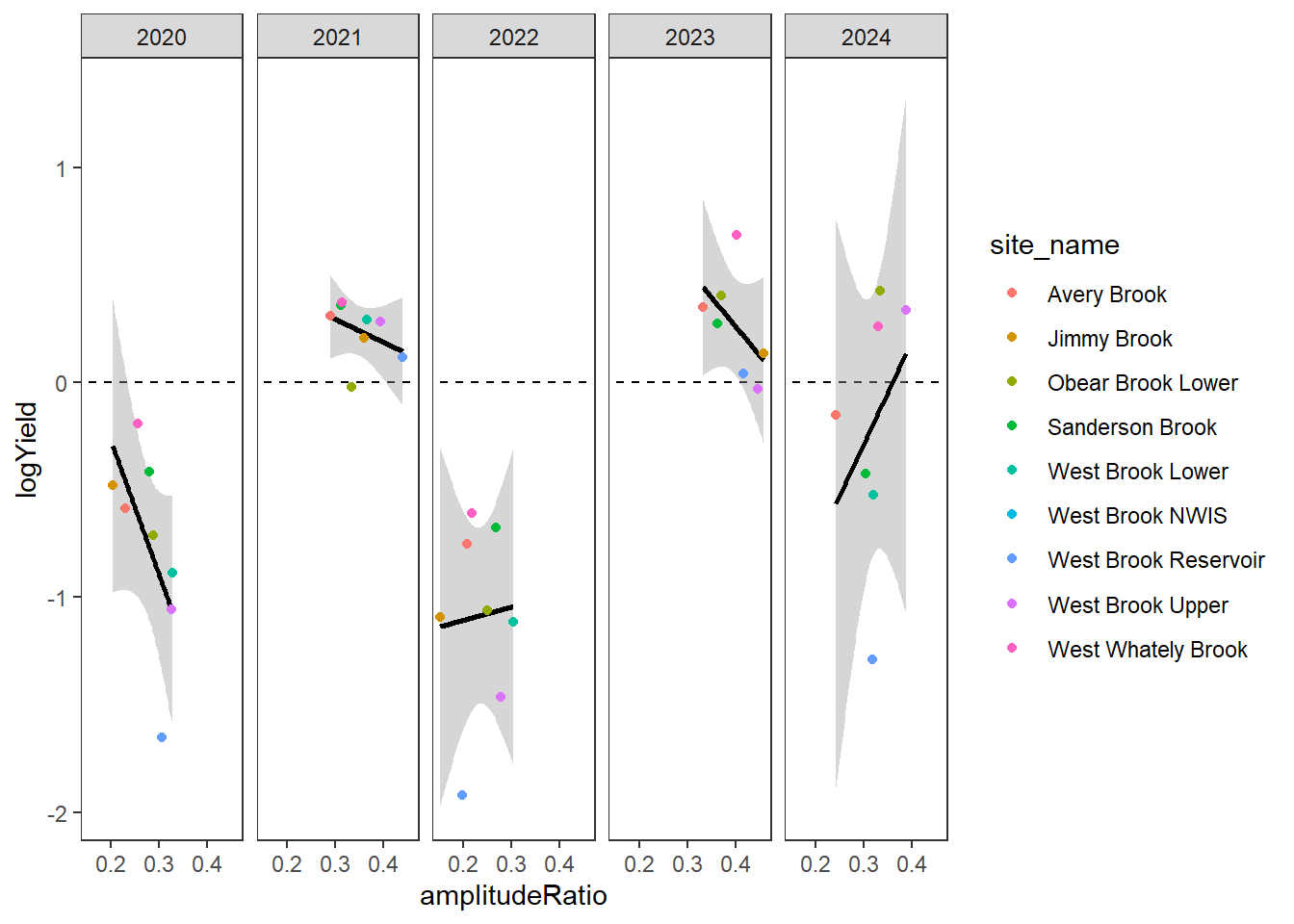

gwflowfun(subbas = "West Brook", dropsites = c("Mitchell Brook"), years = c(2020:2024))

Code

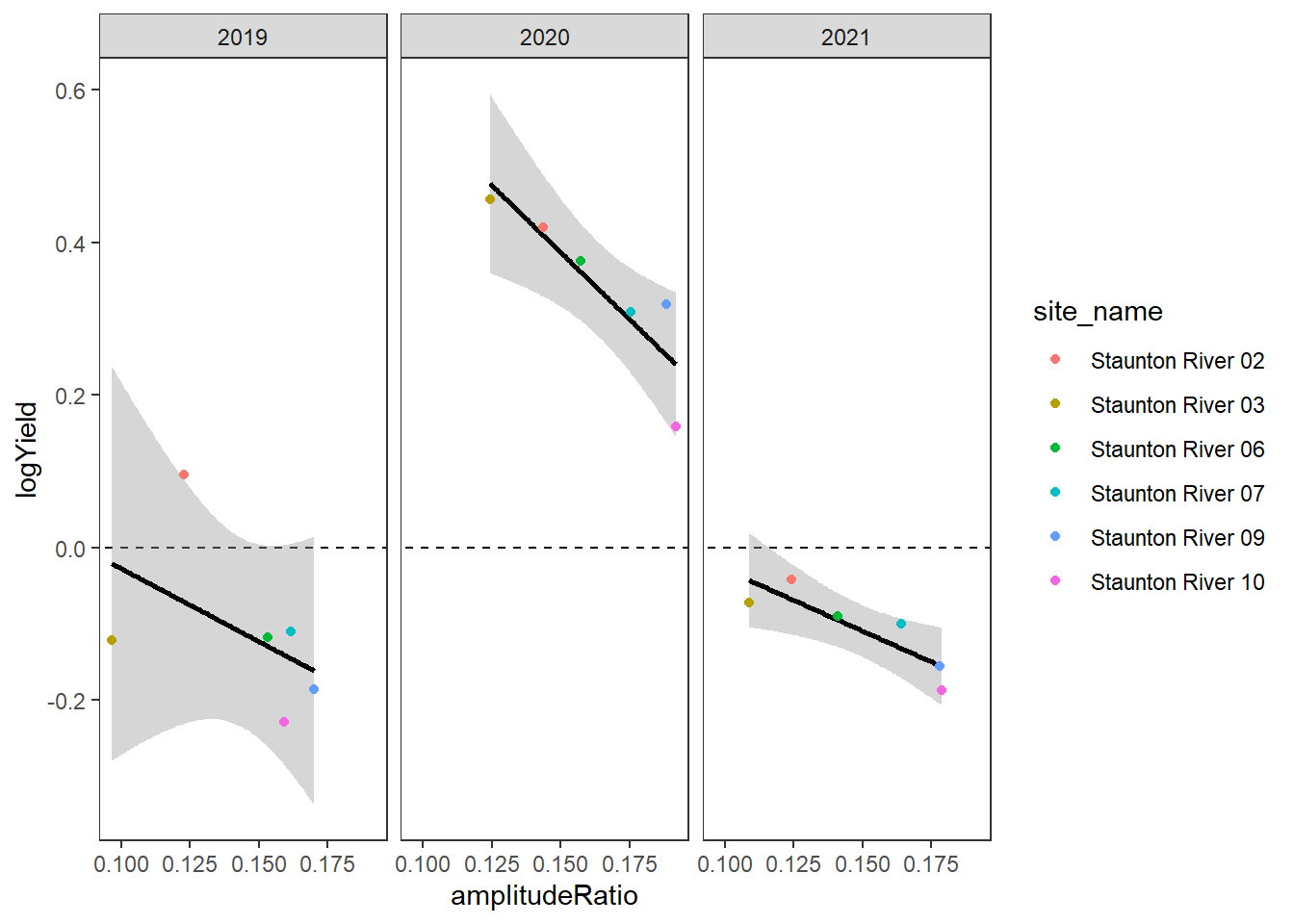

gwflowfun(subbas = "Staunton River", dropsites = NA, years = c(2019:2021))

Code

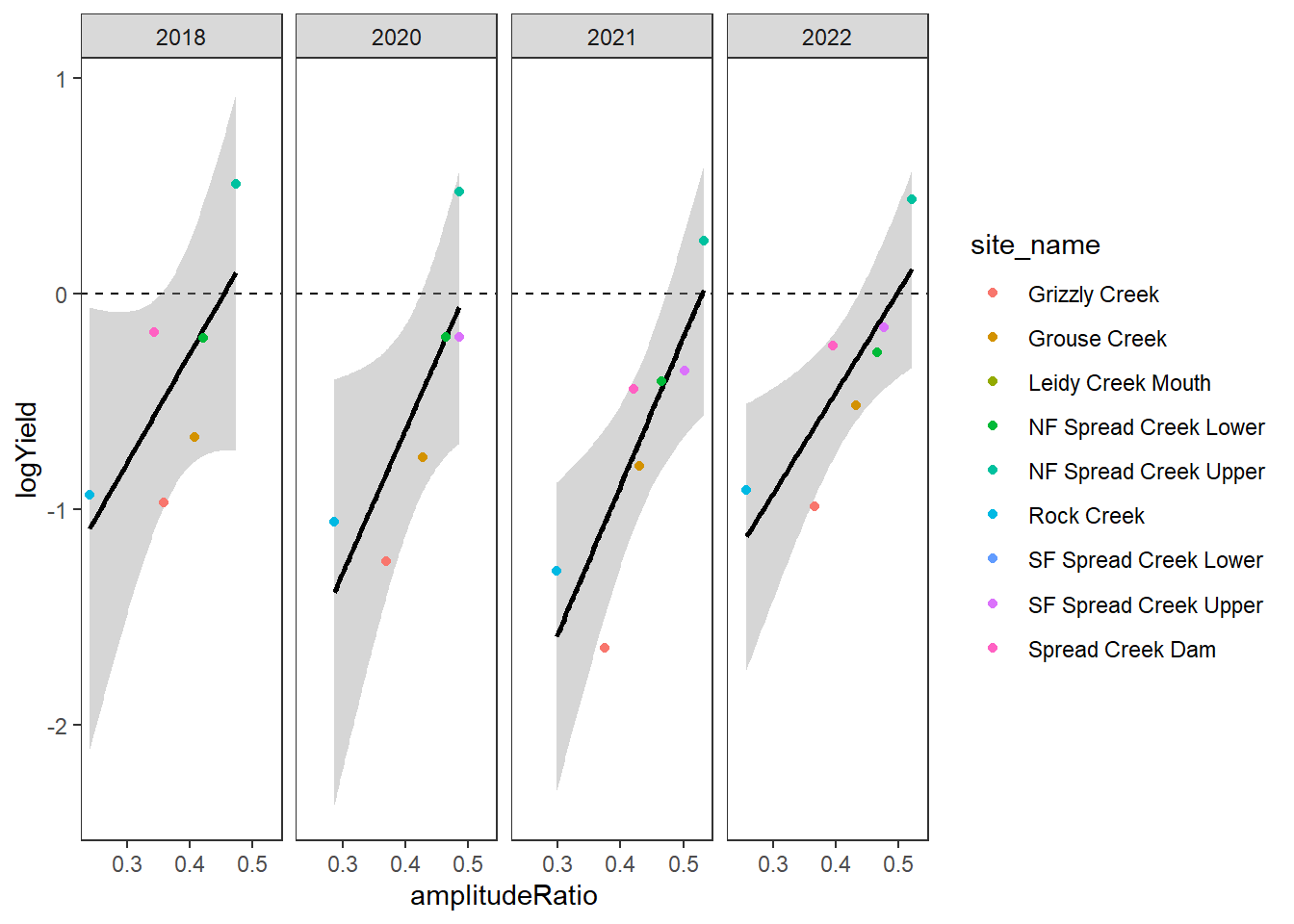

gwflowfun(subbas = "Snake River", dropsites = NA, years = c(2018, 2020:2022), months = c(7:9))

Code

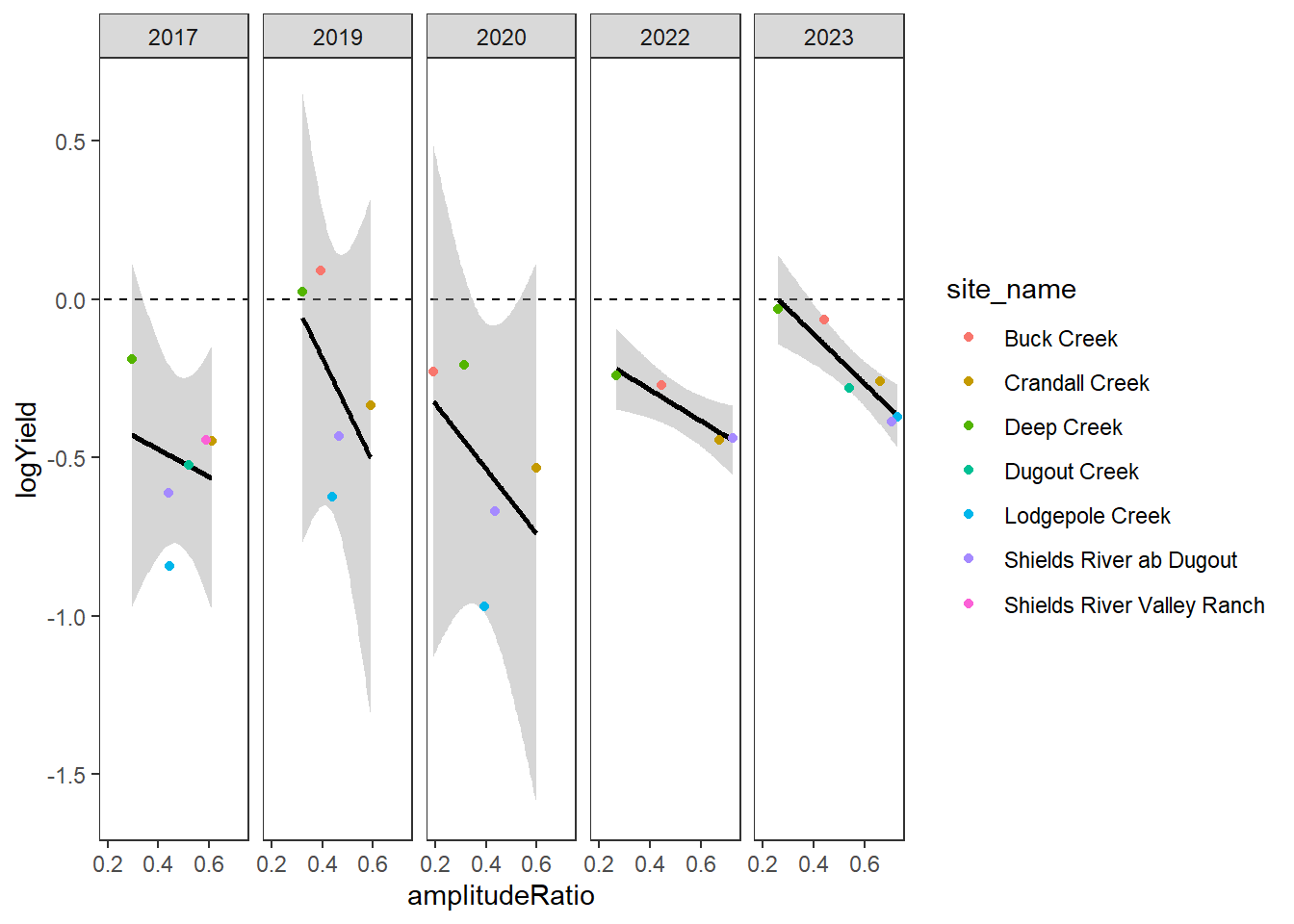

gwflowfun(subbas = "Shields River", dropsites = NA, years = c(2017,2019,2020,2022,2023), months = c(7:9))

2.3 Flow by GWI

2.3.1 Visualize GW metrics

Load spatially explicity groundwater indices for the entire Snake River basin

Code

springprev_cont <- vect("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Snake Groundwater/GroundwaterMetrics_Normalized_PredPoints.shp")

Plot groundwater spring prevalence across upper Snake River basin, springprev_point: spring prevalence value (10mx10m cell) every 300 m along the entire spring network (too large to plot interactive maps in Quarto)

Code

mapview(st_as_sf(springprev_cont), zcol = "springpre0", col.regions = colorRampPalette(rev(magma(12))), alpha.regions = 1)

Plot inverse distance weighted (5 km decay) groundwater index across upper Snake River basin, springprev_iew05km: mean spring prevalence within contributing catchment, inverse distance weighted with 5 km decay, every 300 m along the entire spring network (too large to plot interactive maps in Quarto)

Code

mapview(st_as_sf(springprev_cont), zcol = "springpre3", col.regions = colorRampPalette(rev(viridis(12))), alpha.regions = 1)

Plot groundwater metrics across the Spread Creek sub-basin

Code

sheds <- terra::project(sheds, crs(springprev_cont))

springprev_cont_snake <- mask(crop(springprev_cont, sheds[sheds$site_name == "Spread Creek Dam",]), sheds[sheds$site_name == "Spread Creek Dam",])

mynet <- vect("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams/Snake_Streams.shp")
crs(mynet) <- crs(siteinfo_sp)
mynet <- terra::project(mynet, crs(sheds))
mynet <- crop(mynet, sheds[sheds$site_name == "Spread Creek Dam",])

# convert to SpatVectors
sites_flow <- vect(siteinfo_sp %>% filter(basin == "Snake River"))
# sheds <- vect(sheds)

# transform
sites_flow <- terra::project(sites_flow, crs(springprev))
sheds <- terra::project(sheds, crs(springprev))

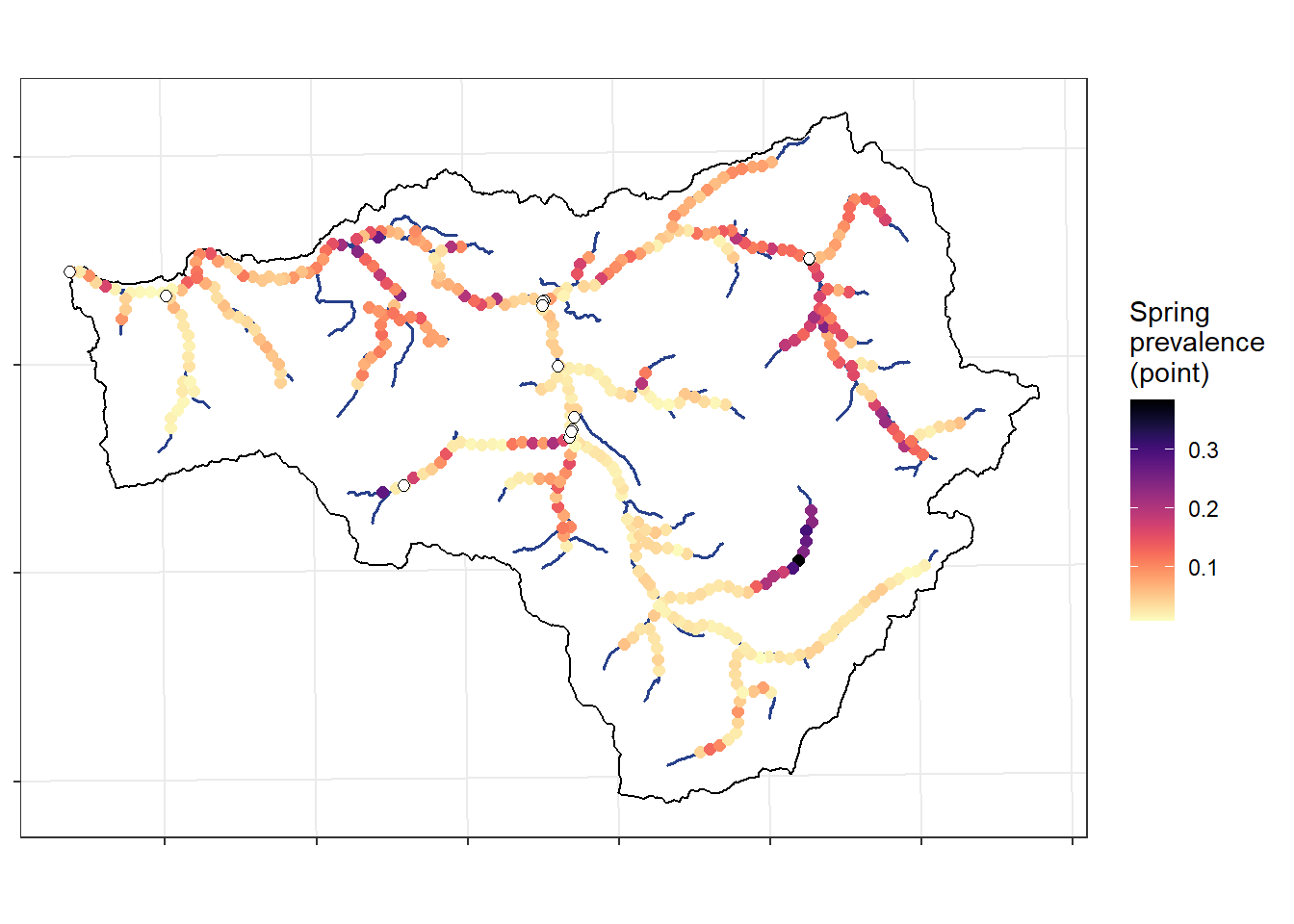

Point-wise spring prevalence

Code

ggplot() +
  geom_sf(data = st_as_sf(sheds[sheds$site_name == "Spread Creek Dam",]), color = "black", fill = "white", linewidth = 0.4) +
  geom_sf(data = st_as_sf(mynet), color = "white", linewidth = 1, lineend = "round") +
  geom_sf(data = st_as_sf(mynet), color = "royalblue4", linewidth = 0.6, lineend = "round") +
  geom_sf(data = st_as_sf(springprev_cont_snake), aes(colour = springpre0), size = 2) +
  scale_colour_viridis(option = "A", direction = -1, limits = range(springprev_cont_snake$springpre0), na.value = "grey") +
  geom_sf(data = st_as_sf(sites_flow) %>% filter(designation != "big"), shape = 21, fill = "white", size = 2) +
  labs(colour = "Spring\nprevalence\n(point)") + #annotation_scale() +
  theme_bw() + theme(axis.title.x = element_blank(), axis.title.y = element_blank(), axis.text = element_blank())

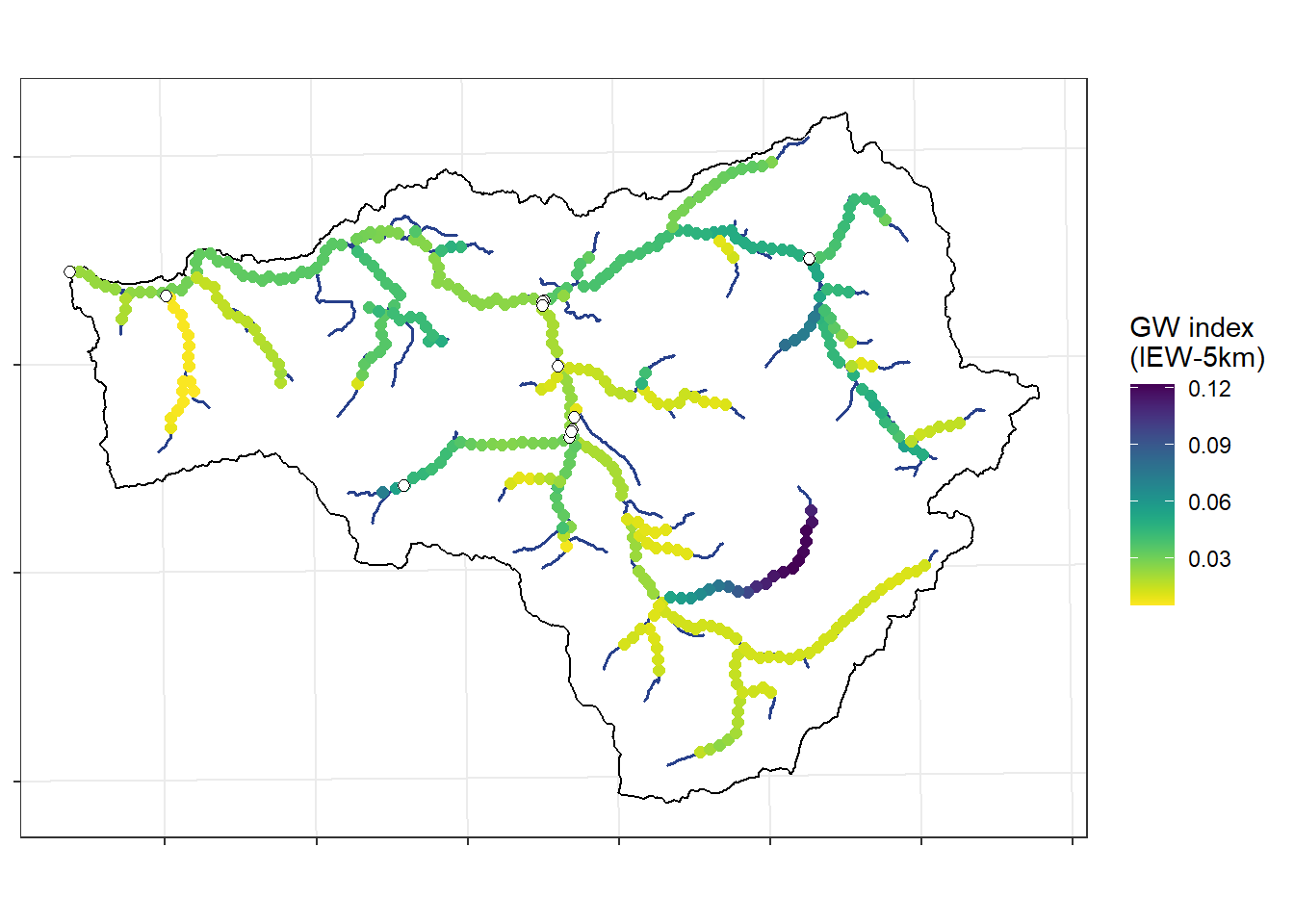

Groundwater index (IEW-5km)

Code

ggplot() +
  geom_sf(data = st_as_sf(sheds[sheds$site_name == "Spread Creek Dam",]), color = "black", fill = "white", linewidth = 0.4) +
  geom_sf(data = st_as_sf(mynet), color = "white", linewidth = 1, lineend = "round") +
  geom_sf(data = st_as_sf(mynet), color = "royalblue4", linewidth = 0.6, lineend = "round") +
  geom_sf(data = st_as_sf(springprev_cont_snake), aes(colour = springpre3), size = 2) +
  scale_colour_viridis(option = "D", direction = -1, limits = range(springprev_cont_snake$springpre3), na.value = "grey") +
  geom_sf(data = st_as_sf(sites_flow) %>% filter(designation != "big"), shape = 21, fill = "white", size = 2) +
  labs(colour = "GW index\n(IEW-5km)") + #annotation_scale() +
  theme_bw() + theme(axis.title.x = element_blank(), axis.title.y = element_blank(), axis.text = element_blank())

2.3.2 Get GWI for EcoD sites

Extract groundwater metrics from MaxEnt spring prevalence model, for the EcoDrought sites

Code

# extract average and weighted spring prevalence for each basin
sites <- sheds$site_name
gwlist <- list()
st <- Sys.time()
for (i in 1:length(sites)) {
  spring_mask <- mask(crop(springprev, sheds[sheds$site_name == sites[i],]), sheds[sheds$site_name == sites[i],]) # crop and mask by basin
  dist_rast <- distance(spring_mask, sites_flow[sites_flow$site_name == sites[i],]) %>% mask(spring_mask) # calculate distance between each raster cell and site location
  gwlist[[i]] <- tibble(site_name = sites[i],
                        area_sqmi = sites_flow$area_sqmi[i],
                        springprev_point = terra::extract(springprev, sites_flow[sites_flow$site_name == sites[i],], na.rm = TRUE)[,2],
                        springprev_basinmean = as.numeric(global(spring_mask, "mean", na.rm = T)), # extract(spring_buff, sheds_yoy[sheds_yoy$site == sites[i],], fun = mean, na.rm = TRUE)[,2],
                        springprev_iew01km = as.numeric(global(spring_mask * (1 / exp(dist_rast/1000)), "sum", na.rm = T) / global(1 / exp(dist_rast/1000), "sum", na.rm = T)),
                        springprev_iew05km = as.numeric(global(spring_mask * (1 / exp(dist_rast/5000)), "sum", na.rm = T) / global(1 / exp(dist_rast/5000), "sum", na.rm = T))
                        )
  print(i)
}
Sys.time() - st
gwmetrics_snake <- do.call(rbind, gwlist) # bind as tibble

View groundwater metrics for the EcoDrought sites:

springprev_point: spring prevalence value at the monitoring location (10mx10m cell)
springprev_basinmean: mean spring prevalence within the contributing catchment
springprev_iew01km: mean spring prevalence within contributing catchment, inverse distance weighted with 1 km decay
springprev_iew05km: mean spring prevalence within contributing catchment, inverse distance weighted with 5 km decay

Code

datatable(gwmetrics_snake %>% mutate(across(where(is.numeric), ~ round(., 3))))

2.3.3 Flow by GWI

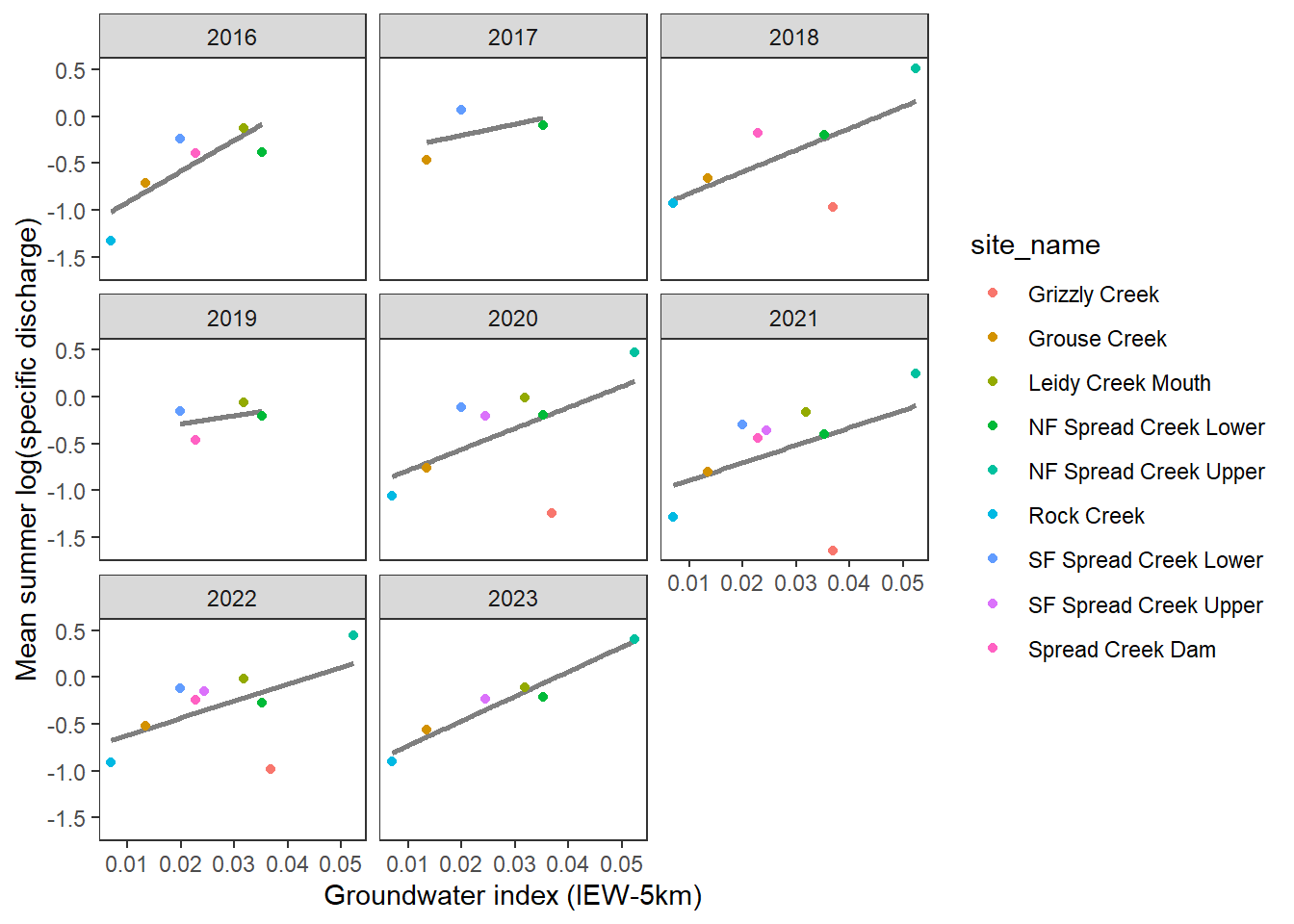

Plot relationship between groundwater availability and mean summer log(specific discharge).

Code

dat_summer <- dat_clean %>%
  filter(basin == "Snake River", Month %in% c(7:9)) %>%
  group_by(site_name, basin, designation, WaterYear) %>% #, Month, MonthName) %>%
  summarise(ndays = n(),
            logYield_mean = mean(logYield, na.rm = TRUE),
            logYield_min = min(logYield, na.rm = TRUE)) %>%
  ungroup() %>%
  mutate(pdays = ndays/92) %>%
  filter(pdays > 0.9) %>%
  left_join(gwmetrics_snake) #%>%
  #left_join(wateravail %>% filter(basin == "Snake River") %>% select(WaterYear, totalyield_sum, totalyield_sum_z))

#summary(lm(logYield_mean ~ springprev_iew05km*totalyield_sum, data = dat_summer))

dat_summer %>%
  #filter(site_name != "Grizzly Creek") %>%
  #filter(WaterYear %in% c(2020:2023)) %>%
  ggplot(aes(x = springprev_iew05km, y = logYield_mean)) +
  geom_smooth(method = "lm", aes(x = springprev_iew05km, y = logYield_mean), se = FALSE, color = "grey50") +
  geom_point(aes(color = site_name)) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Groundwater index (IEW-5km)") + ylab("Mean summer log(specific discharge)") +
  facet_wrap(~WaterYear)

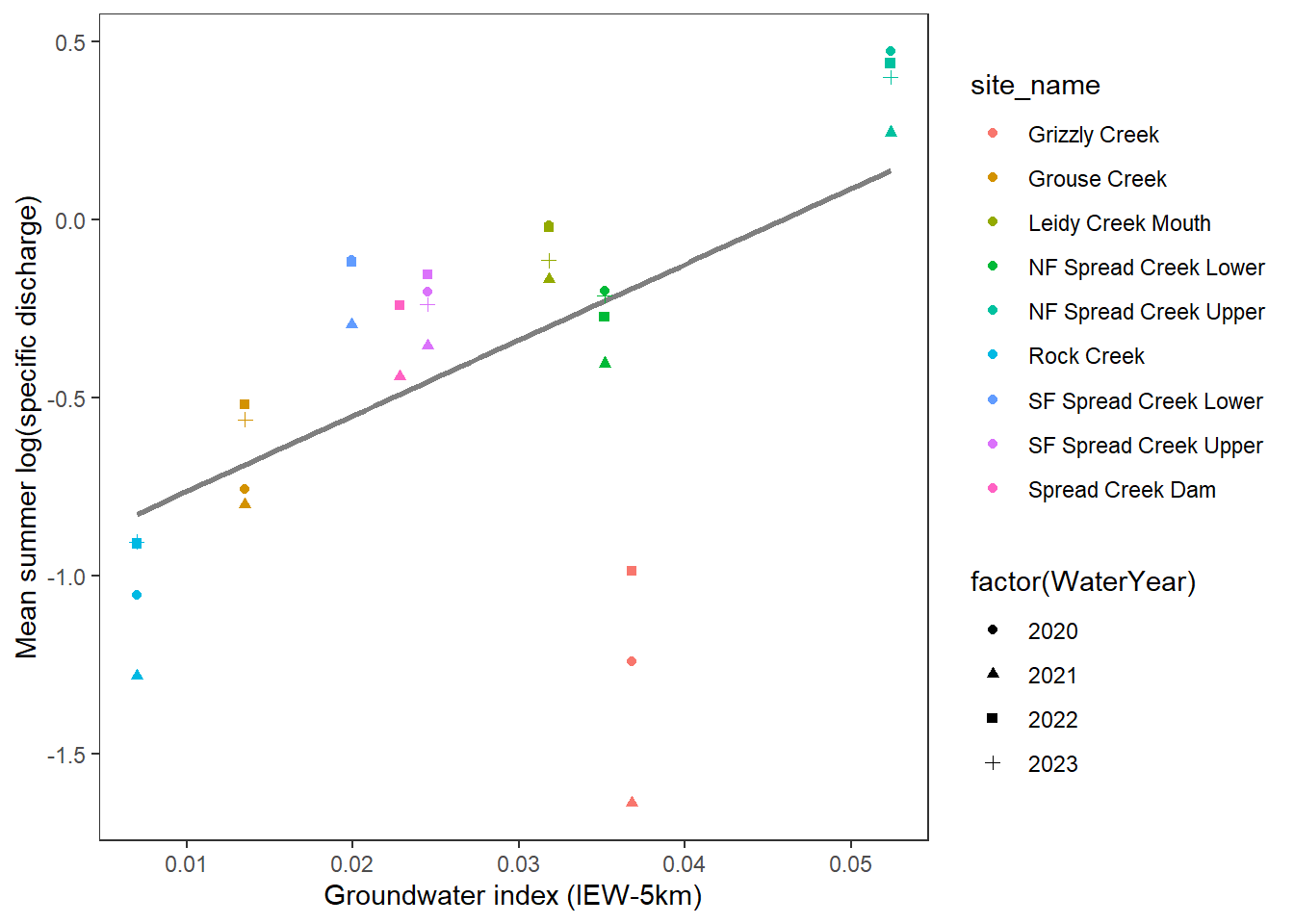

Code

dat_summer %>%
  filter(WaterYear %in% c(2020:2023)) %>%
  ggplot(aes(x = springprev_iew05km, y = logYield_mean)) +
  geom_smooth(method = "lm", aes(x = springprev_iew05km, y = logYield_mean), se = FALSE, color = "grey50") +
  geom_point(aes(color = site_name, shape = factor(WaterYear))) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Groundwater index (IEW-5km)") + ylab("Mean summer log(specific discharge)")

With the exception of Grizzly Creek, there is a surprisingly tight relationship between the groundwater index and summer streamflow: higher water availability (specific discharge) in reaches with high groundwater availability. Not surprising, but it’s a very nice validation of the MaxEnt approach to estimating groundwater availability and links to summer habitat conditions (e.g., drought refugia).

Grizzly is the exception: high groundwater index despite very low flows. I’ve never been there, so I’m wondering what Robert makes of this. One thought I had is that where discharge is measured may be out on an alluvial fan, which may be in a losing reach as water spread outs into more porous material. We built the groundwater model to estimate the prevalence of springs, not where water is lost to the subsurface. So the groundwater index would not reflect these more nuanced dynamics. Alternatively (or additionally), looking at satellite imagery, there is a large beaver complex just upstream of the discharge monitoring site…which may reduce surface flows immediately downstream as shallow sediments are recharged. Scanning satellite imagery, it is pretty clear where springs discharge in the headwaters of Grizzly Creek. So, the MaxEnt model may not necessarily be wrong, but it doesn’t account for other factors which have important effects on streamflow at even finer spatial scales.

2.4 PASTA by GWI

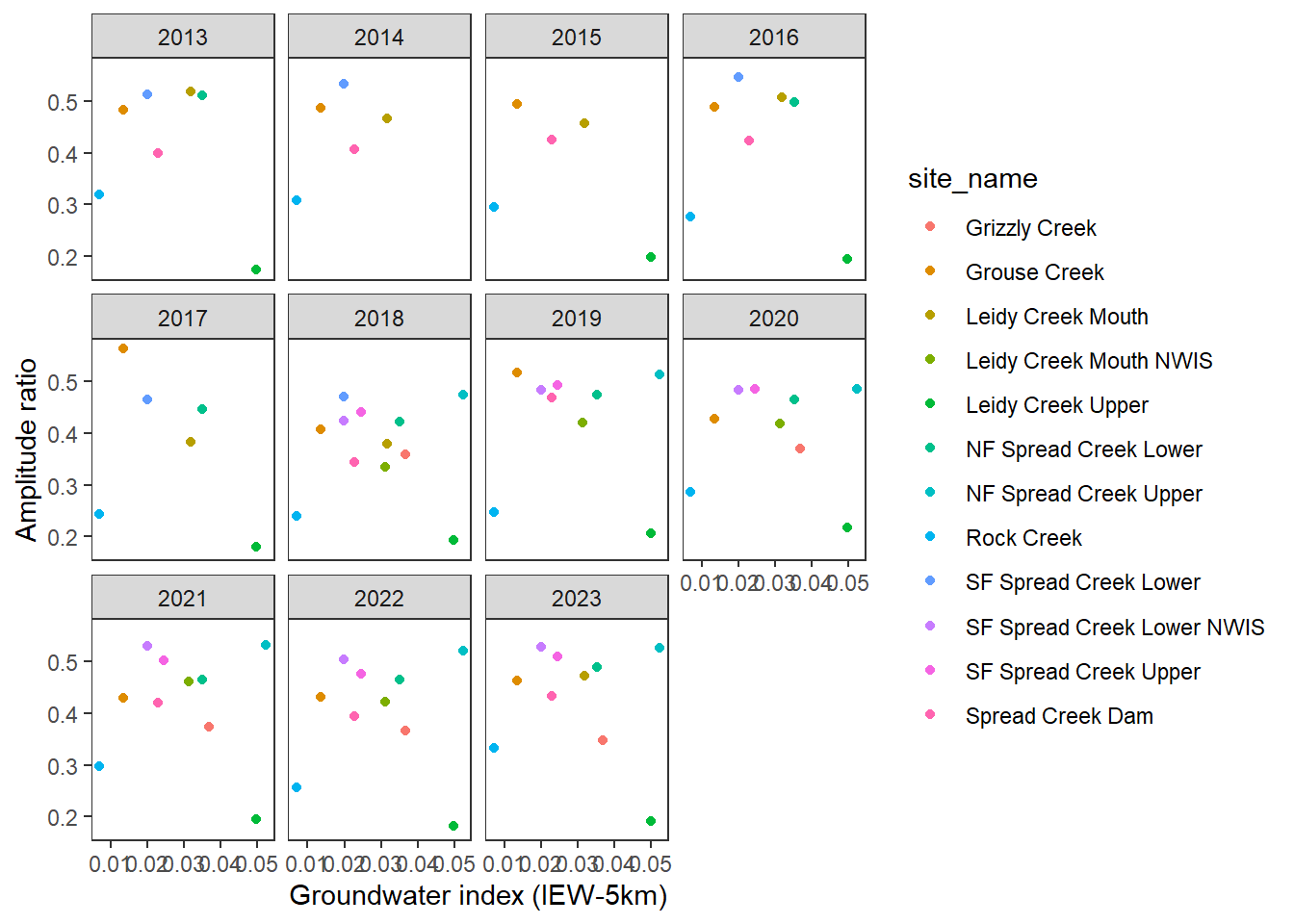

2.4.1 Groundwater index

Code

pasta %>% left_join(gwmetrics_snake) %>%
  filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>%
  ggplot(aes(x = springprev_iew05km, y = amplitudeRatio)) +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Groundwater index (IEW-5km)") + ylab("Amplitude ratio")

Code

pasta %>% left_join(gwmetrics_snake) %>%
  filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>%
  ggplot(aes(x = springprev_iew05km, y = phaseLag)) +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Groundwater index (IEW-5km)") + ylab("Phase lag")

Code

pasta %>% left_join(gwmetrics_snake) %>%
  filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>%
  ggplot(aes(x = springprev_iew05km, y = meanRatio)) +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Groundwater index (IEW-5km)") + ylab("Mean ratio")

2.4.2 Spring prevalence

Code

pasta %>% left_join(gwmetrics_snake) %>%
  filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>%
  ggplot(aes(x = springprev_point, y = amplitudeRatio)) +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Spring prevalence") + ylab("Amplitude ratio")

Code

pasta %>% left_join(gwmetrics_snake) %>%
  filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>%
  ggplot(aes(x = springprev_point, y = phaseLag)) +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Spring prevalence") + ylab("Phase lag")

Code

pasta %>% left_join(gwmetrics_snake) %>%
  filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>%
  ggplot(aes(x = springprev_point, y = meanRatio)) +
  geom_point(aes(color = site_name)) +
  facet_wrap(~CalendarYear) +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Spring prevalence") + ylab("Mean ratio")

--- title: "Explore Data" --- ```{r, include = FALSE} library(tidyverse) library(mapview) library(sf) library(terra) library(ggpubr) library(dygraphs) library(htmlwidgets) library(knitr) library(RColorBrewer) library(scales) library(GGally) library(ggh4x) library(DT) library(viridis) ``` ## Data Site information ```{r} siteinfo <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_SiteInformation.csv") siteinfo_sp <- st_as_sf(siteinfo, coords = c("long", "lat"), crs = 4326) ``` Little g's ```{r} dat_clean <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/LittleG_data_clean.csv") ``` Big G's ```{r} dat_clean_big <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_data_clean.csv") ``` Watersheds (filter to Snake River only) ```{r results='hide'} sheds_list <- list() myfiles <- list.files(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", pattern = ".shp") for (i in 1:length(myfiles)) { sheds_list[[i]] <- st_read(paste("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", myfiles[i], sep = "")) } sheds <- do.call(rbind, sheds_list) %>% mutate(site_id = ifelse(site_id == "SP01", "SP07", ifelse(site_id == "SP07", "SP01", site_id))) %>% left_join(siteinfo) %>% filter(basin == "Snake River") sheds <- vect(st_transform(sheds, crs = crs(siteinfo_sp))) #mapview(sheds %>% arrange(desc(area_sqmi)), alpha.regions = 0.2) ``` Spring prevalence (Snake only) ```{r fig.width=5, fig.height=7.5} springprev <- rast("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Snake Groundwater/SpringPrev_UpperSnake_BedSurf_nolakes_flowbuff100.tif") #plot(springprev) ``` Diel PASTA derived parameters (for EcoDrought sites) - summarize as July-September site-specific means: ```{r} pasta <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Covariates/pasta_derived_parameters_daily.csv") %>% mutate(Month = month(date)) %>% rename(CalendarYear = year) %>% filter(Month %in% c(7:9)) %>% group_by(site_name, CalendarYear) %>% summarize(meanRatio = mean(meanRatio, na.rm = TRUE), phaseLag = mean(phaseLag, na.rm = TRUE), amplitudeRatio = mean(amplitudeRatio, na.rm = TRUE)) %>% ungroup() pasta ``` ## Flow by PASTA Create plotting function ```{r} mdaystib <- tibble(Month = c(1:12), mdays = c(31,28,31,30,31,30,31,31,30,31,30,31)) gwflowfun <- function (subbas, years, dropsites, months = c(7:9)) { dat_clean %>% filter(subbasin == subbas, CalendarYear %in% years, Month %in% months) %>% group_by(site_name, subbasin, designation, CalendarYear) %>% #, Month, MonthName) %>% summarise(ss = n(), logYield = mean(logYield, na.rm = TRUE)) %>% ungroup() %>% #left_join(mdaystib) %>% mutate(pdays = ss/92#, #YearMonth = paste(CalendarYear, "_", Month, sep = "") ) %>% filter(pdays > 0.9, !site_name %in% dropsites) %>% group_by(CalendarYear) %>% #mutate(z_logYield = scale(logYield, center = TRUE, scale = TRUE)[,1]) %>% ungroup() %>% left_join(pasta) %>% ggplot(aes(x = amplitudeRatio, y = logYield)) + geom_abline(intercept = 0, slope = 0, linetype = 2) + geom_smooth(method = "lm", color = "black") + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear, nrow = 1) + #facet_wrap2(~CalendarYear, nrow = 1, ncol = 5, trim_blank = FALSE) + #facet_grid(cols = vars(Month), rows = vars(CalendarYear)) + theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank()) } ``` Get unique basins ```{r} unique(dat_clean$basin) ``` Plot the relationship between annual summer mean discharge and amplitude ratio from PASTA, where lower amplitude ratio values are indicative of greater groundwater availability. Mean flow for each site is standardized by year to remove interannual variation in climate/regional water availability ::: panel-tabset #### West Brook ```{r} gwflowfun(subbas = "West Brook", dropsites = c("Mitchell Brook"), years = c(2020:2024)) ``` #### Staunton River ```{r} gwflowfun(subbas = "Staunton River", dropsites = NA, years = c(2019:2021)) ``` #### Snake River ```{r} gwflowfun(subbas = "Snake River", dropsites = NA, years = c(2018, 2020:2022), months = c(7:9)) ``` #### Shields River ```{r} gwflowfun(subbas = "Shields River", dropsites = NA, years = c(2017,2019,2020,2022,2023), months = c(7:9)) ``` ::: ## Flow by GWI ### Visualize GW metrics Load spatially explicity groundwater indices for the entire Snake River basin ```{r} springprev_cont <- vect("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Snake Groundwater/GroundwaterMetrics_Normalized_PredPoints.shp") ``` Plot groundwater spring prevalence across upper Snake River basin, *springprev_point*: spring prevalence value (10mx10m cell) every 300 m along the entire spring network (too large to plot interactive maps in Quarto) ```{r eval=FALSE} mapview(st_as_sf(springprev_cont), zcol = "springpre0", col.regions = colorRampPalette(rev(magma(12))), alpha.regions = 1) ``` Plot inverse distance weighted (5 km decay) groundwater index across upper Snake River basin, *springprev_iew05km*: mean spring prevalence within contributing catchment, inverse distance weighted with 5 km decay, every 300 m along the entire spring network (too large to plot interactive maps in Quarto) ```{r eval=FALSE} mapview(st_as_sf(springprev_cont), zcol = "springpre3", col.regions = colorRampPalette(rev(viridis(12))), alpha.regions = 1) ``` Plot groundwater metrics across the Spread Creek sub-basin ```{r} sheds <- terra::project(sheds, crs(springprev_cont)) springprev_cont_snake <- mask(crop(springprev_cont, sheds[sheds$site_name == "Spread Creek Dam",]), sheds[sheds$site_name == "Spread Creek Dam",]) mynet <- vect("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams/Snake_Streams.shp") crs(mynet) <- crs(siteinfo_sp) mynet <- terra::project(mynet, crs(sheds)) mynet <- crop(mynet, sheds[sheds$site_name == "Spread Creek Dam",]) # convert to SpatVectors sites_flow <- vect(siteinfo_sp %>% filter(basin == "Snake River")) # sheds <- vect(sheds) # transform sites_flow <- terra::project(sites_flow, crs(springprev)) sheds <- terra::project(sheds, crs(springprev)) ``` Point-wise spring prevalence ```{r} ggplot() + geom_sf(data = st_as_sf(sheds[sheds$site_name == "Spread Creek Dam",]), color = "black", fill = "white", linewidth = 0.4) + geom_sf(data = st_as_sf(mynet), color = "white", linewidth = 1, lineend = "round") + geom_sf(data = st_as_sf(mynet), color = "royalblue4", linewidth = 0.6, lineend = "round") + geom_sf(data = st_as_sf(springprev_cont_snake), aes(colour = springpre0), size = 2) + scale_colour_viridis(option = "A", direction = -1, limits = range(springprev_cont_snake$springpre0), na.value = "grey") + geom_sf(data = st_as_sf(sites_flow) %>% filter(designation != "big"), shape = 21, fill = "white", size = 2) + labs(colour = "Spring\nprevalence\n(point)") + #annotation_scale() + theme_bw() + theme(axis.title.x = element_blank(), axis.title.y = element_blank(), axis.text = element_blank()) ``` Groundwater index (IEW-5km) ```{r} ggplot() + geom_sf(data = st_as_sf(sheds[sheds$site_name == "Spread Creek Dam",]), color = "black", fill = "white", linewidth = 0.4) + geom_sf(data = st_as_sf(mynet), color = "white", linewidth = 1, lineend = "round") + geom_sf(data = st_as_sf(mynet), color = "royalblue4", linewidth = 0.6, lineend = "round") + geom_sf(data = st_as_sf(springprev_cont_snake), aes(colour = springpre3), size = 2) + scale_colour_viridis(option = "D", direction = -1, limits = range(springprev_cont_snake$springpre3), na.value = "grey") + geom_sf(data = st_as_sf(sites_flow) %>% filter(designation != "big"), shape = 21, fill = "white", size = 2) + labs(colour = "GW index\n(IEW-5km)") + #annotation_scale() + theme_bw() + theme(axis.title.x = element_blank(), axis.title.y = element_blank(), axis.text = element_blank()) ``` ### Get GWI for EcoD sites Extract groundwater metrics from MaxEnt spring prevalence model, for the EcoDrought sites ```{r results='hide'} # extract average and weighted spring prevalence for each basin sites <- sheds$site_name gwlist <- list() st <- Sys.time() for (i in 1:length(sites)) { spring_mask <- mask(crop(springprev, sheds[sheds$site_name == sites[i],]), sheds[sheds$site_name == sites[i],]) # crop and mask by basin dist_rast <- distance(spring_mask, sites_flow[sites_flow$site_name == sites[i],]) %>% mask(spring_mask) # calculate distance between each raster cell and site location gwlist[[i]] <- tibble(site_name = sites[i], area_sqmi = sites_flow$area_sqmi[i], springprev_point = terra::extract(springprev, sites_flow[sites_flow$site_name == sites[i],], na.rm = TRUE)[,2], springprev_basinmean = as.numeric(global(spring_mask, "mean", na.rm = T)), # extract(spring_buff, sheds_yoy[sheds_yoy$site == sites[i],], fun = mean, na.rm = TRUE)[,2], springprev_iew01km = as.numeric(global(spring_mask * (1 / exp(dist_rast/1000)), "sum", na.rm = T) / global(1 / exp(dist_rast/1000), "sum", na.rm = T)), springprev_iew05km = as.numeric(global(spring_mask * (1 / exp(dist_rast/5000)), "sum", na.rm = T) / global(1 / exp(dist_rast/5000), "sum", na.rm = T)) ) print(i) } Sys.time() - st gwmetrics_snake <- do.call(rbind, gwlist) # bind as tibble ``` View groundwater metrics for the EcoDrought sites: * *springprev_point*: spring prevalence value at the monitoring location (10mx10m cell) * *springprev_basinmean*: mean spring prevalence within the contributing catchment * *springprev_iew01km*: mean spring prevalence within contributing catchment, inverse distance weighted with 1 km decay * *springprev_iew05km*: mean spring prevalence within contributing catchment, inverse distance weighted with 5 km decay ```{r} datatable(gwmetrics_snake %>% mutate(across(where(is.numeric), ~ round(., 3)))) ``` ### Flow by GWI Plot relationship between groundwater availability and mean summer log(specific discharge). ```{r} dat_summer <- dat_clean %>% filter(basin == "Snake River", Month %in% c(7:9)) %>% group_by(site_name, basin, designation, WaterYear) %>% #, Month, MonthName) %>% summarise(ndays = n(), logYield_mean = mean(logYield, na.rm = TRUE), logYield_min = min(logYield, na.rm = TRUE)) %>% ungroup() %>% mutate(pdays = ndays/92) %>% filter(pdays > 0.9) %>% left_join(gwmetrics_snake) #%>% #left_join(wateravail %>% filter(basin == "Snake River") %>% select(WaterYear, totalyield_sum, totalyield_sum_z)) #summary(lm(logYield_mean ~ springprev_iew05km*totalyield_sum, data = dat_summer)) dat_summer %>% #filter(site_name != "Grizzly Creek") %>% #filter(WaterYear %in% c(2020:2023)) %>% ggplot(aes(x = springprev_iew05km, y = logYield_mean)) + geom_smooth(method = "lm", aes(x = springprev_iew05km, y = logYield_mean), se = FALSE, color = "grey50") + geom_point(aes(color = site_name)) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Groundwater index (IEW-5km)") + ylab("Mean summer log(specific discharge)") + facet_wrap(~WaterYear) dat_summer %>% filter(WaterYear %in% c(2020:2023)) %>% ggplot(aes(x = springprev_iew05km, y = logYield_mean)) + geom_smooth(method = "lm", aes(x = springprev_iew05km, y = logYield_mean), se = FALSE, color = "grey50") + geom_point(aes(color = site_name, shape = factor(WaterYear))) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Groundwater index (IEW-5km)") + ylab("Mean summer log(specific discharge)") ``` With the exception of Grizzly Creek, there is a surprisingly tight relationship between the groundwater index and summer streamflow: higher water availability (specific discharge) in reaches with high groundwater availability. Not surprising, but it's a very nice validation of the MaxEnt approach to estimating groundwater availability and links to summer habitat conditions (e.g., drought refugia). Grizzly is the exception: high groundwater index despite very low flows. I've never been there, so I'm wondering what Robert makes of this. One thought I had is that where discharge is measured may be out on an alluvial fan, which may be in a losing reach as water spread outs into more porous material. We built the groundwater model to estimate the prevalence of springs, not where water is lost to the subsurface. So the groundwater index would not reflect these more nuanced dynamics. Alternatively (or additionally), looking at satellite imagery, there is a large beaver complex just upstream of the discharge monitoring site...which may reduce surface flows immediately downstream as shallow sediments are recharged. Scanning satellite imagery, it is pretty clear where springs discharge in the headwaters of Grizzly Creek. So, the MaxEnt model may not necessarily be wrong, but it doesn't account for other factors which have important effects on streamflow at even finer spatial scales. ## PASTA by GWI ### Groundwater index ::: panel-tabset #### Amplitude ratio ```{r} pasta %>% left_join(gwmetrics_snake) %>% filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>% ggplot(aes(x = springprev_iew05km, y = amplitudeRatio)) + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Groundwater index (IEW-5km)") + ylab("Amplitude ratio") ``` #### Phase lag ```{r} pasta %>% left_join(gwmetrics_snake) %>% filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>% ggplot(aes(x = springprev_iew05km, y = phaseLag)) + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Groundwater index (IEW-5km)") + ylab("Phase lag") ``` #### Mean ratio ```{r} pasta %>% left_join(gwmetrics_snake) %>% filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>% ggplot(aes(x = springprev_iew05km, y = meanRatio)) + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Groundwater index (IEW-5km)") + ylab("Mean ratio") ``` ::: ### Spring prevalence ::: panel-tabset #### Amplitude ratio ```{r} pasta %>% left_join(gwmetrics_snake) %>% filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>% ggplot(aes(x = springprev_point, y = amplitudeRatio)) + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Spring prevalence") + ylab("Amplitude ratio") ``` #### Phase lag ```{r} pasta %>% left_join(gwmetrics_snake) %>% filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>% ggplot(aes(x = springprev_point, y = phaseLag)) + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Spring prevalence") + ylab("Phase lag") ``` #### Mean ratio ```{r} pasta %>% left_join(gwmetrics_snake) %>% filter(!is.na(springprev_point), CalendarYear %in% c(2013:2023)) %>% ggplot(aes(x = springprev_point, y = meanRatio)) + geom_point(aes(color = site_name)) + facet_wrap(~CalendarYear) + theme_bw() + theme(panel.grid = element_blank()) + xlab("Spring prevalence") + ylab("Mean ratio") ``` :::
