6 Modeled Flow

Purpose: Quantify the suitability of existing modeling techniques (USGS StreamStats) for predicting streamflow in headwater systems.

6.1 Data

Site information

Code

siteinfo <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_SiteInformation.csv")
siteinfo_sp <- st_as_sf(siteinfo, coords = c("long", "lat"), crs = 4326)

Little g’s

Code

dat_clean <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/LittleG_data_clean.csv")

Big G’s

Code

dat_clean_big <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_data_clean.csv")

Climate

Code

climdf <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/Daymet_climate.csv")
climdf_summ <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/Daymet_climate_summary.csv")

Water availability

Code

wateravail <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_wateravailability_annual.csv")

Order sites: for colors, order sites from downstream to upstream (roughly) and by subbasin (if appropriate)

Code

wborder <- c("West Brook NWIS", "West Brook Lower", "Mitchell Brook", "Jimmy Brook", "Obear Brook Lower", "West Brook Upper", "West Brook Reservoir", "Sanderson Brook", "Avery Brook", "West Whately Brook")
paineorder <- c("Paine Run 10", "Paine Run 08", "Paine Run 07", "Paine Run 06", "Paine Run 02", "Paine Run 01")
stauntorder <- c("Staunton River 10", "Staunton River 09", "Staunton River 07", "Staunton River 06", "Staunton River 03", "Staunton River 02")
flatorder <- c("BigCreekLower", "LangfordCreekLower", "LangfordCreekUpper", "Big Creek NWIS", "BigCreekUpper", "HallowattCreekLower", "NicolaCreek", "WernerCreek", "Hallowat Creek NWIS", "CoalCreekLower", "CycloneCreekLower", "CycloneCreekMiddle", "CycloneCreekUpper", "CoalCreekMiddle", "CoalCreekNorth", "CoalCreekHeadwaters", "McGeeCreekLower", "McGeeCreekTrib", "McGeeCreekUpper")
yellorder <- c("Shields River Valley Ranch", "Deep Creek", "Crandall Creek", "Buck Creek", "Dugout Creek", "Shields River ab Dugout", "Lodgepole Creek", "EF Duck Creek be HF", "EF Duck Creek ab HF", "Henrys Fork")
snakeorder <- c("Spread Creek Dam", "Rock Creek", "NF Spread Creek Lower", "NF Spread Creek Upper", "Grizzly Creek", "SF Spread Creek Lower", "Grouse Creek", "SF Spread Creek Upper", "Leidy Creek Mouth")
donnerorder <- c("Fish Creek NWIS", "Donner Blitzen ab Fish NWIS", "Donner Blitzen nr Burnt Car NWIS", "Donner Blitzen ab Indian NWIS")

6.2 Stream Stats

Write out point shape files for each state to feed into Stream Stats batch processor

Code

siteinfo_sp_wy <- siteinfo_sp %>% filter(region == "Snake")
st_write(siteinfo_sp_wy, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/points/points_wy.shp")

siteinfo_sp_mt <- siteinfo_sp %>% filter(region %in% c("Flat", "Shields"))
st_write(siteinfo_sp_mt, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/points/points_mt.shp")

siteinfo_sp_ma <- siteinfo_sp %>% filter(region == "Mass")
st_write(siteinfo_sp_ma, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/points/points_ma.shp")

siteinfo_sp_va <- siteinfo_sp %>% filter(region %in% c("Shen"))
st_write(siteinfo_sp_va, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/points/points_va.shp")

siteinfo_sp_or <- siteinfo_sp %>% filter(region %in% c("Oreg"))
st_write(siteinfo_sp_or, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/points/points_or.shp")

List geodatabase layer names

Code

st_layers(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_mt7617/points_mt7617.gdb")

Driver: OpenFileGDB
Available layers:
            layer_name geometry_type features fields crs_name
1 GlobalWatershedPoint         Point       39      8   WGS 84
2      GlobalWatershed Multi Polygon       39     28   WGS 84
3      CHARACTERISTICS            NA     1921     11     <NA>
4            FLOWSTATS            NA     6763     16     <NA>

Read watershed boundaries

Code

sheds_montana <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_mt7617/points_mt7617.gdb", layer = "GlobalWatershed")

Reading layer `GlobalWatershed' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_mt7617\points_mt7617.gdb'
  using driver `OpenFileGDB'
Simple feature collection with 39 features and 28 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -114.8904 ymin: 43.9457 xmax: -109.7226 ymax: 49.46148
Geodetic CRS:  WGS 84

Code

sheds_massach <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_ma7625/points_ma7625.gdb", layer = "GlobalWatershed")

Reading layer `GlobalWatershed' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_ma7625\points_ma7625.gdb'
  using driver `OpenFileGDB'
Simple feature collection with 13 features and 25 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -72.82306 ymin: 42.4123 xmax: -72.62871 ymax: 42.54973
Geodetic CRS:  WGS 84

Code

sheds_oregon <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_or7626/points_or7626.gdb", layer = "GlobalWatershed")

Reading layer `GlobalWatershed' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_or7626\points_or7626.gdb'
  using driver `OpenFileGDB'
Simple feature collection with 7 features and 41 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -118.9295 ymin: 42.48917 xmax: -118.561 ymax: 42.79204
Geodetic CRS:  WGS 84

Code

sheds_virginia <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_va7627/points_va7627.gdb", layer = "GlobalWatershed")

Reading layer `GlobalWatershed' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_va7627\points_va7627.gdb'
  using driver `OpenFileGDB'
Simple feature collection with 32 features and 20 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -79.24034 ymin: 37.88165 xmax: -78.02949 ymax: 38.7622
Geodetic CRS:  WGS 84

Code

sheds_wyoming <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_wy7628/points_wy7628.gdb", layer = "GlobalWatershed")

Reading layer `GlobalWatershed' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_wy7628\points_wy7628.gdb'
  using driver `OpenFileGDB'
Simple feature collection with 14 features and 17 fields
Geometry type: MULTIPOLYGON
Dimension:     XY
Bounding box:  xmin: -110.5241 ymin: 43.64373 xmax: -110.1598 ymax: 43.87029
Geodetic CRS:  WGS 84

Code

sheds <- bind_rows(sheds_massach, sheds_montana, sheds_oregon, sheds_virginia, sheds_wyoming)
mapview(sheds)

Find sites that were delineated incorrectly

Code

options(scipen=999)
badsites <- tibble(sheds) %>% select(Name, Shape_Area, DRNAREA, ELEV) %>% rename(site_id = Name) %>% left_join(siteinfo %>% select(site_id, site_name, area_sqmi, elev_ft)) %>% select(site_id, site_name, DRNAREA, area_sqmi) %>% mutate(percerror = (DRNAREA - area_sqmi) / area_sqmi) %>% filter(percerror >= 0.15 | percerror <= -0.15)
badsites

# A tibble: 15 × 5
   site_id site_name                      DRNAREA area_sqmi percerror
   <chr>   <chr>                            <dbl>     <dbl>     <dbl>
 1 WW      West Whately Brook           0.0399        0.493    -0.919
 2 WL      West Brook Lower             0.086         8.51     -0.990
 3 JB      Jimmy Brook                  7.87          0.974     7.08
 4 SH08    Shields River ab Dugout     11.1           8.68      0.279
 5 SH06    Lodgepole Creek              2.2           1.36      0.619
 6 SH05    Dugout Creek                11.1           2.39      3.64
 7 BIG_002 LangfordCreekLower           0.1           3.99     -0.975
 8 RAP     Rapidan River NWIS           0.0000386   115        -1.000
 9 PI_09FL Piney River 09               0.36          4.28     -0.916
10 LEI     Leidy Creek Mouth NWIS       0.000811      5.17     -1.000
11 PCM     Pacific Creek at Moran NWIS  0.34        166.       -0.998
12 SP10    SF Spread Creek Upper        0.000348     35.1      -1.000
13 SP09    SF Spread Creek Lower       72            44.3       0.627
14 SP08    Rock Creek                   0.0000772     4.74     -1.000
15 SP03    Leidy Creek Lower            0.00112       5.17     -1.000

Stream stats site information

Code

streamstats_info <- tibble(sheds) %>% select(Name, DRNAREA) %>% rename(site_id = Name) %>% left_join(siteinfo %>% select(site_id, site_name))
# streamstats_info

Read flow statistics from geodatabases

Code

montana <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_mt7617/points_mt7617.gdb", layer = "FLOWSTATS")

Reading layer `FLOWSTATS' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_mt7617\points_mt7617.gdb'
  using driver `OpenFileGDB'

Code

massach <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_ma7625/points_ma7625.gdb", layer = "FLOWSTATS")

Reading layer `FLOWSTATS' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_ma7625\points_ma7625.gdb'
  using driver `OpenFileGDB'

Code

oregon <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_or7626/points_or7626.gdb", layer = "FLOWSTATS")

Reading layer `FLOWSTATS' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_or7626\points_or7626.gdb'
  using driver `OpenFileGDB'

Code

virginia <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_va7627/points_va7627.gdb", layer = "FLOWSTATS")

Reading layer `FLOWSTATS' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_va7627\points_va7627.gdb'
  using driver `OpenFileGDB'

Code

wyoming <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_wy7628/points_wy7628.gdb", layer = "FLOWSTATS")

Reading layer `FLOWSTATS' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_wy7628\points_wy7628.gdb'
  using driver `OpenFileGDB'

Code

streamstats <- bind_rows(montana, massach, oregon, virginia, wyoming) %>% filter(!Name %in% c(badsites$site_id)) %>% rename(site_id = Name) %>% left_join(siteinfo %>% select(site_id, site_name)) %>% left_join(streamstats_info)
head(streamstats)

  site_id RegionID                             RegionName AreaPercent AreaSqMi
1     NFF   GC1906                  Crippen_Bue_Region_13          61 947.3549
2     NFF   GC1828                        USA_Bieger_2015          60 937.1283
3     NFF   GC1828                        USA_Bieger_2015          60 937.1283
4     NFF   GC1828                        USA_Bieger_2015          60 937.1283
5     NFF   GC1818 Northern_Rocky_Mountains_P_Bieger_2015          60 937.1283
6     NFF   GC1818 Northern_Rocky_Mountains_P_Bieger_2015          60 937.1283
   StatLabel                                StatName     Value
1 PKMAX_CB_R      Maximum Flood Crippen Bue Regional 246000.00
2 XABNKF_U_B Bieger_USA_channel_cross_sectional_area    905.00
3 DBANKF_U_B                Bieger_USA_channel_depth      5.77
4 WBANKF_U_B                Bieger_USA_channel_width    165.00
5 XABNKF_P_B   Bieger_P_channel_cross_sectional_area    852.00
6 DBANKF_P_B                  Bieger_P_channel_depth      5.53
                  Units Years PIl PIu SE SEp PC CitationID
1 cubic feet per second    NA  NA  NA NA  NA NA        186
2           square feet     0  NA  NA NA  NA NA        160
3                  feet     0  NA  NA NA  NA NA        160
4                  feet     0  NA  NA NA  NA NA        160
5           square feet     0  NA  NA NA  NA NA        160
6                  feet     0  NA  NA NA  NA NA        160
                       site_name DRNAREA
1 North Fork Flathead River NWIS  1556.2
2 North Fork Flathead River NWIS  1556.2
3 North Fork Flathead River NWIS  1556.2
4 North Fork Flathead River NWIS  1556.2
5 North Fork Flathead River NWIS  1556.2
6 North Fork Flathead River NWIS  1556.2

Code

char_massach <- st_read("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/CompareModeledQ/StreamStats/points_ma7625/points_ma7625.gdb", layer = "CHARACTERISTICS")

Reading layer `CHARACTERISTICS' from data source
  `C:\Users\jbaldock\OneDrive - DOI\Documents\USGS\EcoDrought\EcoDrought Working\EcoDrought-Analysis\CompareModeledQ\StreamStats\points_ma7625\points_ma7625.gdb'
  using driver `OpenFileGDB'

Code

head(char_massach)

  Name RegionID                 RegionName AreaPercent AreaSqMi StatLabel
1  WBR   GC1894       Crippen_Bue_Region_1         100 10.70496   DRNAREA
2  WBR    GC828 Perennial_Flow_Probability         100 10.70496  MAREGION
3  WBR    GC828 Perennial_Flow_Probability         100 10.70496    FOREST
4  WBR    GC828 Perennial_Flow_Probability         100 10.70496 PCTSNDGRV
5  WBR    GC828 Perennial_Flow_Probability         100 10.70496   DRNAREA
6  WBR   GC1828            USA_Bieger_2015         100 10.70496   DRNAREA
                                                          StatName Value
1                          Area that drains to a point on a stream  10.7
2              Region of Massachusetts 0 for Eastern 1 for Western   1.0
3                             Percentage of area covered by forest  87.7
4 Percentage of land surface underlain by sand and gravel deposits  14.7
5                          Area that drains to a point on a stream  10.7
6                          Area that drains to a point on a stream  10.7
          Units MinLimit MaxLimit
1  square miles  0.10000 10000.00
2 dimensionless  0.00000     1.00
3       percent  0.00000   100.00
4       percent  0.00000   100.00
5  square miles  0.01000     1.99
6  square miles  0.07722 59927.74

View provided flow statistics for each state. What is relevant to this paper?

Montana: annual & monthly duration (80, 50, 20), monthly mean flow, 7 day 10 year low flow
Massachusetts: annual duration (99, 98, 95, 90, 85, 80, 75, 70, 60, 50), 7 day 10 and 2 year low flow
Oregon: annual and monthly duration (95, 50, 25, 10, 5), monthly and annual 7 day 10 and 2 year low flow
Virginia: lots of flow flow stats including 7 day 10 and 2 year low flow
Wyoming: nothing relevant

Code

print("MONTANA")
unique(montana$StatName)
print("MASSACHUSETTS")
unique(massach$StatName)
print("OREGON")
unique(oregon$StatName)
print("VIRGINA")
unique(virginia$StatName)
print("WYOMING")
unique(wyoming$StatName)

Availability of flow statistics varies greatly by state. What statistics do all states have in common (minus Wyoming)? Only 7 day 10 year low flow is relevant.

Code

Reduce(intersect, list(unique(montana$StatName), unique(massach$StatName), unique(oregon$StatName), unique(virginia$StatName)))

 [1] "Maximum Flood Crippen Bue Regional"
 [2] "Bieger_USA_channel_cross_sectional_area"
 [3] "Bieger_USA_channel_depth"
 [4] "Bieger_USA_channel_width"
 [5] "Bieger_P_channel_cross_sectional_area"
 [6] "Bieger_P_channel_depth"
 [7] "Bieger_P_channel_width"
 [8] "Bieger_D_channel_cross_sectional_area"
 [9] "Bieger_D_channel_depth"
[10] "Bieger_D_channel_width"
[11] "7 Day 10 Year Low Flow"

6.2.1 West Brook exceedance

For the West Brook, plot (annual) observed and StreamStats exceedance/duration curves and calculate absolute error

Code

# set up
vars <- unique(massach$StatName)[grep("Duration", unique(massach$StatName))][-1]
sites <- c("West Brook NWIS", "Mitchell Brook", "Obear Brook Lower", "West Brook Upper", "Sanderson Brook", "Avery Brook")
preds <- list()
exceed <- list()
joined <- list()
joined_full <- list()

# calcualate
for (i in 1:length(sites)) {
  obs <- dat_clean %>% filter(site_name == sites[i])
  # stream stats duration
  p <- streamstats %>%
    filter(site_name == unique(obs$site_name), StatName %in% vars) %>%
    mutate(exceedance = parse_number(StatName)) %>%
    mutate(flow_cms = Value*0.02831683199881, area_sqkm = DRNAREA*2.58999)
  p <- add_daily_yield(data = p %>% select(site_id, site_name, DRNAREA, area_sqkm, StatName, exceedance, flow_cms), values = flow_cms, basin_area = as.numeric(unique(p$area_sqkm)))
  p <- p %>% mutate(logYield = log(Yield_mm))
  preds[[i]] <- p
  # calculate exceedance probability by site
  exceeddat <- obs %>%
    filter(!is.na(logYield)) %>%
    arrange(desc(logYield)) %>%
    mutate(exceedance = 100/length(logYield)*1:length(logYield))
  exceed[[i]] <- exceeddat
  # join observed and streamstats exceedance, calculate error
  j <- exceeddat %>%
    select(site_name, exceedance, logYield) %>%
    mutate(exceedance = round(exceedance, digits = 0)) %>%
    group_by(site_name, exceedance) %>%
    summarize(logYield = mean(logYield)) %>%
    ungroup() %>%
    left_join(p %>%
                select(site_name, exceedance, logYield) %>%
                rename(logYield_ss = logYield)) %>%
    mutate(error_abs = logYield_ss - logYield,
           error_abs_real = exp(logYield_ss) - exp(logYield),
           error_rel = (exp(logYield_ss) - exp(logYield)) / exp(logYield))
  joined[[i]] <- j %>% filter(!is.na(error_abs))
  joined_full[[i]] <- j
}
preds <- do.call(rbind, preds) %>% mutate(site_name = factor(site_name, levels = wborder))
exceed <- do.call(rbind, exceed) %>% mutate(site_name = factor(site_name, levels = wborder))
joined <- do.call(rbind, joined) %>% mutate(site_name = factor(site_name, levels = wborder))
joined_full <- do.call(rbind, joined_full)
joined_mean <- joined %>% group_by(exceedance) %>% summarize(error_abs = mean(error_abs, na.rm = TRUE))

# preds <- preds %>% mutate(site_name = factor(site_name, levels = sites))
# exceed <- exceed %>% mutate(site_name = factor(site_name, levels = sites))
# joined <- joined %>% mutate(site_name = factor(site_name, levels = sites))

# calculate among size variation for StreamStats and observed exceedance
vardat_ss <- joined %>% group_by(exceedance) %>% summarize(exdsd = sd(logYield_ss))
vardat_obs <- joined_full %>% group_by(exceedance) %>% summarize(exdsd = sd(logYield))

# tibble for site labels
siteslabs <- tibble(site_name = factor(sites, levels = sites), site_lab = c("WB0", "Mitchell", "Obear Lower", "WB Upper", "Sanderson", "Avery"))

Plot observed (colored lines) and modeled (black points/lines) exceedance curves

Code

mypal <- cet_pal(length(wborder), name = "i1")[c(1,3,5,6,8,9)]

### Colored by site
# exceedance curves
p1 <- ggplot() +
  geom_line(data = exceed, aes(x = exceedance, y = logYield, color = site_name), size = 1) +
  geom_line(data = preds, aes(x = exceedance, y = logYield), color = "black") +
  geom_point(data = preds, aes(x = exceedance, y = logYield), color = "black") +
  geom_text(data = siteslabs, aes(x = Inf, y = Inf, label = site_lab), vjust = 1.5, hjust = 1.05, size = 3) +
  facet_wrap(~site_name, nrow = 3) +
  scale_color_manual(values = mypal) +
  xlab("Exceedance probability") + ylab(expression(paste("log(specific discharge, mm day"^-1, ")", sep = ""))) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                     panel.grid = element_blank(), strip.text.x = element_blank(), strip.background = element_blank(),
                     legend.position = "none", axis.text = element_text(color = "black"))
# absolute error
p2 <- ggplot(data = joined) +
  geom_line(aes(x = exceedance, y = error_abs, group = site_name, color = site_name)) +
  geom_point(aes(x = exceedance, y = error_abs, group = site_name, color = site_name)) +
  geom_abline(intercept = 0, slope = 0, linetype = "dashed") +
  geom_line(data = joined_mean, aes(x = exceedance, y = error_abs), size = 1) +
  scale_color_manual(values = mypal) +
  xlab("Exceedance probability") + ylab("Error (modeled - observed)") + ylim(-2.1,0) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                     legend.position = "none", axis.text = element_text(color = "black"))
# combine
annotate_figure(ggarrange(p1, p2, ncol = 2, labels = "auto"), top = text_grob("The West Brook, Massachusetts"))

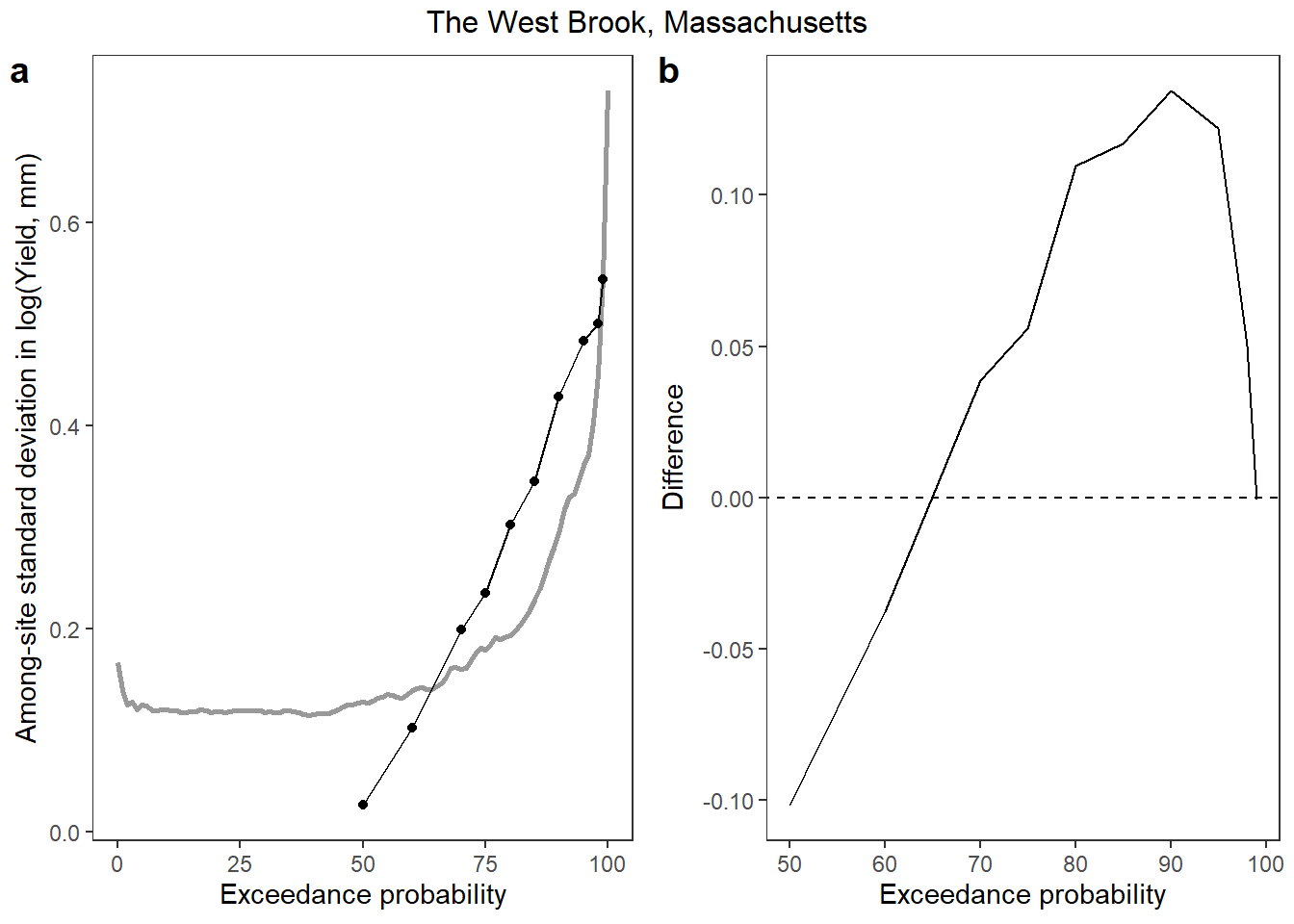

Does StreamStats misrepresent among-site variation in flow duration?

Code

p1 <- ggplot() +
  geom_line(data = vardat_obs, aes(x = exceedance, y = exdsd), size = 1, color = "grey60") +
  geom_line(data = vardat_ss, aes(x = exceedance, y = exdsd), color = "black") +
  geom_point(data = vardat_ss, aes(x = exceedance, y = exdsd), color = "black") +
  xlab("Exceedance probability") + ylab("Among-site standard deviation in log(Yield, mm)") +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

p2 <- vardat_obs %>%
  left_join(vardat_ss %>% rename(exdsd_ss = exdsd)) %>%
  mutate(diff = exdsd_ss - exdsd) %>%
  filter(!is.na(diff)) %>%
  ggplot() +
  geom_line(aes(x = exceedance, y = diff)) +
  geom_abline(intercept = 0, slope = 0, linetype = "dashed") +
  xlab("Exceedance probability") + ylab("Difference") +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

annotate_figure(ggarrange(p1, p2, ncol = 2, labels = "auto"), top = text_grob("The West Brook, Massachusetts"))

Write to file

Code

mypal <- cet_pal(length(wborder), name = "i1")[c(1,3,5,6,8,9)]

### Colored by site
# exceedance curves
p1 <- ggplot() +
  geom_line(data = exceed, aes(x = exceedance, y = logYield, color = site_name), size = 1) +
  geom_line(data = preds, aes(x = exceedance, y = logYield), color = "black") +
  geom_point(data = preds, aes(x = exceedance, y = logYield), color = "black") +
  geom_text(data = siteslabs, aes(x = Inf, y = Inf, label = site_lab), vjust = 1.5, hjust = 1.05, size = 3) +
  facet_wrap(~site_name, nrow = 3) +
  scale_color_manual(values = mypal) +
  xlab("Exceedance probability") + ylab(expression(paste("log(specific discharge, mm day"^-1, ")", sep = ""))) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                     panel.grid = element_blank(), strip.text.x = element_blank(), strip.background = element_blank(),
                     legend.position = "none", axis.text = element_text(color = "black"))
# absolute error
p2 <- ggplot(data = joined) +
  geom_line(aes(x = exceedance, y = error_abs, group = site_name, color = site_name)) +
  geom_point(aes(x = exceedance, y = error_abs, group = site_name, color = site_name)) +
  geom_abline(intercept = 0, slope = 0, linetype = "dashed") +
  geom_line(data = joined_mean, aes(x = exceedance, y = error_abs), size = 1) +
  scale_color_manual(values = mypal) +
  xlab("Exceedance probability") + ylab("Error (modeled - observed)") + ylim(-2.1,0) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                     legend.position = "none", axis.text = element_text(color = "black"))
# combine
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/StreamStats_WestBrook.jpg", width = 6, height = 4, units = "in", res = 1000)
annotate_figure(ggarrange(p1, p2, ncol = 2, labels = "auto"), top = text_grob("The West Brook, Massachusetts"))
dev.off()

6.2.2 Flathead mean monthly yield

For the Flathead (Big Creek), plot observed and StreamStats mean monthly flow/yield and calculate absolute error

Code

# set up
vars <- unique(montana$StatName)[grep("Mean Flow", unique(montana$StatName))]
sites <- c("LangfordCreekUpper", "Big Creek NWIS", "HallowattCreekLower", "WernerCreek", "Hallowat Creek NWIS",   "McGeeCreekLower")
preds_list <- list()
obs_list <- list()
hull_list <- list()
join_list <- list()

# calcualate
for (i in 1:length(sites)) {
  # filter observed data
  obs <- dat_clean %>%
  filter(site_name == sites[i]) %>%
    mutate(MonthName = factor(MonthName, levels = c("Oct", "Nov", "Dec", "Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep")))
  # calculate monthly means
  obs_mon <- obs %>%
    group_by(site_name, WaterYear, MonthName) %>%
    summarize(logYield = mean(logYield)) %>%
    ungroup() %>%
    mutate(MonthName = factor(MonthName, levels = c("Oct", "Nov", "Dec", "Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep")),
           WaterYear = factor(WaterYear)) %>%
    complete(site_name, WaterYear, MonthName)
  # get monthly min/max for ribbon
  hull <- obs_mon %>%
    group_by(site_name, MonthName) %>%
    summarize(min_logYield = min(logYield, na.rm = TRUE), max_logYield = max(logYield, na.rm = TRUE)) %>%
    ungroup()
  # get StreamStats mean monthly flow
  preds <- streamstats %>%
    filter(site_name == sites[i], StatName %in% vars, !is.na(AreaSqMi)) %>%
    mutate(MonthName = substr(StatName, 1, nchar(StatName)-10),
           Month = parse_number(StatLabel)) %>%
    mutate(MonthName = factor(recode(MonthName, "January" = "Jan", "February" = "Feb", "March" = "Mar", "April" = "Apr", "June" = "Jun", "July" = "Jul", "August" = "Aug", "September" = "Sep", "October" = "Oct", "November" = "Nov", "December" = "Dec"), levels = c("Oct", "Nov", "Dec", "Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug", "Sep"))) %>%
    mutate(flow_cms = Value*0.02831683199881, area_sqkm = AreaSqMi*2.58999)
  preds <- add_daily_yield(data = preds %>% select(site_id, site_name, area_sqkm, MonthName, Month, flow_cms), values = flow_cms, basin_area = as.numeric(unique(preds$area_sqkm)))
  preds <- preds %>% mutate(logYield = log(Yield_mm))
  # join and calculate error
  join_list[[i]] <- obs_mon %>%
    left_join(preds %>% select(site_name, MonthName, logYield) %>% rename(logYield_ss = logYield)) %>%
    mutate(error_abs = logYield_ss - logYield,
           error_abs_real = exp(logYield_ss) - exp(logYield),
           error_rel = (exp(logYield_ss) - exp(logYield)) / exp(logYield))
  # store in list
  preds_list[[i]] <- preds
  obs_list[[i]] <- obs_mon
  hull_list[[i]] <- hull
}
preds <- do.call(rbind, preds_list) %>% mutate(site_name = factor(site_name, levels = flatorder))
obs_mon <- do.call(rbind, obs_list) %>% mutate(site_name = factor(site_name, levels = flatorder))
hull <- do.call(rbind, hull_list) %>% mutate(site_name = factor(site_name, levels = flatorder))
joined <- do.call(rbind, join_list) %>% mutate(site_name = factor(site_name, levels = flatorder))
joined_mean <- joined %>% group_by(MonthName) %>% summarise(error_abs = mean(error_abs, na.rm = TRUE))

# tibble for site labels
siteslabs <- tibble(site_name = factor(sites, levels = flatorder), site_lab = c("Langford", "Big", "Hallowatt Lower", "Werner", "Hallowatt Upper", "McGee"))

# calculate among site variation for StreamStats and observed mean monthly flow (mean across years)
vardat <- preds %>%
  group_by(MonthName) %>%
  summarize(qsd_ss = sd(logYield)) %>%
  ungroup() %>%
  left_join(obs_mon %>%
  group_by(site_name, MonthName) %>%
  summarize(logYield = mean(logYield, na.rm = TRUE)) %>%
  ungroup() %>%
  group_by(MonthName) %>%
  summarize(qsd_obs = sd(logYield)) %>%
  ungroup()) %>%
  mutate(diff = qsd_ss - qsd_obs, nummon = as.numeric(MonthName))

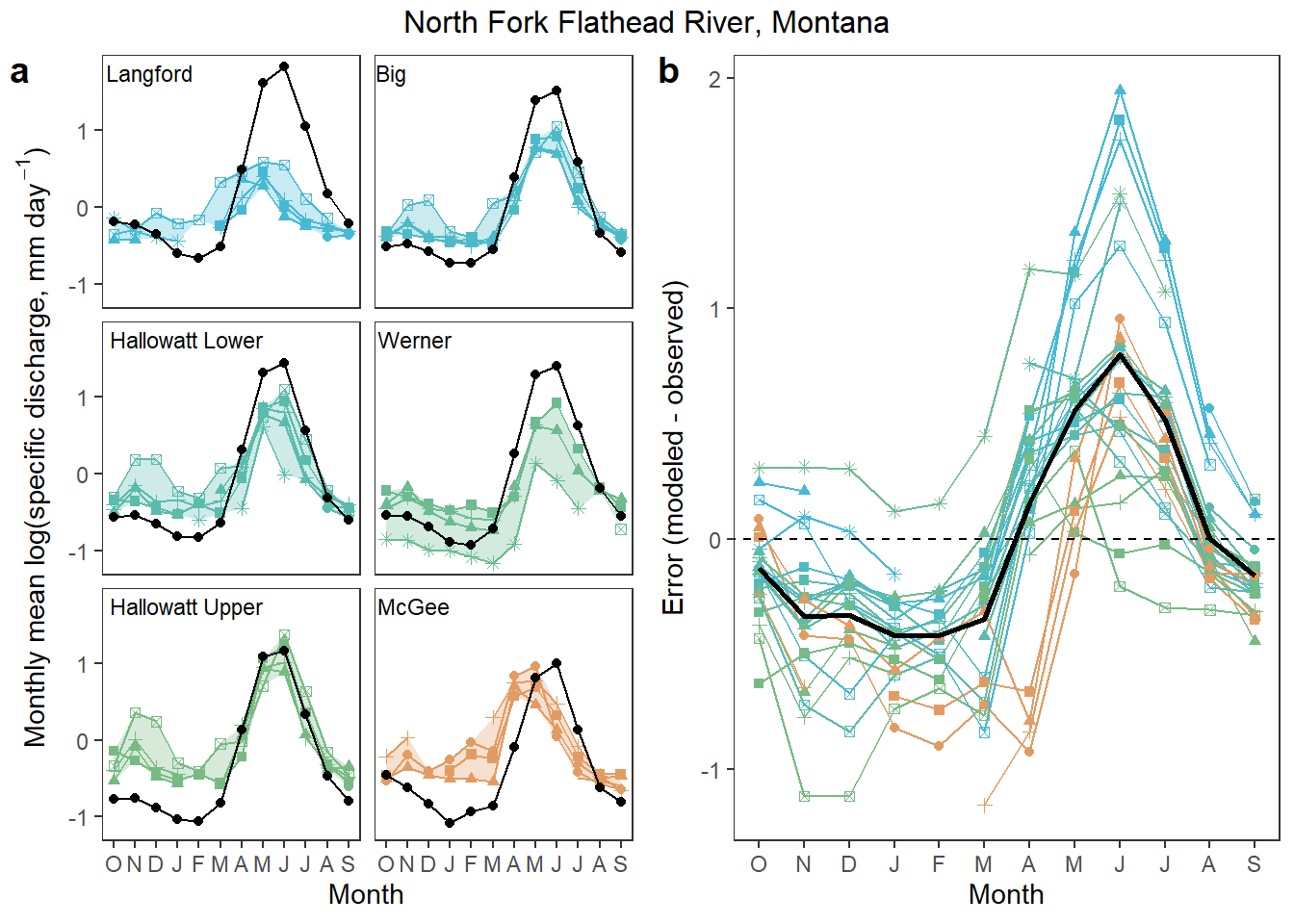

Plot observed and modeled mean monthly flow

Code

mypal <- cet_pal(length(flatorder), name = "i1")[c(3,4,6,8,9,17)]

### Colored by site
# observed and StreamStats monthly flow
p1 <- ggplot() +
  geom_ribbon(data = hull, aes(ymin = min_logYield, ymax = max_logYield, x = as.numeric(MonthName), fill = site_name), alpha = 0.3) +
  geom_line(data = obs_mon, aes(y = logYield, x = as.numeric(MonthName), group = WaterYear, color = site_name)) +
  geom_point(data = obs_mon, aes(y = logYield, x = as.numeric(MonthName), group = WaterYear, shape = WaterYear, color = site_name)) +
  geom_line(data = preds, aes(y = logYield, x = as.numeric(MonthName), group = site_name), color = "black") +
  geom_point(data = preds, aes(y = logYield, x = as.numeric(MonthName)), color = "black") +
  geom_text(data = siteslabs, aes(x = -Inf, y = Inf, label = site_lab), vjust = 1.5, hjust = -0.05, size = 3) +
  facet_wrap(~site_name, ncol = 2) +
  scale_color_manual(values = mypal) +
  scale_fill_manual(values = mypal) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     strip.text.x = element_blank(), strip.background = element_blank()) +
  ylab(expression(paste("Monthly mean log(specific discharge, mm day"^-1, ")", sep = ""))) + xlab("Month") +
  scale_x_continuous(breaks = 1:12, labels = c("O", "N", "D", "J", "F", "M", "A", "M", "J", "J", "A", "S"))
# absolute error by month
p2 <- ggplot() +
  geom_line(data = joined, aes(x = as.numeric(MonthName), y = error_abs, shape = WaterYear, color = site_name)) +
  geom_point(data = joined, aes(x = as.numeric(MonthName), y = error_abs, shape = WaterYear, color = site_name)) +
  geom_line(data = joined_mean, aes(x = as.numeric(MonthName), y = error_abs), size = 1) +
  geom_abline(intercept = 0, slope = 0, linetype = "dashed") +
  scale_color_manual(values = mypal) +
  xlab("Month") + ylab("Error (modeled - observed)") +
  scale_x_continuous(breaks = 1:12, labels = c("O", "N", "D", "J", "F", "M", "A", "M", "J", "J", "A", "S")) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                     legend.position = "none")
# combine
annotate_figure(ggarrange(p1, p2, ncol = 2, labels = "auto"), top = text_grob("North Fork Flathead River, Montana"))

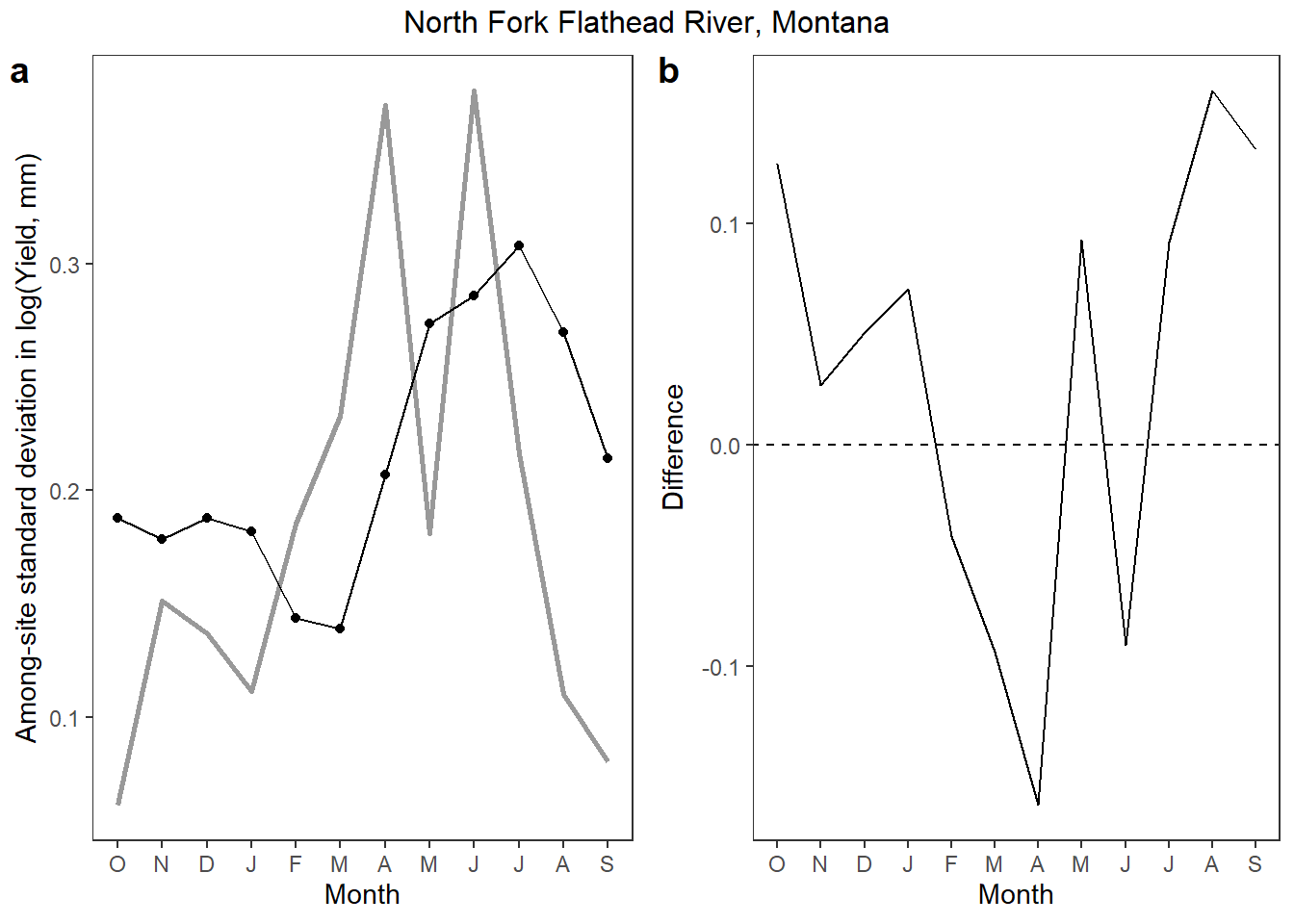

Does StreamStats misrepresent among-site variation in mean monthly yield?

Code

p1 <- vardat %>%
  ggplot() +
  geom_line(aes(x = nummon, y = qsd_obs), size = 1, color = "grey60") +
  geom_line(aes(x = nummon, y = qsd_ss), color = "black") +
  geom_point(aes(x = nummon, y = qsd_ss), color = "black") +
  xlab("Month") + ylab("Among-site standard deviation in log(Yield, mm)") +
  scale_x_continuous(breaks = 1:12, labels = c("O", "N", "D", "J", "F", "M", "A", "M", "J", "J", "A", "S")) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

p2 <- vardat %>%
  ggplot() +
  geom_line(aes(x = nummon, y = diff)) +
  xlab("Month") + ylab("Difference") +
  geom_abline(intercept = 0, slope = 0, linetype = "dashed") +
  scale_x_continuous(breaks = 1:12, labels = c("O", "N", "D", "J", "F", "M", "A", "M", "J", "J", "A", "S")) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

annotate_figure(ggarrange(p1, p2, ncol = 2, labels = "auto"), top = text_grob("North Fork Flathead River, Montana"))

Write to file

Code

mypal <- cet_pal(length(flatorder), name = "i1")[c(3,4,6,8,9,17)]

### Colored by site
# observed and StreamStats monthly flow
p1 <- ggplot() +
  geom_ribbon(data = hull, aes(ymin = min_logYield, ymax = max_logYield, x = as.numeric(MonthName), fill = site_name), alpha = 0.3) +
  geom_line(data = obs_mon, aes(y = logYield, x = as.numeric(MonthName), group = WaterYear, color = site_name)) +
  geom_point(data = obs_mon, aes(y = logYield, x = as.numeric(MonthName), group = WaterYear, shape = WaterYear, color = site_name)) +
  geom_line(data = preds, aes(y = logYield, x = as.numeric(MonthName), group = site_name), color = "black") +
  geom_point(data = preds, aes(y = logYield, x = as.numeric(MonthName)), color = "black") +
  geom_text(data = siteslabs, aes(x = -Inf, y = Inf, label = site_lab), vjust = 1.5, hjust = -0.05, size = 3) +
  facet_wrap(~site_name, ncol = 2) +
  scale_color_manual(values = mypal) +
  scale_fill_manual(values = mypal) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     strip.text.x = element_blank(), strip.background = element_blank()) +
  ylab(expression(paste("Monthly mean log(specific discharge, mm day"^-1, ")", sep = ""))) + xlab("Month") +
  scale_x_continuous(breaks = 1:12, labels = c("O", "N", "D", "J", "F", "M", "A", "M", "J", "J", "A", "S"))
# absolute error by month
p2 <- ggplot() +
  geom_line(data = joined, aes(x = as.numeric(MonthName), y = error_abs, shape = WaterYear, color = site_name)) +
  geom_point(data = joined, aes(x = as.numeric(MonthName), y = error_abs, shape = WaterYear, color = site_name)) +
  geom_line(data = joined_mean, aes(x = as.numeric(MonthName), y = error_abs), size = 1) +
  geom_abline(intercept = 0, slope = 0, linetype = "dashed") +
  scale_color_manual(values = mypal) +
  xlab("Month") + ylab("Error (modeled - observed)") +
  scale_x_continuous(breaks = 1:12, labels = c("O", "N", "D", "J", "F", "M", "A", "M", "J", "J", "A", "S")) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                     legend.position = "none")
# combine
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/StreamStats_Flathead.jpg", width = 6, height = 4, units = "in", res = 1000)
annotate_figure(ggarrange(p1, p2, ncol = 2), top = text_grob("North Fork Flathead River, Montana"))
dev.off()
