3  Spatiotemporal Variation

Purpose: Evaluate the extent and magnitude of spatial and temporal variation in headwater streamflow regimes.

3.1 Data

Site information

siteinfo <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_SiteInformation.csv")
siteinfo_sp <- st_as_sf(siteinfo, coords = c("long", "lat"), crs = 4326)

Little g’s (headwater sites)

dat_clean <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/LittleG_data_clean.csv")

Big G’s (reference gages)

dat_clean_big <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_data_clean.csv")

Climate

climdf <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/Daymet_climate.csv")
climdf_summ <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/Daymet_climate_summary.csv")

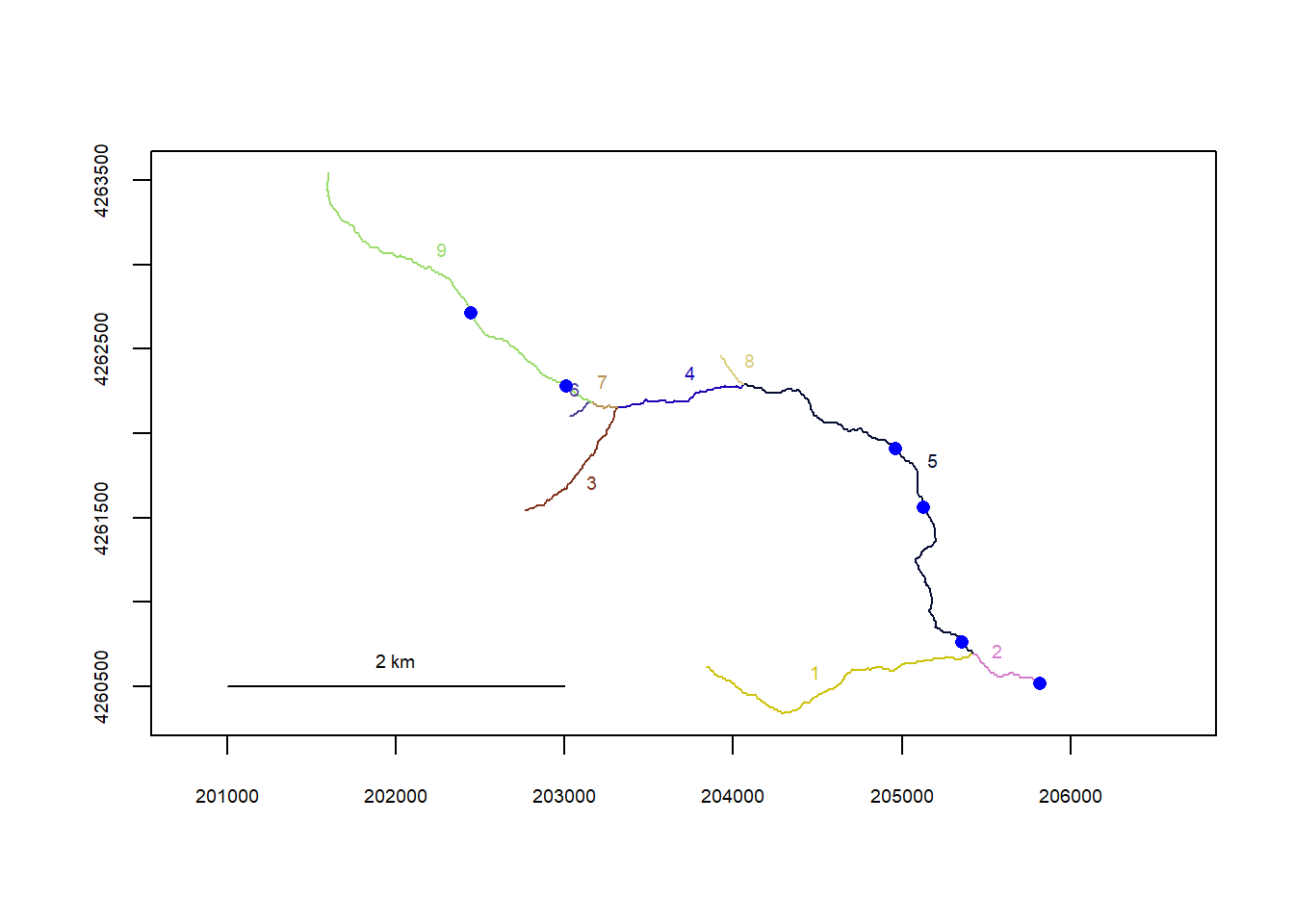

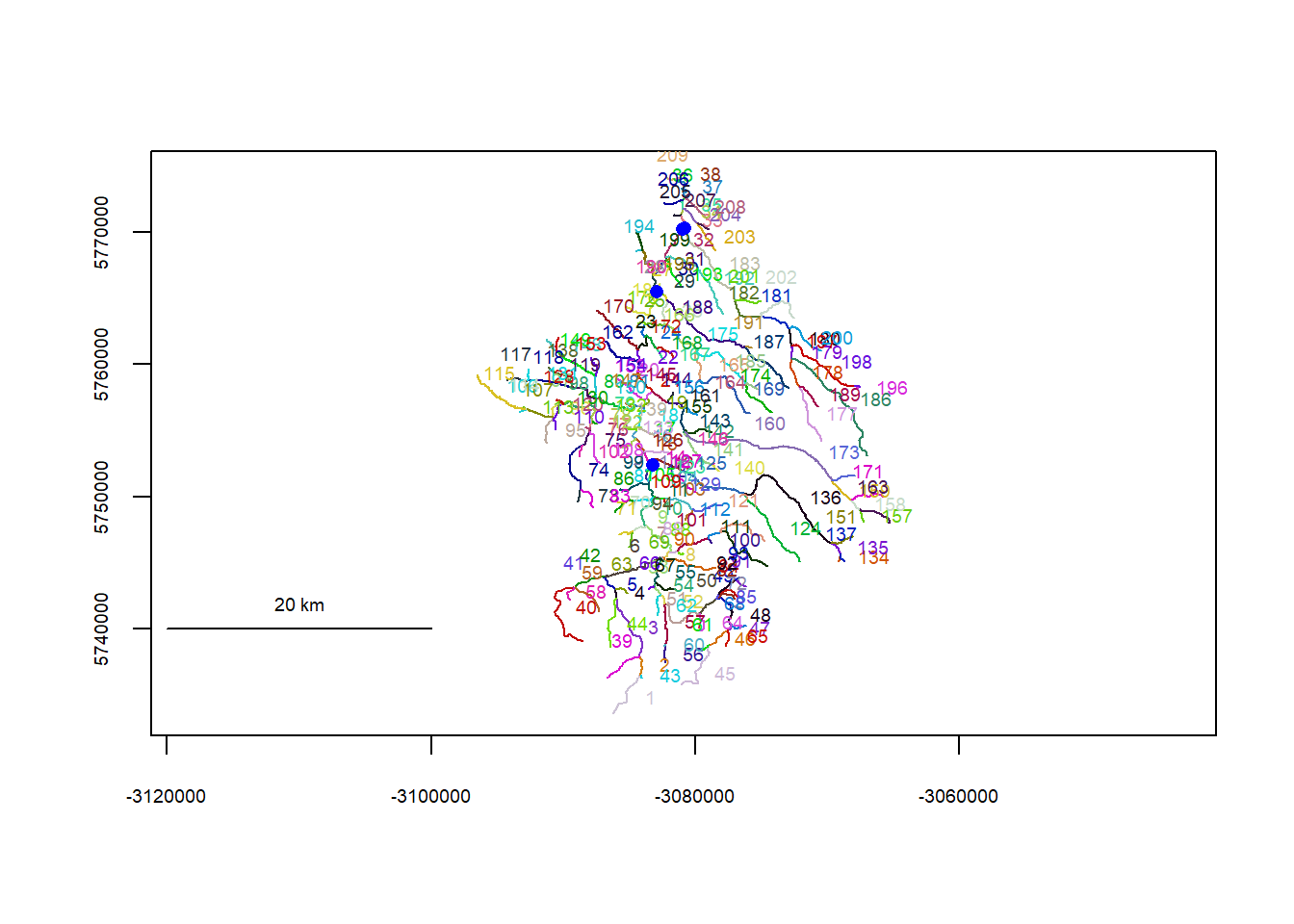

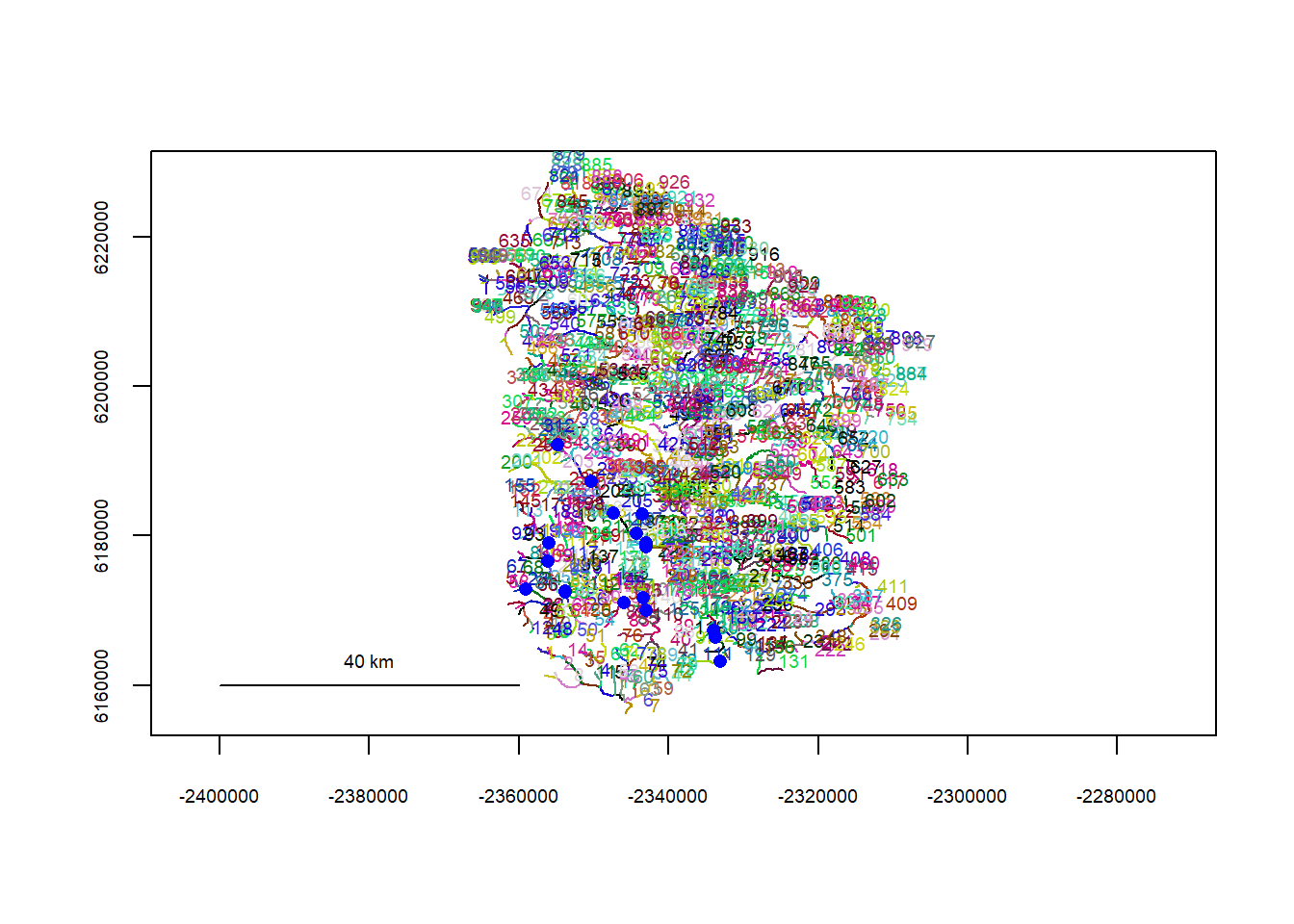

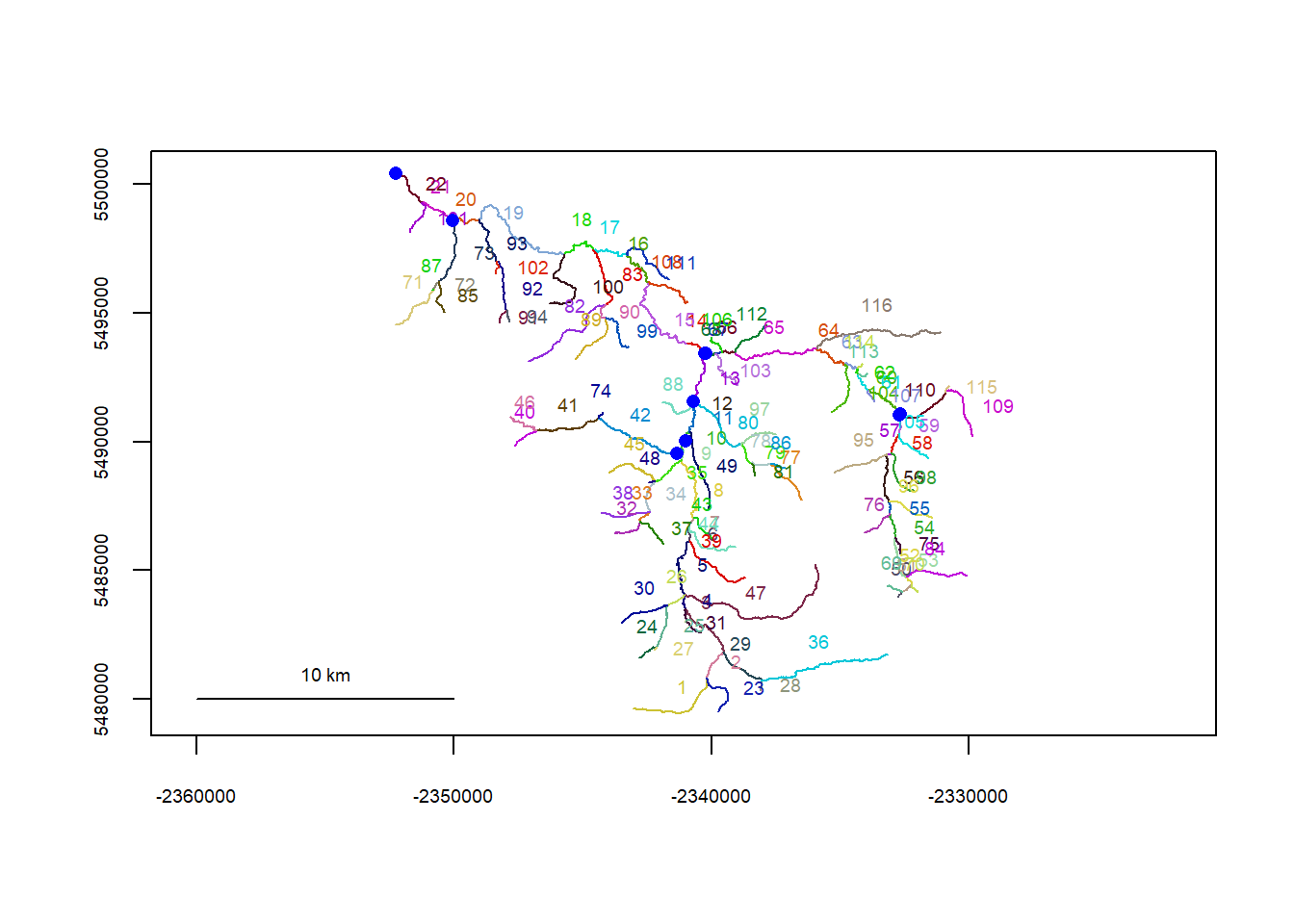

Get catchment shapefiles

sheds_list <- list()
myfiles <- list.files(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", pattern = ".shp")
for (i in 1:length(myfiles)) {
  sheds_list[[i]] <- st_read(paste("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", myfiles[i], sep = ""))
}
sheds <- do.call(rbind, sheds_list) %>%
  mutate(site_id = ifelse(site_id == "SP01", "SP07", ifelse(site_id == "SP07", "SP01", site_id))) %>%
  left_join(siteinfo)
#mapview(sheds %>% arrange(desc(area_sqmi)), alpha.regions = 0.2)

3.2 Order sites

For colors, order sites from downstream to upstream (roughly) and by subbasin (if appropriate)

wborder <- c("West Brook NWIS", "West Brook Lower", "Mitchell Brook", "Jimmy Brook", "Obear Brook Lower", "West Brook Upper", "West Brook Reservoir", "Sanderson Brook", "Avery Brook", "West Whately Brook")
paineorder <- c("Paine Run 10", "Paine Run 08", "Paine Run 07", "Paine Run 06", "Paine Run 02", "Paine Run 01")
stauntorder <- c("Staunton River 10", "Staunton River 09", "Staunton River 07", "Staunton River 06", "Staunton River 03", "Staunton River 02")
flatorder <- c("BigCreekLower", "LangfordCreekLower", "LangfordCreekUpper", "Big Creek NWIS", "BigCreekUpper", "HallowattCreekLower", "NicolaCreek", "WernerCreek", "Hallowat Creek NWIS", "CoalCreekLower", "CycloneCreekLower", "CycloneCreekMiddle", "CycloneCreekUpper", "CoalCreekMiddle", "CoalCreekNorth", "CoalCreekHeadwaters", "McGeeCreekLower", "McGeeCreekTrib", "McGeeCreekUpper")
yellorder <- c("Shields River Valley Ranch", "Deep Creek", "Crandall Creek", "Buck Creek", "Dugout Creek", "Shields River ab Dugout", "Lodgepole Creek", "EF Duck Creek be HF", "EF Duck Creek ab HF", "Henrys Fork")
snakeorder <- c("Spread Creek Dam", "Rock Creek", "NF Spread Creek Lower", "NF Spread Creek Upper", "Grizzly Creek", "SF Spread Creek Lower", "Grouse Creek", "SF Spread Creek Upper", "Leidy Creek Mouth")
donnerorder <- c("Fish Creek NWIS", "Donner Blitzen ab Fish NWIS", "Donner Blitzen nr Burnt Car NWIS", "Donner Blitzen ab Indian NWIS")

3.3 Spaghetti plots

View daily time series data by sub-basin. Note that we are using the “Super G” NWIS data for the reference gage (black line). Per Robert comment, entirely nested design is cute, but doesn’t reflect how the data is actually used.

Big G NWIS sites/reference gages for each basin/subbasin:

dat_clean_big %>% group_by(region, basin, subbasin) %>% summarize(site_name = unique(site_name)) %>% ungroup() %>% filter(!is.na(region)) %>% kable()

region	basin	subbasin	site_name
Flat	Flathead	Flathead	North Fork Flathead River NWIS
Mass	West Brook	West Brook	South River Conway NWIS
Oreg	Donner Blitzen	Donner Blitzen	Donner Blitzen River nr Frenchglen NWIS
Shen	Paine Run	Paine Run	South River Harriston NWIS
Shen	Piney River	Piney River	Battle Run NWIS
Shen	Staunton River	Staunton River	Rapidan River NWIS
Shields	Shields River	Shields River	Yellowstone River Livingston NWIS
Snake	Snake River	Snake River	Pacific Creek at Moran NWIS

3.3.1 Interactive

West Brook

Paine Run

Staunton River

Flathead

dat_clean %>%
  filter(basin == "Flathead") %>%
  bind_rows(dat_clean_big %>% filter(basin == "Flathead", date >= date("2017-07-29"), date <= date("2023-12-11"))) %>%
  select(date, site_name, logYield) %>%
  spread(key = site_name, value = logYield) %>%
  relocate("North Fork Flathead River NWIS", .after = last_col()) %>%
  dygraph() %>% dyRangeSelector() %>% dyAxis("y", label = "ln(Yield, mm)") %>%
  #dyOptions(colors = c(brewer.pal(7, "Dark2"), "black")) %>%
  dySeries("North Fork Flathead River NWIS", strokeBorderWidth = 1, strokeWidth = 1.5, color = "black")

Yellowstone

dat_clean %>%
  filter(basin == "Shields River") %>%
  bind_rows(dat_clean_big %>% filter(basin == "Shields River", date >= date("2015-04-01"), date <= date("2023-12-31"))) %>%
  select(date, site_name, logYield) %>%
  spread(key = site_name, value = logYield) %>%
  relocate("Yellowstone River Livingston NWIS", .after = last_col()) %>%
  dygraph() %>% dyRangeSelector() %>% dyAxis("y", label = "ln(Yield, mm)") %>%
  #dyOptions(colors = c(brewer.pal(7, "Dark2"), "black")) %>%
  dySeries("Yellowstone River Livingston NWIS", strokeBorderWidth = 1, strokeWidth = 1.5, color = "black")

Snake River

Donner Blitzen

3.3.2 Static

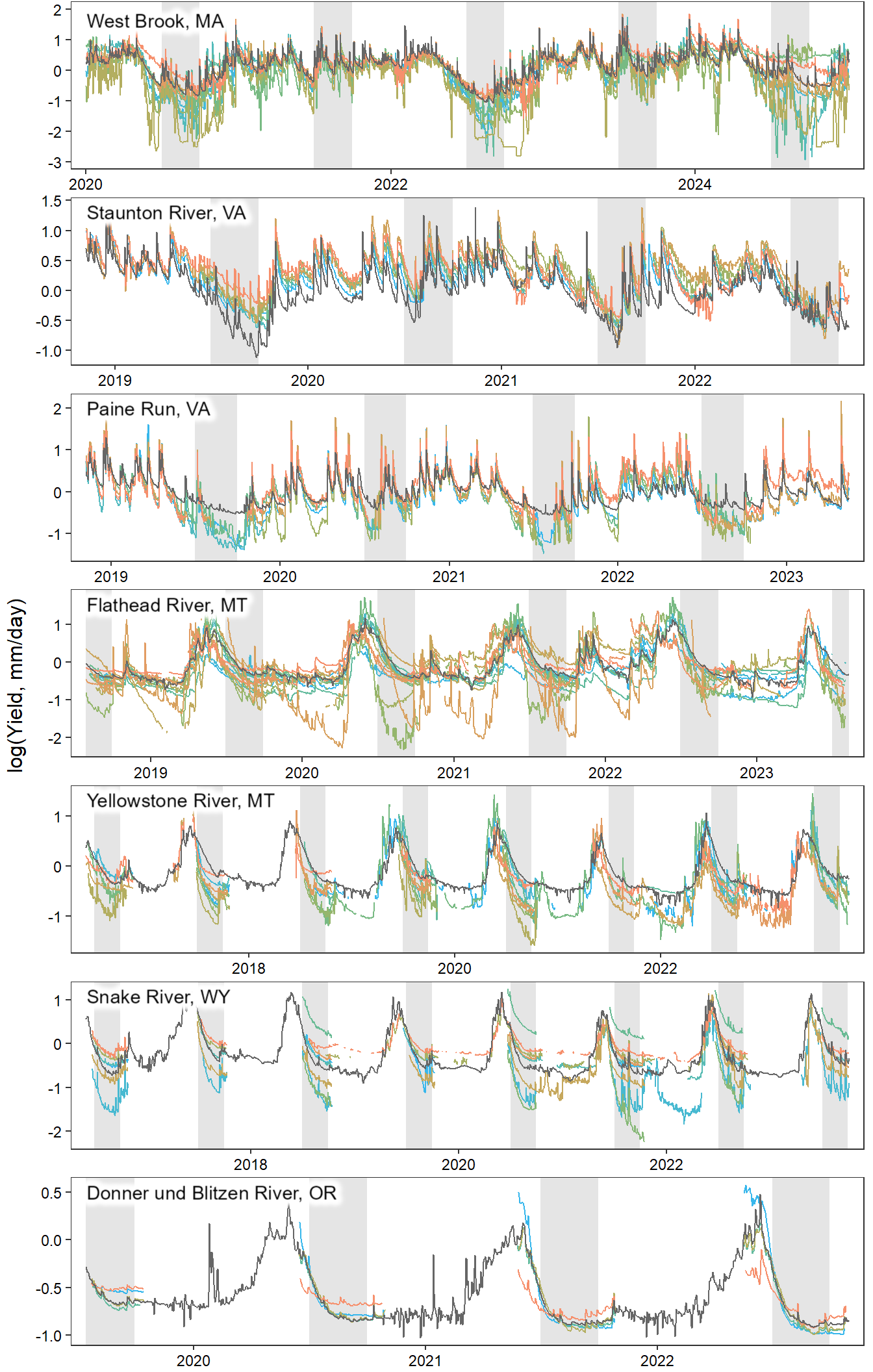

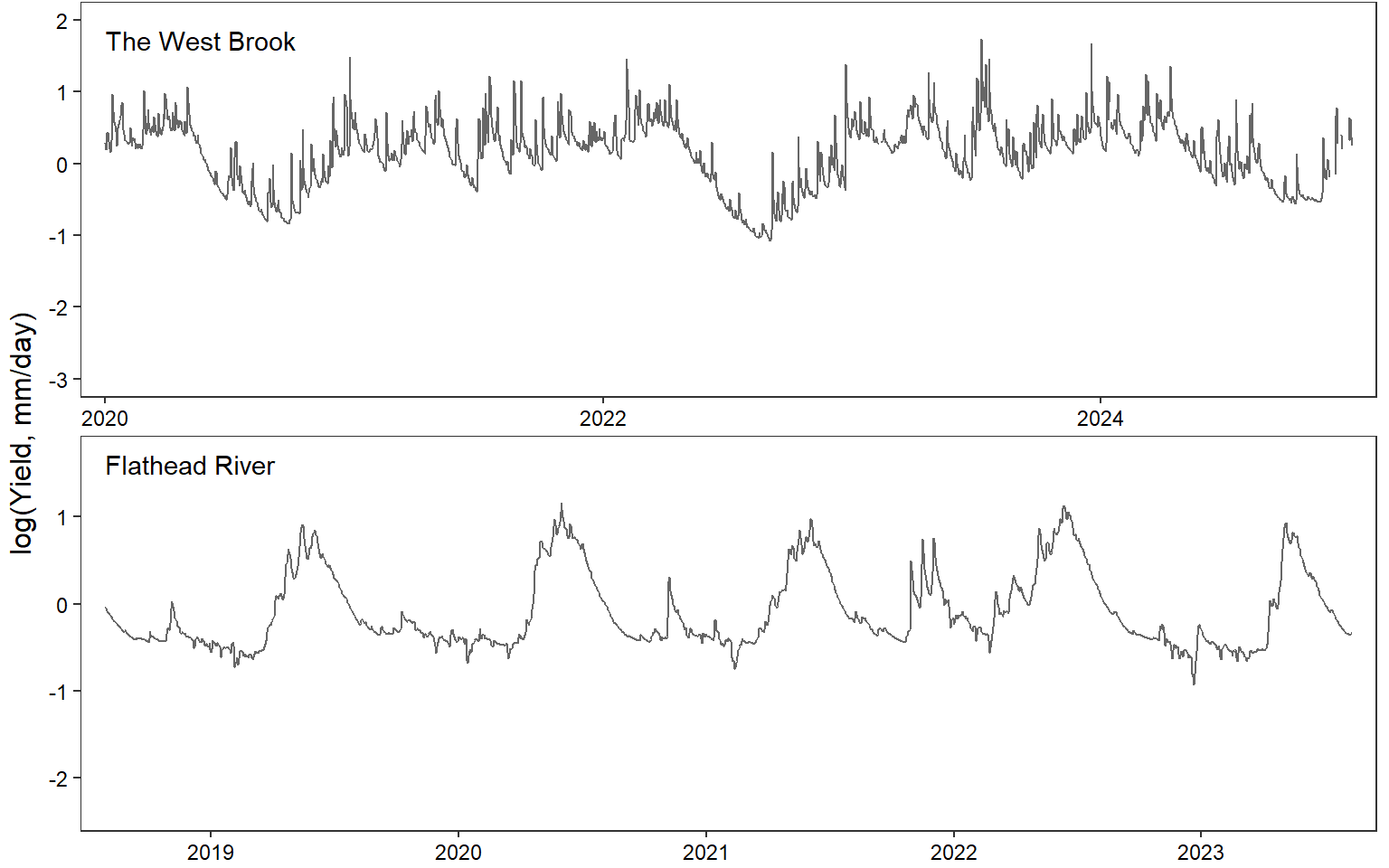

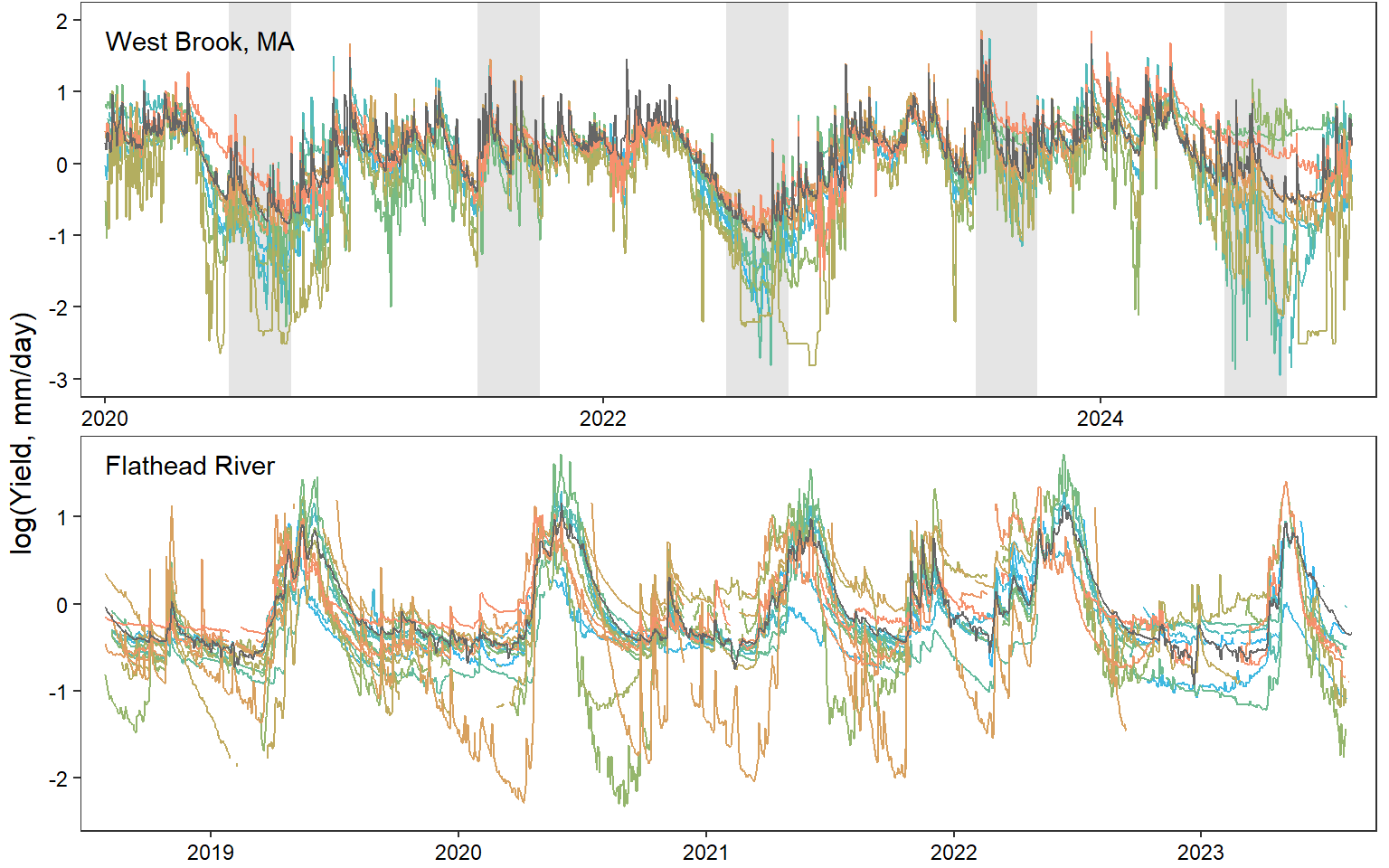

3.3.2.1 Complete time series

Create time series data plots objects

polycol <- "grey90"
mycols <- brewer.pal(7, "Set2")

### WEST BROOK
tempdat <- dat_clean %>%
  filter(basin == "West Brook") %>%
  mutate(site_name = factor(site_name, levels = wborder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "West Brook", date >= date("2020-01-01"), date <= date("2025-01-03"))
# color
pwb1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2023-07-01"), xmax = ymd("2023-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2024-07-01"), xmax = ymd("2024-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = wborder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  ylim(-3,2) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "West Brook, MA", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[1], fill = NA, linewidth = 1.5)
                     )
# greyscale
pwb2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  ylim(-3,2) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "West Brook, MA", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))


### STAUNTON RIVER
tempdat <- dat_clean %>%
  filter(basin == "Staunton River") %>%
  mutate(site_name = factor(site_name, levels = stauntorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Staunton River", date >= as_date("2018-11-07"), date <= as_date("2022-10-19"))
# color
pst1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2019-07-01"), xmax = ymd("2019-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = stauntorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Staunton River, VA", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[2], fill = NA, linewidth = 1.5)
                     )
# greyscale
pst2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Staunton River", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black"), panel.border = element_rect(colour = mycols[2], fill = NA, linewidth = 2))


### PAINE RUN
tempdat <- dat_clean %>%
  filter(basin == "Paine Run") %>%
  mutate(site_name = factor(site_name, levels = paineorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Paine Run", date >= as_date("2018-11-07"), date <= as_date("2023-05-15"))
# color
ppa1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2019-07-01"), xmax = ymd("2019-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = paineorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Paine Run, VA", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[3], fill = NA, linewidth = 1.5)
                     )
# greyscale
ppa2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Paine Run", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))


### FLATHEAD
tempdat <- dat_clean %>%
  filter(basin == "Flathead", date >= date("2018-07-29"), date <= date("2023-08-11")) %>%
  mutate(site_name = factor(site_name, levels = flatorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Flathead", date >= date("2018-07-29"), date <= date("2023-08-11"))
# color
pfl1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2018-07-29"), xmax = ymd("2018-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2019-07-01"), xmax = ymd("2019-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2023-07-01"), xmax = ymd("2023-08-11"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = flatorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Flathead River, MT", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[4], fill = NA, linewidth = 1.5)
                     )
# greyscale
pfl2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Flathead River", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))


### YELLOWSTONE
tempdat <- dat_clean %>%
  filter(basin == "Shields River", date >= date("2016-06-01"), date <= date("2023-11-01")) %>%
  mutate(site_name = factor(site_name, levels = yellorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Shields River", date >= date("2016-06-01"), date <= date("2023-11-01"))
# color
pye1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2016-07-01"), xmax = ymd("2016-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2017-07-01"), xmax = ymd("2017-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2018-07-01"), xmax = ymd("2018-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2019-07-01"), xmax = ymd("2019-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2023-07-01"), xmax = ymd("2023-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = yellorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Yellowstone River, MT", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[5], fill = NA, linewidth = 1.5)
                     )
# greyscale
pye2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Yellowstone River, MT", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))


### SNAKE
tempdat <- dat_clean %>%
  filter(basin == "Snake River", date >= date("2016-06-01"), date <= date("2023-10-03")) %>%
  mutate(site_name = factor(site_name, levels = snakeorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Snake River", date >= date("2016-06-01"), date <= date("2023-10-03"))
# color
psn1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2016-07-01"), xmax = ymd("2016-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2017-07-01"), xmax = ymd("2017-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2018-07-01"), xmax = ymd("2018-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2019-07-01"), xmax = ymd("2019-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2023-07-01"), xmax = ymd("2023-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = snakeorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Snake River, WY", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[6], fill = NA, linewidth = 1.5)
                     )
# greyscale
psn2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Snake River, WY", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))


### DONNER BLITZEN
tempdat <- dat_clean %>%
  filter(basin == "Donner Blitzen") %>%
  mutate(site_name = factor(site_name, levels = donnerorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Donner Blitzen", date >= date("2019-07-15"), date <= as_date("2022-10-30"))
# color
pdb1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2019-07-15"), xmax = ymd("2019-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = donnerorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  with_outer_glow(annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Donner und Blitzen River, OR", hjust = 0, vjust = 1), colour = "white", expand = 10) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[7], fill = NA, linewidth = 1.5)
                     )
# greyscale
pdb2 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, group = site_name), color = "grey") +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "black", size = 1) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Donner und Blitzen River", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))

Generate combined plot

annotate_figure(egg::ggarrange(pwb1, pst1, ppa1, pfl1, pye1, psn1, pdb1, ncol = 1), left = "log(Yield, mm/day)")

Write to file

jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/EcoD_timeseries_new_noborder.jpg", width = 5, height = 11, units = "in", res = 1000)
annotate_figure(egg::ggarrange(pwb1, pst1, ppa1, pfl1, pye1, psn1, pdb1, ncol = 1), left = "log(Yield, mm/day)")
dev.off()

3.3.2.2 Summer 2020

Plot time series just for summer 2020, for more detailed view

polycol <- "grey90"
mycols <- brewer.pal(7, "Set2")

### WEST BROOK
tempdat <- dat_clean %>%
  filter(basin == "West Brook", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = wborder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "West Brook", date >= date("2020-07-01"), date <= date("2020-09-30"))
# same yaxis scale as main time series
pwb1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = wborder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[1], fill = NA, linewidth = 1.5)
                     )

### STAUNTON RIVER
tempdat <- dat_clean %>%
  filter(basin == "Staunton River", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = stauntorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Staunton River", , date >= date("2020-07-01"), date <= date("2020-09-30"))
# color
pst1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = stauntorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[2], fill = NA, linewidth = 1.5)
                     )

### PAINE RUN
tempdat <- dat_clean %>%
  filter(basin == "Paine Run", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = paineorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Paine Run", date >= date("2020-07-01"), date <= date("2020-09-30"))
# color
ppa1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = paineorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[3], fill = NA, linewidth = 1.5)
                     )

### FLATHEAD
tempdat <- dat_clean %>%
  filter(basin == "Flathead", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = flatorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Flathead", date >= date("2020-07-01"), date <= date("2020-09-30"))
# color
pfl1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = flatorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[4], fill = NA, linewidth = 1.5)
                     )

### YELLOWSTONE
tempdat <- dat_clean %>%
  filter(basin == "Shields River", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = yellorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Shields River", date >= date("2020-07-01"), date <= date("2020-09-30"))
# color
pye1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = yellorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[5], fill = NA, linewidth = 1.5)
                     )

### SNAKE
tempdat <- dat_clean %>%
  filter(basin == "Snake River", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = snakeorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Snake River", date >= date("2020-07-01"), date <= date("2020-09-30"))
# color
psn1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = snakeorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[6], fill = NA, linewidth = 1.5)
                     )

### DONNER BLITZEN
tempdat <- dat_clean %>%
  filter(basin == "Donner Blitzen", date >= date("2020-07-01"), date <= date("2020-09-30")) %>%
  mutate(site_name = factor(site_name, levels = donnerorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Donner Blitzen", date >= date("2020-07-01"), date <= date("2020-09-30"))
# color
pdb1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = donnerorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 7, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[7], fill = NA, linewidth = 1.5)
                     )
annotate_figure(egg::ggarrange(pwb1, pst1, ppa1, pfl1, pye1, psn1, pdb1, ncol = 1))

Write to file

jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/EcoD_timeseries_2020only.jpg", width = 2, height = 11, units = "in", res = 1000)
annotate_figure(egg::ggarrange(pwb1, pst1, ppa1, pfl1, pye1, psn1, pdb1, ncol = 1))
dev.off()

3.3.2.3 Summer range

Create function to plot interannual distribution of streamflow values, annual distributions of streamflow values, and scatterplot plot of

portfolioplot <- function(bas, orderr, wtryrs) {
  # filter data
  tempdat <- dat_clean %>%
    filter(basin == bas, !is.na(logYield), Month %in% c(7:9), WaterYear %in% wtryrs) %>%
    mutate(site_name = factor(site_name, levels = orderr))
  nsites <- length(unique(tempdat$site_name))
  tempdat_big <- dat_clean_big %>% filter(basin == bas, !is.na(logYield), Month %in% c(7:9), WaterYear %in% unique(tempdat$WaterYear))

  # calculate variability for reference gage
  varbig <- tempdat_big %>%
    group_by(WaterYear) %>%
    summarize(bigrange = range(logYield)[2]-range(logYield)[1],
              bigsd = sd(logYield),
              bigvar = var(logYield)) %>%
    ungroup()

  # interannual
  pint <- ggplot() +
    geom_density(data = tempdat, aes(x = logYield, y = ..scaled.., color = site_name, fill = site_name), size = 0.8) +
    scale_color_manual(values = cet_pal(nsites, name = "i1")) +
    scale_fill_manual(values = alpha(cet_pal(nsites, name = "i1"), 0.1)) +
    geom_density(data = tempdat_big, aes(x = logYield, y = ..scaled..), color = "grey40", fill = alpha("grey40", 0.2), size = 0.8) +
    xlab("Summer log(Yield, mm/day)") + ylab("Scaled density") +
    theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
                       axis.text = element_text(color = "black"), legend.position = "none")

  return(pint)
}

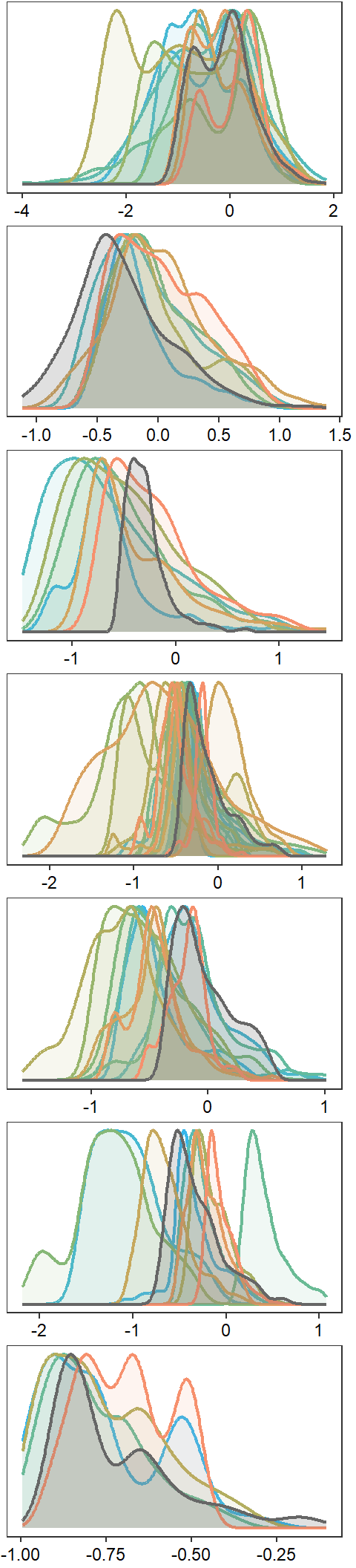

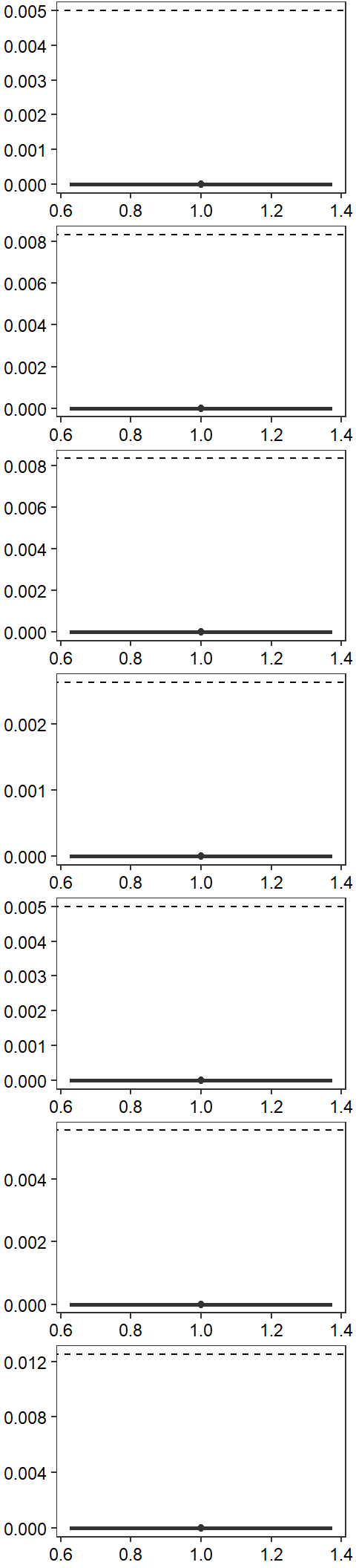

Plot distributions of summer log(yield) for all basins

# no borders
egg::ggarrange(
  # West Brook
  portfolioplot(bas = "West Brook", orderr = wborder, wtryrs = c(2020:2024)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  # Staunton
  portfolioplot(bas = "Staunton River", orderr = stauntorder, wtryrs = c(2019:2022)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  # Paine
  portfolioplot(bas = "Paine Run", orderr = paineorder, wtryrs = c(2019:2022)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  # Flathead
  portfolioplot(bas = "Flathead", orderr = flatorder, wtryrs = c(2018:2024)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  # Yellowstone
  portfolioplot(bas = "Shields River", orderr = yellorder, wtryrs = c(2016:2020,2022:2024)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  # Snake
  portfolioplot(bas = "Snake River", orderr = snakeorder, wtryrs = c(2016:2024)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  # Donner Blitzen
  portfolioplot(bas = "Donner Blitzen", orderr = donnerorder, wtryrs = c(2016:2024)) +
    theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(),
          plot.margin = margin(t = 1, r = 7, b = 2, l = 1)),
  nrow = 7)

#annotate_figure(p, left = "Density")

# jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/EcoD_summerdensity_all_noborder_wide.jpg", width = 2.5, height = 11, units = "in", res = 1000)
# annotate_figure(p1, left = "Density")
# dev.off()

3.3.3 Presentation figs

Time series plots, West Brook and Flathead

### WEST BROOK
tempdat <- dat_clean %>%
  filter(basin == "West Brook") %>%
  mutate(site_name = factor(site_name, levels = wborder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "West Brook", date >= date("2020-01-01"), date <= date("2025-01-03"))
# color
pwb1 <- ggplot() +
  geom_rect(aes(xmin = ymd("2020-07-01"), xmax = ymd("2020-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2021-07-01"), xmax = ymd("2021-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2022-07-01"), xmax = ymd("2022-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2023-07-01"), xmax = ymd("2023-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_rect(aes(xmin = ymd("2024-07-01"), xmax = ymd("2024-09-30"), ymin = -Inf, ymax = Inf), fill = polycol, color = NA) +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = wborder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  ylim(-3,2) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "West Brook, MA", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2),
                     axis.text = element_text(color = "black")#, panel.border = element_rect(colour = mycols[1], fill = NA, linewidth = 1.5)
                     )

### FLATHEAD
tempdat <- dat_clean %>%
  filter(basin == "Flathead", date >= date("2018-07-29"), date <= date("2023-08-11")) %>%
  mutate(site_name = factor(site_name, levels = flatorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Flathead", date >= date("2018-07-29"), date <= date("2023-08-11"))
# color
pfl1 <- ggplot() +
  geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = flatorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  ylim(-3,2) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Flathead River", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))

p <- annotate_figure(egg::ggarrange(pwb1, pfl1 + ylim(-2.4,1.72), ncol = 1), left = "log(Yield, mm/day)")
print(p)

# jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/EcoD_timeseries_WBFlat.jpg", width = 8, height = 5, units = "in", res = 1000)
# p
# dev.off()

No headwater gages

### WEST BROOK
tempdat <- dat_clean %>%
  filter(basin == "West Brook") %>%
  mutate(site_name = factor(site_name, levels = wborder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "West Brook", date >= date("2020-01-01"), date <= date("2025-01-03"))
# color
pwb1_nlg <- ggplot() +
  #geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = wborder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  ylim(-3,2) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "The West Brook", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))

### FLATHEAD
tempdat <- dat_clean %>%
  filter(basin == "Flathead", date >= date("2018-07-29"), date <= date("2023-08-11")) %>%
  mutate(site_name = factor(site_name, levels = flatorder))
tempdat <- fill_missing_dates(tempdat, dates = date, groups = site_name, pad_ends = FALSE)
nsites <- length(unique(tempdat$site_name))
tempdat_big <- dat_clean_big %>% filter(basin == "Flathead", date >= date("2018-07-29"), date <= date("2023-08-11"))
# color
pfl1_nlg <- ggplot() +
  #geom_line(data = tempdat, aes(x = date, y = logYield, color = factor(site_name, levels = flatorder))) +
  geom_line(data = tempdat_big, aes(x = date, y = logYield), color = "grey40") +
  scale_color_manual(values = cet_pal(nsites, name = "i1")) +
  ylim(-2.4,1.72) +
  annotate("text", x = min(c(tempdat_big$date, tempdat$date), na.rm = TRUE), y = max(c(tempdat_big$logYield, tempdat$logYield), na.rm = TRUE), label = "Flathead River", hjust = 0, vjust = 1) +
  scale_x_date(expand = c(0.02,0.02)) + #scale_y_continuous(expand = c(0,0)) +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none",
                     axis.title = element_blank(), plot.margin = margin(t = 1, r = 5, b = 2, l = 2), axis.text = element_text(color = "black"))

p <- annotate_figure(egg::ggarrange(pwb1_nlg, pfl1_nlg, ncol = 1), left = "log(Yield, mm/day)")
print(p)

# jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/EcoD_timeseries_WBFlat_nolittle.jpg", width = 8, height = 5, units = "in", res = 1000)
# p
# dev.off()

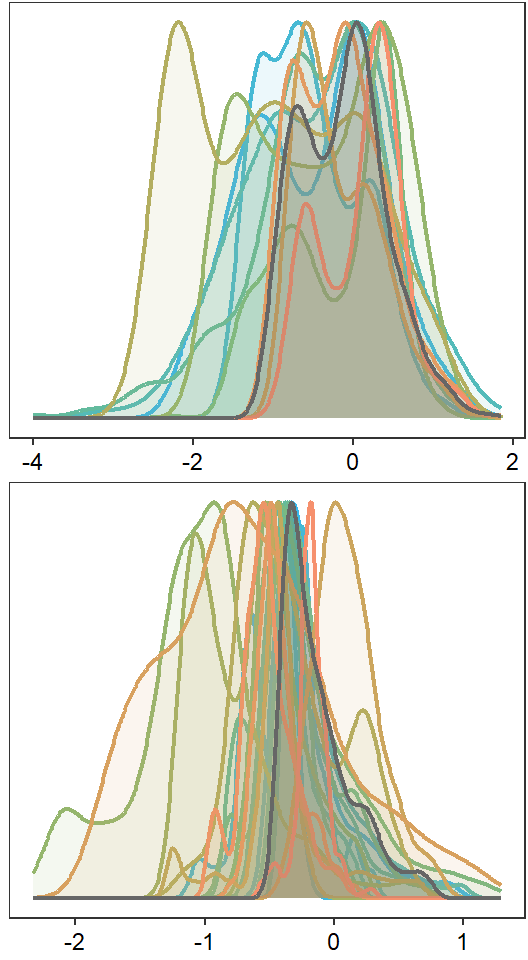

Summer log(yield) distributions for West Brook and Flathead

egg::ggarrange(portfolioplot(bas = "West Brook", orderr = wborder, wtryrs = c(2020:2024)) + theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(), plot.margin = margin(t = 1, r = 1, b = 2, l = 1)),
               portfolioplot(bas = "Flathead", orderr = flatorder, wtryrs = c(2018:2024)) + theme(axis.title = element_blank(), axis.ticks.y = element_blank(), axis.text.y = element_blank(), plot.margin = margin(t = 1, r = 1, b = 2, l = 1)),
               nrow = 2)

# print(p)
# jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/EcoD_summerdensity_WBFlat.jpg", width = 2.75, height = 5, units = "in", res = 1000)
# p
# dev.off()

3.4 Repeatability

How repeatable is summer monthly mean flow among sites within headwater networks? I.e., are sites with higher than average yield always higher than average, or do “lines cross” frequently?

Calculate reputability (R) using the rptR package (Stoffel et al. 2017). Also see related papers by Nakagawa and Schielzeth. Repeatibility is calculated on mean monthly flow z-scored by month and year, which removes the effect of monthly and interannual variation in water availability. Results are very similar to models fit using raw yield data with big G flow as a fixed effect.

basins <- c("West Brook", "Paine Run", "Staunton River", "Flathead", "Shields River", "Snake River", "Donner Blitzen")
rptlist_summer <- list()
rptlist_summer_cov <- list()

# summer only
for (i in 1:length(basins)) {
  # daily data
  td <- dat_clean %>% filter(basin == basins[i], Month %in% c(7:9))
  # summarize by month
  td2 <- td %>%
    group_by(subbasin, site_name, designation, CalendarYear, Month, MonthName) %>%
    summarize(logYield = mean(logYield)) %>%
    ungroup()
  # big g data
  tempdat_big <- dat_clean_big %>%
    filter(basin == basins[i], date >= min(td$date), date <= max(td$date)) %>%
    group_by(site_name, CalendarYear, Month, MonthName) %>%
    summarize(logYield = mean(logYield)) %>%
    ungroup()
  # join data
  joined <- td2 %>%
    left_join(tempdat_big %>% select(CalendarYear, MonthName, logYield) %>% rename(logYield_big = logYield)) %>%
    group_by(CalendarYear, Month) %>%
    mutate(logYield_z = scale(logYield)) %>%
    ungroup()
  # calculate repeatability
  rpt_znull <- rptGaussian(logYield_z ~ 1 + (1|site_name), data = joined, grname = "site_name")
  rpt_cov <- rptGaussian(logYield ~ logYield_big + (1|site_name), data = joined, grname = "site_name")
  # store in list
  rptlist_summer[[i]] <- tibble(basin =  basins[i], rboot = rpt_znull$R_boot$site_name, type = "zscore")
  rptlist_summer_cov[[i]] <- tibble(basin =  basins[i], rboot = rpt_cov$R_boot$site_name, type = "cov")
}
rpttib_summer <- bind_rows(do.call(rbind, rptlist_summer), do.call(rbind, rptlist_summer_cov))

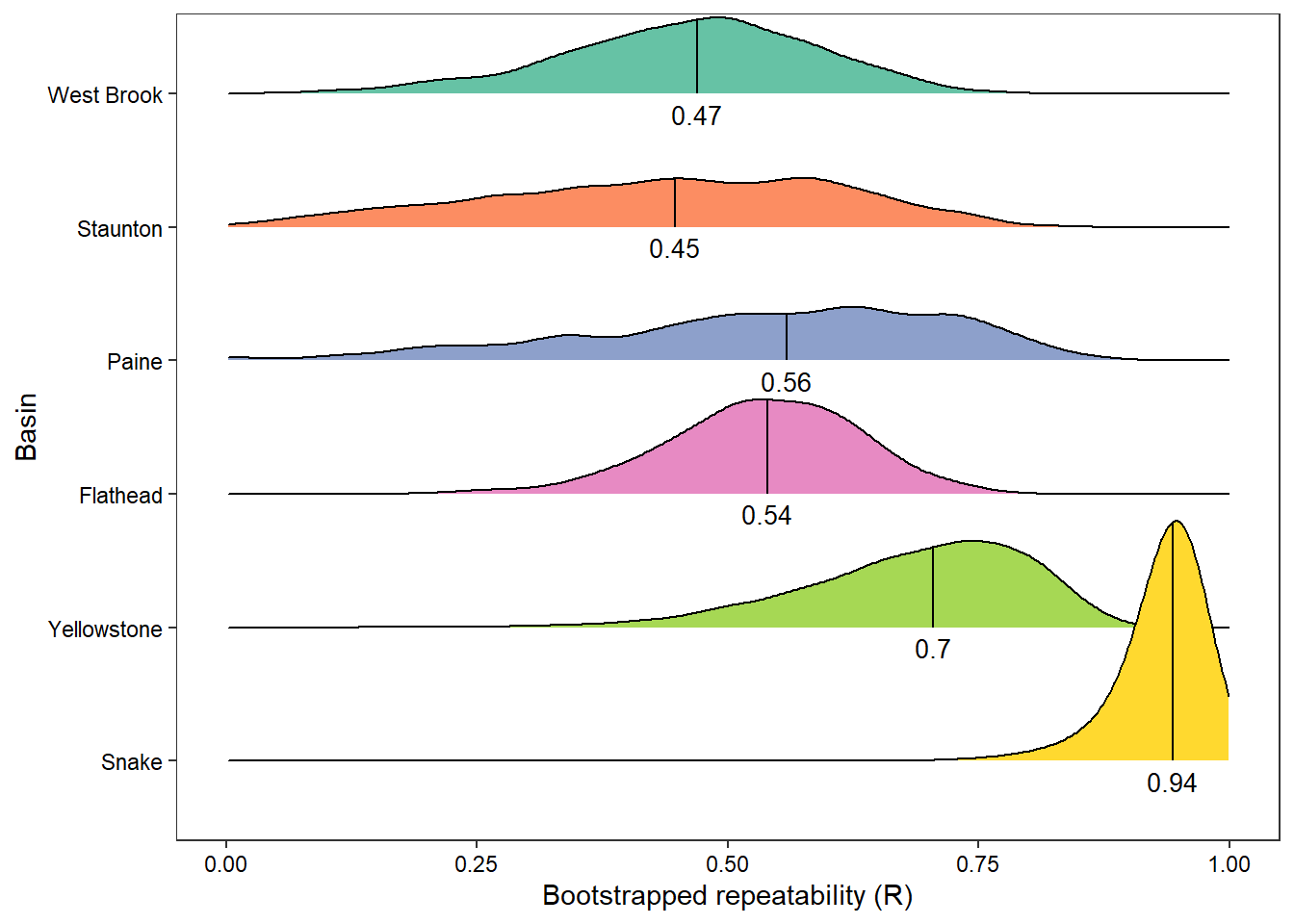

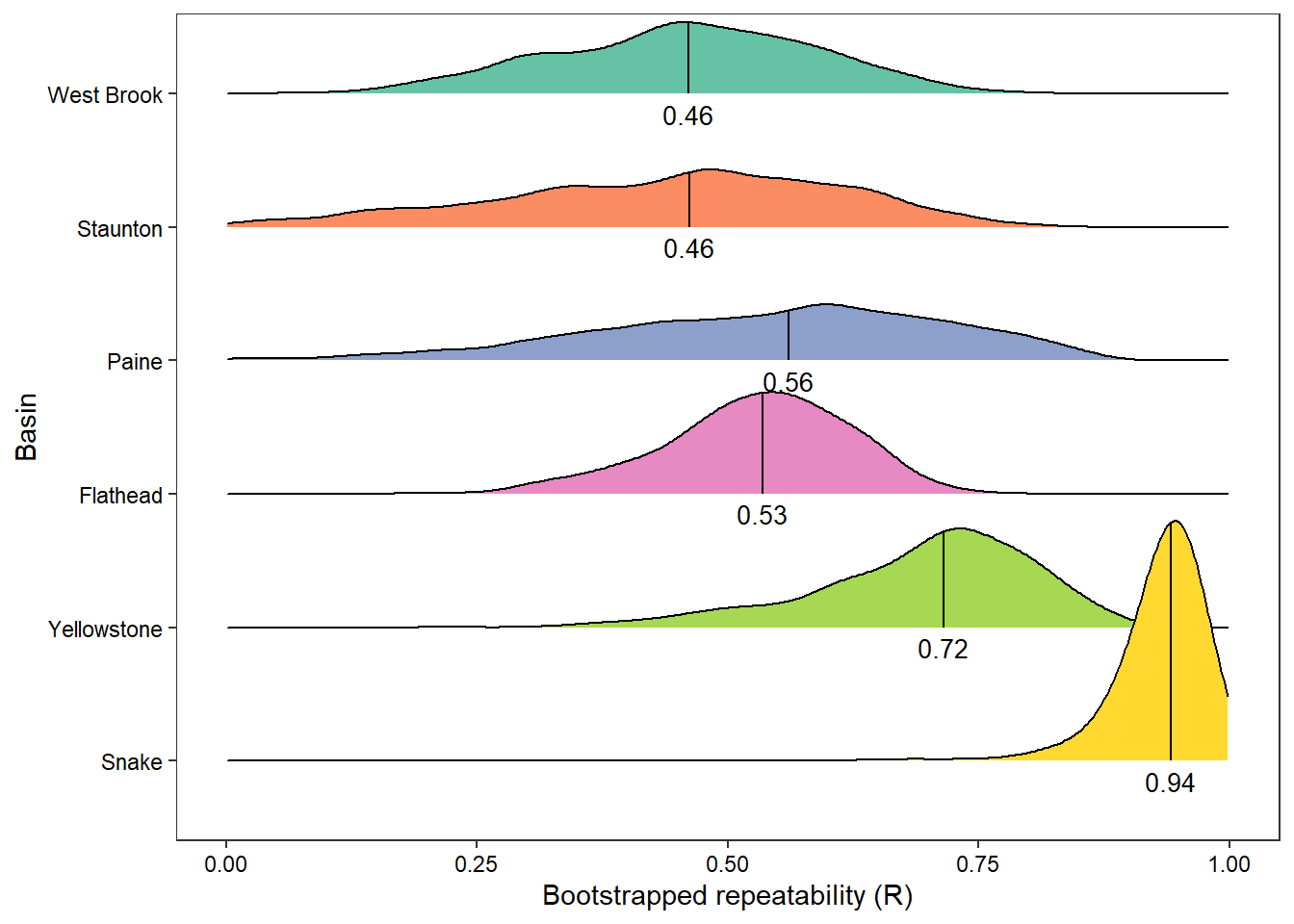

Generally, repeatibility appears to be greater for snowmelt-dominated basins, particularly in the summer. The “all data” plot is more difficult to interpret as we mostly have seasonal data in the snowmelt basins, particularly the Yellowstone and Snake. In actuality, I would expect the opposite pattern if we had complete time series data for all basins: low reputability for snowmelt basins and high repeatability for rainfall basins (for the same reasons as bow tie vs. wedge).

rpttib_summer %>%
  filter(basin != "Donner Blitzen", type == "zscore") %>%
  mutate(basin = ifelse(basin == "Paine Run", "Paine",
                        ifelse(basin == "Staunton River", "Staunton",
                               ifelse(basin == "Snake River", "Snake",
                                      ifelse(basin == "Shields River", "Yellowstone", basin))))) %>%
  mutate(basin = factor(basin, levels = rev(c("West Brook", "Staunton", "Paine", "Flathead", "Yellowstone", "Snake")))) %>%
  ggplot(aes(x = rboot, y = basin)) +
  geom_density_ridges(quantile_lines = TRUE, quantiles = 2, aes(fill = basin)) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  xlim(0,1) +
  theme_bw() + theme(legend.position = "none", panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.text = element_text(color = "black")) +
  xlab("Bootstrapped repeatability (R)") + ylab("Basin") + #ggtitle("Summer only (JAS)") +
  geom_text(data = rpttib_summer %>% filter(basin != "Donner Blitzen", type == "zscore") %>%
  mutate(basin = ifelse(basin == "Paine Run", "Paine",
                        ifelse(basin == "Staunton River", "Staunton",
                               ifelse(basin == "Snake River", "Snake",
                                      ifelse(basin == "Shields River", "Yellowstone", basin)))))%>% group_by(basin) %>% summarise(rboot = median(rboot)),
            aes(label = round(rboot, digits = 2)), position = position_nudge(y = -0.15), colour = "black", size=3.5)

Write summer repeatability figure to file

jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/MeanMonthlyFlow_SummerRepeatability.jpg", width = 4, height = 3.5, units = "in", res = 1000)
rpttib_summer %>%
  filter(basin != "Donner Blitzen", type == "zscore") %>%
  mutate(basin = ifelse(basin == "Paine Run", "Paine",
                        ifelse(basin == "Staunton River", "Staunton",
                               ifelse(basin == "Snake River", "Snake",
                                      ifelse(basin == "Shields River", "Yellowstone", basin))))) %>%
  mutate(basin = factor(basin, levels = rev(c("West Brook", "Staunton", "Paine", "Flathead", "Yellowstone", "Snake")))) %>%
  ggplot(aes(x = rboot, y = basin)) +
  geom_density_ridges(quantile_lines = TRUE, quantiles = 2, aes(fill = basin)) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  xlim(0,1) +
  theme_bw() + theme(legend.position = "none", panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.text = element_text(color = "black")) +
  xlab("Bootstrapped repeatability (R)") + ylab("Basin") + #ggtitle("Summer only (JAS)") +
  geom_text(data = rpttib_summer %>% filter(basin != "Donner Blitzen", type == "zscore") %>%
  mutate(basin = ifelse(basin == "Paine Run", "Paine",
                        ifelse(basin == "Staunton River", "Staunton",
                               ifelse(basin == "Snake River", "Snake",
                                      ifelse(basin == "Shields River", "Yellowstone", basin)))))%>% group_by(basin) %>% summarise(rboot = median(rboot)),
            aes(label = round(rboot, digits = 2)), position = position_nudge(y = -0.15), colour = "black", size=3.5)
dev.off()

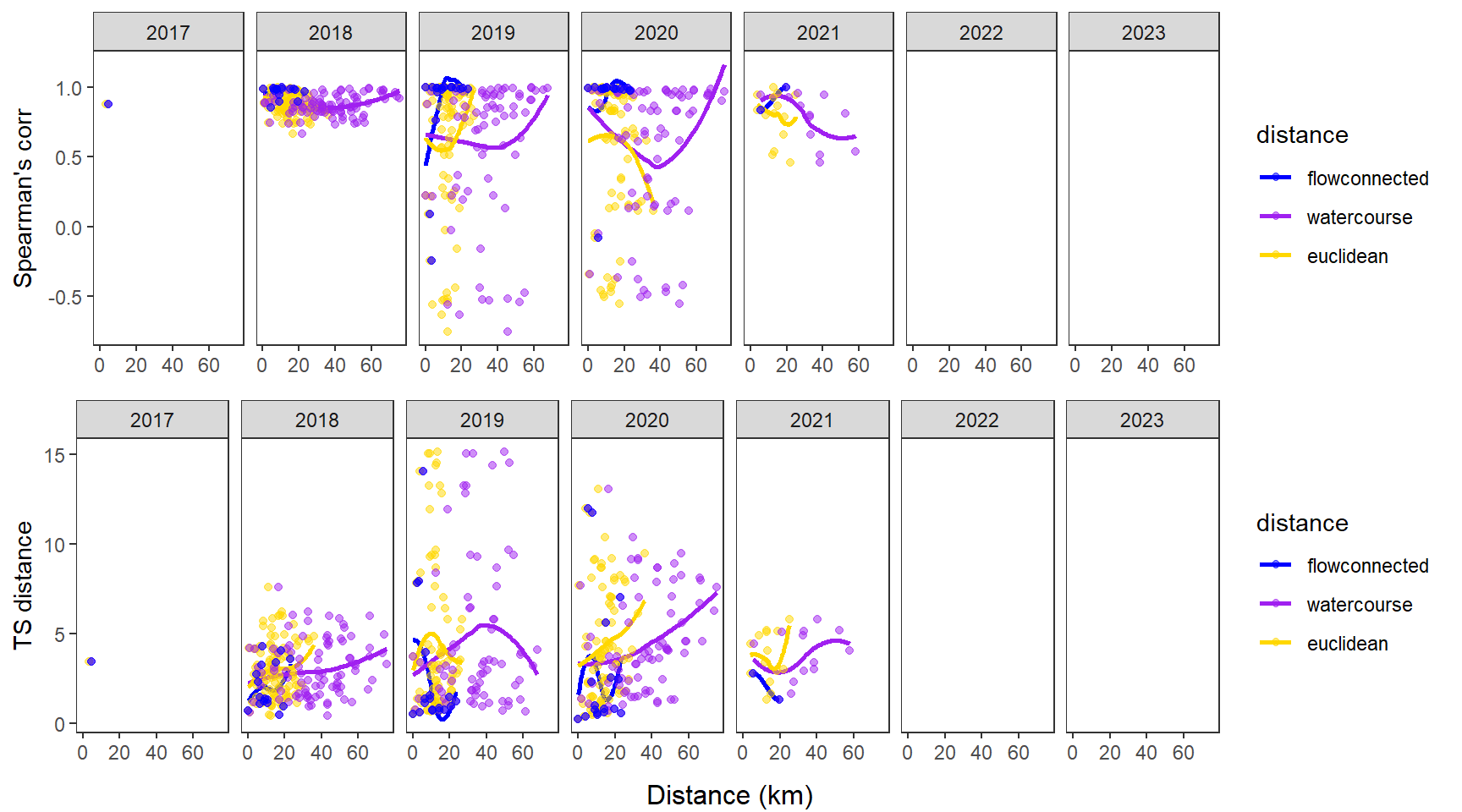

3.5 Fluvial synchrograms

Use modified fluvial synchrograms to graphically explore the geography of spatial heterogeneity in summer streamflow (sensu Larsen et al. 2018 Ecology Letters). How does time series similarity (distance) among headwater sites change as a function of euclidean, watercourse, and flow-connected geographic distance? Given spatial dependencies in river networks (e.g., Peterson et al. 2013 Ecology Letters), we would expect flow regimes to be more similar among flow-connected sites located in close proximity (i.e., increasing time series distance with increasing geographic distance).

3.5.1 Spatial data

3.5.1.1 Flowline

Crop flow line to area of interest:

# West Brook
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Mass_Watersheds")
mysheds <- mysheds[mysheds$site_id == "WBR",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Mass_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/Mass_Streams_crop.shp", append = FALSE)

# Staunton
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Shen_Watersheds")
mysheds <- mysheds[mysheds$site_id == "SR_10FL",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Shen_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/Staunton_Streams_crop.shp", append = FALSE)

# Paine Run
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Shen_Watersheds")
mysheds <- mysheds[mysheds$site_id == "PA_10FL",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Shen_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/Paine_Streams_crop.shp", append = FALSE)

# Flathead
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Flat_Watersheds")
mysheds <- mysheds[mysheds$site_id == "NFF",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Flat_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/Flat_Streams_crop.shp", append = FALSE)

# Yellowstone
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Shields_Watersheds")
mysheds <- mysheds[mysheds$site_id == "SRS",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Shields_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/Yell_Streams_crop.shp", append = FALSE)

# Snake
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Snake_Watersheds")
mysheds <- mysheds[mysheds$site_id == "SP11",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Snake_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/Snake_Streams_crop.shp", append = FALSE)

# Donner-Blitzen
mysheds <- read_sf(dsn = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds", layer = "Oreg_Watersheds")
mysheds <- mysheds[mysheds$site_id == "DBF",]
mynet <- read_sf("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams", layer = "Oreg_Streams")
st_crs(mynet) <- st_crs(mysheds)
mynet <- st_intersection(mynet, mysheds)
mynet <- st_transform(mynet, crs = "+proj=utm +zone=18")
st_write(mynet, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial/DonnerBlitzen_Streams_crop.shp", append = FALSE)

Convert flowline to riverdist network object:

# West Brook
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "Mass_Streams_crop")

 Units: metre

 Removed 2 segments with lengths shorter than the connectivity tolerance.

# plot(flowline)
# zoomtoseg(seg = c(4), rivers = flowline)
# showends(seg = 4, rivers = flowline)
flowline_wb <- setmouth(seg = 4, vert = 1, rivers = flowline)

# Staunton
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "Staunton_Streams_crop")

 Units: metre

# plot(flowline)
# zoomtoseg(seg = c(2), rivers = flowline)
# showends(seg = 2, rivers = flowline)
flowline_st <- setmouth(seg = 2, vert = 29, rivers = flowline)

# Paine
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "Paine_Streams_crop")

 Units: metre

 Removed 1 segments with lengths shorter than the connectivity tolerance.

# plot(flowline)
# zoomtoseg(seg = c(6), rivers = flowline)
# showends(seg = 6, rivers = flowline)
flowline_pa <- setmouth(seg = 6, vert = 23, rivers = flowline)

# Flathead
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "Flat_Streams_crop")

 Units: metre

 Removed 28 segments with lengths shorter than the connectivity tolerance.

# plot(flowline)
# zoomtoseg(seg = c(6, 46, 59, 7), rivers = flowline)
# showends(seg = 7, rivers = flowline)
flowline_fl <- setmouth(seg = 7, vert = 82, rivers = flowline)

# Yellowstone
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "Yell_Streams_crop")

 Units: metre

 Removed 2 segments with lengths shorter than the connectivity tolerance.

# plot(flowline)
# zoomtoseg(seg = c(6), rivers = flowline)
# showends(seg = 6, rivers = flowline)
flowline_ye <- setmouth(seg = 6, vert = 197, rivers = flowline)

# Snake
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "Snake_Streams_crop")

 Units: metre

 Removed 3 segments with lengths shorter than the connectivity tolerance.

# plot(flowline)
# zoomtoseg(seg = c(22), rivers = flowline)
# showends(seg = 22, rivers = flowline)
flowline_sn <- setmouth(seg = 22, vert = 88, rivers = flowline)

# Donner Blitzen
flowline <- line2network(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/FluvialSynch/Spatial", layer = "DonnerBlitzen_Streams_crop")

 Units: metre

 Removed 4 segments with lengths shorter than the connectivity tolerance.

# plot(flowline)
# zoomtoseg(seg = c(37,206, 209, 38), rivers = flowline)
# showends(seg = 38, rivers = flowline)
flowline_db <- setmouth(seg = 38, vert = 20, rivers = flowline)

3.5.1.2 Sites

Convert focal sites to riverpoints, snapped to networks

West Brook

mysites_wb <- siteinfo %>% filter(subbasin == "West Brook", site_name %in% unique(dat_clean$site_name))
mysites_wb_sp <- st_as_sf(mysites_wb, coords = c("long", "lat"), crs = 4326)
mysites_wb_sp <- st_transform(mysites_wb_sp, crs = st_crs(mynet))
mysites_wb_sp_xy <- xy2segvert(x = st_coordinates(mysites_wb_sp)[,1], y = st_coordinates(mysites_wb_sp)[,2], rivers = flowline_wb)

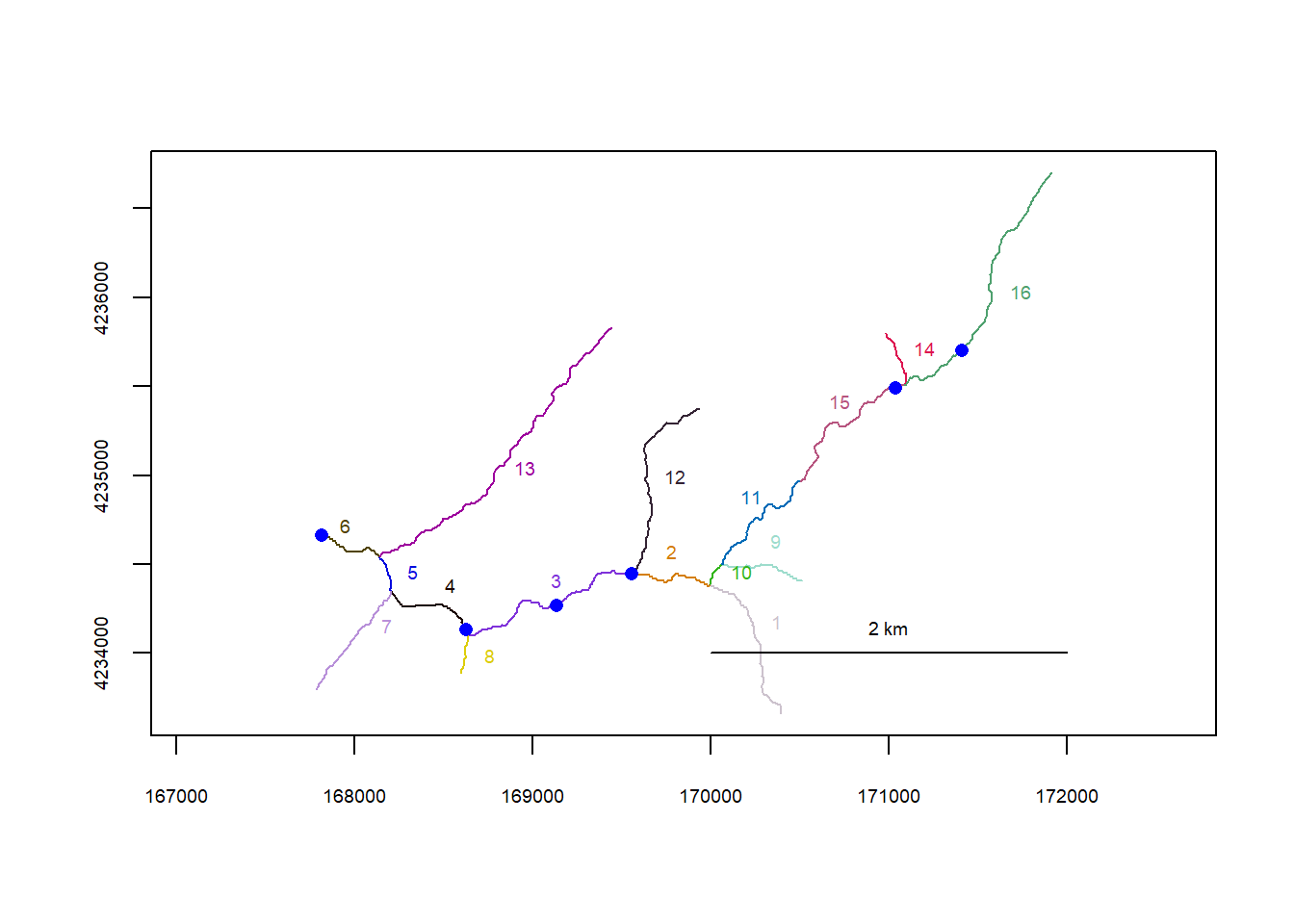

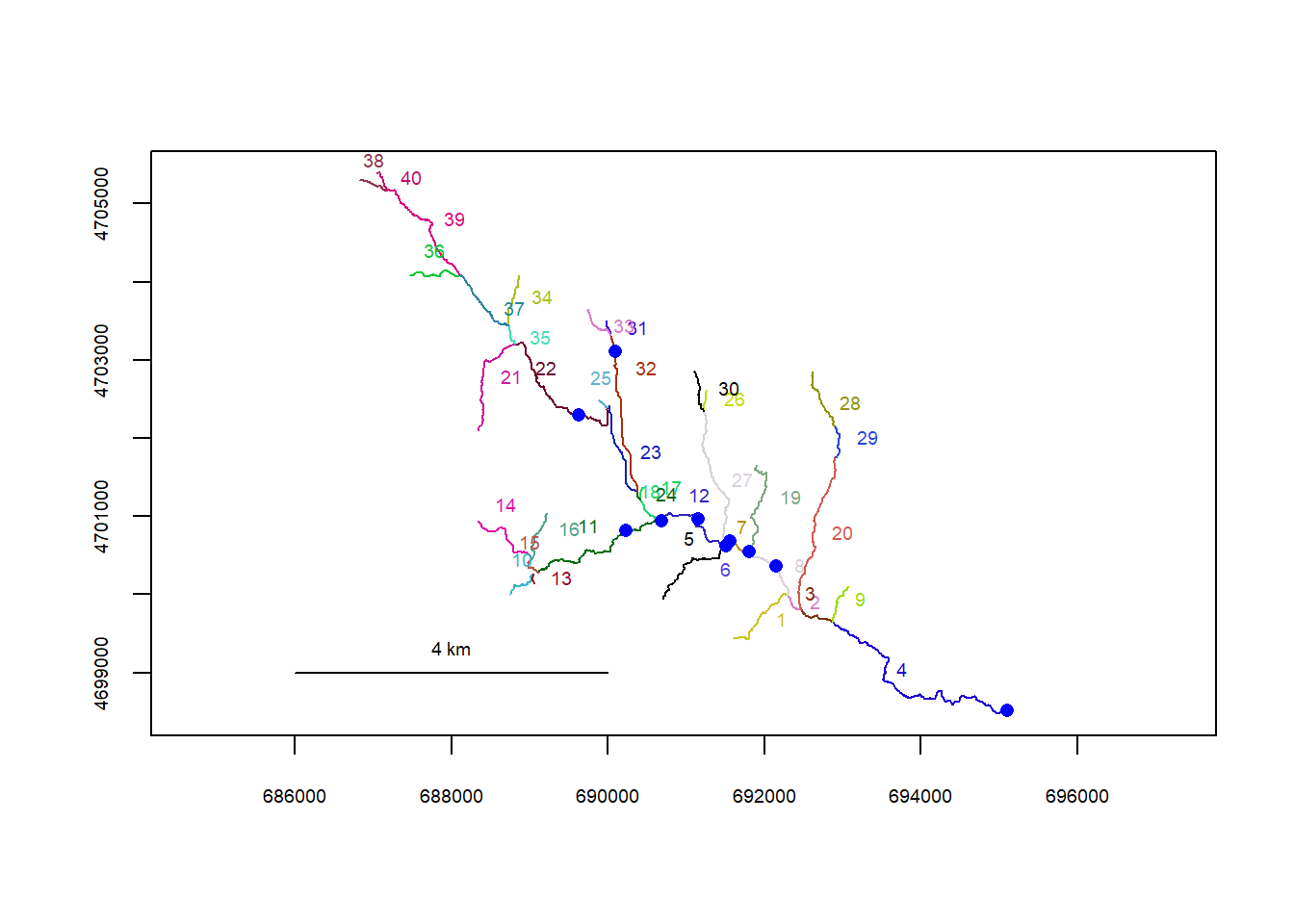

plot(flowline_wb)
riverpoints(seg = mysites_wb_sp_xy$seg, vert = mysites_wb_sp_xy$vert, rivers = flowline_wb, pch = 16, col = "blue")

Staunton

mysites_st <- siteinfo %>% filter(subbasin == "Staunton River", site_name %in% unique(dat_clean$site_name))
mysites_st_sp <- st_as_sf(mysites_st, coords = c("long", "lat"), crs = 4326)
mysites_st_sp <- st_transform(mysites_st_sp, crs = st_crs(mynet))
mysites_st_sp_xy <- xy2segvert(x = st_coordinates(mysites_st_sp)[,1], y = st_coordinates(mysites_st_sp)[,2], rivers = flowline_st)
plot(flowline_st)
riverpoints(seg = mysites_st_sp_xy$seg, vert = mysites_st_sp_xy$vert, rivers = flowline_st, pch = 16, col = "blue")

Paine

mysites_pa <- siteinfo %>% filter(subbasin == "Paine Run", site_name %in% unique(dat_clean$site_name))
mysites_pa_sp <- st_as_sf(mysites_pa, coords = c("long", "lat"), crs = 4326)
mysites_pa_sp <- st_transform(mysites_pa_sp, crs = st_crs(mynet))
mysites_pa_sp_xy <- xy2segvert(x = st_coordinates(mysites_pa_sp)[,1], y = st_coordinates(mysites_pa_sp)[,2], rivers = flowline_pa)
plot(flowline_pa)
riverpoints(seg = mysites_pa_sp_xy$seg, vert = mysites_pa_sp_xy$vert, rivers = flowline_pa, pch = 16, col = "blue")

Flathead

mysites_fl <- siteinfo %>% filter(basin == "Flathead", site_name %in% unique(dat_clean$site_name))
mysites_fl_sp <- st_as_sf(mysites_fl, coords = c("long", "lat"), crs = 4326)
mysites_fl_sp <- st_transform(mysites_fl_sp, crs = st_crs(mynet))
mysites_fl_sp_xy <- xy2segvert(x = st_coordinates(mysites_fl_sp)[,1], y = st_coordinates(mysites_fl_sp)[,2], rivers = flowline_fl)

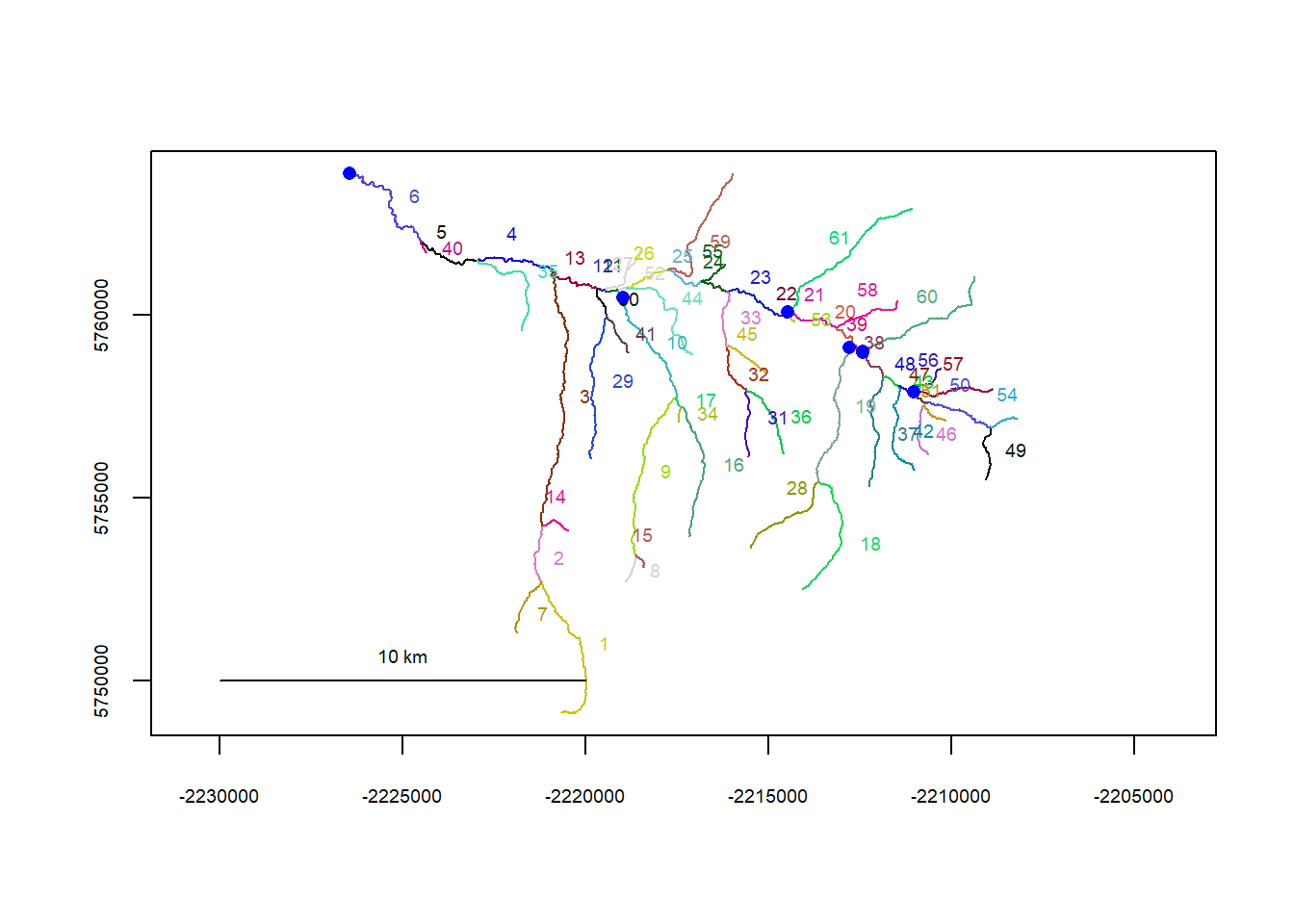

plot(flowline_fl)
riverpoints(seg = mysites_fl_sp_xy$seg, vert = mysites_fl_sp_xy$vert, rivers = flowline_fl, pch = 16, col = "blue")

Yellowstone

mysites_ye <- siteinfo %>% filter(subbasin == "Shields River", site_name %in% unique(dat_clean$site_name))
mysites_ye_sp <- st_as_sf(mysites_ye, coords = c("long", "lat"), crs = 4326)
mysites_ye_sp <- st_transform(mysites_ye_sp, crs = st_crs(mynet))
mysites_ye_sp_xy <- xy2segvert(x = st_coordinates(mysites_ye_sp)[,1], y = st_coordinates(mysites_ye_sp)[,2], rivers = flowline_ye)
plot(flowline_ye)
riverpoints(seg = mysites_ye_sp_xy$seg, vert = mysites_ye_sp_xy$vert, rivers = flowline_ye, pch = 16, col = "blue")

Snake

mysites_sn <- siteinfo %>% filter(subbasin == "Snake River", site_name %in% unique(dat_clean$site_name))
mysites_sn_sp <- st_as_sf(mysites_sn, coords = c("long", "lat"), crs = 4326)
mysites_sn_sp <- st_transform(mysites_sn_sp, crs = st_crs(mynet))
mysites_sn_sp_xy <- xy2segvert(x = st_coordinates(mysites_sn_sp)[,1], y = st_coordinates(mysites_sn_sp)[,2], rivers = flowline_sn)
plot(flowline_sn)
riverpoints(seg = mysites_sn_sp_xy$seg, vert = mysites_sn_sp_xy$vert, rivers = flowline_sn, pch = 16, col = "blue")

Donner-Blitzen

mysites_db <- siteinfo %>% filter(subbasin == "Donner Blitzen", site_name %in% unique(dat_clean$site_name))
mysites_db_sp <- st_as_sf(mysites_db, coords = c("long", "lat"), crs = 4326)
mysites_db_sp <- st_transform(mysites_db_sp, crs = st_crs(mynet))
mysites_db_sp_xy <- xy2segvert(x = st_coordinates(mysites_db_sp)[,1], y = st_coordinates(mysites_db_sp)[,2], rivers = flowline_db)
plot(flowline_db)
riverpoints(seg = mysites_db_sp_xy$seg, vert = mysites_db_sp_xy$vert, rivers = flowline_db, pch = 16, col = "blue")

3.5.2 Pairwise distances

Calculate pairwise geographic distances.

3.5.2.1 Euclidean

# West Brook
dist_euclidean_wb <- (st_distance(mysites_wb_sp, mysites_wb_sp)) / 1000
attr(dist_euclidean_wb, "units") <- NULL
row.names(dist_euclidean_wb) <- mysites_wb$site_name
colnames(dist_euclidean_wb) <- mysites_wb$site_name
dist_euclidean_wb[upper.tri(dist_euclidean_wb, diag = TRUE)] <- NA
class(dist_euclidean_wb) <- "matrix"
# dist_euclidean_wb

# Stuanton
dist_euclidean_st <- (st_distance(mysites_st_sp, mysites_st_sp)) / 1000
attr(dist_euclidean_st, "units") <- NULL
row.names(dist_euclidean_st) <- mysites_st$site_name
colnames(dist_euclidean_st) <- mysites_st$site_name
dist_euclidean_st[upper.tri(dist_euclidean_st, diag = TRUE)] <- NA
class(dist_euclidean_st) <- "matrix"
# dist_euclidean_st

# Paine
dist_euclidean_pa <- (st_distance(mysites_pa_sp, mysites_pa_sp)) / 1000
attr(dist_euclidean_pa, "units") <- NULL
row.names(dist_euclidean_pa) <- mysites_pa$site_name
colnames(dist_euclidean_pa) <- mysites_pa$site_name
dist_euclidean_pa[upper.tri(dist_euclidean_pa, diag = TRUE)] <- NA
class(dist_euclidean_pa) <- "matrix"
# dist_euclidean_pa

# Flathead
dist_euclidean_fl <- (st_distance(mysites_fl_sp, mysites_fl_sp)) / 1000
attr(dist_euclidean_fl, "units") <- NULL
row.names(dist_euclidean_fl) <- mysites_fl$site_name
colnames(dist_euclidean_fl) <- mysites_fl$site_name
dist_euclidean_fl[upper.tri(dist_euclidean_fl, diag = TRUE)] <- NA
class(dist_euclidean_fl) <- "matrix"
# dist_euclidean_fl


# Yellowstone
dist_euclidean_ye <- (st_distance(mysites_ye_sp, mysites_ye_sp)) / 1000
attr(dist_euclidean_ye, "units") <- NULL
row.names(dist_euclidean_ye) <- mysites_ye$site_name
colnames(dist_euclidean_ye) <- mysites_ye$site_name
dist_euclidean_ye[upper.tri(dist_euclidean_ye, diag = TRUE)] <- NA
class(dist_euclidean_ye) <- "matrix"
# dist_euclidean_ye

# Snake
dist_euclidean_sn <- (st_distance(mysites_sn_sp, mysites_sn_sp)) / 1000
attr(dist_euclidean_sn, "units") <- NULL
row.names(dist_euclidean_sn) <- mysites_sn$site_name
colnames(dist_euclidean_sn) <- mysites_sn$site_name
dist_euclidean_sn[upper.tri(dist_euclidean_sn, diag = TRUE)] <- NA
class(dist_euclidean_sn) <- "matrix"
# dist_euclidean_sn

# Donner Blitzen
dist_euclidean_db <- (st_distance(mysites_db_sp, mysites_db_sp)) / 1000
attr(dist_euclidean_db, "units") <- NULL
row.names(dist_euclidean_db) <- mysites_db$site_name
colnames(dist_euclidean_db) <- mysites_db$site_name
dist_euclidean_db[upper.tri(dist_euclidean_db, diag = TRUE)] <- NA
class(dist_euclidean_db) <- "matrix"
# dist_euclidean_db

3.5.2.2 Watercourse

# West Brook
dist_watercourse_wb <- riverdistancemat(mysites_wb_sp_xy$seg, mysites_wb_sp_xy$vert, flowline_wb) / 1000
row.names(dist_watercourse_wb) <- mysites_wb$site_name
colnames(dist_watercourse_wb) <- mysites_wb$site_name
dist_watercourse_wb[upper.tri(dist_watercourse_wb, diag = TRUE)] <- NA
# dist_watercourse_wb

# Staunton
dist_watercourse_st <- riverdistancemat(mysites_st_sp_xy$seg, mysites_st_sp_xy$vert, flowline_st) / 1000
row.names(dist_watercourse_st) <- mysites_st$site_name
colnames(dist_watercourse_st) <- mysites_st$site_name
dist_watercourse_st[upper.tri(dist_watercourse_st, diag = TRUE)] <- NA
# dist_watercourse_st

# Paine
dist_watercourse_pa <- riverdistancemat(mysites_pa_sp_xy$seg, mysites_pa_sp_xy$vert, flowline_pa) / 1000
row.names(dist_watercourse_pa) <- mysites_pa$site_name
colnames(dist_watercourse_pa) <- mysites_pa$site_name
dist_watercourse_pa[upper.tri(dist_watercourse_pa, diag = TRUE)] <- NA
# dist_watercourse_pa

# Flathead
dist_watercourse_fl <- riverdistancemat(mysites_fl_sp_xy$seg, mysites_fl_sp_xy$vert, flowline_fl) / 1000
row.names(dist_watercourse_fl) <- mysites_fl$site_name
colnames(dist_watercourse_fl) <- mysites_fl$site_name
dist_watercourse_fl[upper.tri(dist_watercourse_fl, diag = TRUE)] <- NA
# dist_watercourse_fl

# Yellowstone
dist_watercourse_ye <- riverdistancemat(mysites_ye_sp_xy$seg, mysites_ye_sp_xy$vert, flowline_ye) / 1000
row.names(dist_watercourse_ye) <- mysites_ye$site_name
colnames(dist_watercourse_ye) <- mysites_ye$site_name
dist_watercourse_ye[upper.tri(dist_watercourse_ye, diag = TRUE)] <- NA
# dist_watercourse_ye

# Snake
dist_watercourse_sn <- riverdistancemat(mysites_sn_sp_xy$seg, mysites_sn_sp_xy$vert, flowline_sn) / 1000
row.names(dist_watercourse_sn) <- mysites_sn$site_name
colnames(dist_watercourse_sn) <- mysites_sn$site_name
dist_watercourse_sn[upper.tri(dist_watercourse_sn, diag = TRUE)] <- NA
# dist_watercourse_snake

# Donner-Blitzen
dist_watercourse_db <- riverdistancemat(mysites_db_sp_xy$seg, mysites_db_sp_xy$vert, flowline_db) / 1000
row.names(dist_watercourse_db) <- mysites_db$site_name
colnames(dist_watercourse_db) <- mysites_db$site_name
dist_watercourse_db[upper.tri(dist_watercourse_db, diag = TRUE)] <- NA
# dist_watercourse_db

3.5.2.3 Flow-connected

# West Brook
dist_flowconn_wb <- abs(upstreammat(mysites_wb_sp_xy$seg, mysites_wb_sp_xy$vert, flowline_wb, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_wb) <- mysites_wb$site_name
colnames(dist_flowconn_wb) <- mysites_wb$site_name
dist_flowconn_wb[upper.tri(dist_flowconn_wb, diag = TRUE)] <- NA
# dist_flowconn_wb

# Staunton
dist_flowconn_st <- abs(upstreammat(mysites_st_sp_xy$seg, mysites_st_sp_xy$vert, flowline_st, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_st) <- mysites_st$site_name
colnames(dist_flowconn_st) <- mysites_st$site_name
dist_flowconn_st[upper.tri(dist_flowconn_st, diag = TRUE)] <- NA
# dist_flowconn_st

# Paine
dist_flowconn_pa <- abs(upstreammat(mysites_pa_sp_xy$seg, mysites_pa_sp_xy$vert, flowline_pa, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_pa) <- mysites_pa$site_name
colnames(dist_flowconn_pa) <- mysites_pa$site_name
dist_flowconn_pa[upper.tri(dist_flowconn_pa, diag = TRUE)] <- NA
# dist_flowconn_pa

# Flathead
dist_flowconn_fl <- abs(upstreammat(mysites_fl_sp_xy$seg, mysites_fl_sp_xy$vert, flowline_fl, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_fl) <- mysites_fl$site_name
colnames(dist_flowconn_fl) <- mysites_fl$site_name
dist_flowconn_fl[upper.tri(dist_flowconn_fl, diag = TRUE)] <- NA
# dist_flowconn_fl

# Yellowstone
dist_flowconn_ye <- abs(upstreammat(mysites_ye_sp_xy$seg, mysites_ye_sp_xy$vert, flowline_ye, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_ye) <- mysites_ye$site_name
colnames(dist_flowconn_ye) <- mysites_ye$site_name
dist_flowconn_ye[upper.tri(dist_flowconn_ye, diag = TRUE)] <- NA
# dist_flowconn_ye

# Snake
dist_flowconn_sn <- abs(upstreammat(mysites_sn_sp_xy$seg, mysites_sn_sp_xy$vert, flowline_sn, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_sn) <- mysites_sn$site_name
colnames(dist_flowconn_sn) <- mysites_sn$site_name
dist_flowconn_sn[upper.tri(dist_flowconn_sn, diag = TRUE)] <- NA
# dist_flowconn_sn

# Donner Blitzen
dist_flowconn_db <- abs(upstreammat(mysites_db_sp_xy$seg, mysites_db_sp_xy$vert, flowline_db, flowconnected = TRUE)) / 1000
row.names(dist_flowconn_db) <- mysites_db$site_name
colnames(dist_flowconn_db) <- mysites_db$site_name
dist_flowconn_db[upper.tri(dist_flowconn_db, diag = TRUE)] <- NA
# dist_flowconn_db

3.5.3 Branching complexity

Realized network/branching complexity, sensu Larsen et al. (2021)

Euclidean distance ~ watercourse distance

disttib <- tibble(basin = c(rep("West Brook", times = length(as.numeric(dist_euclidean_wb / dist_watercourse_wb))),
                            rep("Staunton River", times = length(as.numeric(dist_euclidean_st / dist_watercourse_st))),
                            rep("Paine Run", times = length(as.numeric(dist_euclidean_pa / dist_watercourse_pa))),
                            rep("Flathead River", times = length(as.numeric(dist_euclidean_fl / dist_watercourse_fl))),
                            rep("Yellowstone River", times = length(as.numeric(dist_euclidean_ye / dist_watercourse_ye))),
                            rep("Snake River", times = length(as.numeric(dist_euclidean_sn / dist_watercourse_sn))),
                            rep("Donner und Blitzen River", times = length(as.numeric(dist_euclidean_db / dist_watercourse_db)))),
       dist_euc = c(as.numeric(dist_euclidean_wb),
                    as.numeric(dist_euclidean_st),
                    as.numeric(dist_euclidean_pa),
                    as.numeric(dist_euclidean_fl),
                    as.numeric(dist_euclidean_ye),
                    as.numeric(dist_euclidean_sn),
                    as.numeric(dist_euclidean_db)),
       dist_wat = c(as.numeric(dist_watercourse_wb),
                    as.numeric(dist_watercourse_st),
                    as.numeric(dist_watercourse_pa),
                    as.numeric(dist_watercourse_fl),
                    as.numeric(dist_watercourse_ye),
                    as.numeric(dist_watercourse_sn),
                    as.numeric(dist_watercourse_db)))

disttib %>%
  ggplot() +
  geom_point(aes(x = dist_wat, y = dist_euc)) +
  geom_abline(intercept = 0, slope = 1, linetype = 2) +
  facet_wrap(~basin) +
  xlab("Watercourse distance (km)") + ylab("Euclidean distance (km)") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

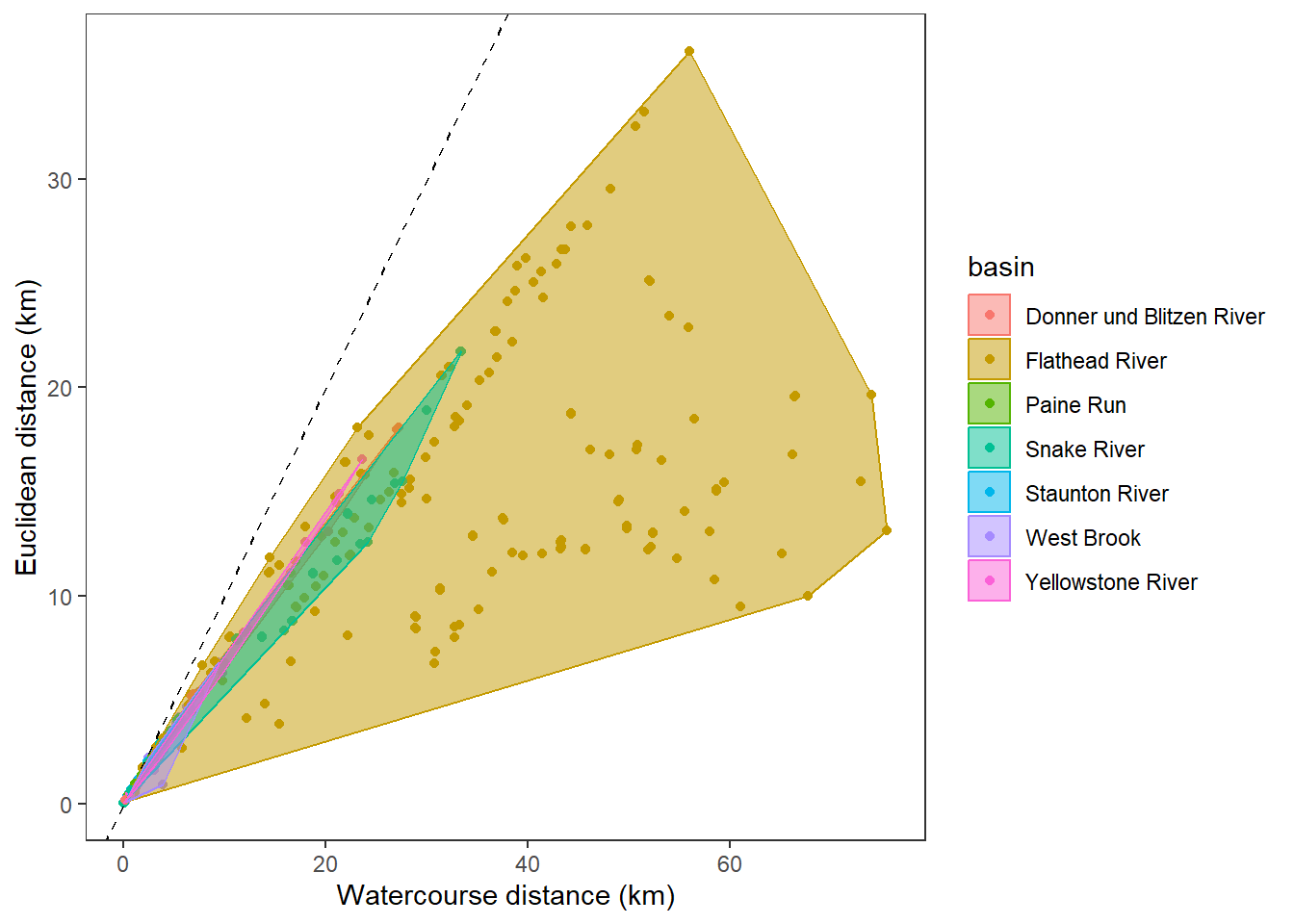

hull <- disttib %>% filter(!is.na(dist_euc), !is.na(dist_wat)) %>% group_by(basin) %>% slice(chull(dist_wat, dist_euc))


ggplot(data = disttib, aes(x = dist_wat, y = dist_euc, color = basin)) +
  geom_point() +
  geom_abline(intercept = 0, slope = 1, linetype = 2) +
  geom_polygon(data = hull, aes(fill = basin), alpha = 0.5) +
  #facet_wrap(~basin) +
  xlab("Watercourse distance (km)") + ylab("Euclidean distance (km)") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

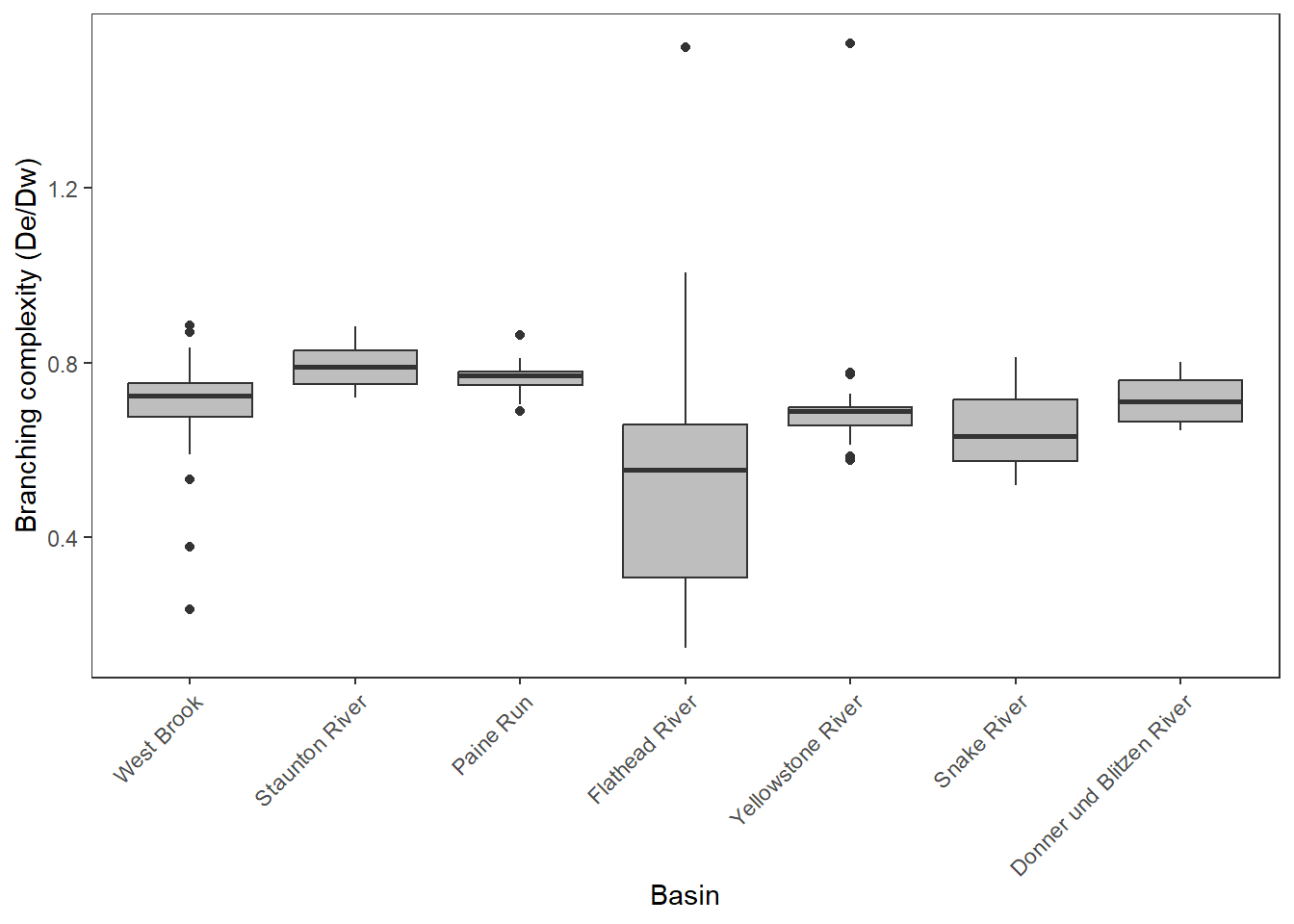

Boxplot of ratios (branching complexity)

dedw_ratio <- tibble(basin = c(rep("West Brook", times = length(as.numeric(dist_euclidean_wb / dist_watercourse_wb))),
                               rep("Staunton River", times = length(as.numeric(dist_euclidean_st / dist_watercourse_st))),
                               rep("Paine Run", times = length(as.numeric(dist_euclidean_pa / dist_watercourse_pa))),
                               rep("Flathead River", times = length(as.numeric(dist_euclidean_fl / dist_watercourse_fl))),
                               rep("Yellowstone River", times = length(as.numeric(dist_euclidean_ye / dist_watercourse_ye))),
                               rep("Snake River", times = length(as.numeric(dist_euclidean_sn / dist_watercourse_sn))),
                               rep("Donner und Blitzen River", times = length(as.numeric(dist_euclidean_db / dist_watercourse_db)))),
               dedw = c(as.numeric(dist_euclidean_wb / dist_watercourse_wb),
                        as.numeric(dist_euclidean_st / dist_watercourse_st),
                        as.numeric(dist_euclidean_pa / dist_watercourse_pa),
                        as.numeric(dist_euclidean_fl / dist_watercourse_fl),
                        as.numeric(dist_euclidean_ye / dist_watercourse_ye),
                        as.numeric(dist_euclidean_sn / dist_watercourse_sn),
                        as.numeric(dist_euclidean_db / dist_watercourse_db)))

# plot
dedw_ratio %>%
  mutate(basin = factor(basin, levels = c("West Brook", "Staunton River", "Paine Run", "Flathead River", "Yellowstone River", "Snake River", "Donner und Blitzen River"))) %>%
  ggplot(aes(x = basin, y = dedw)) +
  geom_boxplot(fill = "grey") +
  ylab("Branching complexity (De/Dw)") + xlab("Basin") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
        axis.text.x = element_text(angle = 45, hjust=1))

#boxplot(dedw ~ basin, dedw, ylim = c(0,1), ylab = "Branching complexity (De/Dw)", labels = c("West Brook"))

3.5.4 Plot synchronograms

Calculate Spearman’s r and time series distance

## West Brook
# basin objects
mysites <- mysites_wb
dist_euclidean <- dist_euclidean_wb
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[c(1:4)]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_wb <- synch_arr_sp
synch_arr_ts_wb <- synch_arr_ts


# Staunton
# basin objects
mysites <- mysites_st
dist_euclidean <- dist_euclidean_st
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[c(1:3)]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_st <- synch_arr_sp
synch_arr_ts_st <- synch_arr_ts


# Paine
# basin objects
mysites <- mysites_pa
dist_euclidean <- dist_euclidean_pa
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[2]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_pa <- synch_arr_sp
synch_arr_ts_pa <- synch_arr_ts


# Flathead
# basin objects
mysites <- mysites_fl
dist_euclidean <- dist_euclidean_fl
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[c(2:5)]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_fl <- synch_arr_sp
synch_arr_ts_fl <- synch_arr_ts


# Yellowstone
# basin objects
mysites <- mysites_ye
dist_euclidean <- dist_euclidean_ye
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[c(2,3,5)]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_ye <- synch_arr_sp
synch_arr_ts_ye <- synch_arr_ts


# Snake
# basin objects
mysites <- mysites_sn
dist_euclidean <- dist_euclidean_sn
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[c(1,3,4)]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_sn <- synch_arr_sp
synch_arr_ts_sn <- synch_arr_ts


# Donner Blitzen
# basin objects
mysites <- mysites_db
dist_euclidean <- dist_euclidean_db
# grab
sitesss <- mysites$site_name
dat_clean2 <- dat_clean %>% filter(site_name %in% sitesss, Month %in% c(7:9))
yrs <- unique(dat_clean2$WaterYear)[c(2:4)]
# set up empty arrays
synch_arr_sp <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
synch_arr_ts <- array(data = NA, dim = c(dim(dist_euclidean)[1], dim(dist_euclidean)[2], length(yrs)),
                      dimnames = list(mysites$site_name, mysites$site_name, yrs))
# fill arrays with Spearman's correlation coef and time series distance (euclidean)
for(k in 1:length(yrs)) {
  for(i in 1:length(sitesss)) {
    for(j in 1:length(sitesss)) {
      dd <- dat_clean2 %>%
        filter(WaterYear == yrs[k], site_name %in% c(sitesss[i], sitesss[j])) %>%
        select(date, site_name, logYield) %>%
        spread(key = site_name, value = logYield)
      dd <- dd[complete.cases(dd),]
      if(dim(dd)[1] <= 0.9*92 | dim(dd)[2] == 2) next
      synch_arr_sp[i,j,k] <- cor(dd[,sitesss[i]], dd[,sitesss[j]], use = "complete.obs", method = "spearman")
      synch_arr_ts[i,j,k] <- EuclideanDistance(unlist(dd[,sitesss[i]]), unlist(dd[,sitesss[j]]))
    }
  }
}
# set top triangles to NA
for(k in 1:length(yrs)) {
  synch_arr_sp[,,k] <- ifelse(synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE) == 0, NA, synch_arr_sp[,,k] * !upper.tri(synch_arr_sp[,,k], diag = TRUE))
  synch_arr_ts[,,k] <- ifelse(synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE) == 0, NA, synch_arr_ts[,,k] * !upper.tri(synch_arr_ts[,,k], diag = TRUE))
}
synch_arr_sp_db <- synch_arr_sp
synch_arr_ts_db <- synch_arr_ts

Create plotting function

fluvsynchfun <- function(subbas, spear, ts, dist_euc, dist_wat, dist_flow) {
  synch_arr_sp <- spear
  synch_arr_ts <- ts
  dist_euclidean <- dist_euc
  dist_watercourse <- dist_wat
  dist_flowconn <- dist_flow

  synchtib <- tibble(basin = rep(subbas, times = length(as.numeric(synch_arr_sp))),
                   wateryear = sort(rep(as.numeric(dimnames(synch_arr_sp)[[3]]), times = dim(synch_arr_sp)[1]*dim(synch_arr_sp)[2])),
                   synch_sp = as.numeric(synch_arr_sp),
                   synch_ts = as.numeric(synch_arr_ts),
                   euclidean = rep(as.numeric(dist_euclidean), times = dim(synch_arr_sp)[3]),
                   watercourse = rep(as.numeric(dist_watercourse), times = dim(synch_arr_sp)[3]),
                   flowconnected = rep(as.numeric(dist_flowconn), times = dim(synch_arr_sp)[3])) %>%
  gather(euclidean:flowconnected, key = "distance", value = "value")

# Spearman correlation
fs_sp <- synchtib %>%
  mutate(distance = factor(distance, levels = c("flowconnected", "watercourse", "euclidean"))) %>%
  ggplot(aes(x = value, y = synch_sp, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.2, se = FALSE, span = 1) +
  geom_point(alpha = 0.5) +
  scale_color_manual(values = c("blue", "purple", "gold1")) +
  scale_fill_manual(values = c("blue", "purple", "gold1")) +
  facet_wrap(~wateryear, nrow = 1) +
  ylab("Spearman's corr") + xlab("Distance (km)") +
  #coord_cartesian(ylim = c(0,1)) +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.title.x=element_blank())

# Time series distance (euclidean)
fs_ts <- synchtib %>%
  mutate(distance = factor(distance, levels = c("flowconnected", "watercourse", "euclidean"))) %>%
  ggplot(aes(x = value, y = synch_ts, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.2, se = FALSE, span = 1) +
  geom_point(alpha = 0.5) +
  scale_color_manual(values = c("blue", "purple", "gold1")) +
  scale_fill_manual(values = c("blue", "purple", "gold1")) +
  facet_wrap(~wateryear, nrow = 1) +
  ylab("TS distance") + xlab("Distance (km)") +
  #coord_cartesian(ylim = c(0,20)) +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.title.x=element_blank())

#
# # Spearman correlation
# fs_sp2 <- synchtib %>%
#   filter(distance %in% c("dist_flo")) %>%
#   mutate(distance = factor(distance, levels = c("dist_flo", "dist_dis"))) %>%
#   ggplot(aes(x = value, y = synch_sp, color = distance, fill = distance, group = distance)) +
#   geom_smooth(alpha = 0.2) +
#   geom_point(alpha = 0.5) +
#   scale_color_manual(values = c("blue", "darkorange")) +
#   scale_fill_manual(values = c("blue", "darkorange")) +
#   facet_wrap(~wateryear, nrow = 1) +
#   ylab("Spearman's corr.") + xlab("Distance (km)") +
#   coord_cartesian(ylim = c(0,1)) +
#   theme_bw() +
#   theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.title.x=element_blank())
#
# # Time series distance (euclidean)
# fs_ts2 <- synchtib %>%
#   filter(distance %in% c("dist_flo", "dist_dis")) %>%
#   mutate(distance = factor(distance, levels = c("dist_flo", "dist_dis"))) %>%
#   ggplot(aes(x = value, y = synch_ts, color = distance, fill = distance, group = distance)) +
#   geom_smooth(alpha = 0.2) +
#   geom_point(alpha = 0.5) +
#   scale_color_manual(values = c("blue", "darkorange")) +
#   scale_fill_manual(values = c("blue", "darkorange")) +
#   facet_wrap(~wateryear, nrow = 1) +
#   ylab("TS distance") + xlab("Distance (km)") +
#   coord_cartesian(ylim = c(0,20)) +
#   theme_bw() +
#   theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.title.x=element_blank())
#
myplot <- ggarrange(fs_sp, fs_ts, ncol = 1)
annotate_figure(myplot, bottom = text_grob("Distance (km)"))
}

Plot fluvial synchrograms

West Brook

fluvsynchfun(subbas = "West Brook", spear = synch_arr_sp_wb, ts = synch_arr_ts_wb,
             dist_euc = dist_euclidean_wb, dist_wat = dist_watercourse_wb, dist_flow = dist_flowconn_wb)

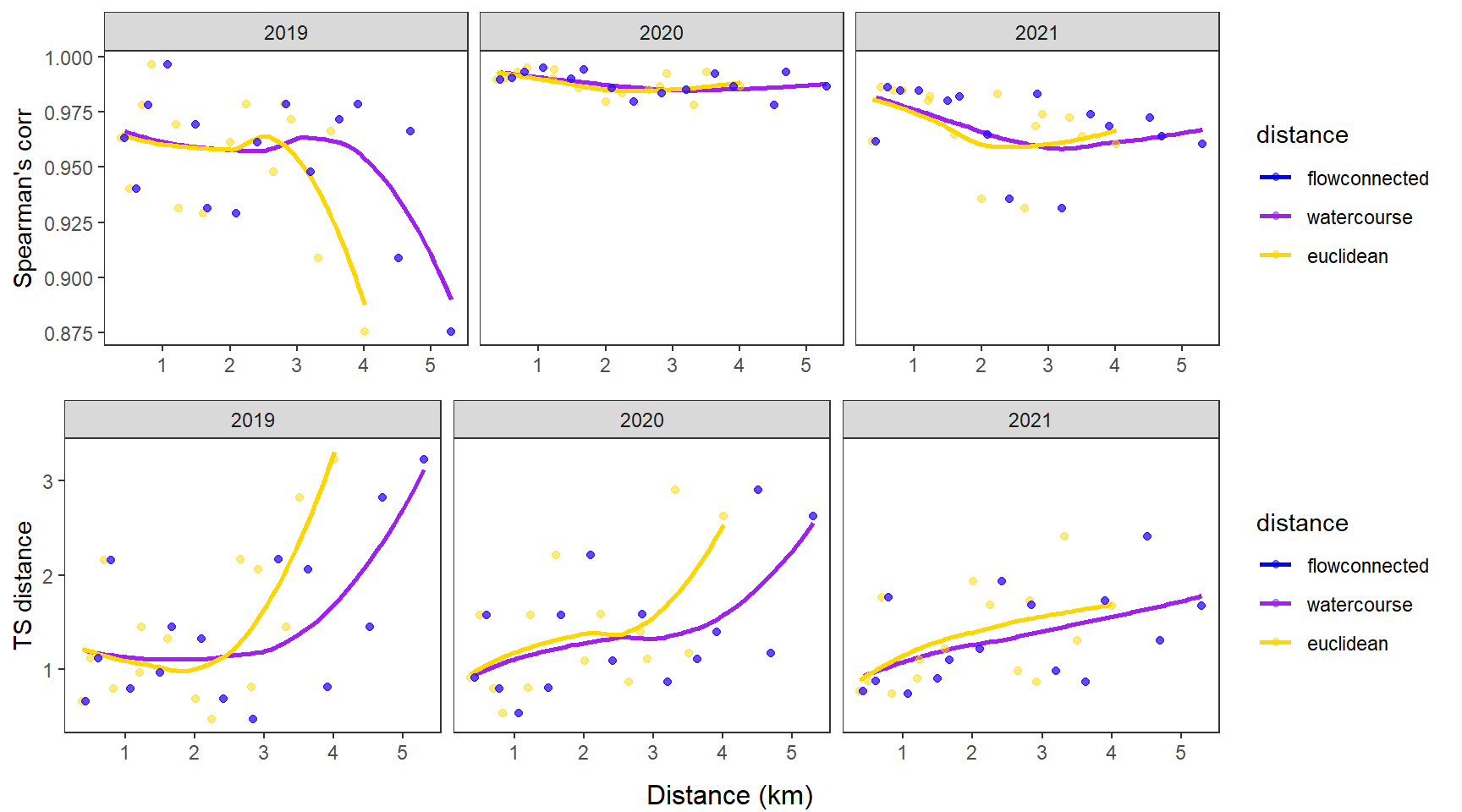

Staunton

fluvsynchfun(subbas = "Staunton River", spear = synch_arr_sp_st, ts = synch_arr_ts_st,
             dist_euc = dist_euclidean_st, dist_wat = dist_watercourse_st, dist_flow = dist_flowconn_st)

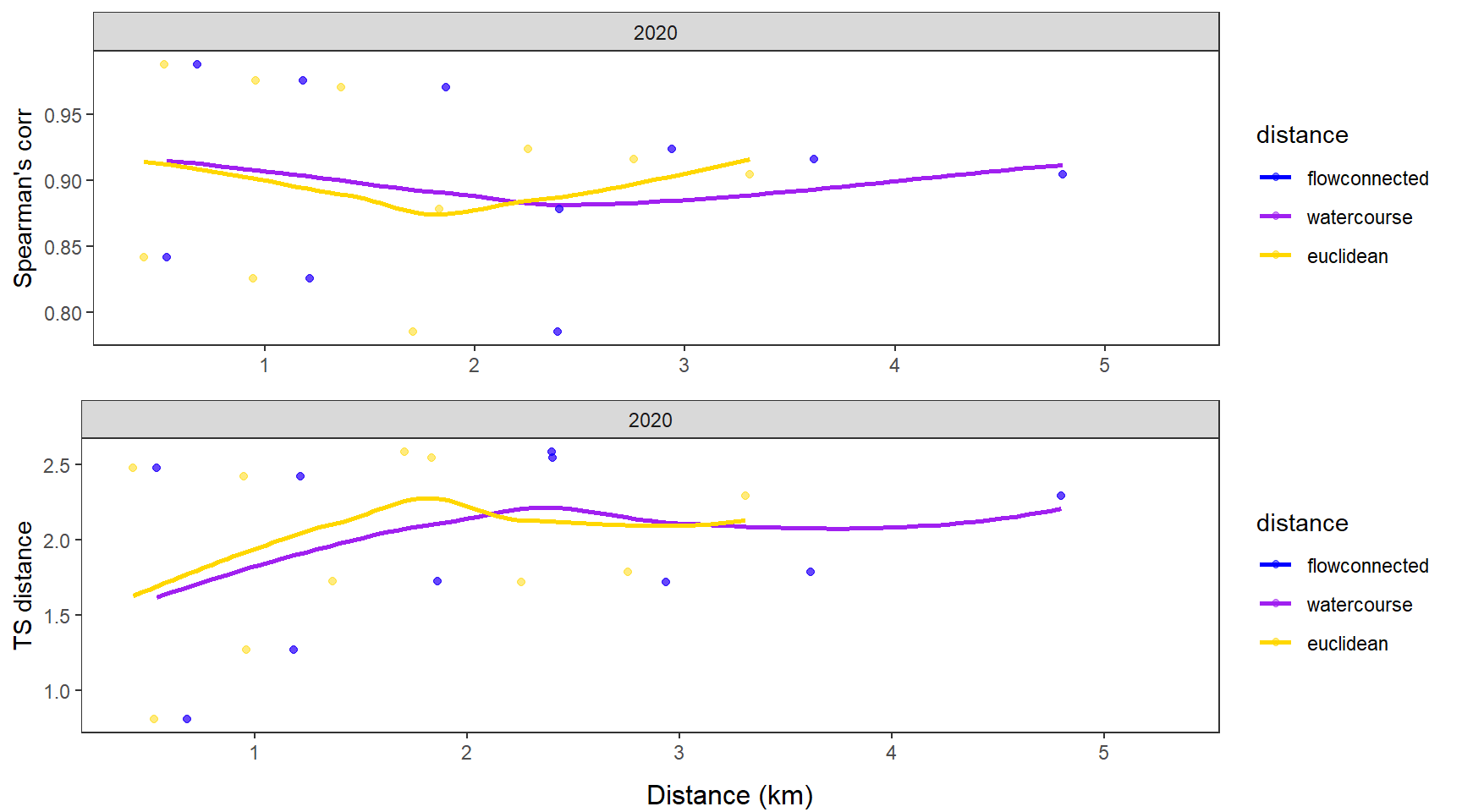

Paine

fluvsynchfun(subbas = "Paine Run", spear = synch_arr_sp_pa, ts = synch_arr_ts_pa,
             dist_euc = dist_euclidean_pa, dist_wat = dist_watercourse_pa, dist_flow = dist_flowconn_pa)

Flathead

fluvsynchfun(subbas = "Flathead River", spear = synch_arr_sp_fl, ts = synch_arr_ts_fl,
             dist_euc = dist_euclidean_fl, dist_wat = dist_watercourse_fl, dist_flow = dist_flowconn_fl)

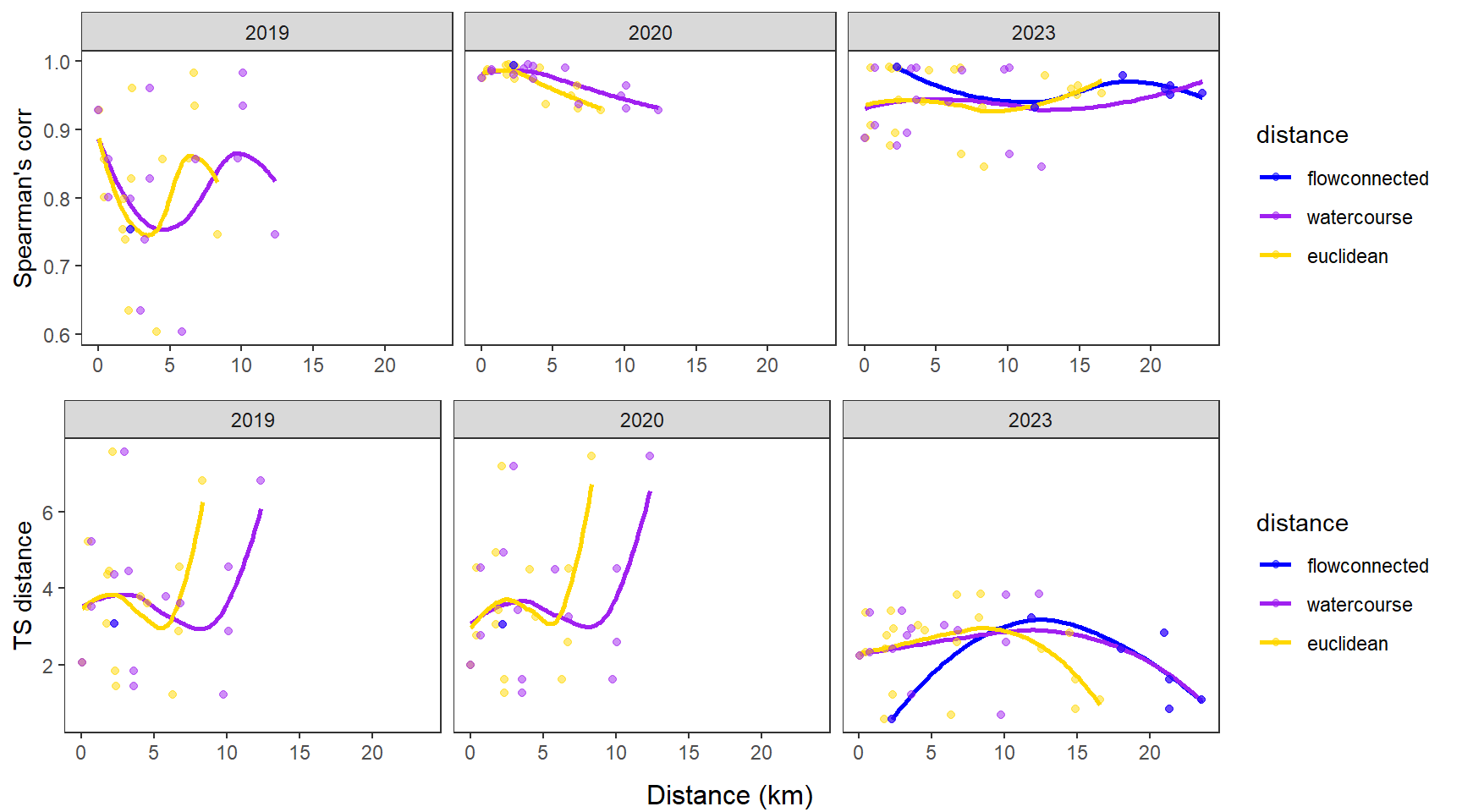

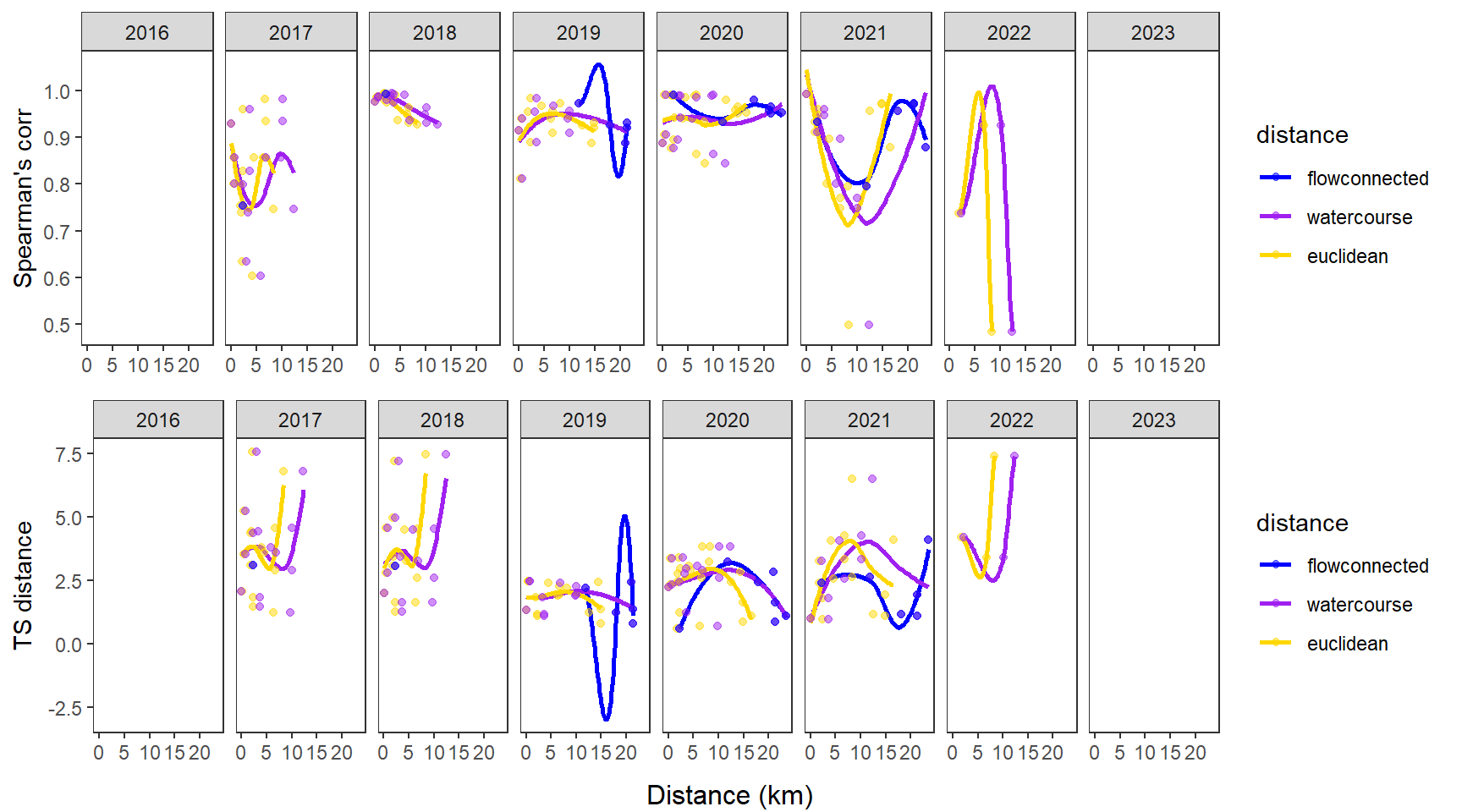

Yellowstone

fluvsynchfun(subbas = "Yellowstone River", spear = synch_arr_sp_ye, ts = synch_arr_ts_ye,
             dist_euc = dist_euclidean_ye, dist_wat = dist_watercourse_ye, dist_flow = dist_flowconn_ye)

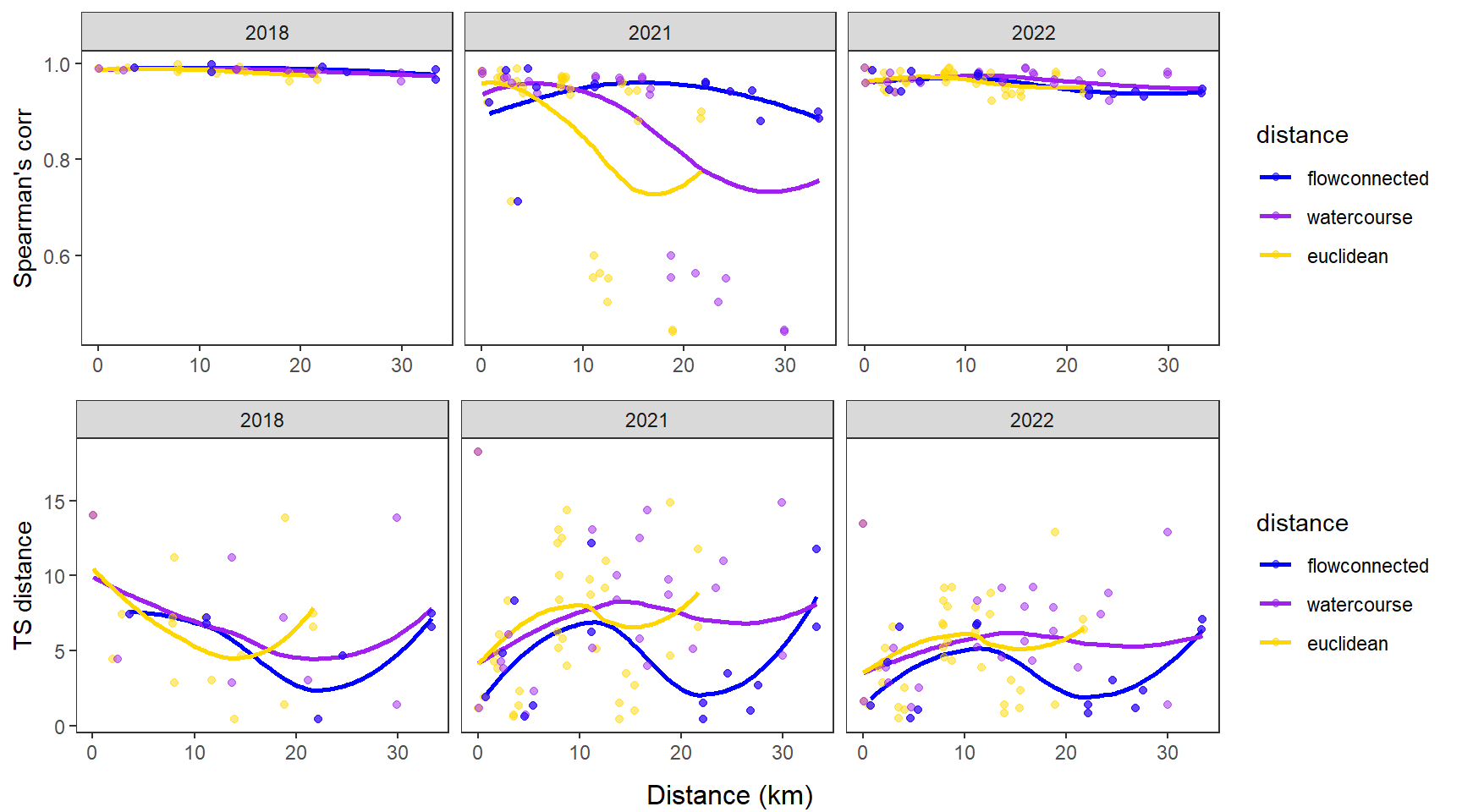

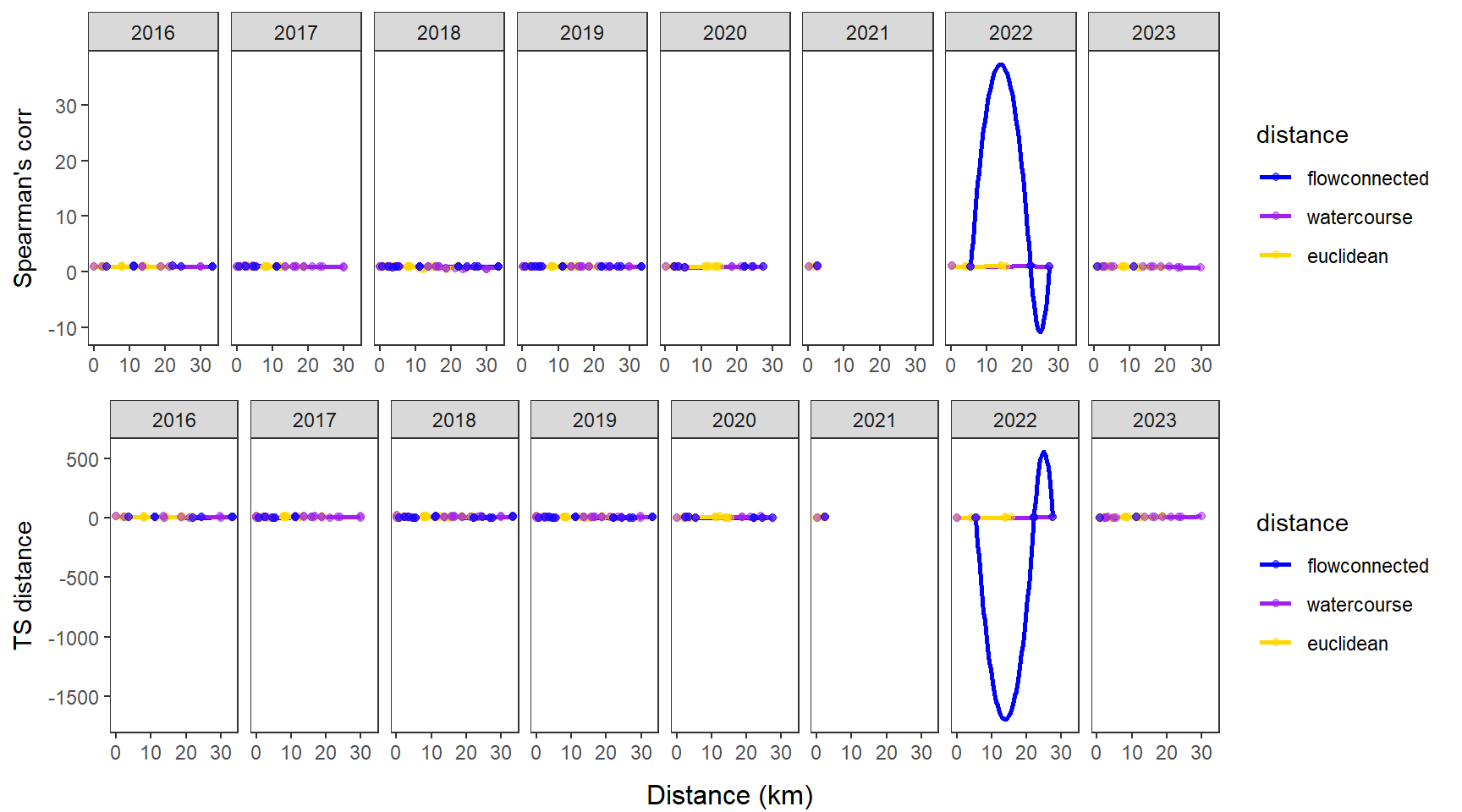

Snake

fluvsynchfun(subbas = "Snake River", spear = synch_arr_sp_sn, ts = synch_arr_ts_sn,
             dist_euc = dist_euclidean_sn, dist_wat = dist_watercourse_sn, dist_flow = dist_flowconn_sn)

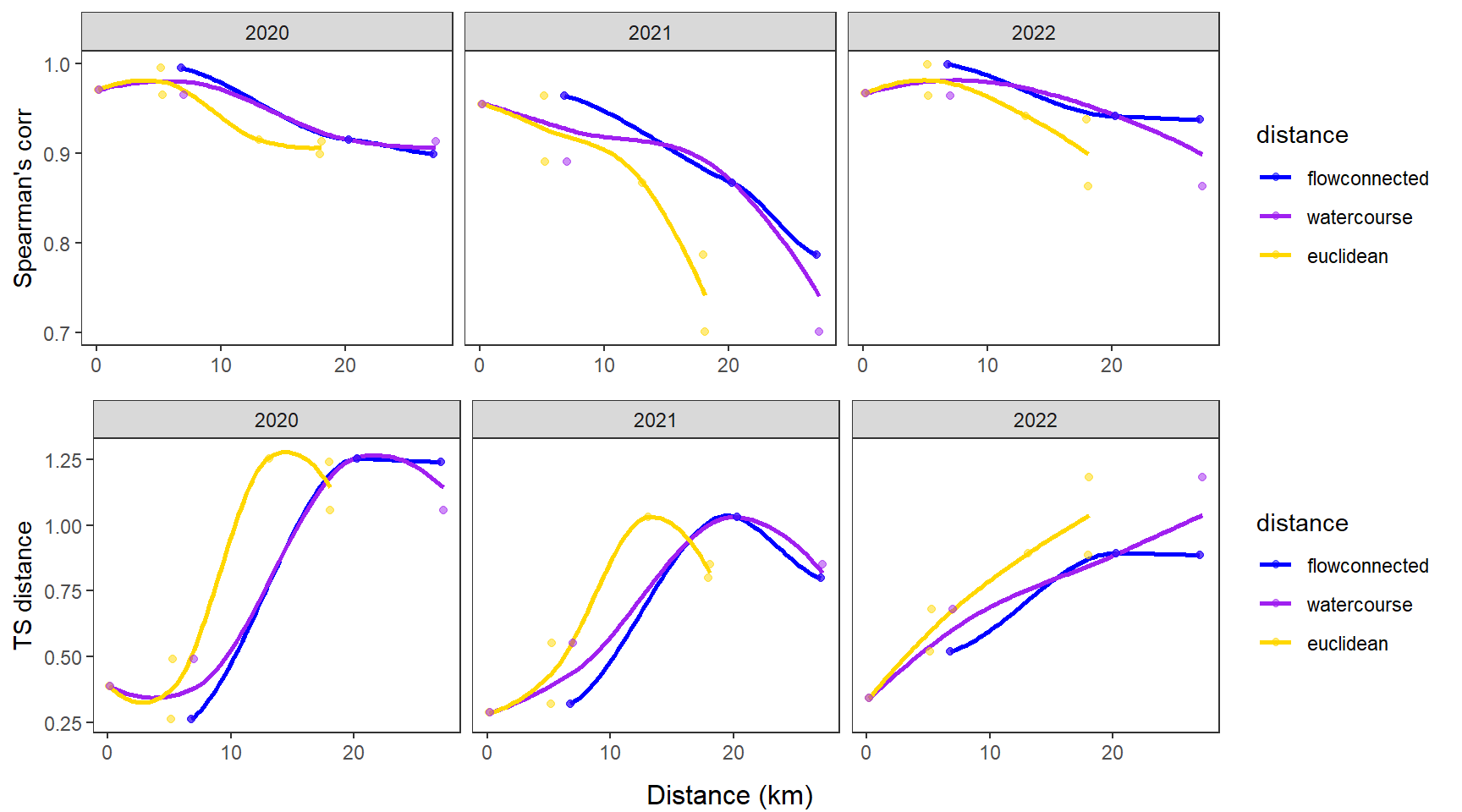

Donner-Blitzen

fluvsynchfun(subbas = "Donner und Blitzen River", spear = synch_arr_sp_db, ts = synch_arr_ts_db,
             dist_euc = dist_euclidean_db, dist_wat = dist_watercourse_db, dist_flow = dist_flowconn_db)

synchtib <- tibble(basin = c(rep("West Brook", times = length(as.numeric(synch_mat))),
                             rep("Snake River", times = length(as.numeric(synch_mat_snake)))),
                   synch_sp = c(as.numeric(synch_mat_sp), as.numeric(synch_mat_snake_sp)),
                   synch_ts = c(as.numeric(synch_mat_ts), as.numeric(synch_mat_snake_ts)),
                   dist_euc = c(as.numeric(dist_euclidean), as.numeric(dist_euclidean_snake)),
                   dist_wat = c(as.numeric(dist_watercourse), as.numeric(dist_watercourse_snake)),
                   dist_flo = c(as.numeric(dist_flowconn), as.numeric(dist_flowconn_snake)),
                   dist_dis = c(as.numeric(dist_flowdisconn), as.numeric(dist_flowdisconn_snake))) %>%
  gather(dist_euc:dist_dis, key = "distance", value = "value")

# Spearman correlation
synchtib %>%
  filter(!distance %in% c("dist_dis")) %>%
  mutate(distance = factor(distance, levels = c("dist_flo", "dist_wat", "dist_euc"))) %>%
  ggplot(aes(x = value, y = synch_sp, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.3) +
  geom_point(aes(x = jitter(value, factor = 300), y = jitter(synch_sp, factor = 300))) +
  scale_color_manual(values = c("blue", "purple", "gold1")) +
  scale_fill_manual(values = c("blue", "purple", "gold1")) +
  facet_wrap(~basin, scales = "free_x") +
  ylab("Spearman's correlation") + xlab("Distance (km)") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

# Time series distance (euclidean)
synchtib %>%
  filter(!distance %in% c("dist_dis")) %>%
  mutate(distance = factor(distance, levels = c("dist_flo", "dist_wat", "dist_euc")))%>%
  ggplot(aes(x = value, y = synch_ts, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.3) +
  geom_point(aes(x = jitter(value, factor = 200), y = jitter(synch_ts, factor = 200))) +
  scale_color_manual(values = c("blue", "purple", "gold1")) +
  scale_fill_manual(values = c("blue", "purple", "gold1")) +
  facet_wrap(~basin, scales = "free_x") +
  ylab("Time series distance") + xlab("Distance (km)") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())


# Spearman correlation
synchtib %>%
  filter(distance %in% c("dist_flo", "dist_dis")) %>%
  mutate(distance = factor(distance, levels = c("dist_flo", "dist_dis"))) %>%
  ggplot(aes(x = value, y = synch_sp, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.3) +
  geom_point(aes(x = jitter(value, factor = 300), y = jitter(synch_sp, factor = 300))) +
  scale_color_manual(values = c("blue", "darkorange")) +
  scale_fill_manual(values = c("blue", "darkorange")) +
  facet_wrap(~basin, scales = "free_x") +
  ylab("Spearman's correlation") + xlab("Distance (km)") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

# Time series distance (euclidean)
synchtib %>%
  filter(distance %in% c("dist_flo", "dist_dis")) %>%
  mutate(distance = factor(distance, levels = c("dist_flo", "dist_dis"))) %>%
  ggplot(aes(x = value, y = synch_ts, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.3) +
  geom_point(aes(x = jitter(value, factor = 200), y = jitter(synch_ts, factor = 200))) +
  scale_color_manual(values = c("blue", "darkorange")) +
  scale_fill_manual(values = c("blue", "darkorange")) +
  facet_wrap(~basin, scales = "free_x") +
  ylab("Time series distance") + xlab("Distance (km)") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

tibble(basin = c(rep("West Brook", times = length(as.numeric(synch_mat))),
                 rep("Snake River", times = length(as.numeric(synch_mat_snake)))),
       synch_sp = c(as.numeric(synch_mat_sp), as.numeric(synch_mat_snake_sp)),
       synch_ts = c(as.numeric(synch_mat_ts), as.numeric(synch_mat_snake_ts)),
       dist_euc = c(as.numeric(dist_euclidean), as.numeric(dist_euclidean_snake)),
       dist_wat = c(as.numeric(dist_watercourse), as.numeric(dist_watercourse_snake)),
       dist_flo = c(as.numeric(dist_flowconn), as.numeric(dist_flowconn_snake)),
       dist_dis = c(as.numeric(dist_flowdisconn), as.numeric(dist_flowdisconn_snake))) %>%
  mutate(dedw = dist_euc / dist_wat) %>%
  ggplot(aes(x = dedw, y = synch_ts)) +
  geom_smooth(alpha = 0.3, method = "lm") +
  geom_point(aes(x = dedw, y = synch_ts)) +
  facet_wrap(~basin, scales = "free_x") +
  ylab("Time series distance") + xlab("de/dw") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

tibble(basin = c(rep("West Brook", times = length(as.numeric(synch_mat))),
                 rep("Snake River", times = length(as.numeric(synch_mat_snake)))),
       synch_sp = c(as.numeric(synch_mat_sp), as.numeric(synch_mat_snake_sp)),
       synch_ts = c(as.numeric(synch_mat_ts), as.numeric(synch_mat_snake_ts)),
       dist_euc = c(as.numeric(dist_euclidean), as.numeric(dist_euclidean_snake)),
       dist_wat = c(as.numeric(dist_watercourse), as.numeric(dist_watercourse_snake)),
       dist_flo = c(as.numeric(dist_flowconn), as.numeric(dist_flowconn_snake)),
       dist_dis = c(as.numeric(dist_flowdisconn), as.numeric(dist_flowdisconn_snake))) %>%
  mutate(dedw = dist_euc / dist_wat) %>%
  ggplot(aes(x = dedw, y = synch_sp)) +
  geom_smooth(alpha = 0.3, method = "lm") +
  geom_point(aes(x = dedw, y = synch_sp)) +
  facet_wrap(~basin, scales = "free_x") +
  ylab("Spearman correlation") + xlab("de/dw") +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

3.5.5 Combined figure

Plotting function

fluvsynchfun_mod <- function(subbas, spear, ts, dist_euc, dist_wat, dist_flow) {
  synch_arr_sp <- spear
  synch_arr_ts <- ts
  dist_euclidean <- dist_euc
  dist_watercourse <- dist_wat
  dist_flowconn <- dist_flow

  synchtib <- tibble(basin = rep(subbas, times = length(as.numeric(synch_arr_sp))),
                   wateryear = sort(rep(as.numeric(dimnames(synch_arr_sp)[[3]]), times = dim(synch_arr_sp)[1]*dim(synch_arr_sp)[2])),
                   synch_sp = as.numeric(synch_arr_sp),
                   synch_ts = as.numeric(synch_arr_ts),
                   euclidean = rep(as.numeric(dist_euclidean), times = dim(synch_arr_sp)[3]),
                   watercourse = rep(as.numeric(dist_watercourse), times = dim(synch_arr_sp)[3]),
                   flowconnected = rep(as.numeric(dist_flowconn), times = dim(synch_arr_sp)[3])) %>%
  gather(euclidean:flowconnected, key = "distance", value = "value")

# Spearman correlation
# fs_sp <- synchtib %>%
#   filter(distance != "watercourse") %>%
#   mutate(distance = factor(distance, levels = c("flowconnected", "watercourse", "euclidean"))) %>%
#   ggplot(aes(x = value, y = synch_sp, color = distance, fill = distance, group = distance)) +
#   geom_smooth(alpha = 0.2, se = FALSE) +
#   geom_point(alpha = 0.5) +
#   scale_color_manual(values = c("blue", "purple")) +
#   scale_fill_manual(values = c("blue", "purple")) +
#   facet_wrap(~wateryear, nrow = 1) +
#   ylab("Spearman's corr") + xlab("Distance (km)") +
#   #coord_cartesian(ylim = c(0,1)) +
#   theme_bw() +
#   theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), axis.title.x=element_blank())

# Time series distance (euclidean)
fs_ts <- synchtib %>%
  filter(distance != "watercourse") %>%
  mutate(distance = factor(distance, levels = c("euclidean", "flowconnected"))) %>%
  ggplot(aes(x = value, y = synch_ts, color = distance, fill = distance, group = distance)) +
  geom_smooth(alpha = 0.2, span = 1, span = 1) +
  geom_point(alpha = 0.2) +
  scale_color_manual(values = c("blue", "darkorange")) +
  scale_fill_manual(values = c("blue", "darkorange")) +
  ggh4x::facet_wrap2(~wateryear, nrow = 1, ncol = 4, trim_blank = FALSE) +
  ylab("") + xlab("") + ggtitle(subbas) +
  #coord_cartesian(ylim = c(0,20)) +
  theme_bw() +
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
        axis.title.x=element_blank(), axis.title.y = element_blank())

# myplot <- ggarrange(fs_sp, fs_ts, ncol = 1)
# annotate_figure(myplot, bottom = text_grob("Distance (km)"))
print(fs_ts)
}

ggarrange(fluvsynchfun_mod(subbas = "West Brook", spear = synch_arr_sp_wb, ts = synch_arr_ts_wb,
                                dist_euc = dist_euclidean_wb, dist_wat = dist_watercourse_wb, dist_flow = dist_flowconn_wb),
               fluvsynchfun_mod(subbas = "Staunton River", spear = synch_arr_sp_st, ts = synch_arr_ts_st,
                                dist_euc = dist_euclidean_st, dist_wat = dist_watercourse_st, dist_flow = dist_flowconn_st),
               fluvsynchfun_mod(subbas = "Paine Run", spear = synch_arr_sp_pa, ts = synch_arr_ts_pa,
                                dist_euc = dist_euclidean_pa, dist_wat = dist_watercourse_pa, dist_flow = dist_flowconn_pa),
               fluvsynchfun_mod(subbas = "Flathead River", spear = synch_arr_sp_fl, ts = synch_arr_ts_fl,
                                dist_euc = dist_euclidean_fl, dist_wat = dist_watercourse_fl, dist_flow = dist_flowconn_fl),
               fluvsynchfun_mod(subbas = "Yellowstone River", spear = synch_arr_sp_ye, ts = synch_arr_ts_ye,
                                dist_euc = dist_euclidean_ye, dist_wat = dist_watercourse_ye, dist_flow = matrix(NA, nrow = nrow(dist_flowconn_ye), ncol = ncol(dist_flowconn_ye))),
               fluvsynchfun_mod(subbas = "Snake River", spear = synch_arr_sp_sn, ts = synch_arr_ts_sn,
                                dist_euc = dist_euclidean_sn, dist_wat = dist_watercourse_sn, dist_flow = dist_flowconn_sn),
               fluvsynchfun_mod(subbas = "Donner und Blitzen River", spear = synch_arr_sp_db, ts = synch_arr_ts_db,
                                dist_euc = dist_euclidean_db, dist_wat = dist_watercourse_db, dist_flow = dist_flowconn_db),
               ncol = 1
               )

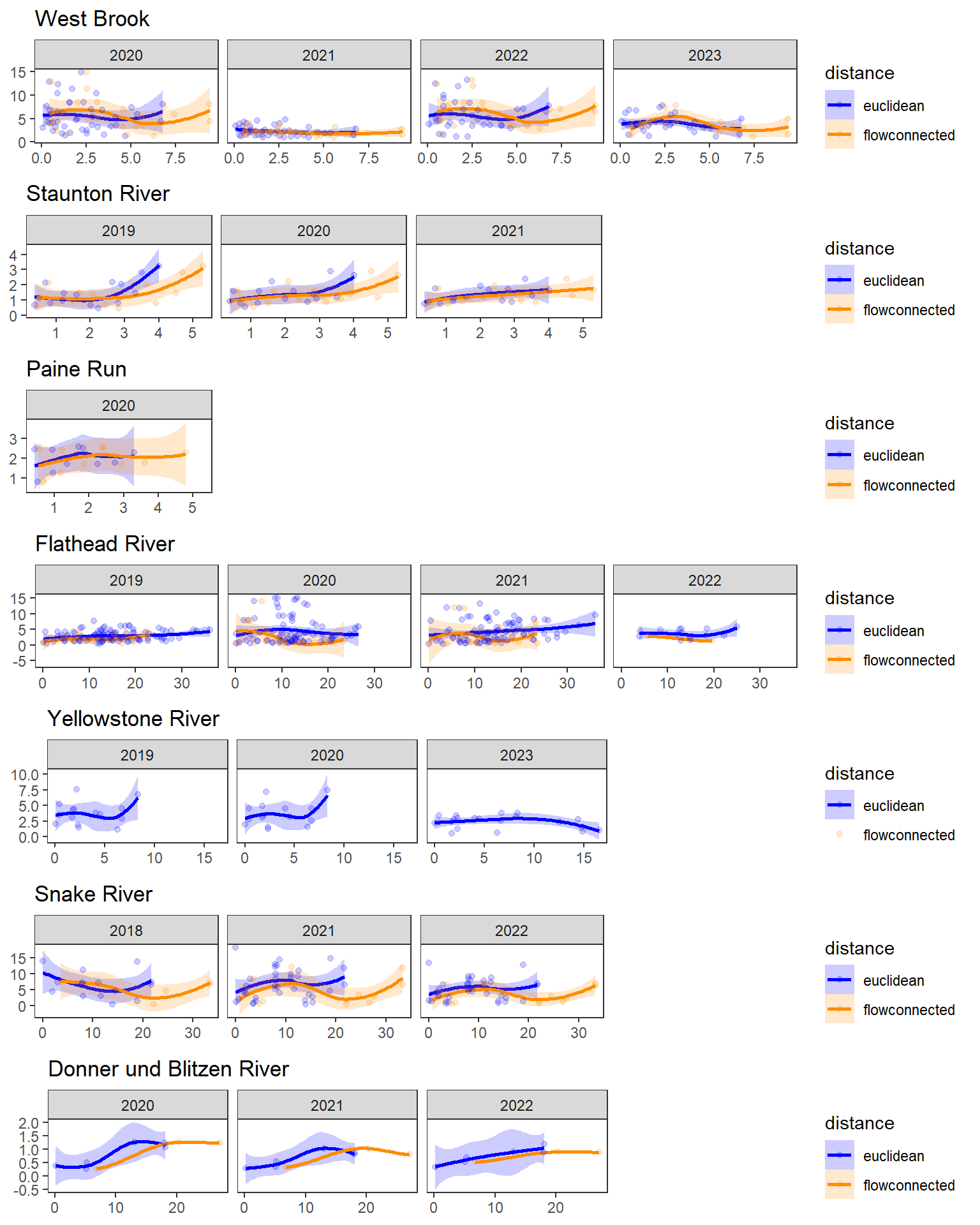

# jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/FluvialSynchrograms.jpg", width = 7, height = 12, units = "in", res = 1000)
# annotate_figure(p1, bottom = "Distance (km)", left = "Time series distance")
# dev.off()
