2  Environmental Covariates

Purpose: Generate annual covariate data describing seasonal air temperature, natural flow regimes, and managed flow regimes.

2.1 Streamflow

Specify USGS streamflow monitoring sites and map:

Code
sites <- c("13011000", # Snake at Moran
           "13018750", # Snake below Flat
           "13027500", # Salt
           "13023000", # Greys
           "13011900", # Buffalo Fork
           "13015000", # Gros Ventre - Zenith
           "13014500", # Gros Ventre - Kelly
           "13018350", # Flat - below Cache
           "13018300", # Cache
           "13016450", # Fish
           "13011820") # Blackrock
site.info <- readNWISsite(sites)[,c(1:2,7,8,18)] # get site info
names(site.info) <- c("agency", "logger", "lat", "long", "site") # rename columns
site.info$sitesimp <- c("SnakeMoran", "Blackrock", "BuffaloFork", "GrosVentreKelly", "GrosVentreZenith", "Fish", "Cache", "FlatBeCache", "SnakeBeFlat", "Greys", "Salt")
mapview(st_as_sf(site.info, coords = c("long", "lat"), crs = "+proj=longlat +datum=WGS84 +no_defs +ellps=WGS84"))
Code
# gages <- site.info %>% filter(sitesimp %in% c("SnakeMoran", "SnakeBeFlat")) %>% mutate(label = c("Managed", "Combined"))
# gages_sp <- st_as_sf(gages, coords = c("long", "lat"), crs = "+proj=longlat +datum=WGS84 +no_defs +ellps=WGS84")
# st_write(gages_sp, "Figures/Map/map_data/Gages_SpatialLocations.shp", append = FALSE)

Extract daily mean discharge and temp data from USGS NWIS and get date range for each gage:

Code
flow <- readNWISdata(sites = sites, parameterCd = c("00060"), service = "dv", startDate = "1960-01-01", endDate = "2023-09-01")
names(flow) <- c("agency", "logger", "date", "q", "x2", "x3")
flow %>% group_by(logger) %>% summarize(mindate = min(date), maxdate = max(date))
# A tibble: 11 × 3
   logger   mindate             maxdate
   <chr>    <dttm>              <dttm>
 1 13011000 1960-01-01 00:00:00 2023-09-01 00:00:00
 2 13011820 2017-10-27 00:00:00 2023-09-01 00:00:00
 3 13011900 1965-09-22 00:00:00 2023-09-01 00:00:00
 4 13014500 2008-04-01 00:00:00 2023-09-01 00:00:00
 5 13015000 1987-10-01 00:00:00 2023-09-01 00:00:00
 6 13016450 1994-03-24 00:00:00 2023-09-01 00:00:00
 7 13018300 1962-07-01 00:00:00 2023-09-01 00:00:00
 8 13018350 1989-04-01 00:00:00 2023-09-01 00:00:00
 9 13018750 1975-11-12 00:00:00 2023-09-01 00:00:00
10 13023000 1960-01-01 00:00:00 2023-09-01 00:00:00
11 13027500 1960-01-01 00:00:00 2023-09-01 00:00:00

Some data manipulation:

Code
flow <- tibble(flow %>% dplyr::select(logger, date, q) %>% mutate(date = as_date(date), doy = yday(date), month = month(date), year = year(date)))
flow$broodyr <- NA # create brood year variable
flow$broodyr <- ifelse(flow$month >= 9 & flow$month <= 12, flow$year, flow$year-1)
flow <- flow %>% filter(!broodyr %in% c(1959,2023)) # drop incomplete brood years
flow <- flow %>% left_join(site.info %>% select(logger, sitesimp))

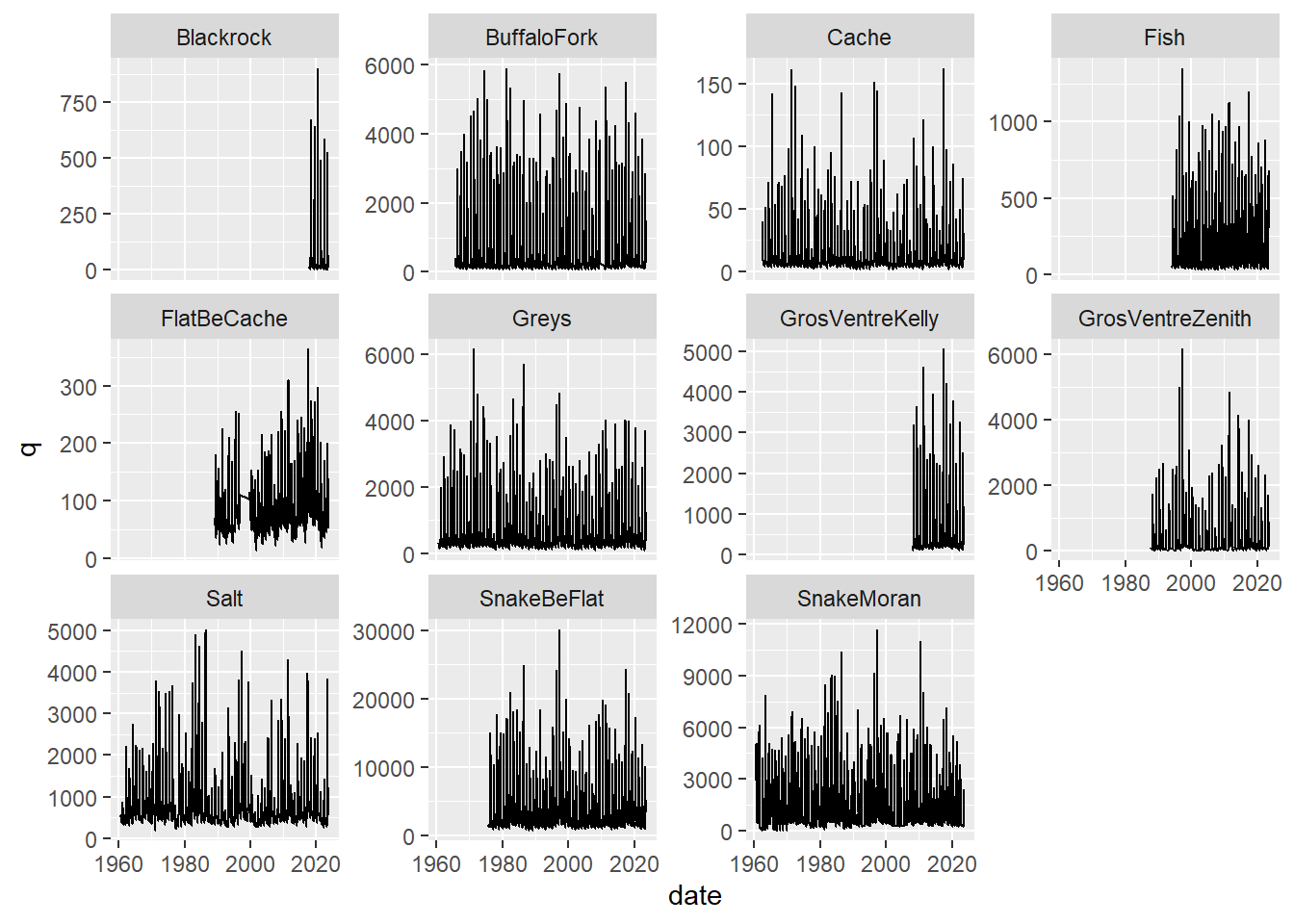

View raw data

Code
flow %>% ggplot() + geom_line(aes(x = date, y = q)) + facet_wrap(~ sitesimp, scales = "free_y")

Spread by date and calculate and explore correlation between dam release and natural flow:

Code
flow2 <- flow %>% select(-logger) %>% spread(sitesimp, q) %>% mutate(SnakeNat = SnakeBeFlat - SnakeMoran,
                                                                     FlatNat = FlatBeCache - Cache,
                                                                     BuffNat = BuffaloFork - Blackrock)
# plot(SnakeNat ~ date, flow2, type = "l", xlim = c(date("2018-01-01"), date("2022-01-01")))
# plot(FlatNat ~ date, flow2, type = "l", xlim = c(date("2010-01-01"), date("2020-01-01")))
# plot(BuffNat ~ date, flow2, type = "l", xlim = c(date("2018-01-01"), date("2022-01-01")))
# plot(Fish ~ date, flow2, type = "l", xlim = c(date("2018-01-01"), date("2022-01-01")))

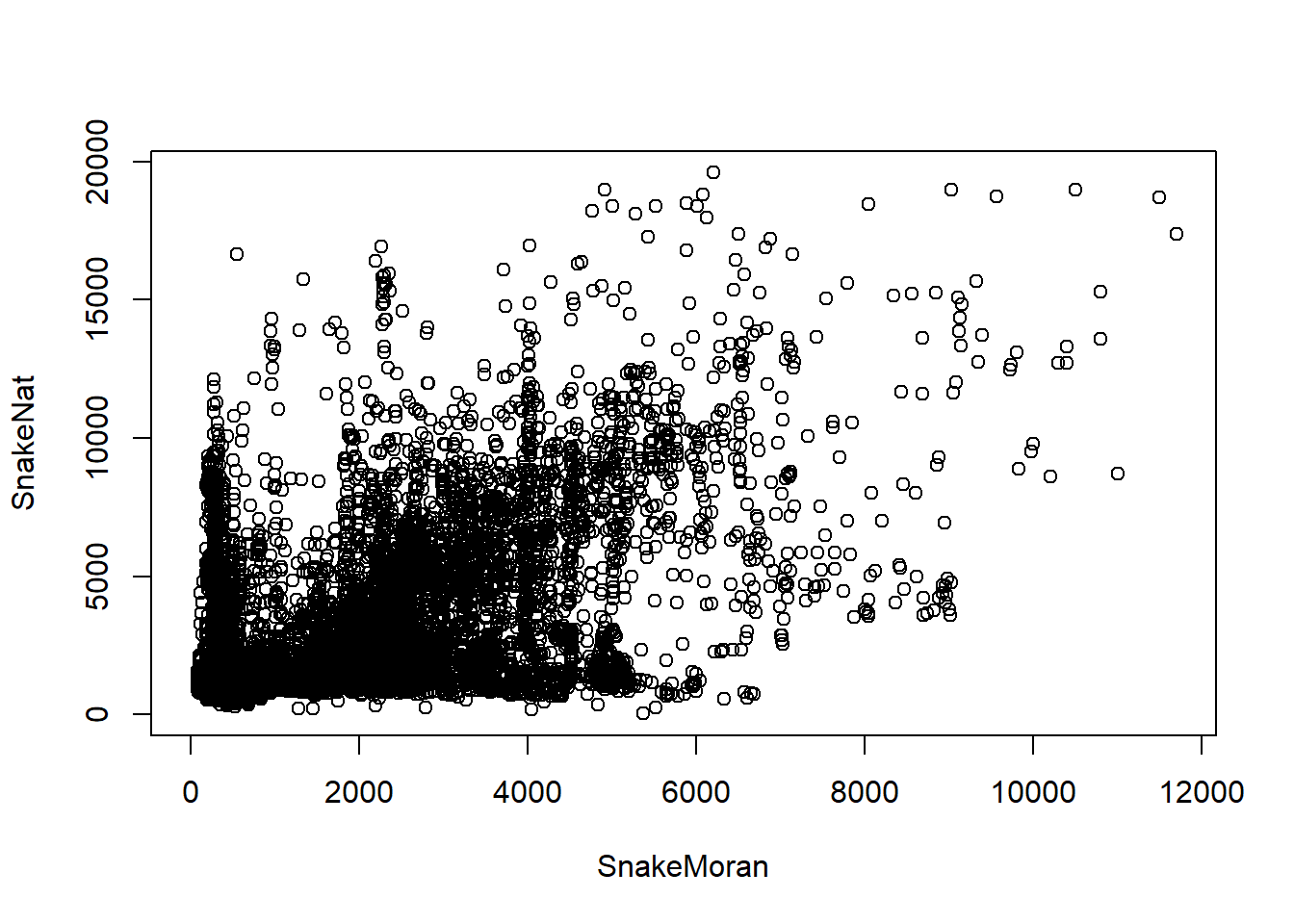

plot(SnakeNat ~ SnakeMoran, flow2)

Code
cor.test(flow2$SnakeNat, flow2$SnakeMoran)

    Pearson's product-moment correlation

data:  flow2$SnakeNat and flow2$SnakeMoran
t = 95.373, df = 17458, p-value < 2.2e-16
alternative hypothesis: true correlation is not equal to 0
95 percent confidence interval:
 0.5754375 0.5949431
sample estimates:
     cor
0.585275

Calculate first-differenced daily flow after log transform, rate of daily change in flow per Ward et al. 2015, Global Change Biology (enables calculation of flow variability)

Code
flow2 <- flow2 %>% mutate(varJLD = lead(log(SnakeMoran)) - log(SnakeMoran),
                          varSnakeNat = lead(log(SnakeNat)) - log(SnakeNat),
                          varSnakeBeFlat = lead(log(SnakeBeFlat)) - log(SnakeBeFlat),
                          varSalt = lead(log(Salt)) - log(Salt),
                          varBuff = lead(log(BuffNat)) - log(BuffNat),
                          varFlat = lead(log(FlatNat)) - log(FlatNat),
                          varGVK = lead(log(GrosVentreKelly)) - log(GrosVentreKelly),
                          varGreys = lead(log(Greys)) - log(Greys),
                          varFish = lead(log(Fish)) - log(Fish))

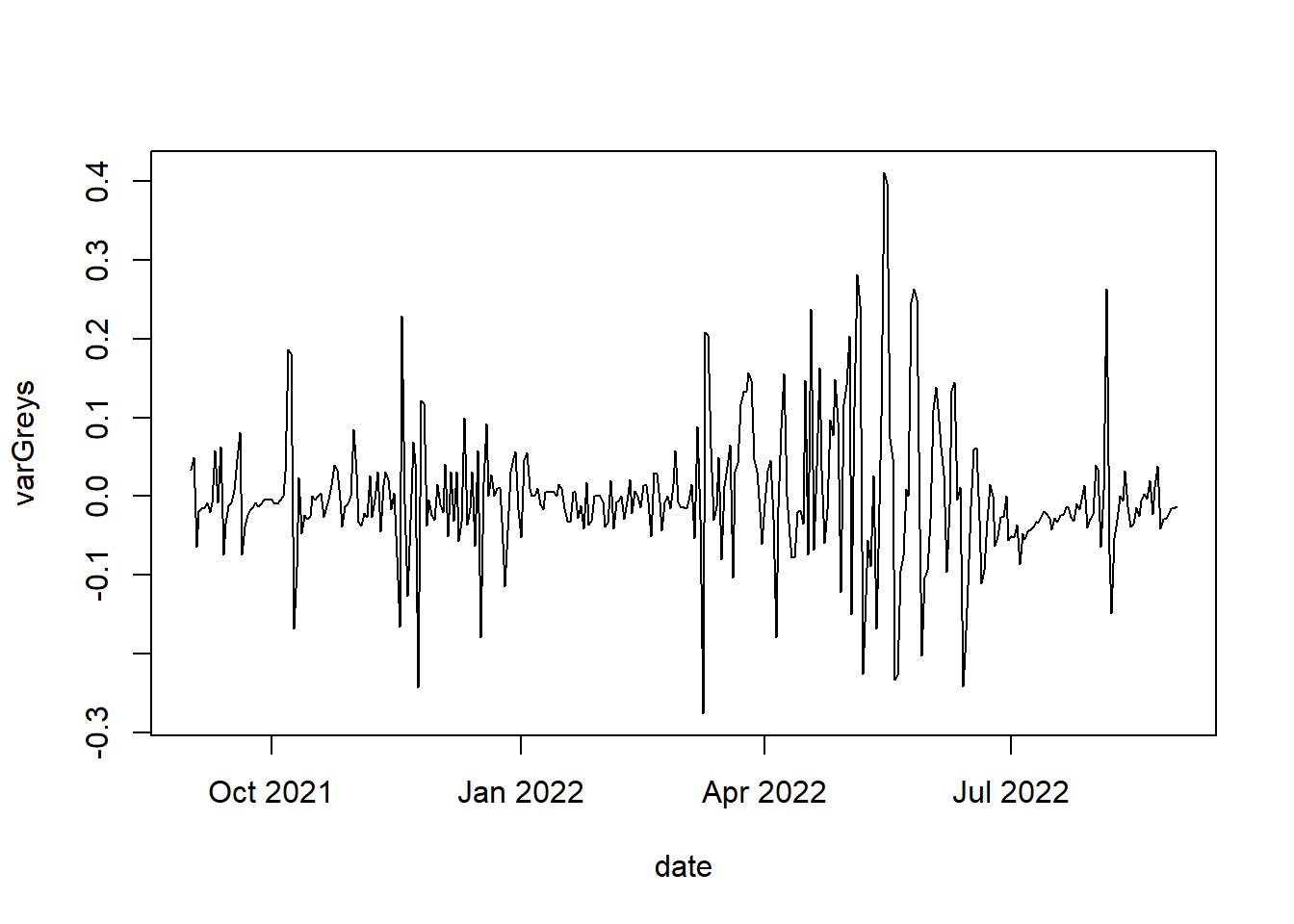

plot(varGreys ~ date, flow2 %>% filter(broodyr %in% c(2021)), type = "l")

Calculate day of brood year

Code
dlist1 <- list()
yrs <- unique(flow2$broodyr)
for (i in 1:length(yrs)) {
  d <- filter(flow2, broodyr == yrs[i])
  d$bydoy <- c(1:dim(d)[1])
  dlist1[[i]] <- d
}
flow3 <- bind_rows(dlist1)

Gather by site

Code
flow4 <- flow3 %>%
  select(date, doy, month, year, broodyr, bydoy, SnakeBeFlat, SnakeMoran, SnakeNat, Salt, GrosVentreKelly, Greys, FlatNat, Fish, BuffNat) %>%
  rename(GrosVentre = GrosVentreKelly, Flat = FlatNat, Buffalo = BuffNat) %>%
  gather(key = "site", value = "flow_cfs", 7:15)
flow5 <- flow3 %>%
  select(date, doy, month, year, broodyr, bydoy, varSnakeBeFlat, varJLD, varSnakeNat, varSalt, varGVK, varGreys, varFlat, varFish, varBuff) %>%
  rename(SnakeBeFlat = varSnakeBeFlat, SnakeMoran = varJLD, SnakeNat = varSnakeNat, Salt = varSalt, GrosVentre = varGVK, Greys = varGreys, Flat = varFlat, Fish = varFish, Buffalo = varBuff) %>%
  gather(key = "site", value = "flow_var", 7:15)
flow6 <- flow4 %>% left_join(flow5)

Plot daily proportion of flow from JLD vs Natural

Code
par(mar = c(4,5,1,1), mgp = c(2.5,1,0))
flowpr <- flow2 %>%
  select(date, doy, month, year, broodyr, SnakeBeFlat, SnakeMoran, SnakeNat) %>%
  drop_na() %>% mutate(PrJLD = SnakeMoran / SnakeBeFlat) %>% group_by(doy) %>%
  summarize(minpr = min(PrJLD), q25pr = quantile(PrJLD, probs = 0.25), medpr = median(PrJLD), meanpr = mean(PrJLD), q75pr = quantile(PrJLD, probs = 0.75), maxpr = max(PrJLD))
range(flowpr$meanpr)
[1] 0.2296375 0.6438328
Code
plot(medpr ~ doy, flowpr, type = "n", ylim = c(0,1), xlab = "", ylab = "Proportional contribution of JLD release to total flow\n(Snake Moran / Snake Below Flat)", axes = F)
axis(1, at = c(1,61,122,183,245,306,367), labels = c("Jan","Mar","May","Jul","Sep","Nov","Jan"))
axis(2)
box()
polygon(x = c(flowpr$doy, rev(flowpr$doy)), y = c(flowpr$minpr, rev(flowpr$maxpr)), col = "grey80", border = NA)
polygon(x = c(flowpr$doy, rev(flowpr$doy)), y = c(flowpr$q25pr, rev(flowpr$q75pr)), col = "grey60", border = NA)
#lines(meanpr ~ doy, flowpr, lwd = 3)
lines(medpr ~ doy, flowpr, lwd = 3)
legend(x = -15, y = 1.05, legend = c("Median"), lwd = c(3), bty = "n")
legend(x = 3, y = 0.99, legend = c("IQR", "Range"), fill = c("grey60","grey80"), bty = "n")

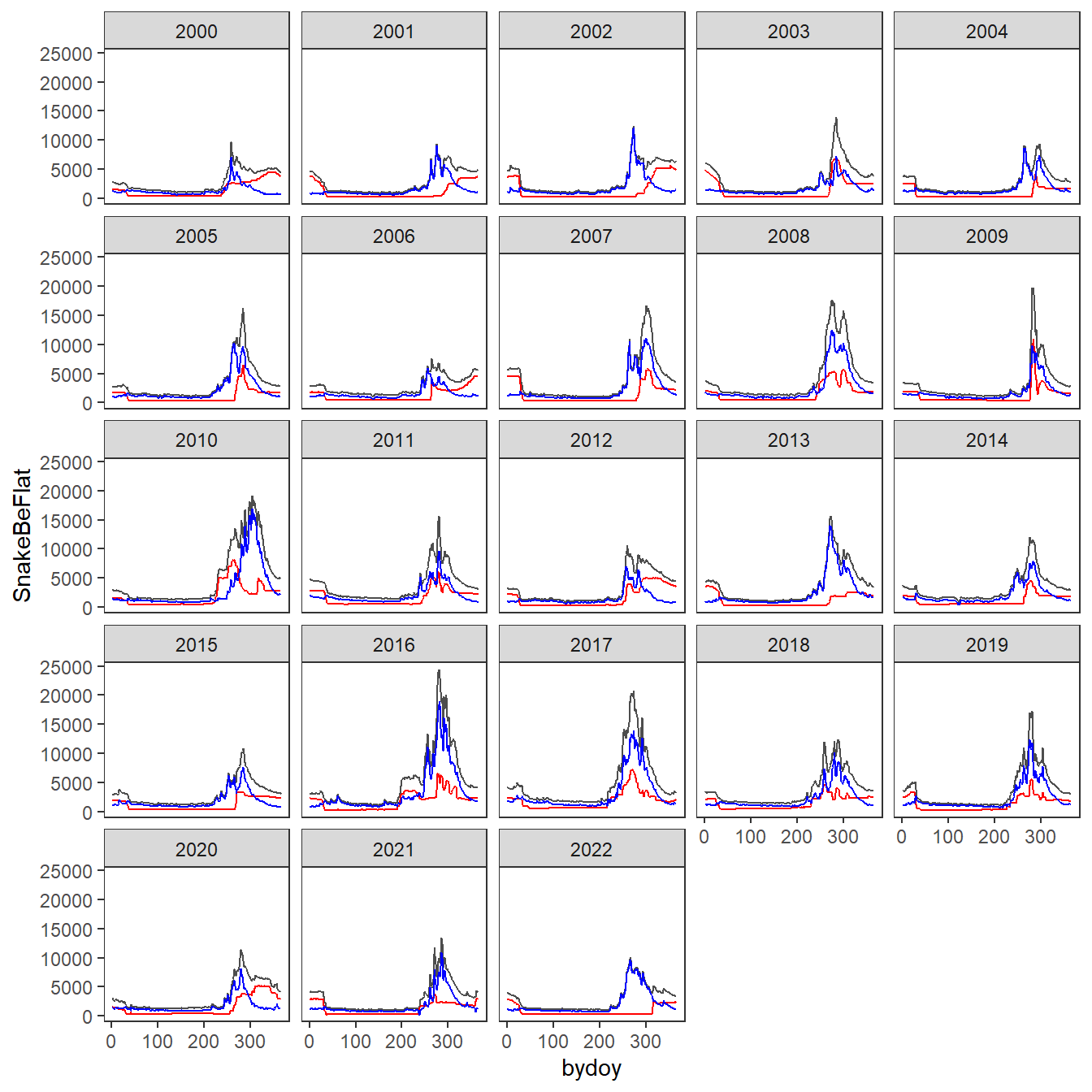

Plot natural (blue), JLD (red), and combined mean daily flow (grey) for each year:

Code
d <- flow6 %>%
  filter(site %in% c("SnakeBeFlat", "SnakeMoran", "SnakeNat")) %>%
  select(bydoy, broodyr, site, flow_cfs) %>%
  spread(site, flow_cfs)
dd <- d %>% mutate(diff = (SnakeMoran + SnakeNat) - SnakeBeFlat)
unique(dd$diff) # check that the flow components sum correctly
[1] NA  0
Code
d %>% filter(broodyr %in% c(1980:1999)) %>%
  ggplot(aes(x = bydoy)) +
  geom_line(aes(y = SnakeBeFlat), color = "grey30") +
  geom_line(aes(y = SnakeMoran), color = "red") +
  geom_line(aes(y = SnakeNat), color = "blue") +
  facet_wrap(~ broodyr) +
  theme_bw() + theme(panel.grid = element_blank())

Code
d %>% filter(broodyr %in% c(2000:2024)) %>%
  ggplot(aes(x = bydoy)) +
  geom_line(aes(y = SnakeBeFlat), color = "grey30") +
  geom_line(aes(y = SnakeMoran), color = "red") +
  geom_line(aes(y = SnakeNat), color = "blue") +
  facet_wrap(~ broodyr)  +
  theme_bw() + theme(panel.grid = element_blank())

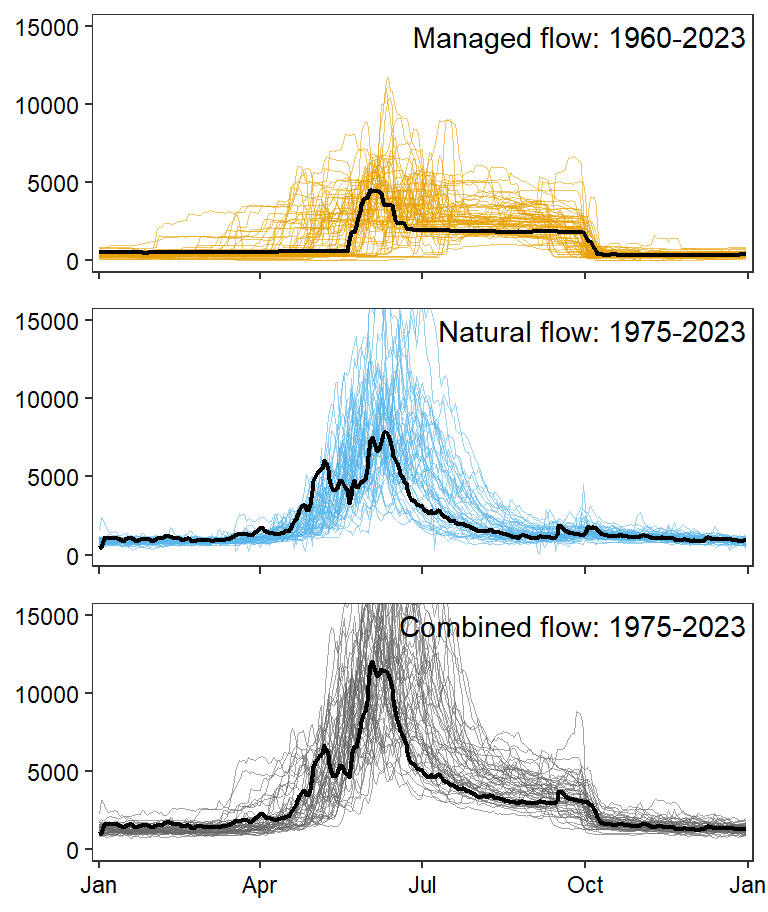

Plot managed, natural, and combined hydrographs for all years

Code
singyr <- flow6 %>% filter(year == 2015)
flow6 %>% filter(!is.na(flow_cfs), site %in% c("SnakeBeFlat", "SnakeMoran", "SnakeNat")) %>% group_by(site) %>% summarise(minyear = min(year, na.rm = TRUE), maxyear = max(year, na.rm = TRUE)) %>% ungroup
# A tibble: 3 × 3
  site        minyear maxyear
  <chr>         <dbl>   <dbl>
1 SnakeBeFlat    1975    2023
2 SnakeMoran     1960    2023
3 SnakeNat       1975    2023
Code
p1 <- flow6 %>%
  filter(site == "SnakeMoran") %>%
  ggplot(aes(x = update(date, year = 2000), y = flow_cfs, group = year)) +
  geom_line(color = "#E69F00", linewidth = 0.2, alpha = 0.6) +
  geom_line(data = singyr %>% filter(site == "SnakeMoran"), aes(x = update(date, year = 2000), y = flow_cfs), linewidth = 0.8) +
  scale_x_date(date_labels = "%b", expand = c(0.01,0.01)) +
  coord_cartesian(ylim = c(0,15000)) +
  annotate("text", x = as_date("2000-12-31"), y = Inf, hjust = 1, vjust = 1.5, label = "Managed flow: 1960-2023") +
  theme_bw() + theme(panel.grid = element_blank(), axis.text = element_text(color = "black"),
                     axis.title = element_blank(), axis.text.x = element_blank())

p2 <- flow6 %>%
  filter(site == "SnakeNat") %>%
  ggplot(aes(x = update(date, year = 2000), y = flow_cfs, group = year)) +
  geom_line(color = "#56B4E9", linewidth = 0.2, alpha = 0.6) +
  geom_line(data = singyr %>% filter(site == "SnakeNat"), aes(x = update(date, year = 2000), y = flow_cfs), linewidth = 0.8) +
  scale_x_date(date_labels = "%b", expand = c(0.01,0.01)) +
  coord_cartesian(ylim = c(0,15000)) +
  annotate("text", x = as_date("2000-12-31"), y = Inf, hjust = 1, vjust = 1.5, label = "Natural flow: 1975-2023") +
  theme_bw() + theme(panel.grid = element_blank(), axis.text = element_text(color = "black"),
                     axis.title = element_blank(), axis.text.x = element_blank())

p3 <- flow6 %>%
  filter(site == "SnakeBeFlat") %>%
  ggplot(aes(x = update(date, year = 2000), y = flow_cfs, group = year)) +
  geom_line(color = "grey40", linewidth = 0.2, alpha = 0.6) +
  geom_line(data = singyr %>% filter(site == "SnakeBeFlat"), aes(x = update(date, year = 2000), y = flow_cfs), linewidth = 0.8) +
  scale_x_date(date_labels = "%b", expand = c(0.01,0.01)) +
  coord_cartesian(ylim = c(0,15000)) +
  annotate("text", x = as_date("2000-12-31"), y = Inf, hjust = 1, vjust = 1.5, label = "Combined flow: 1975-2023") +
  theme_bw() + theme(panel.grid = element_blank(), axis.text = element_text(color = "black"),
                     axis.title = element_blank())

egg::ggarrange(p1, p2, p3, ncol = 1)

Write to file

Code
jpeg("Figures/Covariates/Hydrographs_2015highlight_fixedyaxis.jpg", units = "in", width = 4.5, height = 4.75, res = 1000)
egg::ggarrange(p1, p2, p3, ncol = 1)
dev.off()

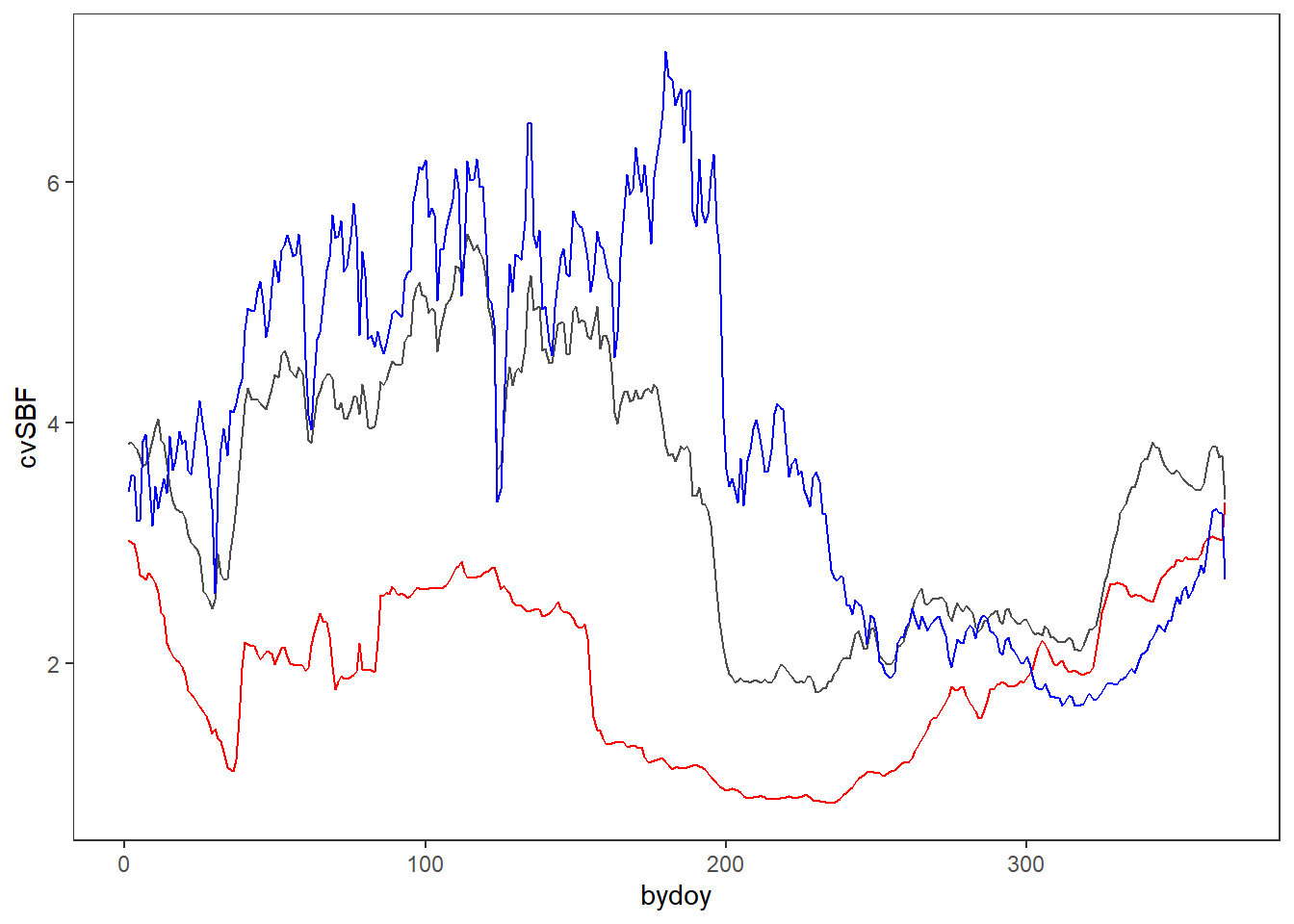

Time series of cv flows sensu Ward et al. (2015):

Code
dd <- d %>%
  group_by(bydoy) %>%
  summarize(muSBF = mean(SnakeBeFlat, na.rm = TRUE), sdSBF = sd(SnakeBeFlat, na.rm = TRUE), cvSBF = muSBF/sdSBF,
            muSMo = mean(SnakeMoran, na.rm = TRUE), sdSMo = sd(SnakeMoran, na.rm = TRUE), cvSMo = muSMo/sdSMo,
            muSNa = mean(SnakeNat, na.rm = TRUE), sdSNa = sd(SnakeNat, na.rm = TRUE), cvSNa = muSNa/sdSNa)
ggplot(dd, aes(x = bydoy)) +
  geom_line(aes(y = cvSBF), color = "grey30") +
  geom_line(aes(y = cvSMo), color = "red") +
  geom_line(aes(y = cvSNa), color = "blue") +
  theme_bw() + theme(panel.grid = element_blank())

2.2 Temperature

Download and organize air temperature data.

Load NOAA air temperature data for Moose, WY. Downloaded from https://www.ncdc.noaa.gov/cdo-web/search, 19 Sept 2023

Code
air_moose <- read_csv("Data/NOAA_MooseWy_Climate_1960-2023.csv") %>%
  select(STATION, DATE, TMAX, TMIN) %>%
  rowwise() %>%
  mutate(tmean = mean(c(TMAX, TMIN)), site = "moose") %>%
  rename(station = STATION, date = DATE, tmax = TMAX, tmin = TMIN) %>%
  select(station, site, date, tmin, tmax, tmean)

# add rows for days with no observations/data, and linearly interpolation to fill gaps
rDOY <- range(air_moose$date)
air_moose_com <- tibble(station = unique(air_moose$station),
                        site = "moose",
                        date = seq(from = rDOY[1], to = rDOY[2], by = 1))
air_moose_com <- air_moose_com %>% left_join(air_moose)
air_moose_com$tmean_int <- na.approx(air_moose_com$tmean)

Load NOAA air temperature data for Afton, WY. Downloaded from https://www.ncdc.noaa.gov/cdo-web/search, 19 Sept 2023

Code
air_afton <- read_csv("Data/NOAA_AftonWy_Climate_1960-2023.csv") %>%
  select(STATION, DATE, TMAX, TMIN) %>%
  rowwise() %>%
  mutate(tmean = mean(c(TMAX, TMIN)), site = "afton") %>%
  rename(station = STATION, date = DATE, tmax = TMAX, tmin = TMIN) %>%
  select(station, site, date, tmin, tmax, tmean)

# add rows for days with no observations/data, and linearly interpolation to fill gaps
rDOY <- range(air_afton$date)
air_afton_com <- tibble(station = unique(air_afton$station),
                        site = "afton",
                        date = seq(from = rDOY[1], to = rDOY[2], by = 1))
air_afton_com <- air_afton_com %>% left_join(air_afton)
air_afton_com$tmean_int <- na.approx(air_afton_com$tmean)

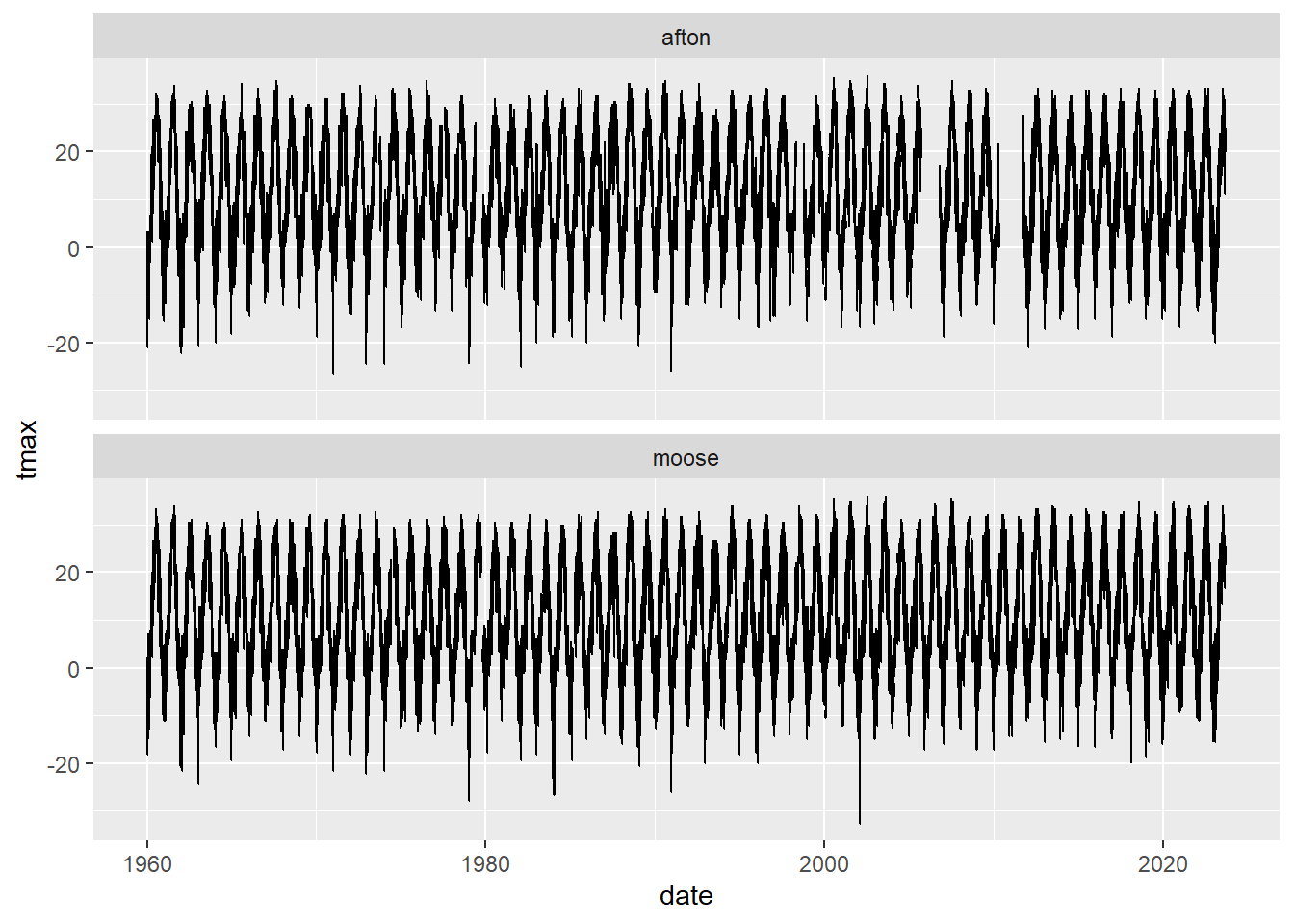

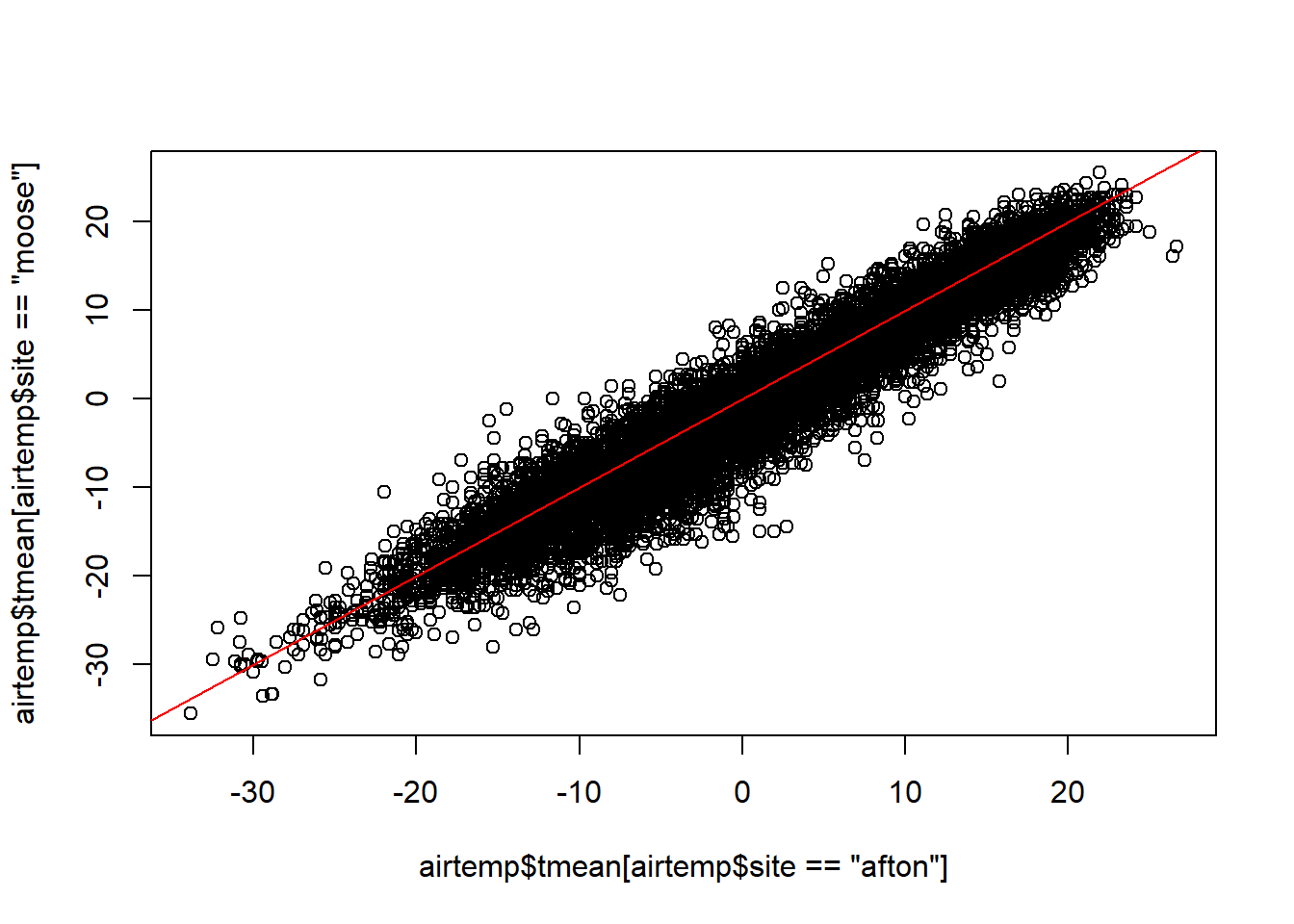

Bind and plot time series and correlation:

Code
airtemp <- bind_rows(air_moose_com, air_afton_com) #%>% mutate(int = ifelse(is.na(tmean), 1, 0))
airtemp %>% ggplot() + geom_line(aes(x = date, y = tmax)) + facet_wrap(~ site, nrow = 2)

Code
plot(airtemp$tmean[airtemp$site == "moose"] ~ airtemp$tmean[airtemp$site == "afton"])
abline(a = 0, b = 1, col = "red")

Set brood year and day of brood year:

Code
# brood year
airtemp <- airtemp %>% mutate(year = year(date), month = month(date), yday = yday(date))
airtemp$broodyr <- NA # create brood year variable
airtemp$broodyr <- ifelse(airtemp$month >= 9 & airtemp$month <= 12, airtemp$year, airtemp$year-1)
airtemp <- airtemp %>% filter(!broodyr %in% c(1959,2023)) # drop incomplete brood years

# calculate day of brood year
dlist1 <- list()
dlist2 <- list()
yrs <- unique(airtemp$broodyr)
sites <- unique(airtemp$site)
for (j in 1:length(sites)) {
  for (i in 1:length(yrs)) {
    d <- filter(airtemp, broodyr == yrs[i] & site == sites[j])
    d$bydoy <- c(1:dim(d)[1])
    dlist1[[i]] <- d
  }
  dlist2[[j]] <- dlist1
}
airtemp2 <- bind_rows(dlist2) %>% filter(!is.na(tmean)) # bind and drop rows with NA
airtemp2
# A tibble: 42,519 × 12
   station     site  date        tmin  tmax tmean tmean_int  year month  yday
   <chr>       <chr> <date>     <dbl> <dbl> <dbl>     <dbl> <dbl> <dbl> <dbl>
 1 USC00486428 moose 1960-09-01   6.1  21.7  13.9      13.9  1960     9   245
 2 USC00486428 moose 1960-09-02   7.8  25.6  16.7      16.7  1960     9   246
 3 USC00486428 moose 1960-09-03   7.8  27.8  17.8      17.8  1960     9   247
 4 USC00486428 moose 1960-09-04  10    25.6  17.8      17.8  1960     9   248
 5 USC00486428 moose 1960-09-05   5    25.6  15.3      15.3  1960     9   249
 6 USC00486428 moose 1960-09-06   4.4  25    14.7      14.7  1960     9   250
 7 USC00486428 moose 1960-09-07   3.3  22.8  13.0      13.0  1960     9   251
 8 USC00486428 moose 1960-09-08   2.2  21.7  12.0      12.0  1960     9   252
 9 USC00486428 moose 1960-09-09   1.1  23.9  12.5      12.5  1960     9   253
10 USC00486428 moose 1960-09-10   0    22.2  11.1      11.1  1960     9   254
# ℹ 42,509 more rows
# ℹ 2 more variables: broodyr <dbl>, bydoy <int>

2.3 Summarize Covariates

2.3.1 Managed Flow

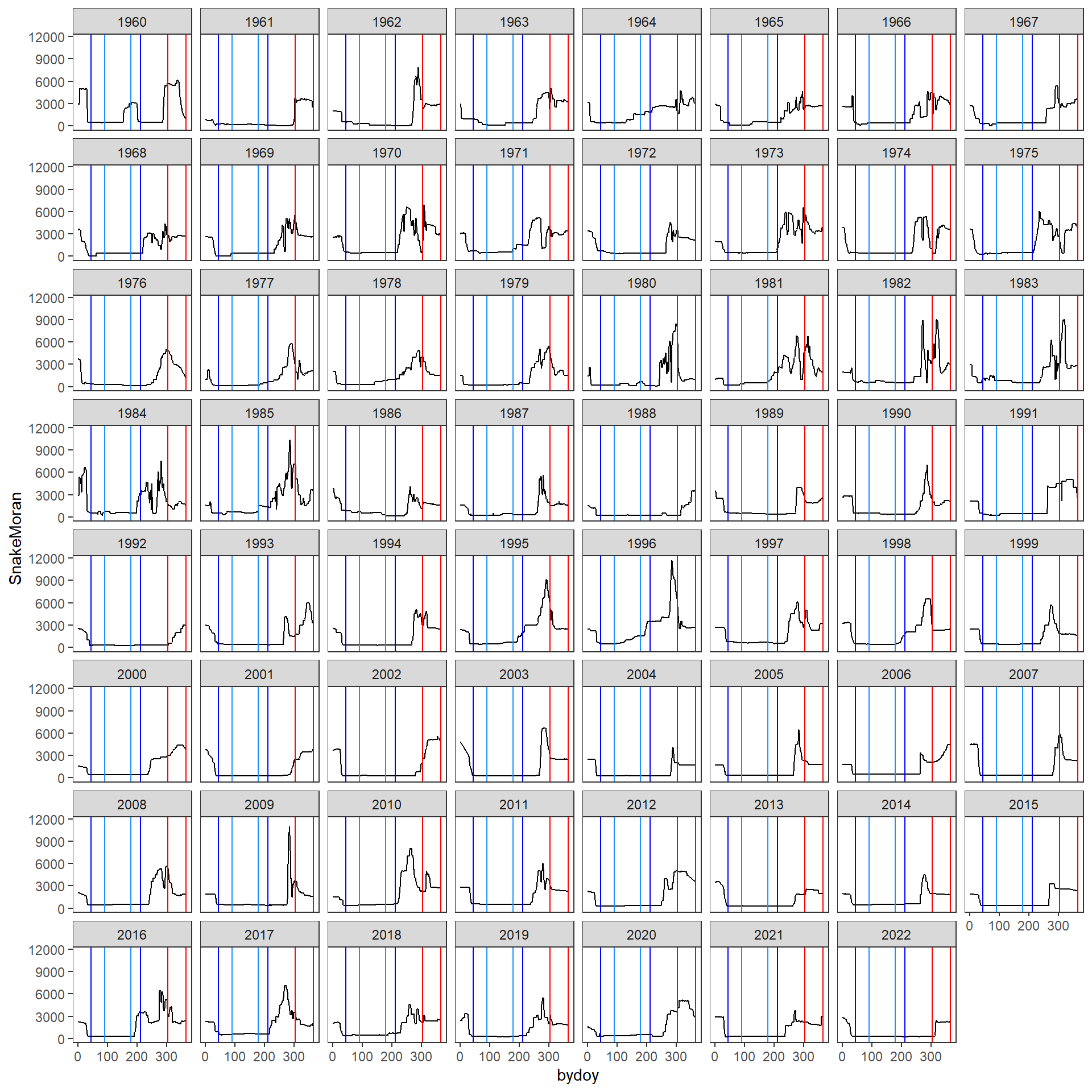

Plot JLD releases with winter and summer periods marked

Code
flow3 %>% #filter(broodyr >= 2014) %>%
  ggplot() + geom_line(aes(x = bydoy, y = SnakeMoran)) +
  geom_vline(xintercept = c(45,211), color = "blue") +   # winter = Oct 15 - March 31
  geom_vline(xintercept = c(91,180), color = "dodgerblue") +   # winter = Dec 1 - Feb 28/29
  geom_vline(xintercept = c(303,365), color = "red") +   # summer = July 1 - August 31
  facet_wrap(~ broodyr) +
  theme_bw() + theme(panel.grid = element_blank())

Summarize JLD release covariates (managed components)

Code
jldflow <- flow3 %>% group_by(broodyr) %>%
  summarise(jld_winmean = mean(ifelse(bydoy >= 45 & bydoy <= 211, SnakeMoran, NA), na.rm = TRUE), # winter mean flow
            jld_winmean_log = mean(ifelse(bydoy >= 45 & bydoy <= 211, log(SnakeMoran), NA), na.rm = TRUE),
            jld_winvar = sd(ifelse(bydoy >= 45 & bydoy <= 211, varJLD, NA), na.rm = TRUE), # winter flow variability
            jld_sprmean = mean(ifelse(bydoy >= 212 & bydoy <= 302, SnakeMoran, NA), na.rm = TRUE), # spring mean flow
            jld_sprmean_log = mean(ifelse(bydoy >= 212 & bydoy <= 302, log(SnakeMoran), NA), na.rm = TRUE),
            jld_sprvar = sd(ifelse(bydoy >= 212 & bydoy <= 302, varJLD, NA), na.rm = TRUE), # spring flow variability
            jld_summean = mean(ifelse(bydoy >= 303 & bydoy <= 365, SnakeMoran, NA), na.rm = TRUE), # summer mean flows
            jld_summean_log = mean(ifelse(bydoy >= 303 & bydoy <= 365, log(SnakeMoran), NA), na.rm = TRUE),
            jld_sumvar = sd(ifelse(bydoy >= 303 & bydoy <= 365, varJLD, NA), na.rm = TRUE), # summer variability
            jld_peakmag = max(SnakeMoran, na.rm = TRUE), # magnitude of peak spring/summer flows
            jld_peakmag_log = max(log(SnakeMoran), na.rm = TRUE),
            jld_peaktime = ifelse(bydoy[which.max(SnakeMoran)] > 200 & bydoy[which.max(SnakeMoran)] < 325, bydoy[which.max(SnakeMoran)], NA), # timing of peak flows
            # minimum flow - raw
            jld_annmin = min((SnakeMoran), na.rm = TRUE), # annual minimum flow
            jld_winmin = min(ifelse(bydoy >= 45 & bydoy <= 211, (SnakeMoran), NA), na.rm = TRUE), # winter minimum flow
            jld_sprmin = min(ifelse(bydoy >= 212 & bydoy <= 302, (SnakeMoran), NA), na.rm = TRUE), # spring minimum flow
            jld_summin = min(ifelse(bydoy >= 303 & bydoy <= 365, (SnakeMoran), NA), na.rm = TRUE), # summer minimum flow
            # minimum flow - logged
            jld_annmin_log = min(log(SnakeMoran), na.rm = TRUE), # annual minimum flow
            jld_winmin_log = min(ifelse(bydoy >= 45 & bydoy <= 211, log(SnakeMoran), NA), na.rm = TRUE), # winter minimum flow
            jld_sprmin_log = min(ifelse(bydoy >= 212 & bydoy <= 302, log(SnakeMoran), NA), na.rm = TRUE), # spring minimum flow
            jld_summin_log = min(ifelse(bydoy >= 303 & bydoy <= 365, log(SnakeMoran), NA), na.rm = TRUE) # summer minimum flow
  ) %>% ungroup()

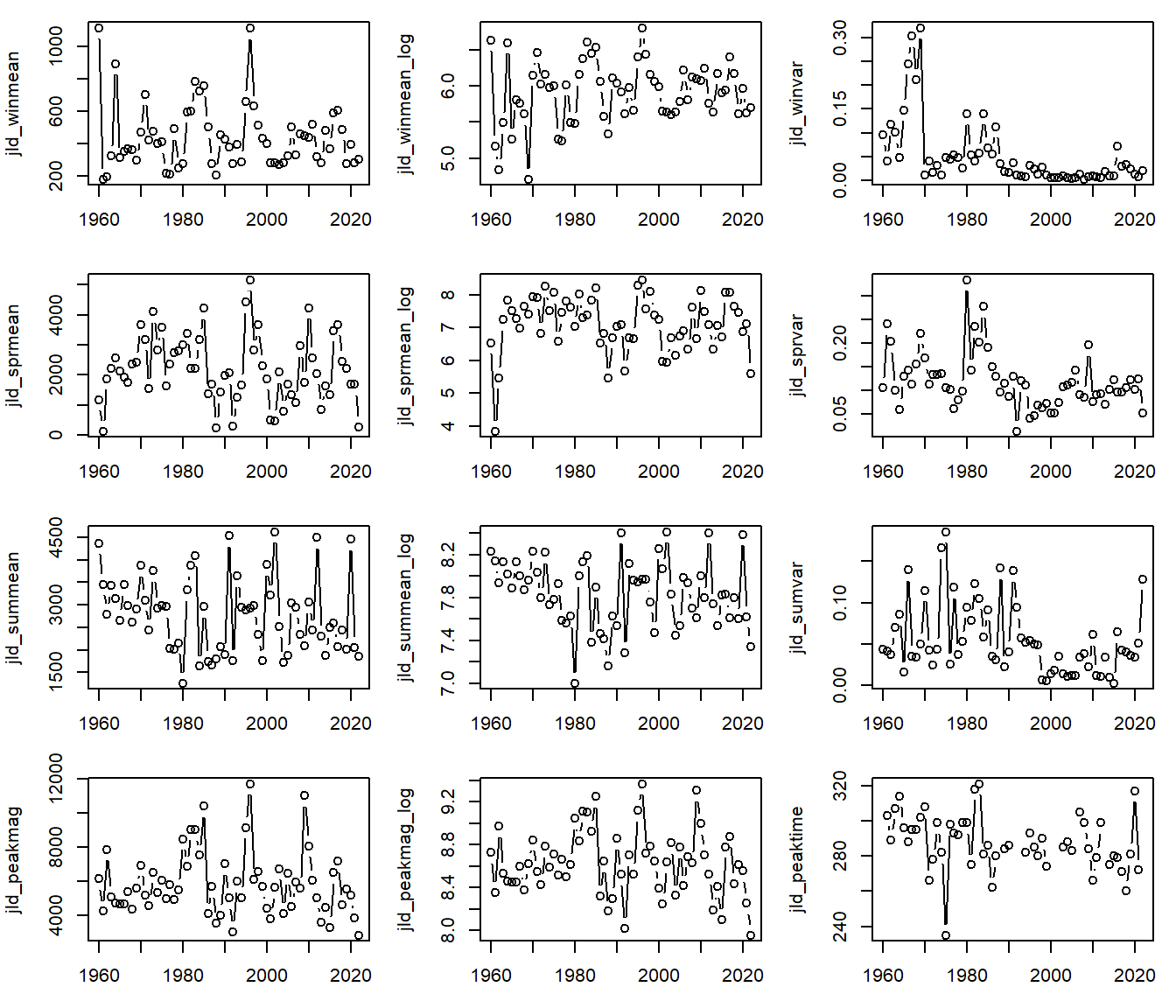

Plot time series of managed flow covariate data:

Code
par(mfrow = c(4,3), mar = c(3,4,1,1))
plot(jld_winmean ~ broodyr, jldflow, type = "b")
plot(jld_winmean_log ~ broodyr, jldflow, type = "b")
plot(jld_winvar ~ broodyr, jldflow, type = "b")

plot(jld_sprmean ~ broodyr, jldflow, type = "b")
plot(jld_sprmean_log ~ broodyr, jldflow, type = "b")
plot(jld_sprvar ~ broodyr, jldflow, type = "b")

plot(jld_summean ~ broodyr, jldflow, type = "b")
plot(jld_summean_log ~ broodyr, jldflow, type = "b")
plot(jld_sumvar ~ broodyr, jldflow, type = "b")

plot(jld_peakmag ~ broodyr, jldflow, type = "b")
plot(jld_peakmag_log ~ broodyr, jldflow, type = "b")
plot(jld_peaktime ~ broodyr, jldflow, type = "b")

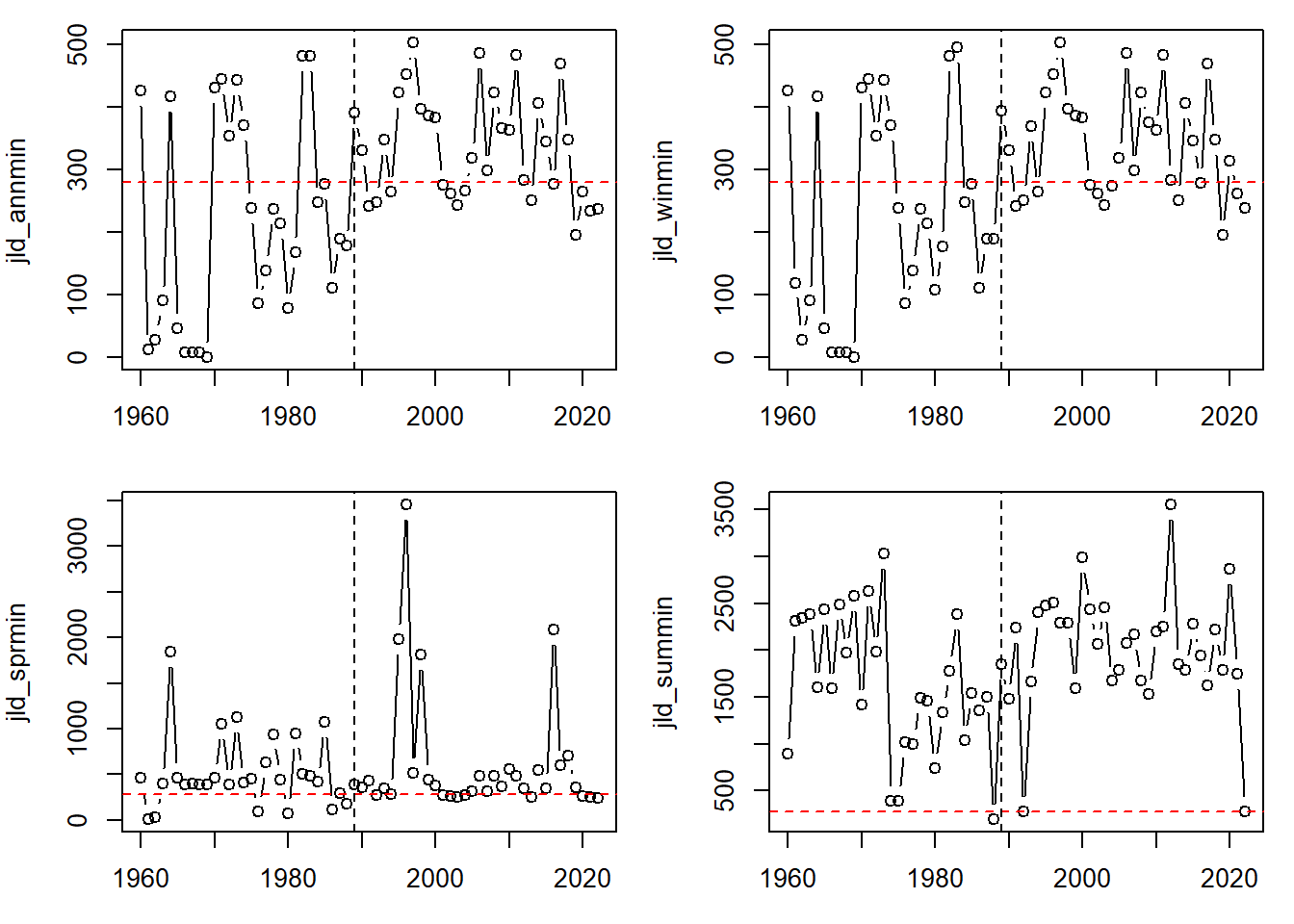

Annual and seasonal minimum flow. Horiztonal red line denotes 280 cfs. Vertical grey line denotes 1989.

Code
par(mfrow = c(2,2), mar = c(3,4,1,1))
plot(jld_annmin ~ broodyr, jldflow, type = "b")
abline(h = (280), col = "red", lty = 2)
abline(v = (1989), col = "black", lty = 2)
plot(jld_winmin ~ broodyr, jldflow, type = "b")
abline(h = (280), col = "red", lty = 2)
abline(v = (1989), col = "black", lty = 2)
plot(jld_sprmin ~ broodyr, jldflow, type = "b")
abline(h = (280), col = "red", lty = 2)
abline(v = (1989), col = "black", lty = 2)
plot(jld_summin ~ broodyr, jldflow, type = "b")
abline(h = (280), col = "red", lty = 2)
abline(v = (1989), col = "black", lty = 2)

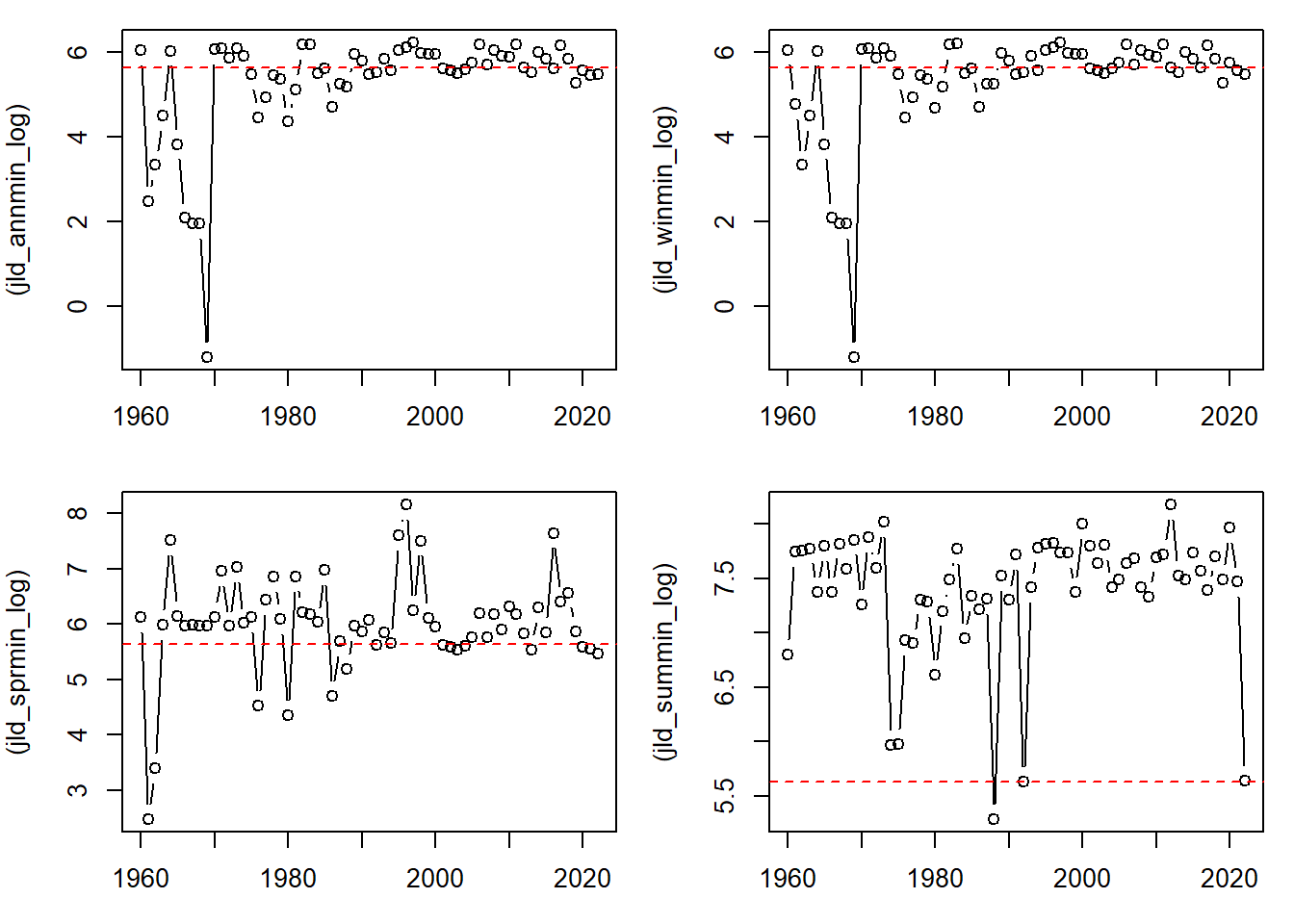

Log scale

Code
par(mfrow = c(2,2), mar = c(3,4,1,1))
plot((jld_annmin_log) ~ broodyr, jldflow, type = "b")
abline(h = log(280), col = "red", lty = 2)
plot((jld_winmin_log) ~ broodyr, jldflow, type = "b")
abline(h = log(280), col = "red", lty = 2)
plot((jld_sprmin_log) ~ broodyr, jldflow, type = "b")
abline(h = log(280), col = "red", lty = 2)
plot((jld_summin_log) ~ broodyr, jldflow, type = "b")
abline(h = log(280), col = "red", lty = 2)

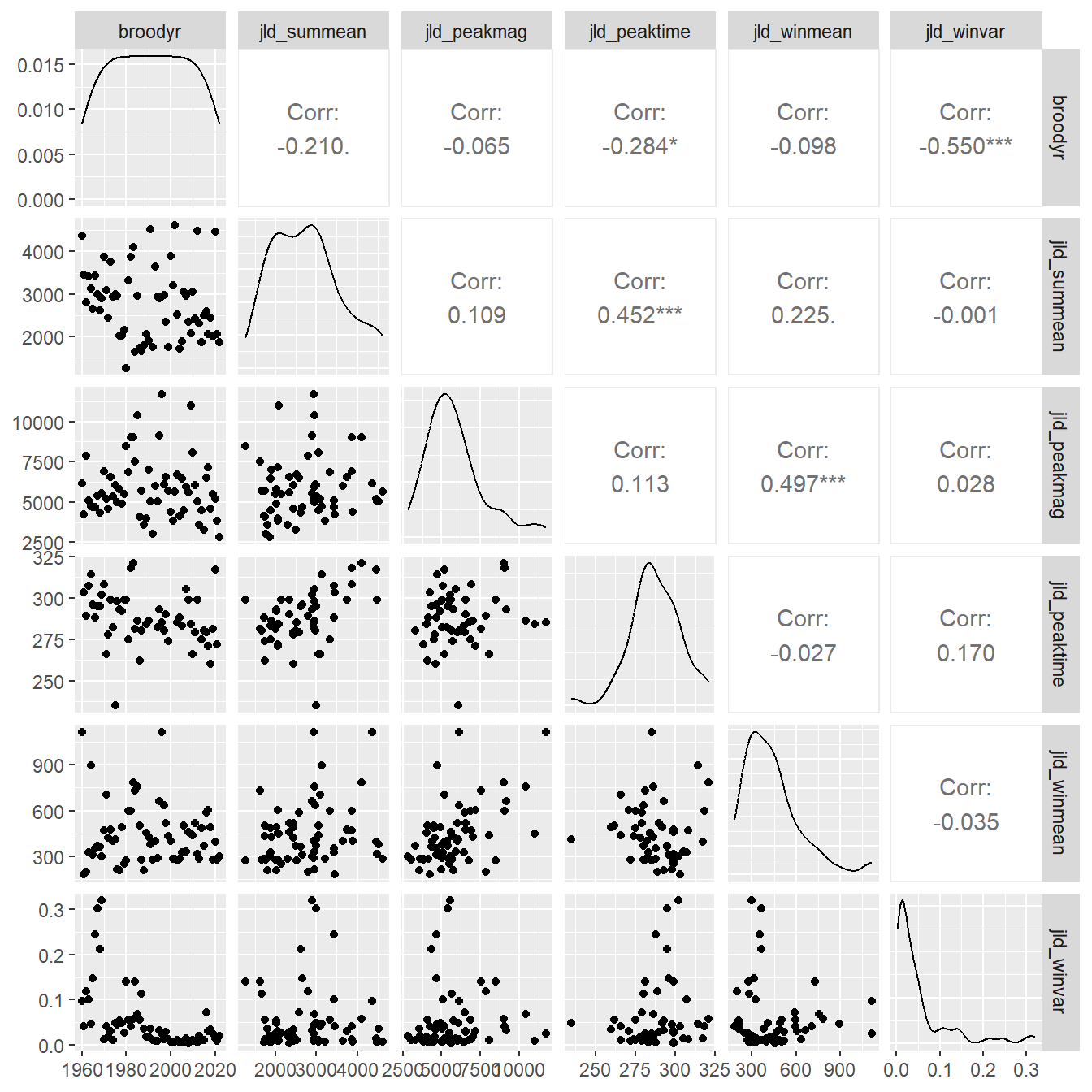

Pairs plots for key managed flow covariates:

Code
ggpairs(jldflow %>% select(broodyr, jld_summean, jld_peakmag, jld_peaktime, jld_winmean, jld_winvar))

2.3.1.1 Ramp-down

Load manually identified autumn ramp-down covariate data:

Code
jldramp <- read_csv("Data/Derived/JLD_RampDown_Summary_CalendarYear_1960-2022.csv")

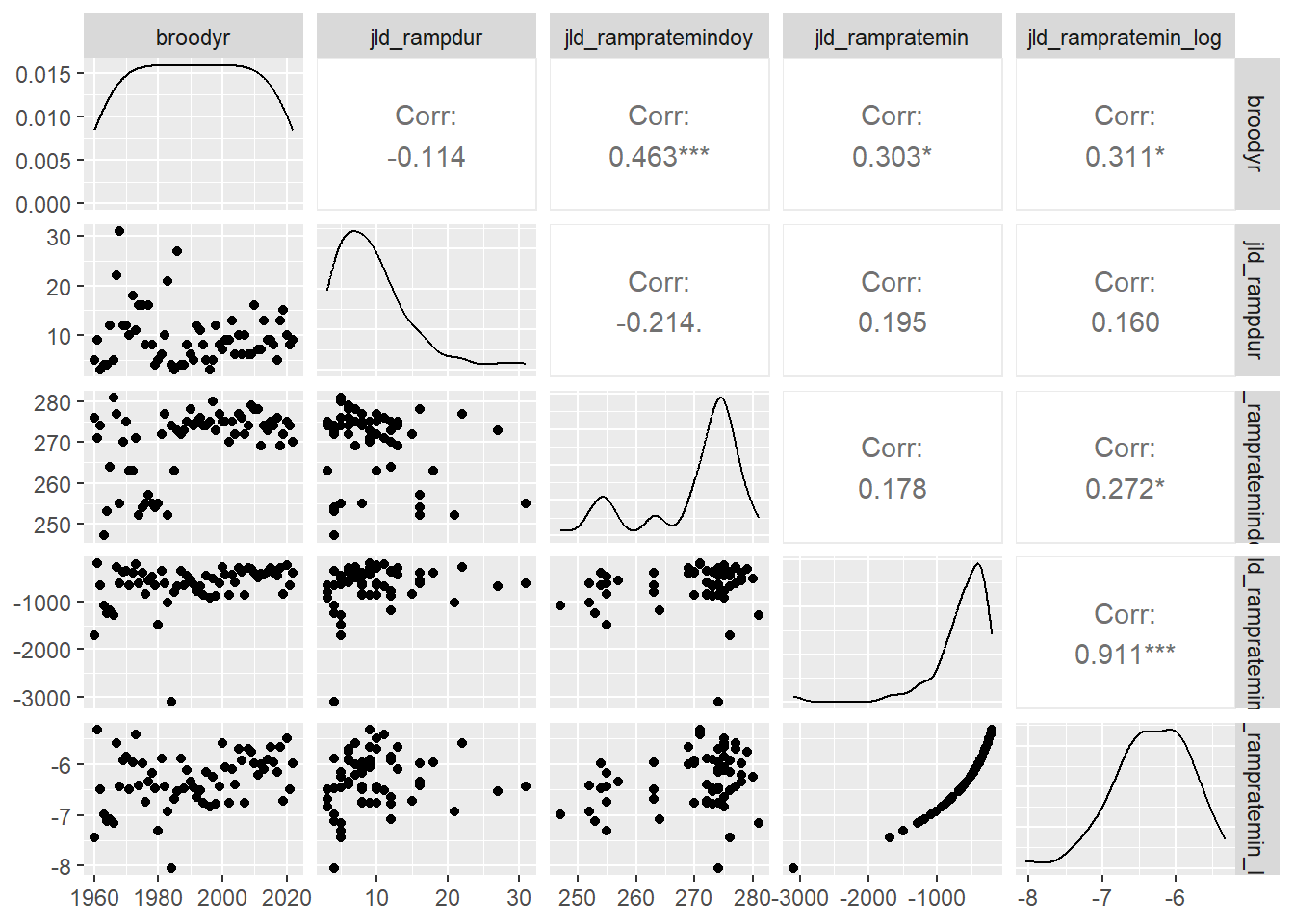

Pairs plot of key variables:

Code
ggpairs(jldramp %>% select(broodyr, jld_rampdur, jld_rampratemindoy, jld_rampratemin, jld_rampratemin_log))

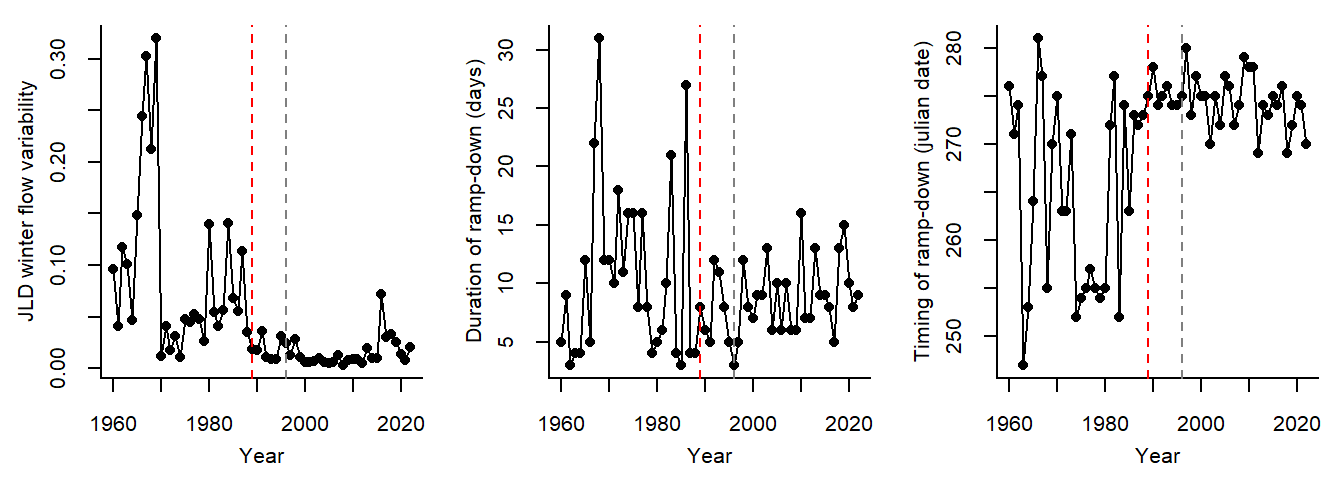

Plot time series of key ramping variables

Code
par(mfrow = c(1,3), mgp = c(2.5, 1.25, 0), mar = c(4,4,1,1))

plot(jld_winvar ~ broodyr, jldflow, type = "l", bty = "l", xlab = "Year", ylab = "JLD winter flow variability")
points(jld_winvar ~ broodyr, jldflow, pch = 16)
abline(v = 1989, col = "red", lty = 2)
abline(v = 1996, col = "grey50", lty = 2)

plot(jld_rampdur ~ broodyr, jldramp, type = "l", bty = "l", xlab = "Year", ylab = "Duration of ramp-down (days)")
points(jld_rampdur ~ broodyr, jldramp, pch = 16)
abline(v = 1989, col = "red", lty = 2)
abline(v = 1996, col = "grey50", lty = 2)

plot(jld_rampratemindoy ~ broodyr, jldramp, type = "l", bty = "l", xlab = "Year", ylab = "Timing of ramp-down (julian date)")
points(jld_rampratemindoy ~ broodyr, jldramp, pch = 16)
abline(v = 1989, col = "red", lty = 2)
abline(v = 1996, col = "grey50", lty = 2)

Write out managed flow data file:

Code
write_csv(jldflow, "Data/Derived/JLD_ManagedFlow_Covariates_BroodYear_1960-2022.csv")

2.3.2 Natural Flow

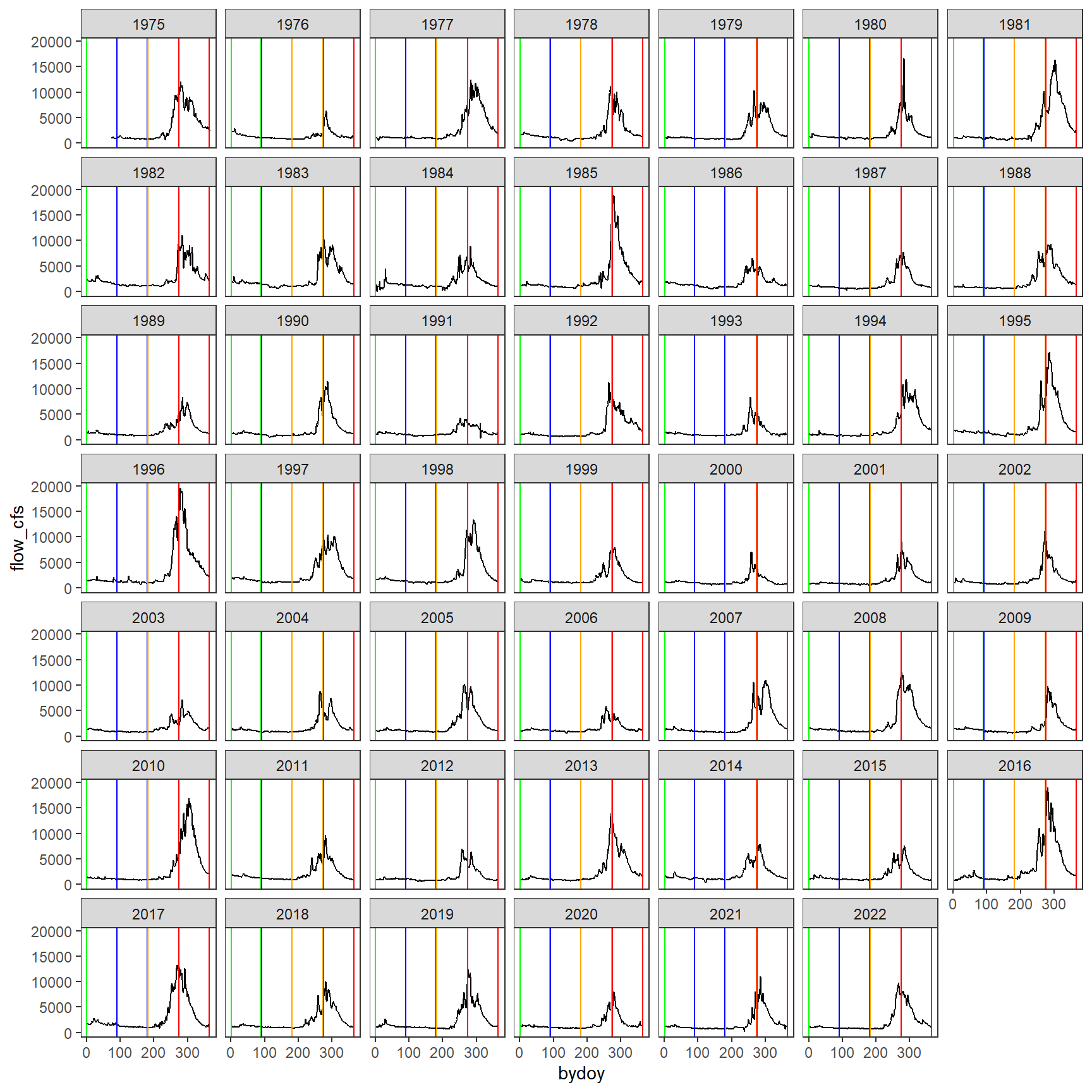

View time series data by stream and year, with seasons marked

Code
flow6 %>%
  filter(site == "SnakeNat", broodyr >= 1975) %>%
  ggplot() +
  geom_line(aes(x = bydoy, y = flow_cfs)) +
  geom_vline(xintercept =c(1,90), color = "green") +   # fall = Sept 1 - Nov 30
  geom_vline(xintercept = c(91,181), color = "blue") +   # winter = Dec 1 - Feb 29
  geom_vline(xintercept = c(182,274), color = "orange") +   # spring = March 1 - May 31
  geom_vline(xintercept = c(275,365), color = "red") +   # summer = June 1 - Aug 31
  facet_wrap(~ broodyr) + theme_bw() + theme(panel.grid = element_blank())

Calculate flow metrics for each sites

Code
# define season and cutoff for data completeness (70%)
flow6 <- flow6 %>% mutate(season = ifelse(bydoy >= 1 & bydoy <= 90, "fal",
                                          ifelse(bydoy >= 91 & bydoy <= 181, "win",
                                                 ifelse(bydoy >= 182 & bydoy <= 274, "spr", "sum"))),
                          cutoff = ifelse(season == "fal", 63,
                                          ifelse(season == "win", 63,
                                                 ifelse(season == "spr", 63, 63))))
flow6 <- flow6 %>% left_join(flow6 %>% group_by(site, broodyr, season) %>% summarise(n = sum(!is.na(flow_cfs))))

# define seasons for loop
sns <- unique(flow6$season)

# seasonal mean flow
flowlist <- list()
for (i in 1:length(sns)) {
  d <- flow6 %>% filter(season == sns[i])
  d <- d[complete.cases(d),]
  flowlist[[i]] <- d %>%
    group_by(site, season, broodyr, cutoff, n) %>%
    summarize(flowmean = ifelse(unique(n) <= unique(cutoff), NA, mean(flow_cfs, na.rm = TRUE))) %>% ungroup() %>%
    select(site, season, broodyr, flowmean)
}
flowsum1 <- bind_rows(flowlist) %>% spread(season, flowmean) %>% rename(natq_falmean = fal, natq_winmean = win, natq_sprmean = spr, natq_summean = sum)

# seasonal log flow
flowlist <- list()
for (i in 1:length(sns)) {
  d <- flow6 %>% filter(season == sns[i])
  d <- d[complete.cases(d),]
  flowlist[[i]] <- d %>%
    group_by(site, season, broodyr, cutoff, n) %>%
    summarize(flowmean_log = ifelse(unique(n) <= unique(cutoff), NA, mean(log(flow_cfs), na.rm = TRUE))) %>% ungroup() %>%
    select(site, season, broodyr, flowmean_log)
}
flowsum2 <- bind_rows(flowlist) %>% spread(season, flowmean_log) %>% rename(natq_falmean_log = fal, natq_winmean_log = win, natq_sprmean_log = spr, natq_summean_log = sum)

# seasonal flow variation
flowlist <- list()
for (i in 1:length(sns)) {
  d <- flow6 %>% filter(season == sns[i])
  d <- d[complete.cases(d),]
  flowlist[[i]] <- d %>%
    group_by(site, season, broodyr, cutoff, n) %>%
    summarize(flowvar = ifelse(unique(n) <= unique(cutoff), NA, sd(flow_var, na.rm = TRUE))) %>% ungroup() %>%
    select(site, season, broodyr, flowvar)
}
flowsum3 <- bind_rows(flowlist) %>% spread(season, flowvar) %>% rename(natq_falvar = fal, natq_winvar = win, natq_sprvar = spr, natq_sumvar = sum)

# annual flow metrics (no data availability cutoff)
flowlist <- list()
sites <- unique(flow6$site)
for (i in 1:length(sites)) {
  d <- flow6 %>% filter(site == sites[i])
  d <- d[complete.cases(d),]
  flowlist[[i]] <- d %>% group_by(site, broodyr) %>%
    summarize(natq_peakmag = max(flow_cfs, na.rm = TRUE), # magnitude of peak spring flows
              natq_peakmag_log = max(log(flow_cfs), na.rm = TRUE), # logged
              natq_annmin = min(flow_cfs, na.rm = TRUE), # annual minimum flow
              natq_annmin_log = min(log(flow_cfs), na.rm = TRUE), # logged
              natq_peaktime = bydoy[which.max(flow_cfs)], # brood year day of peak spring flows
              natq_flooddur = sum(flow_cfs >= quantile(d$flow_cfs[!is.na(d$flow_cfs)], probs = 0.75), na.rm = T), # number of days flow is greater than the long-term 75th percentile of flow
              natq_floodvar = sd(flow_var[flow_cfs >= quantile(d$flow_cfs[!is.na(d$flow_cfs)], probs = 0.75)], na.rm = TRUE), # spring/summer flood variability (var in flood pulse)
              natq_floodmag = sum(flow_cfs[flow_cfs >= quantile(d$flow_cfs[!is.na(d$flow_cfs)], probs = 0.75)], na.rm = T) # magnitude of spring flood (flow > long-term 75th percentile)
    ) %>% ungroup()
}
flowsum4 <- bind_rows(flowlist)

# join
flowsum <- flowsum1 %>% left_join(flowsum2) %>% left_join(flowsum3) %>% left_join(flowsum4)

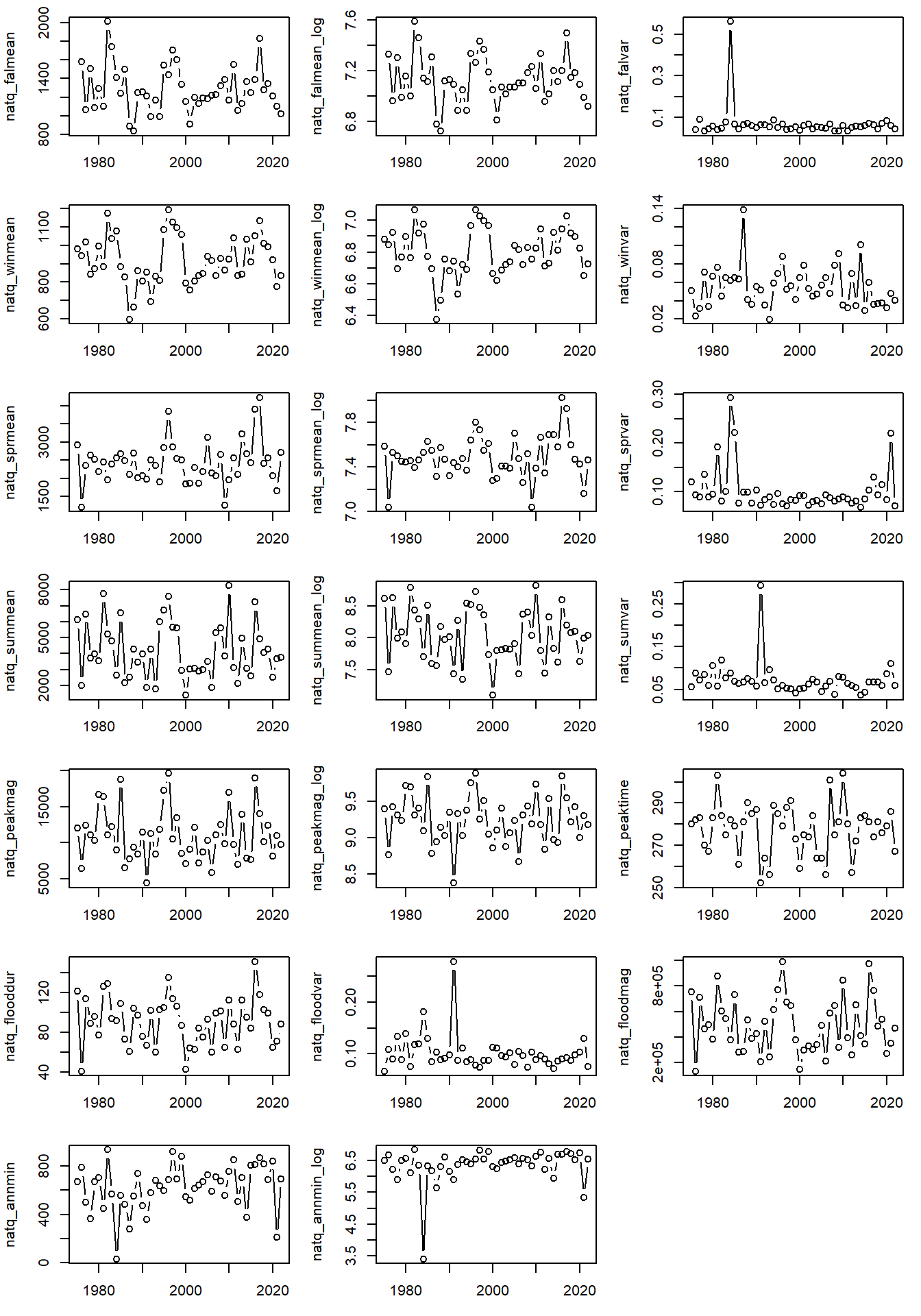

Plot time series data (natural Snake River only)

Code
  d <- flowsum %>% filter(site == "SnakeNat")
  par(mfrow = c(7,3), mar = c(3,4,1,1))

  plot(natq_falmean ~ broodyr, d, type = "b")
  plot(natq_falmean_log ~ broodyr, d, type = "b")
  plot(natq_falvar ~ broodyr, d, type = "b")

  plot(natq_winmean ~ broodyr, d, type = "b")
  plot(natq_winmean_log ~ broodyr, d, type = "b")
  plot(natq_winvar ~ broodyr, d, type = "b")

  plot(natq_sprmean ~ broodyr, d, type = "b")
  plot(natq_sprmean_log ~ broodyr, d, type = "b")
  plot(natq_sprvar ~ broodyr, d, type = "b")

  plot(natq_summean ~ broodyr, d, type = "b")
  plot(natq_summean_log ~ broodyr, d, type = "b")
  plot(natq_sumvar ~ broodyr, d, type = "b")

  plot(natq_peakmag ~ broodyr, d, type = "b")
  plot(natq_peakmag_log ~ broodyr, d, type = "b")
  plot(natq_peaktime ~ broodyr, d, type = "b")

  plot(natq_flooddur ~ broodyr, d, type = "b")
  plot(natq_floodvar ~ broodyr, d, type = "b")
  plot(natq_floodmag ~ broodyr, d, type = "b")

  plot(natq_annmin ~ broodyr, d, type = "b")
  plot(natq_annmin_log ~ broodyr, d, type = "b")

Write out data file

Code
write_csv(flowsum, "Data/Derived/SnakeTribs_NaturalFlow_Covariates_BroodYear_1960-2022.csv")
flowsum <- read_csv("Data/Derived/SnakeTribs_NaturalFlow_Covariates_BroodYear_1960-2022.csv")

How many/what proportion of years since 1989 have combined winter flows been below certain thresholds? e.g., 1302 cfs and winter mean flow

Code
flowsum %>% filter(site == "SnakeBeFlat") %>%
  ggplot(aes(x = broodyr, y = natq_winmean)) + geom_line() + geom_point() + geom_hline(yintercept = 1302, color = "red")

Code
dim(flowsum %>% filter(site == "SnakeBeFlat", broodyr >= 1989, natq_winmean >= 1302))[1] / dim(flowsum %>% filter(site == "SnakeBeFlat", broodyr >= 1989))[1]
[1] 0.4705882

Historical (1989-present) seasonal flow summaries for Bryana (25, 50, and 75% quantiles)

Code
bry_flowsum <- flowsum %>% filter(broodyr >= 1989, site %in% c("SnakeBeFlat", "SnakeMoran", "SnakeNat")) %>% group_by(site) %>%
  reframe(q_fal_25 = quantile(natq_falmean, probs = 0.25, na.rm = T), q_fal_50 = quantile(natq_falmean, probs = 0.50, na.rm = T), q_fal_75 = quantile(natq_falmean, probs = 0.75, na.rm = T),
          q_win_25 = quantile(natq_winmean, probs = 0.25, na.rm = T), q_win_50 = quantile(natq_winmean, probs = 0.50, na.rm = T), q_win_75 = quantile(natq_winmean, probs = 0.75, na.rm = T),
          q_spr_25 = quantile(natq_sprmean, probs = 0.25, na.rm = T), q_spr_50 = quantile(natq_sprmean, probs = 0.50, na.rm = T), q_spr_75 = quantile(natq_sprmean, probs = 0.75, na.rm = T),
          q_sum_25 = quantile(natq_summean, probs = 0.25, na.rm = T), q_sum_50 = quantile(natq_summean, probs = 0.50, na.rm = T), q_sum_75 = quantile(natq_summean, probs = 0.75, na.rm = T),
          q_peakmag_25 = quantile(natq_peakmag, probs = 0.25, na.rm = T), q_peakmag_50 = quantile(natq_peakmag, probs = 0.50, na.rm = T), q_peakmag_75 = quantile(natq_peakmag, probs = 0.75, na.rm = T),
          q_peaktime_25 = quantile(natq_peaktime, probs = 0.25, na.rm = T), q_peaktime_50 = quantile(natq_peaktime, probs = 0.50, na.rm = T), q_peaktime_75 = quantile(natq_peaktime, probs = 0.75, na.rm = T)) %>%
  ungroup()
write_csv(bry_flowsum, "Data/Derived/Snake_FlowSummaryForBryana_1989-2022.csv")

# plot seasonal summaries
jpeg("Figures/Covariates/Snake_FlowSummaryForBryana_1989-2022.jpg", units = "in", height = 10, width = 10, res = 500)
p1 <- tibble(ssn = as.ordered(c("fal", "win", "spr", "sum")),
       q25 = unlist(bry_flowsum %>% filter(site == "SnakeBeFlat") %>% select(q_fal_25, q_win_25, q_spr_25, q_sum_25)),
       q50 = unlist(bry_flowsum %>% filter(site == "SnakeBeFlat") %>% select(q_fal_50, q_win_50, q_spr_50, q_sum_50)),
       q75 = unlist(bry_flowsum %>% filter(site == "SnakeBeFlat") %>% select(q_fal_75, q_win_75, q_spr_75, q_sum_75))) %>%
  gather(quant, flow, q25:q75) %>%
  arrange(rev(quant)) %>%
  ggplot(aes(fill = quant, x = ssn, y = flow)) + geom_bar(position = "identity", stat = "identity") + scale_x_discrete(limits = c("fal", "win", "spr", "sum")) + scale_y_continuous(limits = c(0,8100)) + theme(plot.margin = margin(1,0.5,0.5,0.5, unit = "cm"))
p2 <- tibble(ssn = c("fal", "win", "spr", "sum"),
             q25 = unlist(bry_flowsum %>% filter(site == "SnakeMoran") %>% select(q_fal_25, q_win_25, q_spr_25, q_sum_25)),
             q50 = unlist(bry_flowsum %>% filter(site == "SnakeMoran") %>% select(q_fal_50, q_win_50, q_spr_50, q_sum_50)),
             q75 = unlist(bry_flowsum %>% filter(site == "SnakeMoran") %>% select(q_fal_75, q_win_75, q_spr_75, q_sum_75))) %>%
  gather(quant, flow, q25:q75) %>%
  arrange(ssn, rev(quant)) %>%
  ggplot(aes(fill = quant, x = ssn, y = flow)) + geom_bar(position = "identity", stat = "identity") + scale_x_discrete(limits = c("fal", "win", "spr", "sum")) + scale_y_continuous(limits = c(0,8100)) + theme(plot.margin = margin(1,0.5,0.5,0.5, unit = "cm"))
p3 <- tibble(ssn = c("fal", "win", "spr", "sum"),
             q25 = unlist(bry_flowsum %>% filter(site == "SnakeNat") %>% select(q_fal_25, q_win_25, q_spr_25, q_sum_25)),
             q50 = unlist(bry_flowsum %>% filter(site == "SnakeNat") %>% select(q_fal_50, q_win_50, q_spr_50, q_sum_50)),
             q75 = unlist(bry_flowsum %>% filter(site == "SnakeNat") %>% select(q_fal_75, q_win_75, q_spr_75, q_sum_75))) %>%
  gather(quant, flow, q25:q75) %>%
  arrange(ssn, rev(quant)) %>%
  ggplot(aes(fill = quant, x = ssn, y = flow)) + geom_bar(position = "identity", stat = "identity") + scale_x_discrete(limits = c("fal", "win", "spr", "sum")) + scale_y_continuous(limits = c(0,8100)) + theme(plot.margin = margin(1,0.5,0.5,0.5, unit = "cm"))
ggarrange(p1, p2, p3, labels = c("Snake Below Flat (combined)", "Snake Moran (JLD Release)", "Snake Natural (tributaries)"))
dev.off()
png
  2

2.3.3 Air Temperature

Plot Moose, WY, air temp with seasons marked:

Code
airtemp2 %>%
  filter(site == "moose") %>%
  ggplot() +
  geom_line(aes(x = bydoy, y = tmean)) +
  geom_vline(xintercept = c(1,90), color = "green") +   # fall = Sept 1 - Nov 30
  geom_vline(xintercept = c(91,181), color = "blue") +   # winter = Dec 1 - Feb 29
  geom_vline(xintercept = c(182,274), color = "orange") +   # spring = March 1 - May 31
  geom_vline(xintercept = c(275,365), color = "red") +   # summer = June 1 - Aug 31
  facet_wrap(~ broodyr) +   # summer = June 1 - Aug 31
  facet_wrap(~ broodyr) + theme_bw() + theme(panel.grid = element_blank())

Calculate air temp. metrics for each site:

Code
# define season and cutoff for data completeness (70%)
airtemp2a <- airtemp2 %>% mutate(season = ifelse(bydoy >= 1 & bydoy <= 90, "fal",
                                                ifelse(bydoy >= 91 & bydoy <= 181, "win",
                                                       ifelse(bydoy >= 182 & bydoy <= 274, "spr", "sum")))) %>%
                         mutate(cutoff = ifelse(season == "fal", 63,
                                                ifelse(season == "win", 63,
                                                       ifelse(season == "spr", 63, 63))))
airtemp2 <- airtemp2a %>% left_join(airtemp2a %>% group_by(site, broodyr, season) %>% summarise(n = sum(!is.na(tmean))))

# seasonal mean air temp
airlist <- list()
sns <- unique(airtemp2$season)
for (i in 1:length(sns)) {
  d <- airtemp2 %>% filter(season == sns[i])
  d <- d[complete.cases(d),]
  airlist[[i]] <- d %>%
    group_by(site, season, broodyr, cutoff, n) %>%
    summarize(tmean = ifelse(unique(n) <= unique(cutoff), NA, mean(tmean, na.rm = TRUE)),
              tmax = ifelse(unique(n) <= unique(cutoff), NA, mean(tmax, na.rm = TRUE)),
              tmin = ifelse(unique(n) <= unique(cutoff), NA, mean(tmin, na.rm = TRUE))) %>% ungroup() %>%
    select(site, season, broodyr, tmean, tmax, tmin)
}
airsum1a <- bind_rows(airlist) %>% select(-c(tmax, tmin)) %>% spread(season, tmean) %>% rename(temp_falmean = fal, temp_winmean = win, temp_sprmean = spr, temp_summean = sum)
airsum1b <- bind_rows(airlist) %>% select(-c(tmean, tmin))  %>% spread(season, tmax) %>% rename(temp_falmax = fal, temp_winmax = win, temp_sprmax = spr, temp_summax = sum)
airsum1c <- bind_rows(airlist) %>% select(-c(tmax, tmean))  %>% spread(season, tmin) %>% rename(temp_falmin = fal, temp_winmin = win, temp_sprmin = spr, temp_summin = sum)
airsum1 <- airsum1a %>% left_join(airsum1b) %>% left_join(airsum1c)

# annual temp metrics
airlist <- list()
sites <- unique(airtemp2$site)
airsum3 <- airtemp2 %>% select(-n) %>%
  left_join(airtemp2 %>% group_by(site, broodyr) %>% summarise(n = sum(!is.na(tmean))))
for (i in 1:length(sites)) {
  d <- airsum3 %>% filter(site == sites[i])
  d <- d[complete.cases(d),]
  airlist[[i]] <- d %>% group_by(site, broodyr, n) %>%
    summarize(temp_bel0dur = ifelse(unique(n) <= 255, NA, sum(tmean <= 0, na.rm = TRUE)),
              temp_abv15dur = ifelse(unique(n) <= 255, NA, sum(tmean >= 15, na.rm = TRUE)),
              temp_abv18dur = ifelse(unique(n) <= 255, NA, sum(tmean >= 18, na.rm = TRUE)),
              temp_abv20dur = ifelse(unique(n) <= 255, NA, sum(tmean >= 20, na.rm = TRUE)),
              temp_annmin = ifelse(unique(n) <= 255, NA, min(tmean, na.rm = TRUE)),
              temp_annmax = ifelse(unique(n) <= 255, NA, max(tmean, na.rm = TRUE))
              ) %>% ungroup()
}
airsum2 <- bind_rows(airlist) %>% select(-n)

# join
airsum <- airsum1 %>% left_join(airsum2)

Time series plots, Moose only

Code
  d <- airsum %>% filter(site == "moose")
  par(mfrow = c(4,3), mar = c(3,4,1,1))

  plot(temp_falmean ~ broodyr, d, type = "b")
  legend("bottomright", legend = sites[i], bty = "n")
  plot(temp_falmin ~ broodyr, d, type = "b")
  plot(temp_falmax ~ broodyr, d, type = "b")

  plot(temp_winmean ~ broodyr, d, type = "b")
  plot(temp_winmin ~ broodyr, d, type = "b")
  plot(temp_winmax ~ broodyr, d, type = "b")

  plot(temp_sprmean ~ broodyr, d, type = "b")
  plot(temp_sprmin ~ broodyr, d, type = "b")
  plot(temp_sprmax ~ broodyr, d, type = "b")

  plot(temp_summean ~ broodyr, d, type = "b")
  plot(temp_summin ~ broodyr, d, type = "b")
  plot(temp_summax ~ broodyr, d, type = "b")

Compare summer mean and min temps per Bryan Shuman comment

Code
# jpeg("Redd Counts Ricker/SummerTempCovs.jpg", units = "in", height = 6, width = 8, res = 500)
p1 <- airsum %>% filter(site == "moose") %>% ggplot(aes(x = broodyr, y = temp_summean)) + geom_point() + geom_line() + xlab("Brood Year") + ylab("Summer mean temperature") + theme(plot.margin = margin(0.5,0.5,0.5,0.5, unit = "cm"))
p2 <- airsum %>% filter(site == "moose") %>% ggplot(aes(x = broodyr, y = temp_summin)) + geom_point() + geom_line() + xlab("Brood Year") + ylab("Summer minimum temperature") + theme(plot.margin = margin(0.5,0.5,0.5,0.5, unit = "cm"))
p3 <- airsum %>% filter(site == "moose") %>% ggplot(aes(x = temp_summean, y = temp_summin)) + geom_point() + xlab("Mean") + ylab("Minimum") + stat_cor(method = "pearson") + theme(plot.margin = margin(0.5,0.5,0.5,0.5, unit = "cm"))
ggarrange(ggarrange(p1, p2, nrow = 2), p3, ncol = 2)

Code
# dev.off()

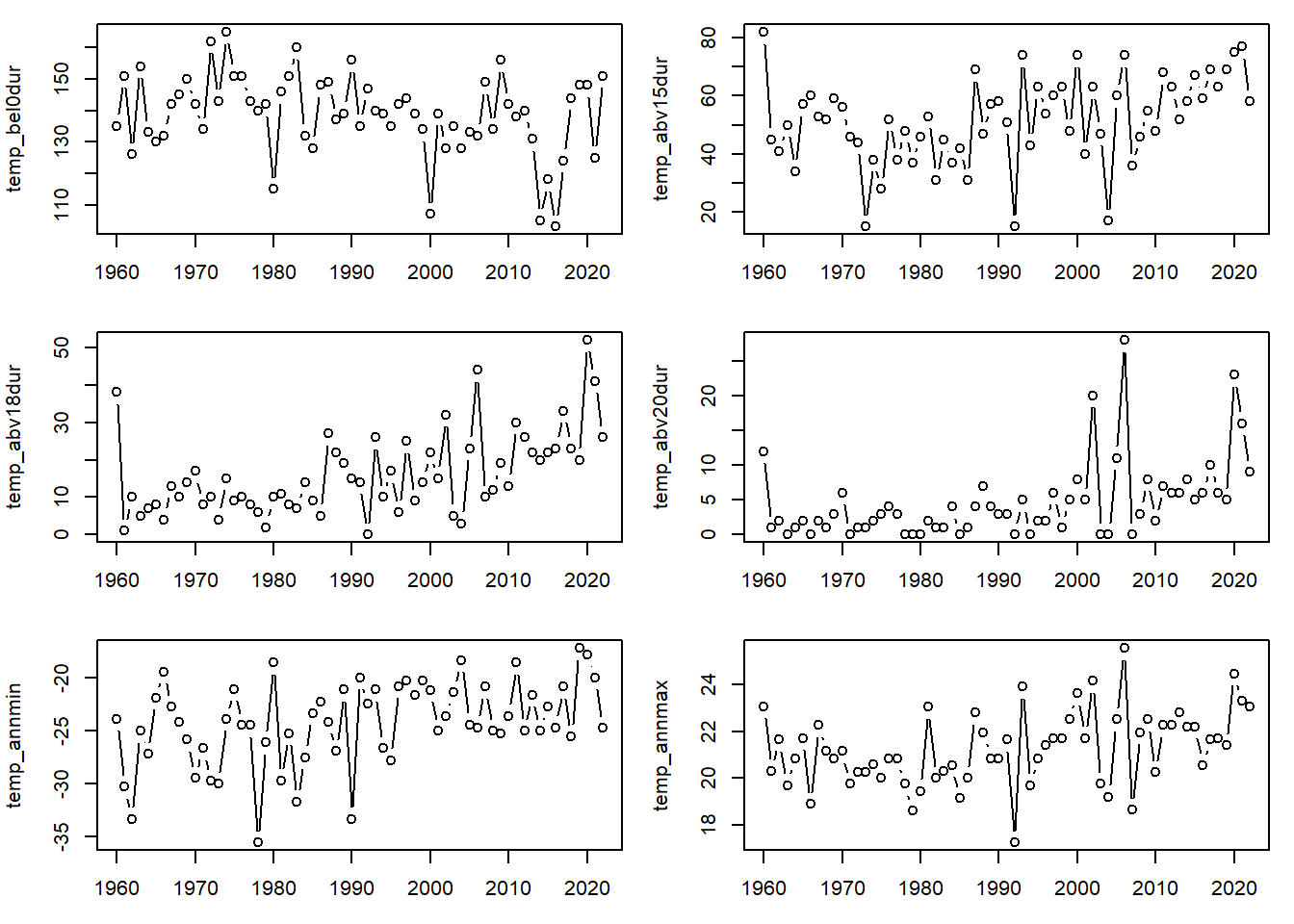

Plot time series of temperature thresholds:

Code
  d <- airsum %>% filter(site == "moose")
  par(mfrow = c(3,2), mar = c(3,4,1,1))
  plot(temp_bel0dur ~ broodyr, d, type = "b")
  plot(temp_abv15dur ~ broodyr, d, type = "b")
  plot(temp_abv18dur ~ broodyr, d, type = "b")
  plot(temp_abv20dur ~ broodyr, d, type = "b")
  plot(temp_annmin ~ broodyr, d, type = "b")
  plot(temp_annmax ~ broodyr, d, type = "b")

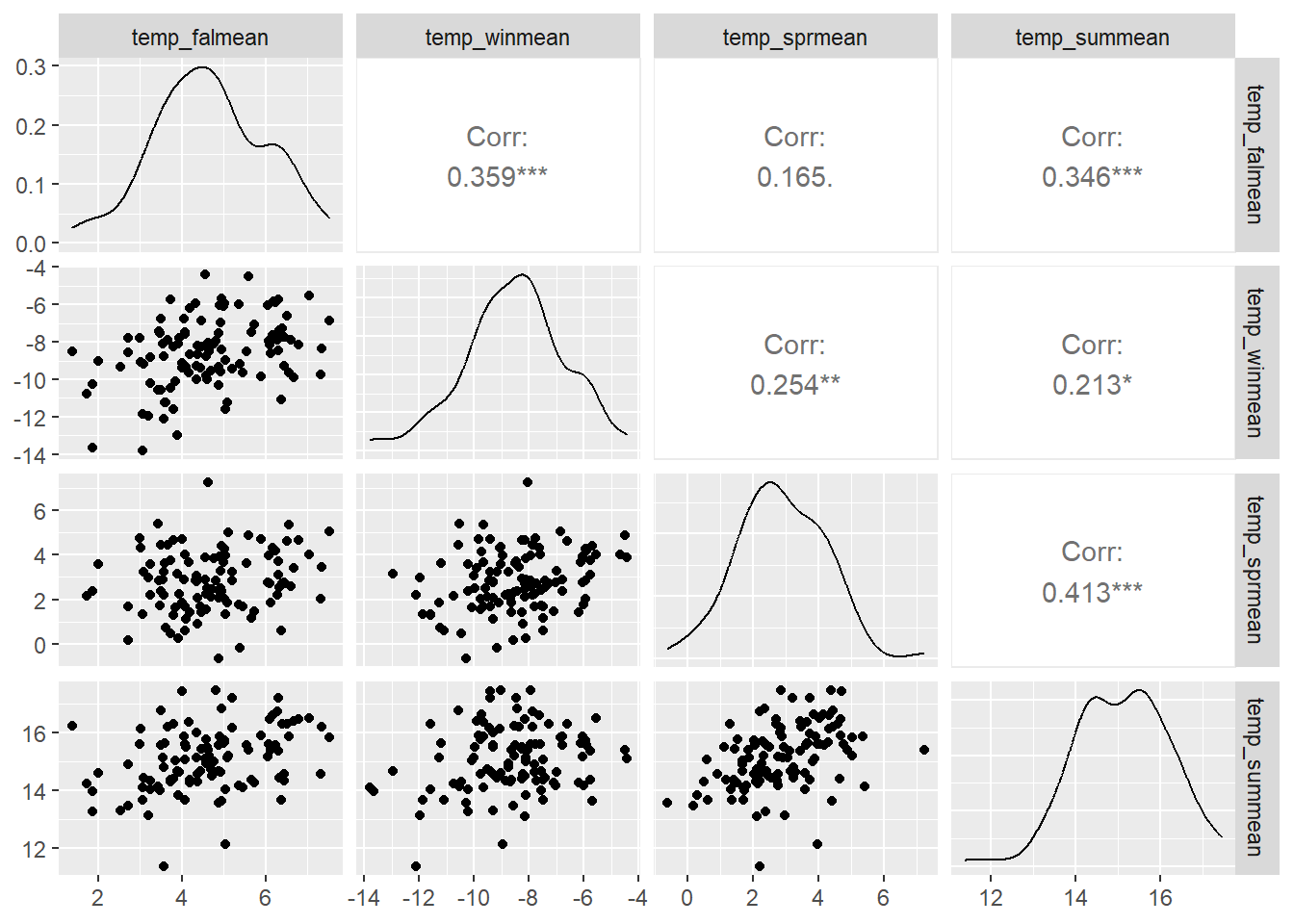

Pairs plots of seasonal mean air temperature variables:

Code
ggpairs(airsum %>% select(temp_falmean, temp_winmean, temp_sprmean, temp_summean))

Write out data file

Code
write_csv(airsum, "Data/Derived/AirTemperature_Covariates_BroodYear_1960-2022.csv")
airsum <- read_csv("Data/Derived/AirTemperature_Covariates_BroodYear_1960-2022.csv")

Plot select air temperature time series data:

Code
jpeg("Figures/Covariates/SelectAirTempCovs.jpg", units = "in", width = 7, height = 3.5, res = 1000)
par(mfrow = c(1,2), mgp = c(2.5, 1, 0), mar = c(4,4,1,1))

# fall
# plot(temp_falmean ~ broodyr, airsum %>% filter(site == "moose"), type = "l", bty = "l", xlab = "Year", ylab = expression(paste("Fall temperature ("^"o", "C)", sep = "")))
# points(temp_falmean ~ broodyr, airsum %>% filter(site == "moose"), pch = 16)
# mod <- lm(temp_falmean ~ broodyr, airsum %>% filter(site == "moose" & broodyr >= 1980))
# predz <- predict(mod, newdata = list(broodyr = c(1980:2022)))
# lines(predz ~ c(1980:2022), lwd = 2, col = "red")

# winter
plot(temp_winmean ~ broodyr, airsum %>% filter(site == "moose"), type = "l", bty = "l", xlab = "Year", ylab = expression(paste("Winter temperature ("^"o", "C)", sep = "")))
points(temp_winmean ~ broodyr, airsum %>% filter(site == "moose"), pch = 16)
mod <- lm(temp_winmean ~ broodyr, airsum %>% filter(site == "moose" & broodyr >= 1980))
predz <- predict(mod, newdata = list(broodyr = c(1980:2022)))
lines(predz ~ c(1980:2022), lwd = 2, col = "red")

# spring
# plot(temp_sprmean ~ broodyr, airsum %>% filter(site == "moose"), type = "l", bty = "l", xlab = "Year", ylab = expression(paste("Spring temperature ("^"o", "C)", sep = "")))
# points(temp_sprmean ~ broodyr, airsum %>% filter(site == "moose"), pch = 16)
# mod <- lm(temp_sprmean ~ broodyr, airsum %>% filter(site == "moose" & broodyr >= 1980))
# predz <- predict(mod, newdata = list(broodyr = c(1980:2022)))
# lines(predz ~ c(1980:2022), lwd = 2, col = "red")

# summer
plot(temp_summean ~ broodyr, airsum %>% filter(site == "moose"), type = "l", bty = "l", xlab = "Year", ylab = expression(paste("Summer temperature ("^"o", "C)", sep = "")))
points(temp_summean ~ broodyr, airsum %>% filter(site == "moose"), pch = 16)
mod <- lm(temp_summean ~ broodyr, airsum %>% filter(site == "moose" & broodyr >= 1980))
predz <- predict(mod, newdata = list(broodyr = c(1980:2022)))
lines(predz ~ c(1980:2022), lwd = 2, col = "red")

dev.off()
png
  2

Compare seasonal air and water temp where available

Code
watertemp <- tibble(readNWISdata(sites = "13013650", parameterCd = c("00010"), service = "dv", startDate = "1960-01-01", endDate = "2025-09-01")) %>% select(c(3,8))
names(watertemp) <- c("date", "temp")

watertemp <- watertemp %>% mutate(date = as_date(date)) %>% mutate(broodyr = year(date)-1, doy = yday(date)) %>% filter(doy >= 152 & doy <= 243) %>% group_by(broodyr) %>% summarise(wtemp = mean(temp)) %>% ungroup() %>% left_join(airsum %>% filter(site == "moose") %>% select(broodyr, temp_summean))

# how many years of overlap?
dim(watertemp[complete.cases(watertemp),])[1]
[1] 19
Code
# Pearson's r correlation
cor.test(watertemp$wtemp, watertemp$temp_summean, method = "pearson")

    Pearson's product-moment correlation

data:  watertemp$wtemp and watertemp$temp_summean
t = 3.4899, df = 17, p-value = 0.002805
alternative hypothesis: true correlation is not equal to 0
95 percent confidence interval:
 0.2715285 0.8506487
sample estimates:
      cor
0.6460588

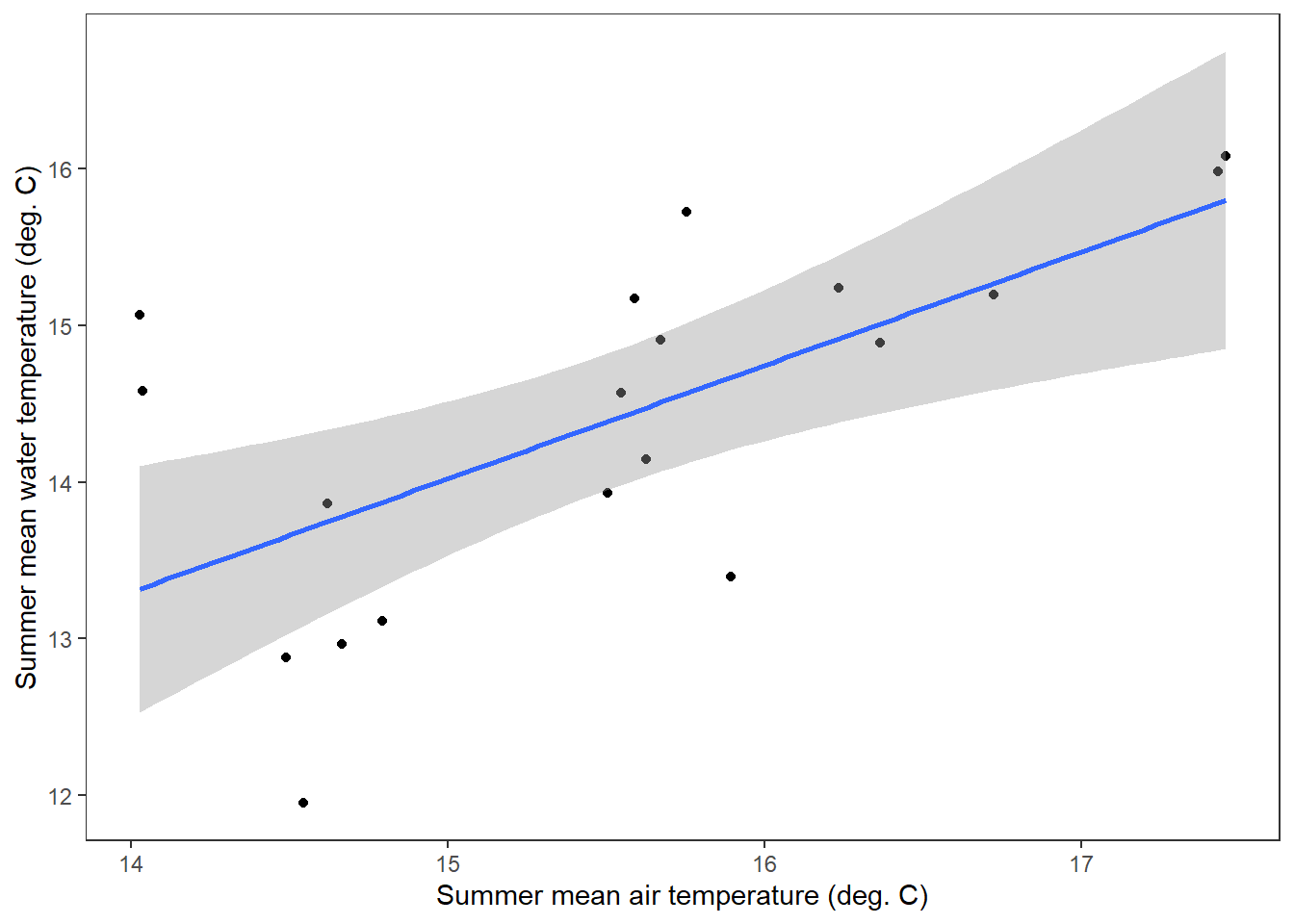

Code
# plot
watertemp %>%
  ggplot(aes(x = temp_summean, y = wtemp)) +
  geom_point() +
  geom_smooth(method = "lm") +
  theme_bw() + theme(panel.grid = element_blank()) +
  xlab("Summer mean air temperature (deg. C)") + ylab("Summer mean water temperature (deg. C)")
