6 Landscape Covariates

Purpose: Derive landscape/basin-level covariates to use in gG framework.

6.1 Site info

Code

# site information and locations
siteinfo <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_SiteInformation.csv")
siteinfo_sp <- st_as_sf(siteinfo, coords = c("long", "lat"), crs = 4326)
mapview(siteinfo_sp, zcol = "designation")

6.2 Spatial data

6.2.1 Watersheds

Code

sheds_list <- list()
myfiles <- list.files(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", pattern = ".shp")
for (i in 1:length(myfiles)) {
  sheds_list[[i]] <- vect(paste("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Watersheds/", myfiles[i], sep = ""))
}
sheds <- do.call(rbind, sheds_list) %>% left_join(siteinfo)
mapview(st_as_sf(sheds), alpha.regions = 0.2)

6.2.2 Flowlines

Code

streams_list <- list()
myfiles <- list.files(path = "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams/", pattern = ".shp")
sheds_basins <- sheds[sheds$site_id %in% c("NFF",      # Flathead
                                           "WBR",      # West Brook
                                           "DBF",      # Donner Blitzen

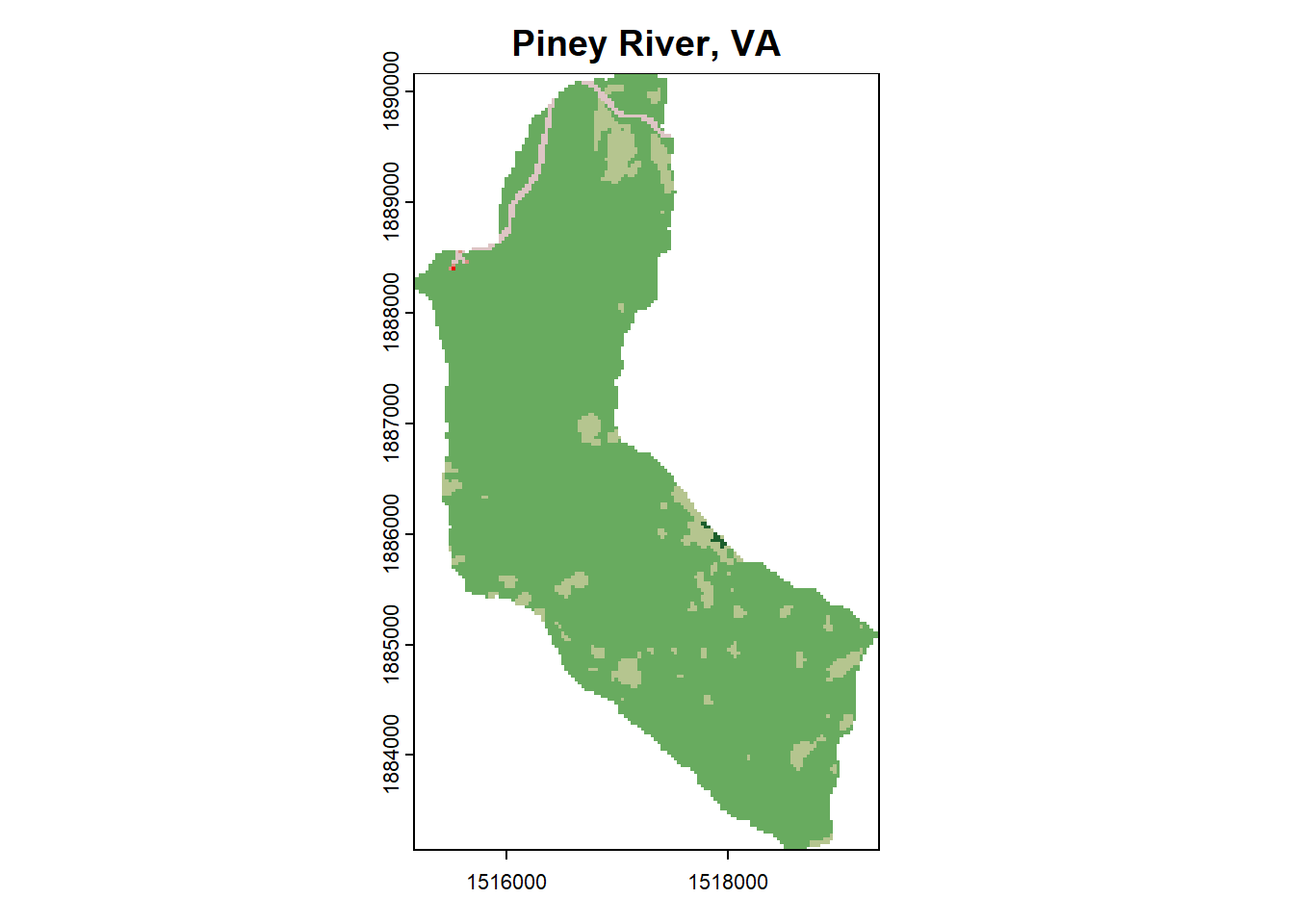

                                           "PI_10FL",  # Shen, Piney River

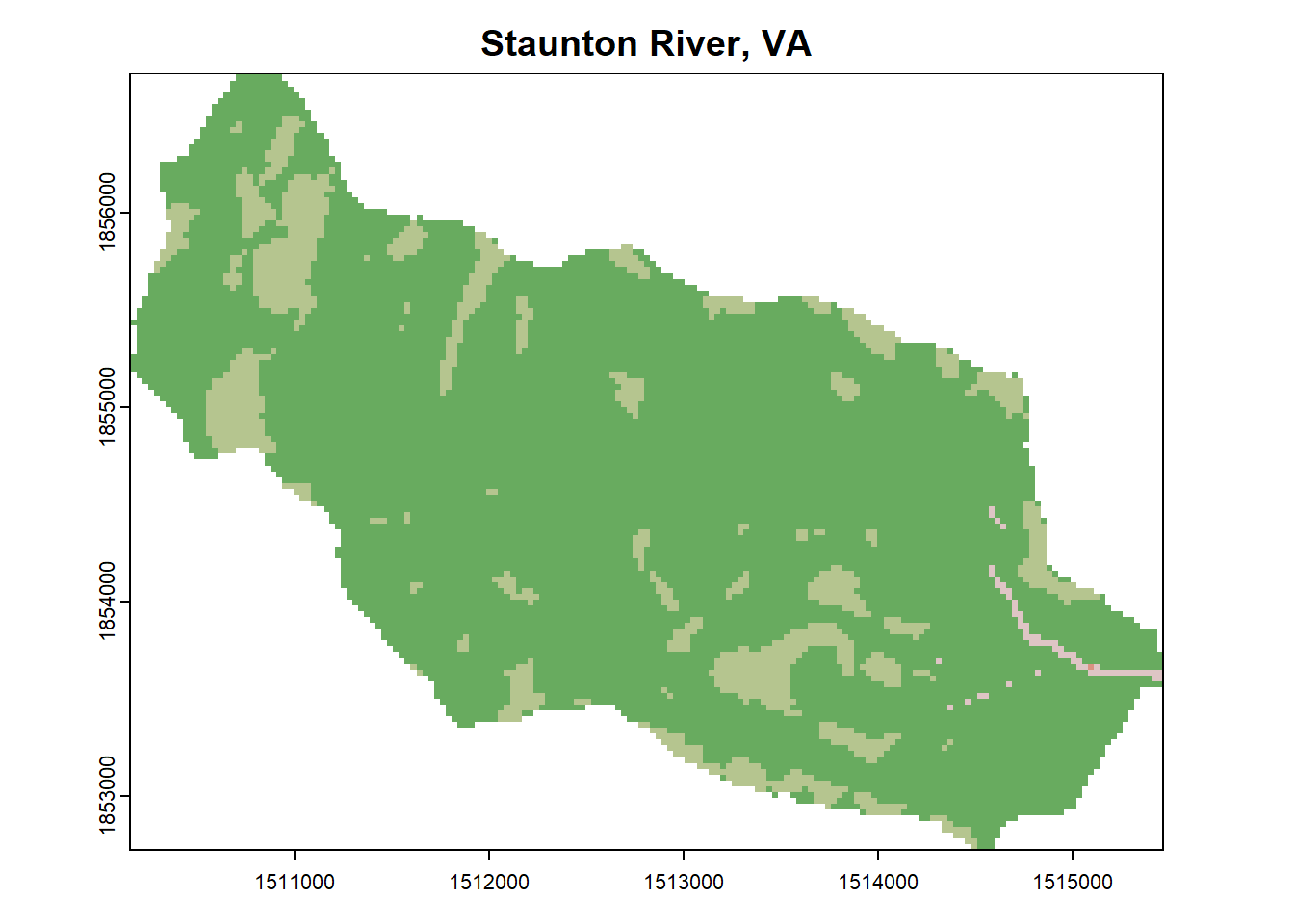

                                           "SR_10FL",  # Shen, Staunton River
                                           "PA_10FL",  # Shen, Paine Run

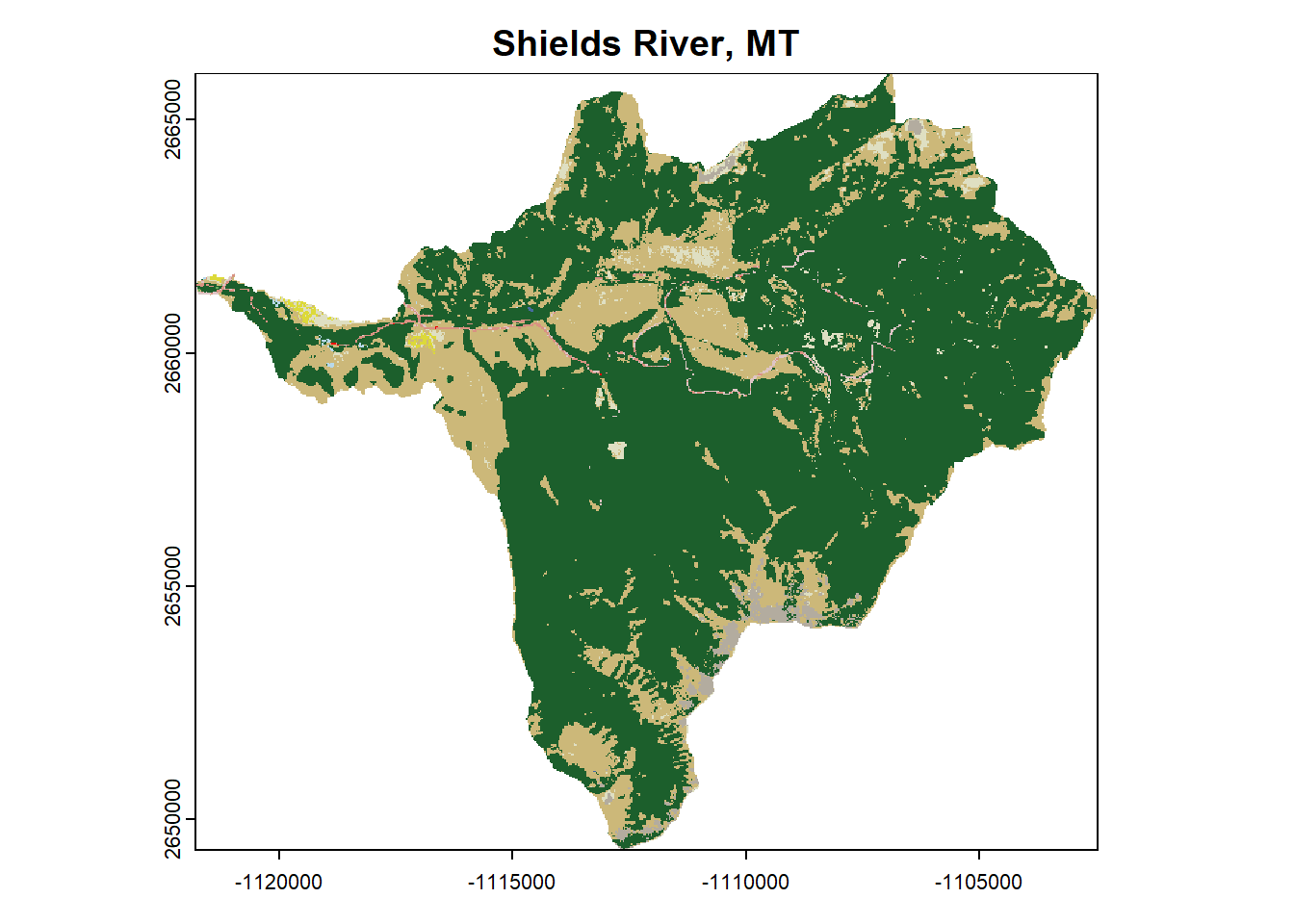

                                           "SRS",      # Shields River

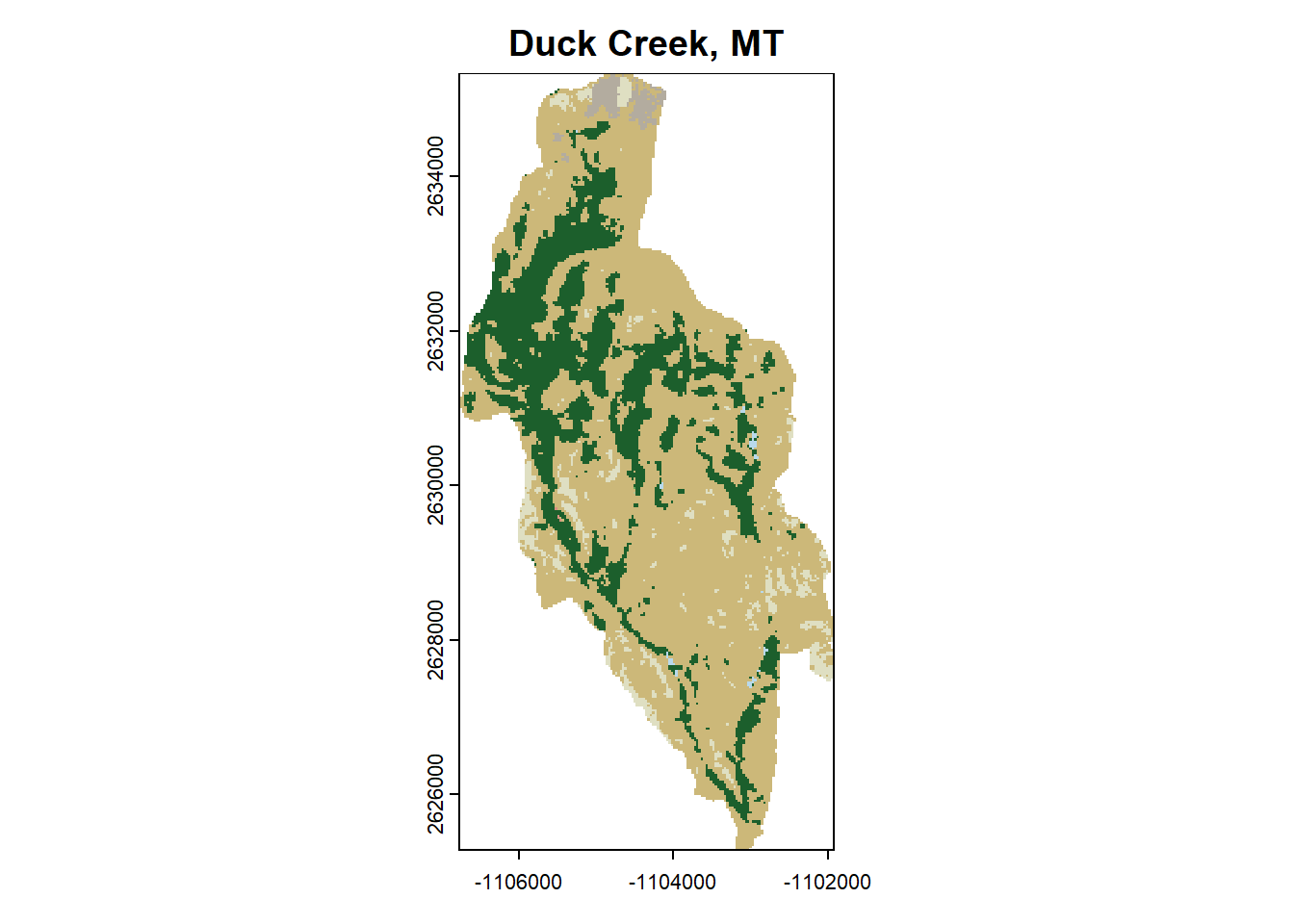

                                           "DU01",     # Duck Creek
                                           "SP11"),]   # Spread Creek
myctr <- c(1,2,3,4,4,4,5,5,6)
for (i in 1:length(myctr)) {
  streams_list[[i]] <- crop(vect(paste("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Watershed Delineation/Streams/", myfiles[myctr[i]], sep = "")), sheds_basins[i])
  crs(streams_list[[i]]) <- crs(sheds)
}
streams <- do.call(rbind, streams_list)
mapview(st_as_sf(streams)) + mapview(siteinfo_sp, zcol = "designation")

6.3 Define G-g clusters/sub-basins

Code

siteinfo2 <- siteinfo %>%
  filter(!site_name %in% c("WoundedBuckCreek", "Brackett Creek", "South River Conway NWIS",
                           "Shields River nr Livingston NWIS", "North Fork Flathead River NWIS",
                           "Pacific Creek at Moran NWIS")) %>%
  mutate(designation = ifelse(site_name %in% c("Donner Blitzen River nr Frenchglen NWIS",
                                               "BigCreekLower", "CoalCreekLower", "McGeeCreekLower",
                                               "West Brook NWIS", "West Brook 0",
                                               "Paine Run 10", "Staunton River 10", "Piney River 10",
                                               "Shields River Valley Ranch", "Shields River ab Smith NWIS",
                                               "EF Duck Creek be HF",
                                               "Spread Creek Dam"), "big", "little"))
siteinfo2 %>% arrange(region, basin, subbasin, designation) %>% kable()

site_id	site_name	lat	long	station_no	designation	basin	region	subbasin	source	area_sqmi	elev_ft
BIG_001	BigCreekLower	48.60295	-114.18700	NA	big	Flathead	Flat	Big Creek	ECOD	81.2083617	3428.6560
BIG_004	BigCreekMiddle	48.59770	-114.22500	NA	little	Flathead	Flat	Big Creek	ECOD	73.5768438	3528.9551
BIG_005	BigCreekUpper	48.57493	-114.31700	NA	little	Flathead	Flat	Big Creek	ECOD	53.1555778	3913.1550
BIG_006	HallowattCreekLower	48.57427	-114.31700	NA	little	Flathead	Flat	Big Creek	ECOD	28.1074377	3916.4062
BIG_002	LangfordCreekLower	48.60369	-114.18700	NA	little	Flathead	Flat	Big Creek	ECOD	3.9917383	3431.6910
BIG_003	LangfordCreekUpper	48.61350	-114.20200	NA	little	Flathead	Flat	Big Creek	ECOD	2.8629722	3594.2884
BIG_008	NicolaCreek	48.55442	-114.37500	NA	little	Flathead	Flat	Big Creek	ECOD	3.3459243	4958.1863
BIG_007	SkookoleelCreek	48.57092	-114.31200	NA	little	Flathead	Flat	Big Creek	ECOD	8.5886199	3965.1819
BIG_009	WernerCreek	48.59324	-114.36800	NA	little	Flathead	Flat	Big Creek	ECOD	3.9795282	4284.3249
HAL	Hallowat Creek NWIS	48.61005	-114.38193	12355342	little	Flathead	Flat	Big Creek	NWIS	10.0317552	4453.6190
BIG	Big Creek NWIS	48.59769	-114.22472	12355347	little	Flathead	Flat	Big Creek	NWIS	73.5899716	3528.2743
COA_001	CoalCreekLower	48.66182	-114.24200	NA	big	Flathead	Flat	Coal Creek	ECOD	59.9694259	3658.9180
COA_009	CoalCreekHeadwaters	48.70570	-114.45500	NA	little	Flathead	Flat	Coal Creek	ECOD	12.4254748	4595.6775
COA_006	CoalCreekMiddle	48.67442	-114.31700	NA	little	Flathead	Flat	Coal Creek	ECOD	45.3748041	3874.4946
COA_003	CycloneCreekLower	48.66582	-114.24500	NA	little	Flathead	Flat	Coal Creek	ECOD	12.6353670	3701.7687
COA_004	CycloneCreekMiddle	48.66871	-114.26700	NA	little	Flathead	Flat	Coal Creek	ECOD	11.2380763	3853.7423
COA_005	CycloneCreekUpper	48.69030	-114.27600	NA	little	Flathead	Flat	Coal Creek	ECOD	9.8960331	4039.1350
COA_002	MeadowCreek	48.65865	-114.23600	NA	little	Flathead	Flat	Coal Creek	ECOD	5.7153134	3684.4886
COA_008	CoalCreekNorth	48.69130	-114.37600	NA	little	Flathead	Flat	Coal Creek	ECOD	20.8457145	4154.4794
MCG_002	McGeeCreekLower	48.61789	-114.06700	NA	big	Flathead	Flat	McGee Creek	ECOD	7.4164591	3711.2340
MCG_001	McGeeCreekTrib	48.62212	-114.07400	NA	little	Flathead	Flat	McGee Creek	ECOD	1.2240208	3697.0725
MCG_003	McGeeCreekUpper	48.59827	-114.04000	NA	little	Flathead	Flat	McGee Creek	ECOD	3.3382493	3866.2909
WM	West Brook 0	42.41434	-72.62929	01171100	big	West Brook	Mass	West Brook	ECOD	11.3860459	154.5905
WBR	West Brook NWIS	42.41437	-72.62876	01171100	big	West Brook	Mass	West Brook	NWIS	11.3929050	154.1473
AB	Avery Brook	42.44981	-72.69402	01171000	little	West Brook	Mass	West Brook	ECOD	2.8322503	699.2518
JB	Jimmy Brook	42.43485	-72.67102	01171040	little	West Brook	Mass	West Brook	ECOD	0.9743054	452.0916
MB	Mitchell Brook	42.43355	-72.66819	01171080	little	West Brook	Mass	West Brook	ECOD	0.3514676	437.5512
OL	Obear Brook Lower	42.43429	-72.67154	01171070	little	West Brook	Mass	West Brook	ECOD	0.5654137	465.1764
SD	Sanderson Brook	42.43635	-72.68685	01171010	little	West Brook	Mass	West Brook	ECOD	1.7567871	640.4320
WL	West Brook Lower	42.43187	-72.66423	01171090	little	West Brook	Mass	West Brook	ECOD	8.5098116	401.9724
WU	West Brook Upper	42.43749	-72.67602	01171030	little	West Brook	Mass	West Brook	ECOD	6.3540403	516.3184
WR	West Brook Reservoir	42.43738	-72.68166	01171020	little	West Brook	Mass	West Brook	ECOD	6.2101754	568.7790
WW	West Whately Brook	42.45678	-72.68820	01171005	little	West Brook	Mass	West Brook	ECOD	0.4928159	686.2488
AVB	Avery Brook NWIS	42.44991	-72.69355	01171000	little	West Brook	Mass	West Brook	NWIS	2.8334885	696.2354
DBF	Donner Blitzen River nr Frenchglen NWIS	42.79083	-118.86750	10396000	big	Donner Blitzen	Oreg	Donner Blitzen	NWIS	204.9669881	4262.8244
DBI	Donner Blitzen ab Indian NWIS	42.63743	-118.76077	423815118453900	little	Donner Blitzen	Oreg	Donner Blitzen	NWIS	60.6960528	5097.0236
IND	Indian Creek NWIS	42.64180	-118.75899	423830118453200	little	Donner Blitzen	Oreg	Donner Blitzen	NWIS	19.0189031	5095.5474
LBL	Little Blizten River NWIS	42.66755	-118.76015	424003118453700	little	Donner Blitzen	Oreg	Donner Blitzen	NWIS	18.5136726	5069.1385
DBB	Donner Blitzen nr Burnt Car NWIS	42.72374	-118.83307	424325118495900	little	Donner Blitzen	Oreg	Donner Blitzen	NWIS	163.5486547	4514.4190
DBA	Donner Blitzen ab Fish NWIS	42.76296	-118.84311	424547118503500	little	Donner Blitzen	Oreg	Donner Blitzen	NWIS	175.4902236	4340.9354
FSH	Fish Creek NWIS	42.76407	-118.84232	424551118503200	little	Donner Blitzen	Oreg	Donner Blitzen	NWIS	22.2913828	4344.7481
PA_10FL	Paine Run 10	38.19860	-78.79310	01627400	big	Paine Run	Shen	Paine Run	ECOD	4.8965855	1400.3952
PA_01FL	Paine Run 01	38.20920	-78.75270	0162732260	little	Paine Run	Shen	Paine Run	ECOD	0.6700740	1840.9670
PA_02FL	Paine Run 02	38.20730	-78.75700	0162732518	little	Paine Run	Shen	Paine Run	ECOD	0.9912138	1770.2417
PA_03FL	Paine Run 03	38.20520	-78.76120	0162732782	little	Paine Run	Shen	Paine Run	ECOD	1.2384319	1708.7624
PA_04FL	Paine Run 04	38.20030	-78.76560	0162733238	little	Paine Run	Shen	Paine Run	ECOD	1.5651468	1634.2663
PA_05FL	Paine Run 05	38.19710	-78.76870	0162734220	little	Paine Run	Shen	Paine Run	ECOD	2.3149357	1587.6120
PA_06FL	Paine Run 06	38.19740	-78.77370	01627352	little	Paine Run	Shen	Paine Run	ECOD	2.8534416	1552.5478
PA_07FL	Paine Run 07	38.19560	-78.77800	01627358	little	Paine Run	Shen	Paine Run	ECOD	3.0594680	1520.2334
PA_08FL	Paine Run 08	38.19420	-78.78370	0162737249	little	Paine Run	Shen	Paine Run	ECOD	3.5932435	1474.8519
PA_09FL	Paine Run 09	38.19650	-78.78860	01627380	little	Paine Run	Shen	Paine Run	ECOD	4.0467174	1433.8870
PI_10FL	Piney River 10	38.70130	-78.26740	0166236713	big	Piney River	Shen	Piney River	ECOD	4.8079952	1183.1180
PI_01FL	Piney River 01	38.74550	-78.28180	0166235777	little	Piney River	Shen	Piney River	ECOD	0.5466476	2501.9557
PI_02FL	Piney River 02	38.74250	-78.28550	0166235998	little	Piney River	Shen	Piney River	ECOD	1.1006113	2369.7393
PI_03FL	Piney River 03	38.73840	-78.28930	0166236114	little	Piney River	Shen	Piney River	ECOD	1.4355099	2162.4096
PI_04FL	Piney River 04	38.73410	-78.29160	0166236168	little	Piney River	Shen	Piney River	ECOD	1.8095900	2024.9685
PI_05FL	Piney River 05	38.72800	-78.29160	0166236224	little	Piney River	Shen	Piney River	ECOD	2.3054298	1874.3122
PI_06FL	Piney River 06	38.72570	-78.28360	0166236285	little	Piney River	Shen	Piney River	ECOD	2.6988937	1603.3088
PI_08FL	Piney River 08	38.71190	-78.27720	0166236472	little	Piney River	Shen	Piney River	ECOD	3.6105641	1354.6080
PI_09FL	Piney River 09	38.70450	-78.27040	0166236559	little	Piney River	Shen	Piney River	ECOD	4.2830953	1238.9199
SR_10FL	Staunton River 10	38.44450	-78.37070	0166526910	big	Staunton River	Shen	Staunton River	ECOD	4.1061151	996.5581
SR_01FL	Staunton River 01	38.46700	-78.41770	0166526050	little	Staunton River	Shen	Staunton River	ECOD	0.4772281	2940.0147
SR_02FL	Staunton River 02	38.46300	-78.41010	0166526110	little	Staunton River	Shen	Staunton River	ECOD	0.8271327	2487.8920
SR_03FL	Staunton River 03	38.45940	-78.40360	0166526165	little	Staunton River	Shen	Staunton River	ECOD	1.2444908	2199.2577
SR_04FL	Staunton River 04	38.45840	-78.39950	0166526303	little	Staunton River	Shen	Staunton River	ECOD	1.9000379	2053.1192
SR_05FL	Staunton River 05	38.45920	-78.38720	0166526399	little	Staunton River	Shen	Staunton River	ECOD	2.4754040	1710.9466
SR_06FL	Staunton River 06	38.45650	-78.38090	0166526453	little	Staunton River	Shen	Staunton River	ECOD	2.8062837	1524.8785
SR_07FL	Staunton River 07	38.45350	-78.37900	0166526484	little	Staunton River	Shen	Staunton River	ECOD	2.9037810	1432.0669
SR_08FL	Staunton River 08	38.44870	-78.37820	0166526535	little	Staunton River	Shen	Staunton River	ECOD	3.1630527	1265.5245
SR_09FL	Staunton River 09	38.44640	-78.37590	0166526567	little	Staunton River	Shen	Staunton River	ECOD	3.2551121	1154.3350
DU01	EF Duck Creek be HF	45.87142	-110.24438	NA	big	Duck Creek	Shields	Duck Creek	ECOD	9.4495375	5342.4715
DU02	EF Duck Creek ab HF	45.87570	-110.24775	NA	little	Duck Creek	Shields	Duck Creek	ECOD	5.4605992	5429.5483
DU03	Henrys Fork	45.90132	-110.24998	NA	little	Duck Creek	Shields	Duck Creek	ECOD	1.6960835	5926.9079
SH07	Shields River Valley Ranch	46.16716	-110.55429	NA	big	Shields River	Shields	Shields River	ECOD	53.4215153	5744.1457
SRS	Shields River ab Smith NWIS	46.16716	-110.55429	06192980	big	Shields River	Shields	Shields River	NWIS	53.4215153	5744.1457
SH02	Buck Creek	46.18374	-110.38463	NA	little	Shields River	Shields	Shields River	ECOD	4.4298623	6493.8012
SH03	Crandall Creek	46.18454	-110.40734	NA	little	Shields River	Shields	Shields River	ECOD	2.5338355	6361.7450
SH04	Deep Creek	46.17037	-110.45686	NA	little	Shields River	Shields	Shields River	ECOD	6.1986519	6142.5211
SH05	Dugout Creek	46.18431	-110.37980	NA	little	Shields River	Shields	Shields River	ECOD	2.3945376	6496.1053
SH06	Lodgepole Creek	46.18146	-110.35920	NA	little	Shields River	Shields	Shields River	ECOD	1.3590115	6610.3856
SH08	Shields River ab Dugout	46.18407	-110.37945	NA	little	Shields River	Shields	Shields River	ECOD	8.6790373	6497.0348
DUG	Dugout Creek NWIS	46.18481	-110.37964	06192900	little	Shields River	Shields	Shields River	NWIS	2.3849317	6505.1692
SP11	Spread Creek Dam	43.77230	-110.48040	NA	big	Snake River	Snake	Snake River	ECOD	97.4926478	7130.2353
SP01	Grizzly Creek	43.77399	-110.23554	NA	little	Snake River	Snake	Snake River	ECOD	12.6823126	8339.7503
SP02	Grouse Creek	43.74895	-110.31903	NA	little	Snake River	Snake	Snake River	ECOD	5.1508608	7869.5257
SP03	Leidy Creek Lower	43.73347	-110.31434	NA	little	Snake River	Snake	Snake River	ECOD	5.1718308	7958.3398
SP04	Leidy Creek Upper	43.72041	-110.37030	NA	little	Snake River	Snake	Snake River	ECOD	2.1816563	8706.8560
SP05	Leidy Creek Mouth	43.73165	-110.31526	NA	little	Snake River	Snake	Snake River	ECOD	5.1585521	7979.3625
SP06	NF Spread Creek Lower	43.76467	-110.32339	NA	little	Snake River	Snake	Snake River	ECOD	27.9304796	7788.5460
SP07	NF Spread Creek Upper	43.77413	-110.23535	NA	little	Snake River	Snake	Snake River	ECOD	3.6804425	8340.2053
SP08	Rock Creek	43.76640	-110.44859	NA	little	Snake River	Snake	Snake River	ECOD	4.7413085	7285.9575
SP09	SF Spread Creek Lower	43.76430	-110.32384	NA	little	Snake River	Snake	Snake River	ECOD	44.2556218	7785.6007
SP10	SF Spread Creek Upper	43.73664	-110.31387	NA	little	Snake River	Snake	Snake River	ECOD	35.0605919	7937.8850
LEI	Leidy Creek Mouth NWIS	43.73311	-110.31456	13012465	little	Snake River	Snake	Snake River	NWIS	5.1689622	7960.3743
SFS	SF Spread Creek Lower NWIS	43.76348	-110.32379	13012475	little	Snake River	Snake	Snake River	NWIS	44.2420544	7789.9333

6.4 Basin overlap

Calculate area and proportional overlap between big and little g basin pairs. Proportional overlap is generally entirely correlated with absolute and relative difference in basin size (the exception being the few sites that are not nested within a Big G basin: Coal Creek and McGee Creek sites).

Code

mysubbasins <- unique(siteinfo2$subbasin)
tib_list1 <- list()
tib_list2 <- list()
tib_list3 <- list()

for (i in 1:length(mysubbasins)) {
  sites_big <- siteinfo2 %>% filter(subbasin == mysubbasins[i], designation == "big")
  sites_little <- siteinfo2 %>% filter(subbasin == mysubbasins[i], designation == "little")
  for (j in 1:length(unique(sites_big$site_name))) {
    basin_big <- sheds[sheds$site_name == unique(sites_big$site_name)[j]]
    for (k in 1:length(unique(sites_little$site_name))) {
      basin_little <- sheds[sheds$site_name == unique(sites_little$site_name)[k]]
      intersection <- expanse(intersect(basin_big, basin_little), unit = "km")
      shared_area_km2 <- ifelse(length(intersection) == 0, 0, intersection)
      shared_area_prop <- shared_area_km2 / expanse(basin_big, unit = "km")
      tib_list3[[k]] <- tibble(subbasin = mysubbasins[i],
                               site_name_big = unique(sites_big$site_name)[j],
                               site_name_little = unique(sites_little$site_name)[k],
                               shared_area_km2 = shared_area_km2, shared_area_prop = shared_area_prop)
    }
    tib_list2[[j]] <- do.call(rbind, tib_list3)
    tib_list3 <- list()
  }
  tib_list1[[i]] <- do.call(rbind, tib_list2)
  tib_list2 <- list()
}
overlap_tib <- do.call(rbind, tib_list1)
head(overlap_tib)

# A tibble: 6 × 5
  subbasin   site_name_big site_name_little  shared_area_km2 shared_area_prop
  <chr>      <chr>         <chr>                       <dbl>            <dbl>
1 West Brook West Brook 0  Avery Brook                 7.35            0.249
2 West Brook West Brook 0  Jimmy Brook                 2.53            0.0856
3 West Brook West Brook 0  Mitchell Brook              0.912           0.0309
4 West Brook West Brook 0  Obear Brook Lower           1.47            0.0497
5 West Brook West Brook 0  Sanderson Brook             4.56            0.154
6 West Brook West Brook 0  West Brook Lower           22.1             0.747

6.5 Basin size and elevation

Calculate absolute and relative difference in basin size and elevation between big and little g pairs.

Code

sites_big <- siteinfo2 %>% filter(designation == "big") %>% select(subbasin, site_name, area_sqmi, elev_ft) %>% rename(site_name_big = site_name, area_sqmi_big = area_sqmi, elev_ft_big = elev_ft)
sites_little <- siteinfo2 %>% filter(designation == "little") %>% select(subbasin, site_name, area_sqmi, elev_ft) %>% rename(site_name_little = site_name, area_sqmi_little = area_sqmi, elev_ft_little = elev_ft)
areaelev_tib <- sites_little %>% left_join(sites_big) %>%
  mutate(area_sqmi_diff = (area_sqmi_little - area_sqmi_big),
         area_sqmi_reldiff = (area_sqmi_little - area_sqmi_big) / area_sqmi_little,
         elev_ft_diff = (elev_ft_little - elev_ft_big),
         elev_ft_reldiff = (elev_ft_little - elev_ft_big) / elev_ft_little) %>%
  select(subbasin, site_name_big, site_name_little,
         area_sqmi_big, area_sqmi_little, elev_ft_big, elev_ft_little,
         area_sqmi_diff, area_sqmi_reldiff, elev_ft_diff, elev_ft_reldiff)
dim(areaelev_tib)

[1] 99 11

Code

head(areaelev_tib)

# A tibble: 6 × 11
  subbasin   site_name_big   site_name_little area_sqmi_big area_sqmi_little
  <chr>      <chr>           <chr>                    <dbl>            <dbl>
1 West Brook West Brook 0    Avery Brook               11.4            2.83
2 West Brook West Brook NWIS Avery Brook               11.4            2.83
3 West Brook West Brook 0    Jimmy Brook               11.4            0.974
4 West Brook West Brook NWIS Jimmy Brook               11.4            0.974
5 West Brook West Brook 0    Mitchell Brook            11.4            0.351
6 West Brook West Brook NWIS Mitchell Brook            11.4            0.351
# ℹ 6 more variables: elev_ft_big <dbl>, elev_ft_little <dbl>,
#   area_sqmi_diff <dbl>, area_sqmi_reldiff <dbl>, elev_ft_diff <dbl>,
#   elev_ft_reldiff <dbl>

6.6 River distance

Get subbasins

Code

mysubbasins <- unique(siteinfo2$subbasin)
mysubbasins

 [1] "West Brook"     "Paine Run"      "Piney River"    "Staunton River"
 [5] "Big Creek"      "Coal Creek"     "McGee Creek"    "Duck Creek"
 [9] "Shields River"  "Snake River"    "Donner Blitzen"

Convert flowline objects

Code

nfflat <- line2network(sf = st_transform(st_as_sf(streams_list[[1]]), "+proj=utm +zone=11 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 36 segments with lengths shorter than the connectivity tolerance.

Code

wesbro <- line2network(sf = st_transform(st_as_sf(streams_list[[2]]), "+proj=utm +zone=18 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 2 segments with lengths shorter than the connectivity tolerance.

Code

donblit <- line2network(sf = st_transform(st_as_sf(streams_list[[3]]), "+proj=utm +zone=11 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 4 segments with lengths shorter than the connectivity tolerance.

Code

paine <- line2network(sf = st_transform(st_as_sf(streams_list[[4]]), "+proj=utm +zone=17 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 1 segments with lengths shorter than the connectivity tolerance.

Code

piney <- line2network(sf = st_transform(st_as_sf(streams_list[[5]]), "+proj=utm +zone=17 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 1 segments with lengths shorter than the connectivity tolerance.

Code

staunt <- line2network(sf = st_transform(st_as_sf(streams_list[[6]]), "+proj=utm +zone=17 +ellps=GRS80 +datum=NAD83"))


 Units: metre

Code

duck <- line2network(sf = st_transform(st_as_sf(streams_list[[7]]), "+proj=utm +zone=12 +ellps=GRS80 +datum=NAD83"))


 Units: metre

Code

shield <- line2network(sf = st_transform(st_as_sf(streams_list[[8]]), "+proj=utm +zone=12 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 2 segments with lengths shorter than the connectivity tolerance.

Code

spread <- line2network(sf = st_transform(st_as_sf(streams_list[[9]]), "+proj=utm +zone=12 +ellps=GRS80 +datum=NAD83"))


 Units: metre

 Removed 4 segments with lengths shorter than the connectivity tolerance.

Code

flow_list <- list(wesbro, paine, piney, staunt, nfflat, nfflat, nfflat, duck, shield, spread, donblit)

Calulate river distance between big and little g pairs in loop

Code

tib_list1 <- list()
tib_list2 <- list()
tib_list3 <- list()

utmzones <- c(18, 17, 17, 17, 11, 11, 11, 12, 12, 12, 11)

for (k in 1:length(mysubbasins)) {
  # select sites
  sites_big <- st_transform(st_as_sf(siteinfo2, coords = c("long", "lat"), crs = 4326) %>% filter(subbasin == mysubbasins[k], designation == "big"), paste("+proj=utm +zone=", utmzones[k], " +ellps=GRS80 +datum=NAD83", sep = ""))
  sites_little <- st_transform(st_as_sf(siteinfo2, coords = c("long", "lat"), crs = 4326) %>% filter(subbasin == mysubbasins[k], designation == "little"), paste("+proj=utm +zone=", utmzones[k], " +ellps=GRS80 +datum=NAD83", sep = ""))
  # convert sites
  sites_big_riv <- xy2segvert(x = st_coordinates(sites_big)[,1], y = st_coordinates(sites_big)[,2], rivers = flow_list[[k]])
  sites_little_riv <- xy2segvert(x = st_coordinates(sites_little)[,1], y = st_coordinates(sites_little)[,2], rivers = flow_list[[k]])
  # compute river distance in loop
  for (i in 1:dim(sites_big)[1]) {
    for (j in 1:dim(sites_little)[1]) {
      tib_list3[[j]] <- tibble(site_name_big = sites_big$site_name[i],
                               site_name_little = sites_little$site_name[j],
                               riverdist_km = riverdistance(startseg = sites_big_riv$seg[i], startvert = sites_big_riv$vert[i],
                                                            endseg = sites_little_riv$seg[j], endvert = sites_little_riv$vert[j],
                                                            rivers = flow_list[[k]]) / 1000)
      }
    tib_list2[[i]] <- do.call(rbind, tib_list3)
    tib_list3 <- list()
  }
  tib_list1[[k]] <- do.call(rbind, tib_list2)
  tib_list2 <- list()
}
rivdist_tib <- do.call(rbind, tib_list1)
head(rivdist_tib)

# A tibble: 6 × 3
  site_name_big site_name_little  riverdist_km
  <chr>         <chr>                    <dbl>
1 West Brook 0  Avery Brook               9.35
2 West Brook 0  Jimmy Brook               5.52
3 West Brook 0  Mitchell Brook            5.22
4 West Brook 0  Obear Brook Lower         5.58
5 West Brook 0  Sanderson Brook           7.38
6 West Brook 0  West Brook Lower          4.77

6.7 Landcover

Load 2020 NLCD raster files for each region

Code

nlcd_list <- list()
nlcd_files <- list.files("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Spatial data/NLCD/NLCD_2020")
for (i in 1:length(nlcd_files)) {
  nlcd_list[[i]] <- rast(paste("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Spatial data/NLCD/NLCD_2020/", nlcd_files[i], sep = ""))
}
nlcd <- do.call(merge, nlcd_list)


|---------|---------|---------|---------|
=========================

Code

names(nlcd) <- c("lccode")

Reproject watershed polygons to match NLCD (Albers equal area) and trim to focal big g little g sites.

Code

sheds_aea <- project(sheds, nlcd)

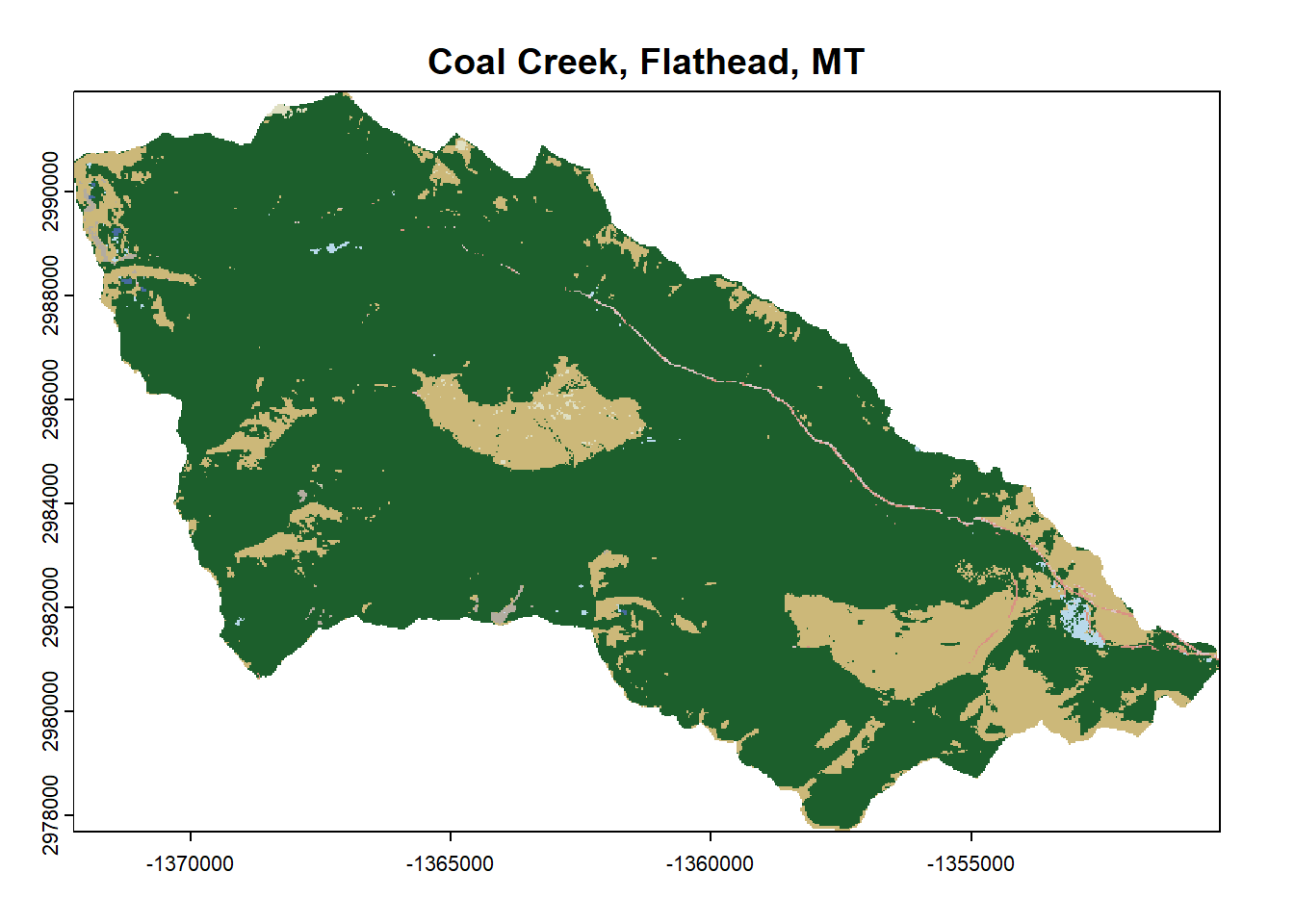

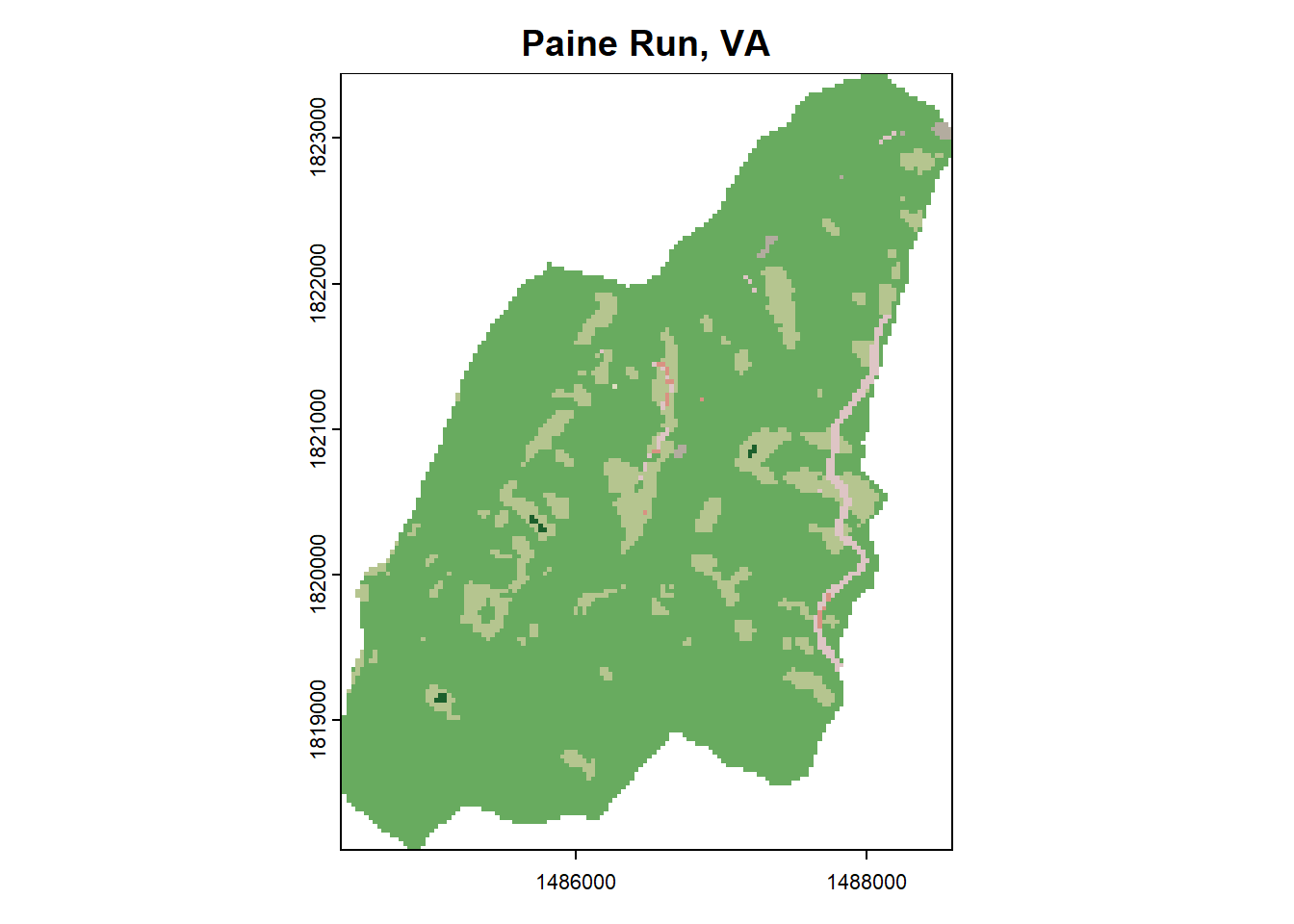

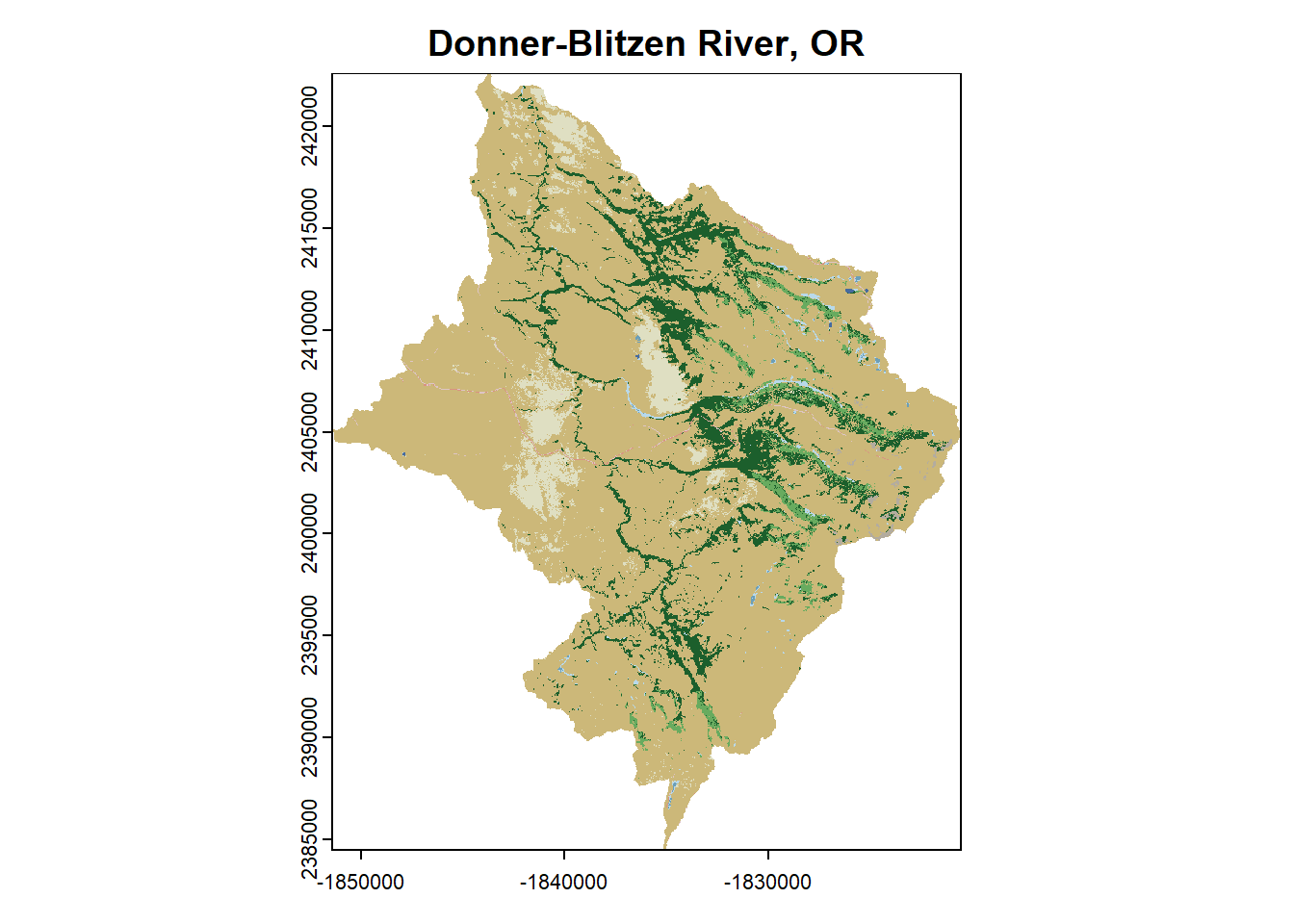

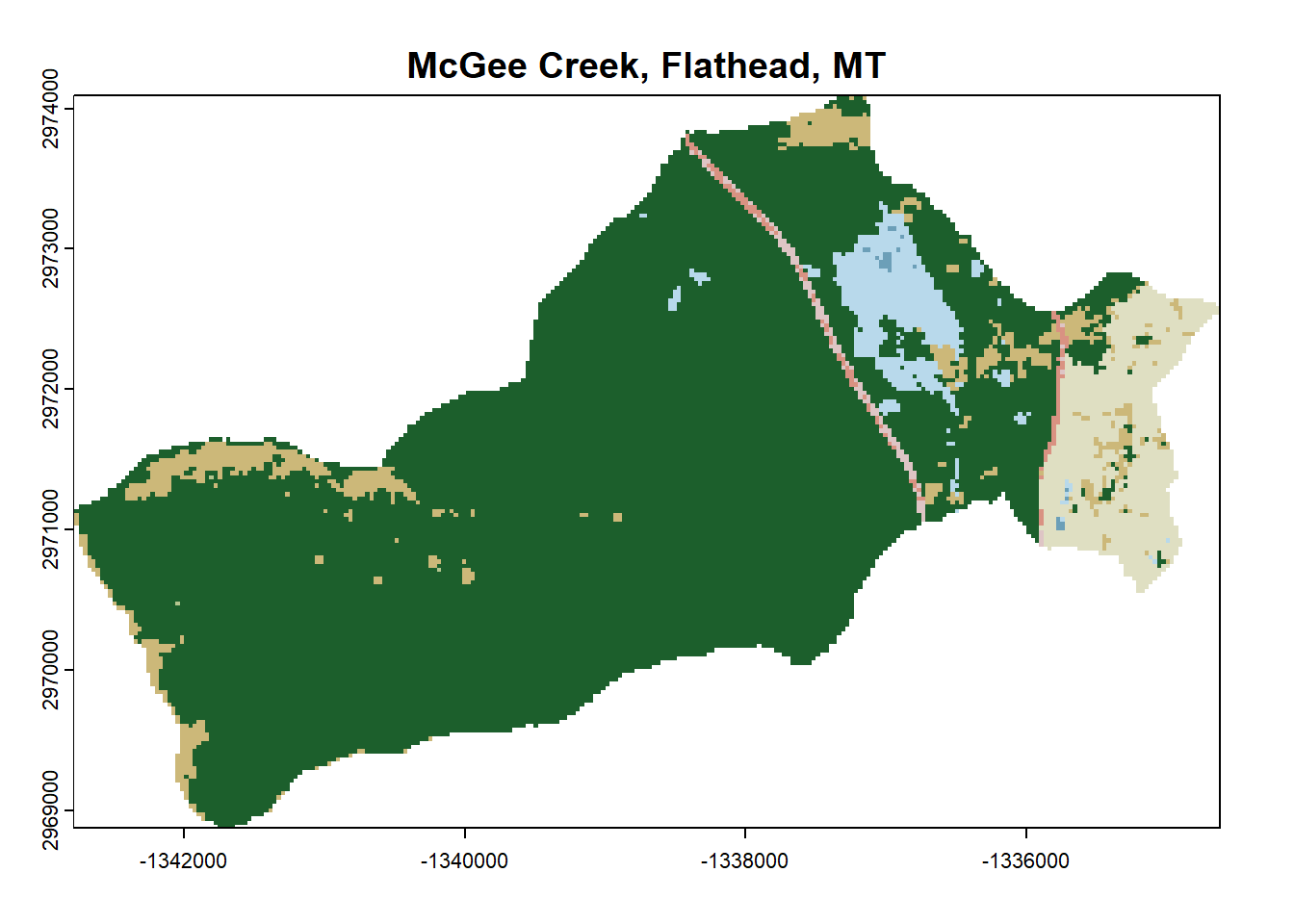

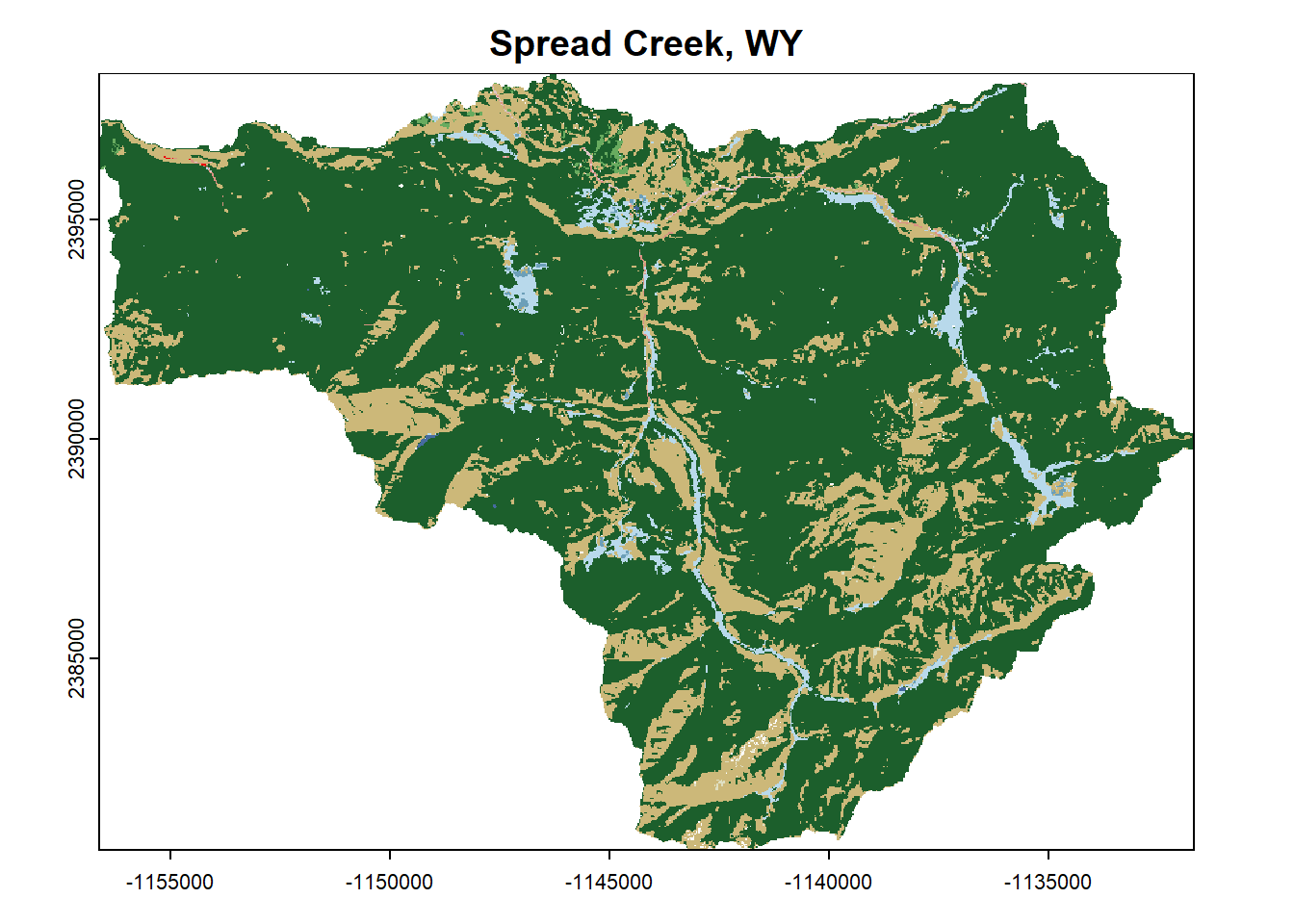

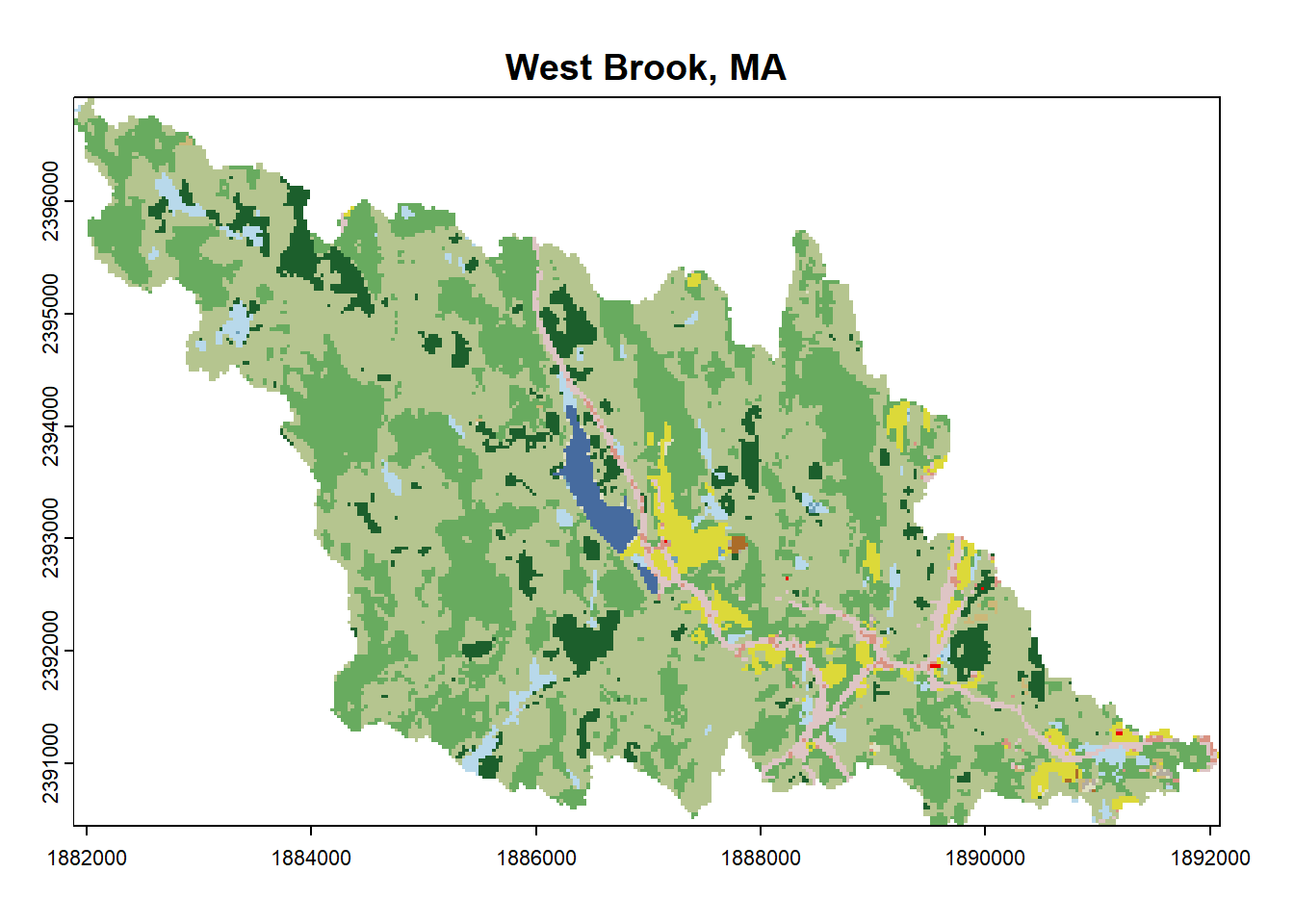

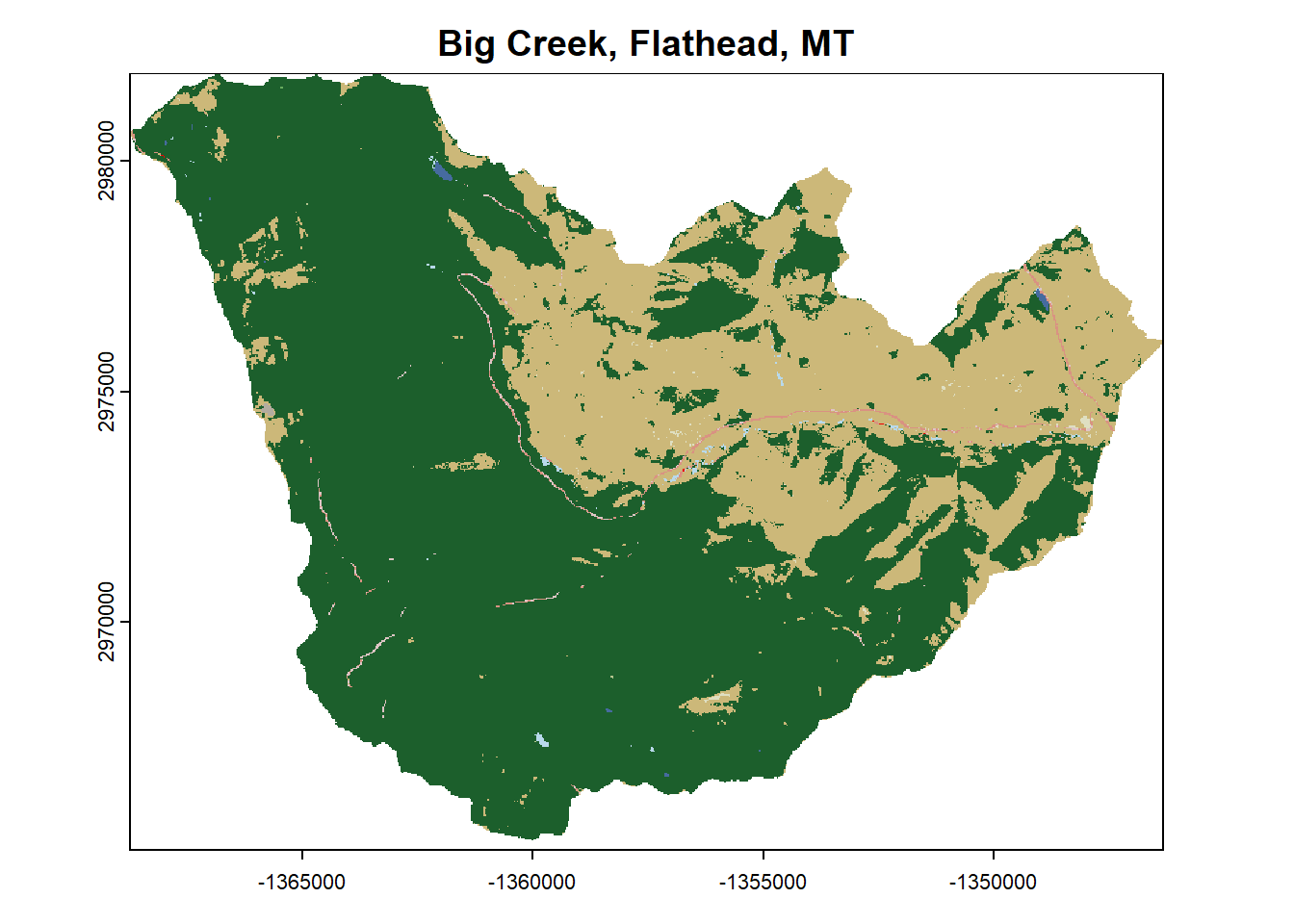

View NLCD rasters for each big G

Code

mysites <- c("West Brook NWIS", "Paine Run 10", "Piney River 10", "Staunton River 10", "BigCreekLower", "CoalCreekLower", "McGeeCreekLower", "EF Duck Creek be HF", "Shields River ab Smith NWIS", "Spread Creek Dam", "Donner Blitzen River nr Frenchglen NWIS")
nlcd_big_list <- list()
for (i in 1:length(mysites)) { nlcd_big_list[[i]] <- crop(nlcd, sheds_aea %>% filter(site_name == mysites[i]), mask = TRUE) }

Calculate proportional cover by each landcover class for each watershed.

Code

mysites <- siteinfo2$site_name
tiblist <- list()
for (i in 1:length(mysites)) {
  bclc <- crop(nlcd, sheds_aea %>% filter(site_name == mysites[i]), mask = TRUE)
  #plot(bclc, main = mysites[i])
  bclc_tab <- table(values(bclc)[!is.na(values(bclc))]) / sum(!is.na(values(bclc)))
  names(bclc_tab) <- paste("nlcd_", names(bclc_tab), sep = "")
  tiblist[[i]] <- tibble(as.data.frame(bclc_tab)) %>%
    rename(class = Var1, prop_cover = Freq) %>%
    mutate(site_name = mysites[i]) %>%
    select(site_name, class, prop_cover)
}
nlcd_cover <- do.call(rbind, tiblist)

Join big G proportional dominant cover to little g’s by subbasin and calculate difference.

Code

nlcd_cover <- nlcd_cover %>% left_join(siteinfo2 %>% select(site_name, subbasin, designation))
nlcd_cover_big <- nlcd_cover %>% filter(designation == "big") %>% group_by(subbasin, site_name) %>% filter(prop_cover == max(prop_cover)) %>% rename(site_name_big = site_name, prop_cover_big = prop_cover) %>% select(-designation)

nlcd_cover_join <- nlcd_cover %>% filter(designation == "little") %>% rename(site_name_little = site_name, prop_cover_little = prop_cover) %>% select(-designation) %>% left_join(nlcd_cover_big) %>% filter(!is.na(site_name_big)) %>% mutate(prop_cover_diff = prop_cover_little - prop_cover_big)

head(nlcd_cover_join)

# A tibble: 6 × 7
  site_name_little class prop_cover_little subbasin site_name_big prop_cover_big
  <chr>            <fct>             <dbl> <chr>    <chr>                  <dbl>
1 Avery Brook      nlcd…             0.562 West Br… West Brook 0           0.519
2 Avery Brook      nlcd…             0.562 West Br… West Brook N…          0.519
3 Jimmy Brook      nlcd…             0.495 West Br… West Brook 0           0.519
4 Jimmy Brook      nlcd…             0.495 West Br… West Brook N…          0.519
5 Mitchell Brook   nlcd…             0.710 West Br… West Brook 0           0.519
6 Mitchell Brook   nlcd…             0.710 West Br… West Brook N…          0.519
# ℹ 1 more variable: prop_cover_diff <dbl>

6.8 Join covariate data

Join covariate data

Code

covariates <- overlap_tib %>% left_join(areaelev_tib) %>% left_join(rivdist_tib) %>% left_join(nlcd_cover_join)
covariates

# A tibble: 99 × 18
   subbasin   site_name_big site_name_little    shared_area_km2 shared_area_prop
   <chr>      <chr>         <chr>                         <dbl>            <dbl>
 1 West Brook West Brook 0  Avery Brook                   7.35            0.249
 2 West Brook West Brook 0  Jimmy Brook                   2.53            0.0856
 3 West Brook West Brook 0  Mitchell Brook                0.912           0.0309
 4 West Brook West Brook 0  Obear Brook Lower             1.47            0.0497
 5 West Brook West Brook 0  Sanderson Brook               4.56            0.154
 6 West Brook West Brook 0  West Brook Lower             22.1             0.747
 7 West Brook West Brook 0  West Brook Upper             16.5             0.558
 8 West Brook West Brook 0  West Brook Reservo…          16.1             0.545
 9 West Brook West Brook 0  West Whately Brook            1.28            0.0433
10 West Brook West Brook 0  Avery Brook NWIS              7.35            0.249
# ℹ 89 more rows
# ℹ 13 more variables: area_sqmi_big <dbl>, area_sqmi_little <dbl>,
#   elev_ft_big <dbl>, elev_ft_little <dbl>, area_sqmi_diff <dbl>,
#   area_sqmi_reldiff <dbl>, elev_ft_diff <dbl>, elev_ft_reldiff <dbl>,
#   riverdist_km <dbl>, class <fct>, prop_cover_little <dbl>,
#   prop_cover_big <dbl>, prop_cover_diff <dbl>

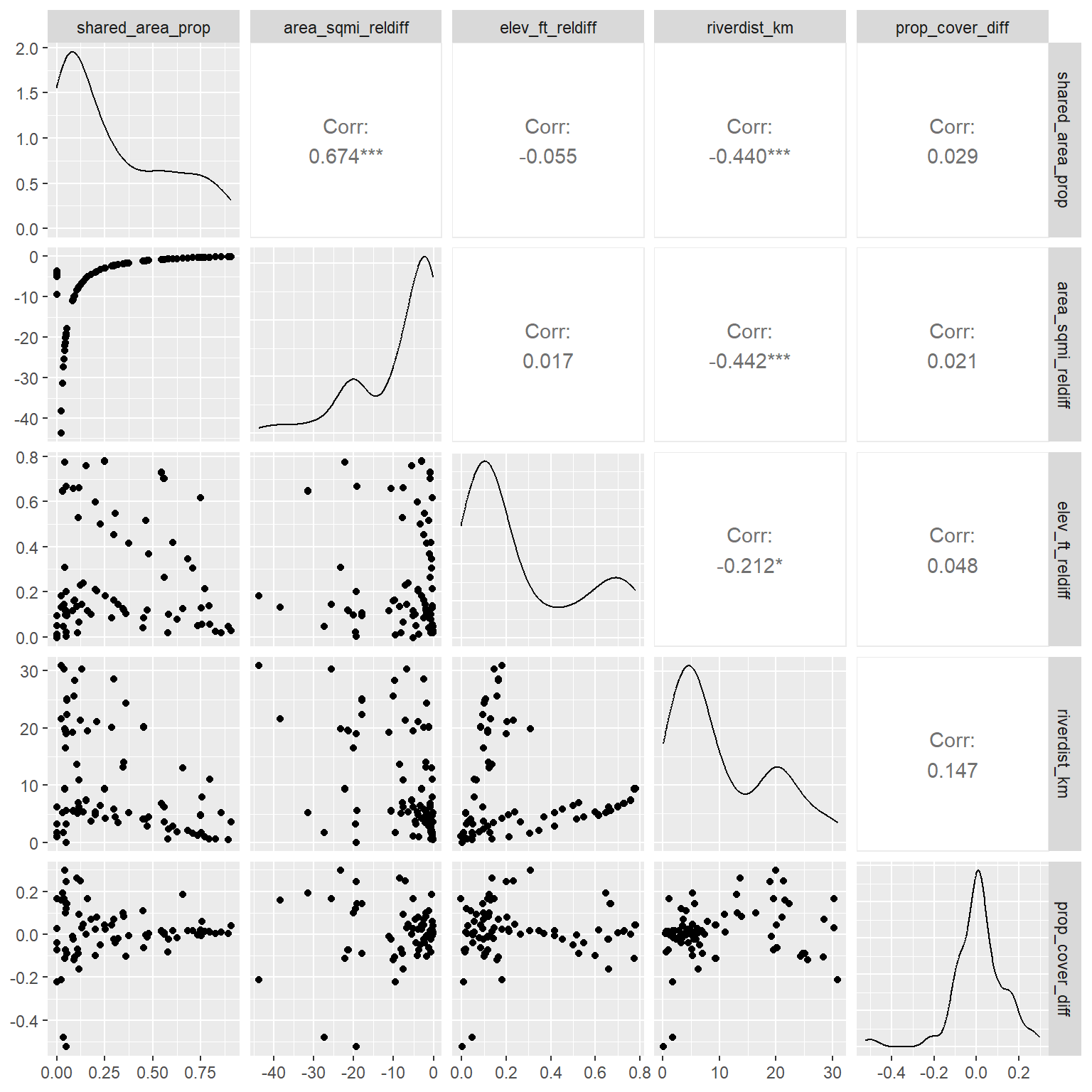

View pairs plot

Code

ggpairs(covariates %>% select(shared_area_prop, area_sqmi_reldiff, elev_ft_reldiff, riverdist_km, prop_cover_diff))

Write data file

Code

write_csv(covariates, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Covariates/EcoDrought_LandscapeCovariates.csv")
