This section contains the code for reproducing the analysis described in Baldock et al., Headwater streamflow variability is amplified by drought. This page/chapter organizes all the streamflow data, previously collated into a single file (see Chapter 2 - Collate Data), and conducts the hydroclimate analysis (data pulled from Knoben et al. 2018, Water Resources Research).

13.1 Introduction

Significance: Headwater streams account for a majority of river networks worldwide and have a disproportionately large influence on the functioning of aquatic ecosystems. Headwater streams also support critical habitat for many species, including cold-water fishes, many of which are declining or at risk of extinction.

Problem: Headwater streams are largely underrepresented in streamflow monitoring networks, which place greater emphasis on mainstem rivers. As a result, less is known about how headwaters respond to changing water availability. Headwater streams therefore represent a blind spot in understanding flow regime variability and assessing the vulnerability of cold-water fish to changing climatic conditions, including the increasing frequency and severity of drought.

Questions:

  1. How do streamflow regimes vary spatially in headwater stream networks?
  2. How does this spatial variability change among years with climatic conditions indicative of drought?
  3. What is the value of reference gages for understanding drought-driven low flow conditions in headwaters?

Approach:

  1. Describe the extent and magnitude of spatiotemporal variation in headwater streamflow.
    • Using time series and density/distribution plots to show differences in streamflow regimes between reference and headwater gages, particularly during summer.
  2. Show how spatial heterogeneity in summer streamflow regimes varies with regional water availability.
    • Pool data across basins and years and use regression to quantify the relationship between spatial streamflow heterogeneity and regional water availability.
    • Visualize spatial patterns in median summer streamflow and show how patterns change among years (with regional water availability).
  3. Evaluate spatiotemporal variation in drought-related low flow conditions across headwater stream networks.
    • Derive reference (“fixed” thresholds from reference/Big G gages) and site-specific low flow thresholds from contemporary data (sensu Hammond et al. 2022) and use heatmaps to show how the duration and severity of low flow conditions varies among headwater locations and relative to big G.
    • Pool data across basins and years and use regression to quantify the effect of regional water availability on spatial heterogeneity in drought-related low flow conditions.
    • Explore how the strength of the relationship changes depending on the magnitude of the low flow threshold used.

13.2 Site information

View site information

Code
siteinfo <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_SiteInformation.csv")
datatable(siteinfo)

Map sites

Code
siteinfo_sp <- st_as_sf(siteinfo, coords = c("long", "lat"), crs = 4326)
mapview(siteinfo_sp, zcol = "designation")
Code
# Write shapefile of focal sites for external mapping
focalsites <- siteinfo_sp %>%
  filter(site_name %in% c("West Brook NWIS", "West Brook Lower", "Mitchell Brook", "Jimmy Brook", "Obear Brook Lower", "West Brook Upper", "West Brook Reservoir", "Sanderson Brook", "Avery Brook", "West Whately Brook", "South River Conway NWIS",

                          "Paine Run 10", "Paine Run 08", "Paine Run 07", "Paine Run 06", "Paine Run 02", "Paine Run 01", "South River Harriston NWIS",

                          "Staunton River 10", "Staunton River 09", "Staunton River 07", "Staunton River 06", "Staunton River 03", "Staunton River 02", "Rapidan River NWIS",

                          "BigCreekLower", "LangfordCreekLower", "LangfordCreekUpper", "Big Creek NWIS", "BigCreekUpper", "HallowattCreekLower", "NicolaCreek", "WernerCreek", "Hallowat Creek NWIS", "CoalCreekLower", "CycloneCreekLower", "CycloneCreekMiddle", "CycloneCreekUpper", "CoalCreekMiddle", "CoalCreekNorth", "CoalCreekHeadwaters", "McGeeCreekLower", "McGeeCreekTrib", "McGeeCreekUpper", "North Fork Flathead River NWIS",

                          "Shields River Valley Ranch", "Deep Creek", "Crandall Creek", "Buck Creek", "Dugout Creek", "Shields River ab Dugout", "Lodgepole Creek", "EF Duck Creek be HF", "EF Duck Creek ab HF", "Henrys Fork", "Yellowstone River Livingston NWIS",

                          "Spread Creek Dam", "Rock Creek", "NF Spread Creek Lower", "NF Spread Creek Upper", "Grizzly Creek", "SF Spread Creek Lower", "Grouse Creek", "SF Spread Creek Upper", "Leidy Creek Mouth", "Pacific Creek at Moran NWIS",

                          "Fish Creek NWIS", "Donner Blitzen ab Fish NWIS", "Donner Blitzen nr Burnt Car NWIS", "Donner Blitzen ab Indian NWIS", "Donner Blitzen River nr Frenchglen NWIS")) %>%
  mutate(designation = ifelse(designation == "big", "big", "little"))
mapview(focalsites, zcol = "designation")
Code
# st_write(focalsites, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Study area maps/sites/focalsites.shp")

13.3 Little g data

Little g daily data

Code
# flow/yield (and temp) data
dat <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_FlowTempData_DailyWeekly.csv") %>%
  mutate(site_name = dplyr::recode(site_name, "Leidy Creek Mouth NWIS" = "Leidy Creek Mouth", "SF Spread Creek Lower NWIS" = "SF Spread Creek Lower", "Dugout Creek NWIS" = "Dugout Creek", "Shields River ab Smith NWIS" = "Shields River Valley Ranch")) %>%
  filter(!site_name %in% c("Avery Brook NWIS", "West Brook 0", "BigCreekMiddle",                # drop co-located sites
                           "South River Conway NWIS", "North Fork Flathead River NWIS",         # drop big Gs
                           "Pacific Creek at Moran NWIS", "Shields River nr Livingston NWIS",   # drop big Gs
                           "Donner Blitzen River nr Frenchglen NWIS",                           # drop big Gs
                           "WoundedBuckCreek")) %>%                                             # drop little g outside of focal basin
  group_by(site_name, basin, subbasin, region, date) %>%
  summarize(flow_mean = mean(flow_mean),
            tempc_mean = mean(tempc_mean),
            Yield_mm = mean(Yield_mm),
            Yield_filled_mm = mean(Yield_filled_mm)) %>%
  ungroup()

# add water/climate year variables and fill missing dates
dat <- fill_missing_dates(dat, dates = date, groups = site_name)
dat <- add_date_variables(dat, dates = date, water_year_start = 10)

Clean and bind little g data (for each basin, restrict to time period for which data quality/availability is ~consistent)

Code
dat_clean <- bind_rows(
  dat %>% filter(site_name %in% unlist(siteinfo %>% filter(subbasin == "West Brook") %>% select(site_name)), year(date) >= 2020, date <= date("2025-01-03")) %>%
    mutate(Yield_filled_mm = ifelse(site_name == "West Brook Upper" & date > date("2024-10-06"), NA, Yield_filled_mm)) %>%
    mutate(Yield_filled_mm = ifelse(site_name == "Mitchell Brook" & date > date("2021-02-28") & date < date("2021-03-26"), NA, Yield_filled_mm)) %>%
    mutate(Yield_filled_mm = ifelse(site_name == "Mitchell Brook" & date > date("2021-11-01") & date < date("2022-05-01"), NA, Yield_filled_mm)) %>%
    mutate(Yield_filled_mm = ifelse(site_name == "Jimmy Brook" & date > date("2024-12-10"), NA, Yield_filled_mm)) %>%
    mutate(subbasin = "West Brook"),

  dat %>% filter(site_name %in% unlist(siteinfo %>% filter(subbasin == "Paine Run") %>% select(site_name)), date >= as_date("2018-11-07"), date <= as_date("2023-05-15")) %>% mutate(subbasin = "Paine Run"),

  dat %>% filter(site_name %in% unlist(siteinfo %>% filter(subbasin == "Staunton River") %>% select(site_name)), date >= as_date("2018-11-07"), date <= as_date("2022-10-19")) %>% mutate(subbasin = "Staunton River"),

  dat %>% filter(site_name %in% c(unlist(siteinfo %>% filter(subbasin == "Big Creek") %>% select(site_name)), "North Fork Flathead River NWIS"), date >= date("2018-08-08"), date <= date("2023-08-03"), site_name != "SkookoleelCreek", Yield_filled_mm > 0)  %>% mutate(subbasin = "Big Creek"),

  dat %>% filter(site_name %in% c(unlist(siteinfo %>% filter(subbasin == "Coal Creek") %>% select(site_name)), "North Fork Flathead River NWIS"), date >= date("2018-07-29"), date <= date("2023-08-03")) %>% mutate(subbasin = "Coal Creek"),

  dat %>% filter(site_name %in% c(unlist(siteinfo %>% filter(subbasin == "McGee Creek") %>% select(site_name)), "North Fork Flathead River NWIS"), date >= date("2017-07-30"), date <= date("2023-12-11")) %>% mutate(subbasin = "McGee Creek"),

  dat %>% filter(subbasin == "Snake River", date >= date("2016-04-01"), date <= date("2023-10-03"), site_name != "Leidy Creek Upper") %>% mutate(subbasin = "Snake River"),

  dat %>% filter(subbasin == "Shields River", date >= date("2016-04-01"), date <= date("2023-12-31"), site_name != "Brackett Creek") %>%
  mutate(logYield = log10(Yield_filled_mm)) %>% mutate(subbasin = "Shields River"),

  dat %>% filter(subbasin == "Duck Creek", date >= date("2015-04-01"), date <= date("2023-12-31")) %>% mutate(subbasin = "Duck Creek"),

  dat %>% filter(subbasin == "Donner Blitzen", date >= as_date("2019-04-23"), date <= as_date("2022-12-31"), !site_name %in% c("Indian Creek NWIS", "Little Blizten River NWIS")) %>% mutate(subbasin = "Donner Blitzen")
) %>%
  filter(Yield_filled_mm > 0) %>%
  mutate(logYield = log10(Yield_filled_mm),
         designation = "little",
         doy_calendar = yday(date)) %>%
  select(-Yield_mm) %>%
  rename(Yield_mm = Yield_filled_mm)
head(dat_clean)
# A tibble: 6 × 16
  site_name   basin     subbasin region date       flow_mean tempc_mean Yield_mm
  <chr>       <chr>     <chr>    <chr>  <date>         <dbl>      <dbl>    <dbl>
1 Avery Brook West Bro… West Br… Mass   2020-01-08      5.96     0.594      1.99
2 Avery Brook West Bro… West Br… Mass   2020-01-09      4.81     0.0336     1.61
3 Avery Brook West Bro… West Br… Mass   2020-01-10      4.88     0.363      1.63
4 Avery Brook West Bro… West Br… Mass   2020-01-11      6.43     1.77       2.15
5 Avery Brook West Bro… West Br… Mass   2020-01-12     21.2      2.81       7.08
6 Avery Brook West Bro… West Br… Mass   2020-01-13     14.3      1.92       4.78
# ℹ 8 more variables: CalendarYear <dbl>, Month <dbl>, MonthName <fct>,
#   WaterYear <dbl>, DayofYear <dbl>, logYield <dbl>, designation <chr>,
#   doy_calendar <dbl>

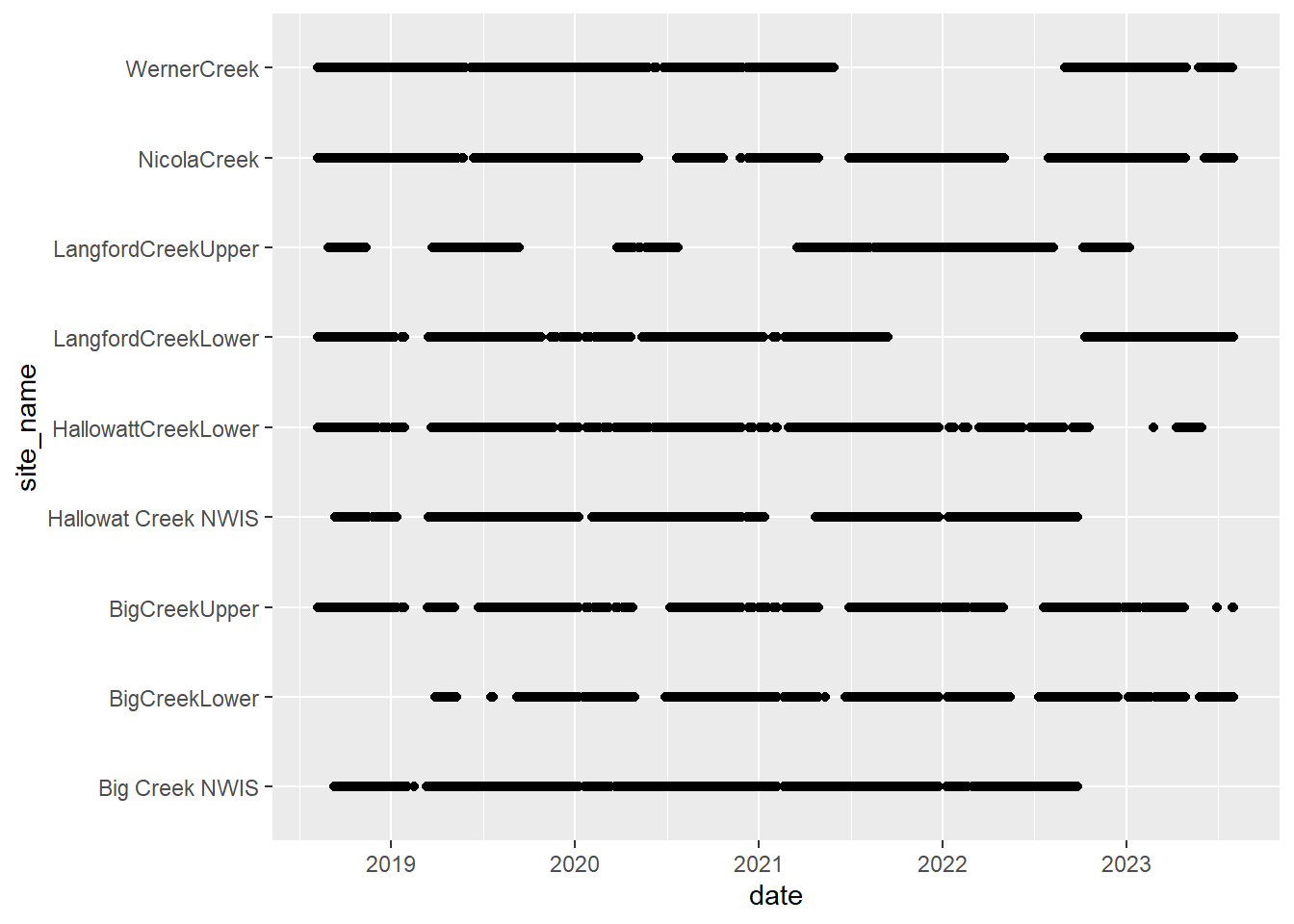

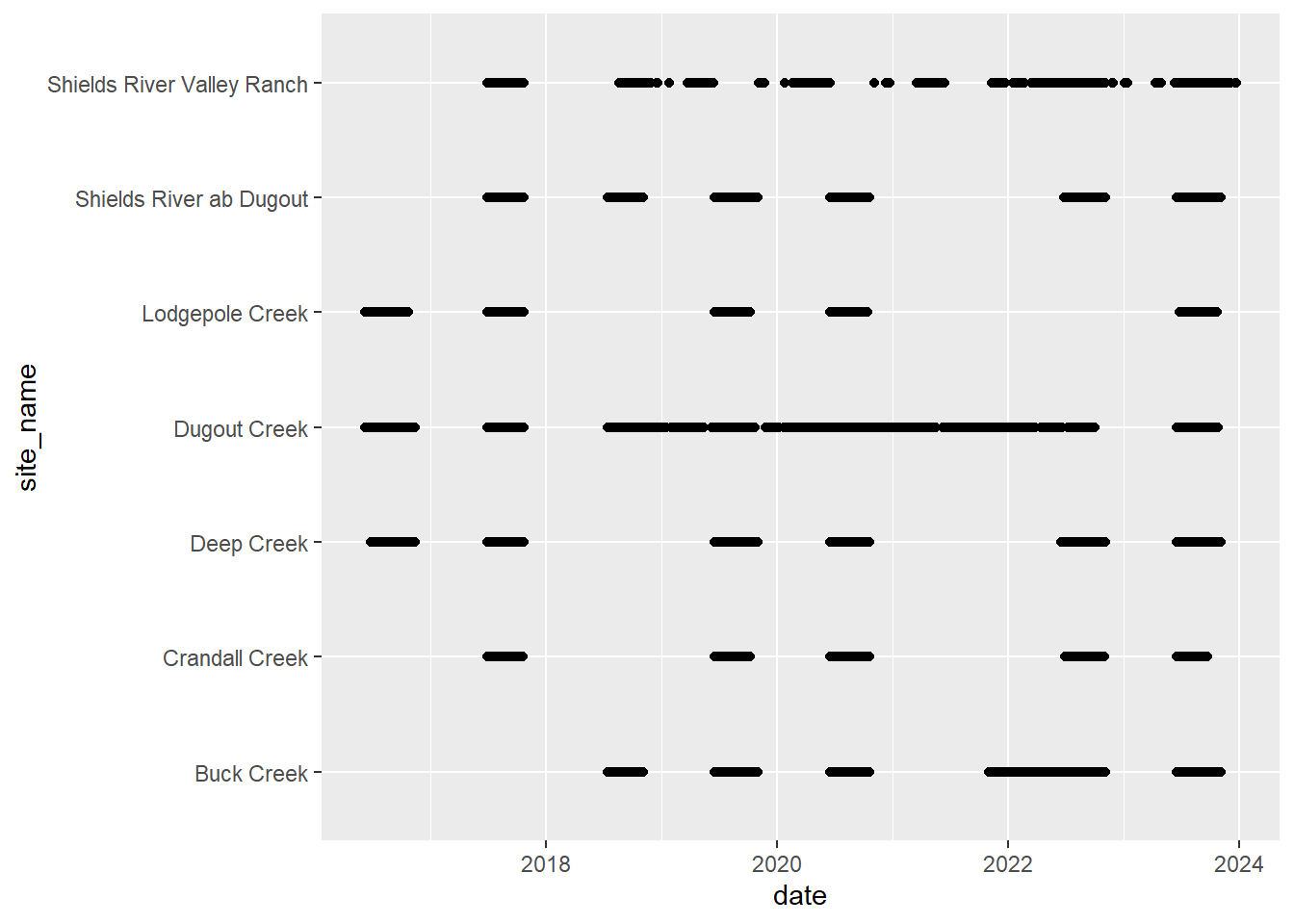

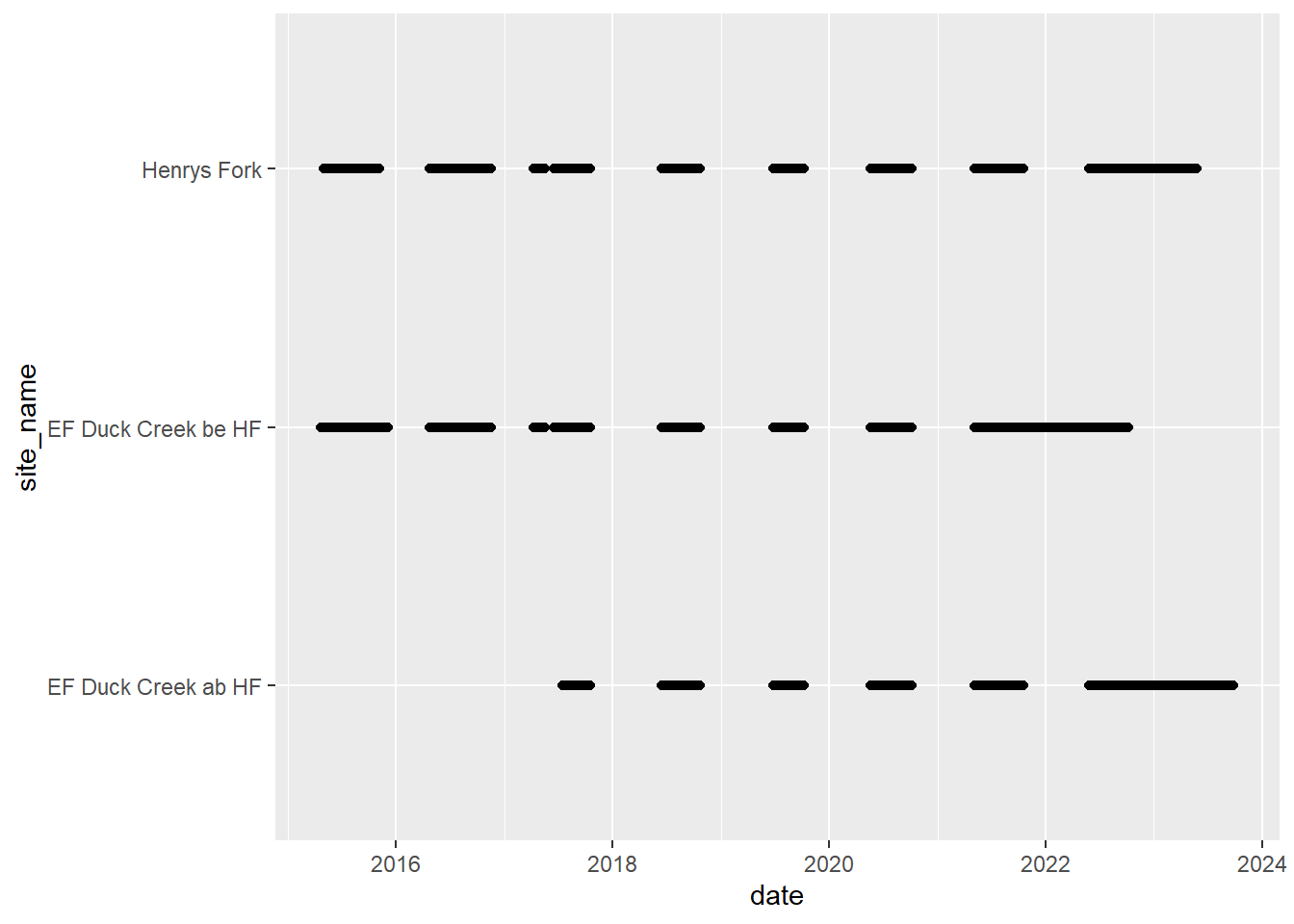

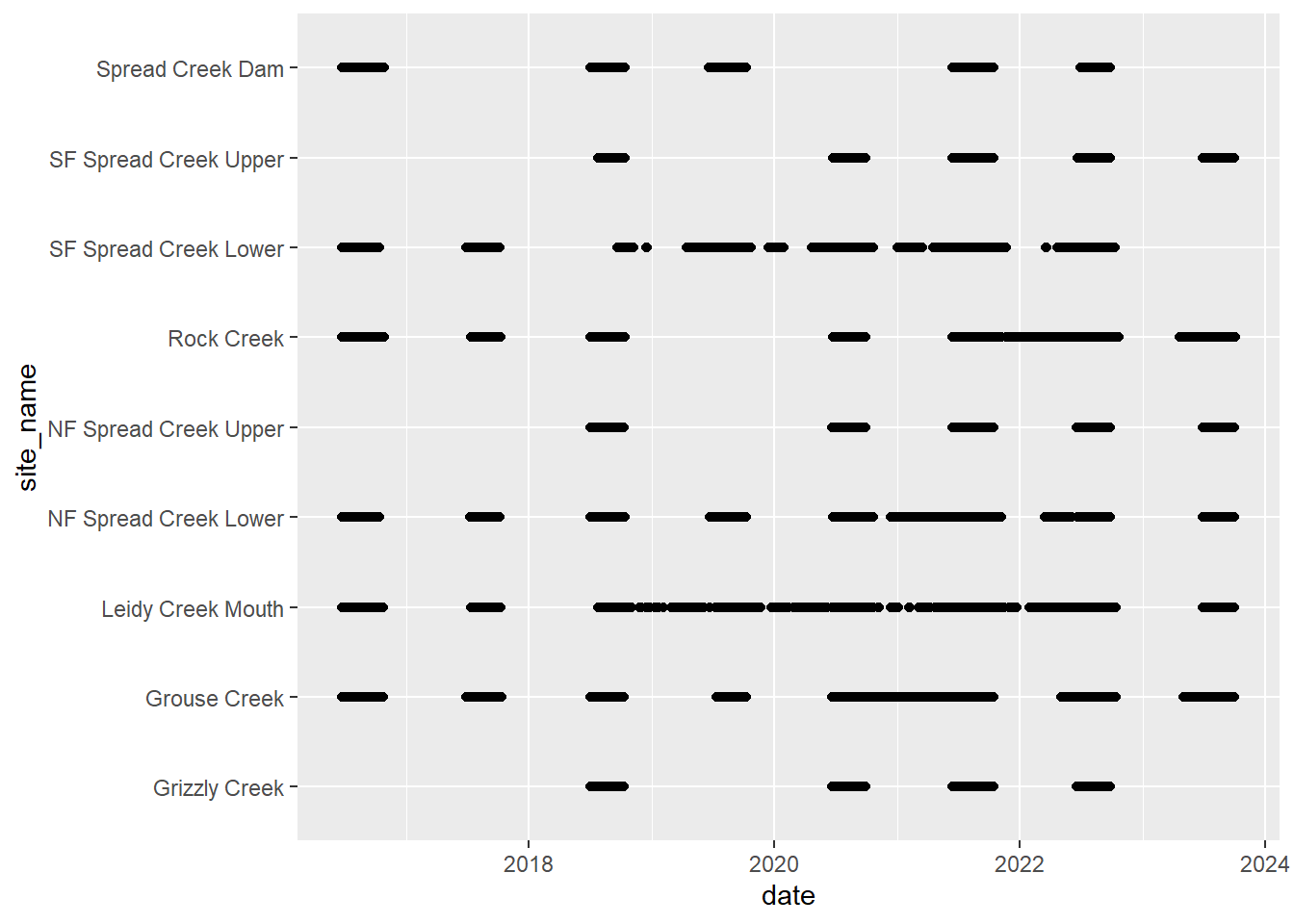

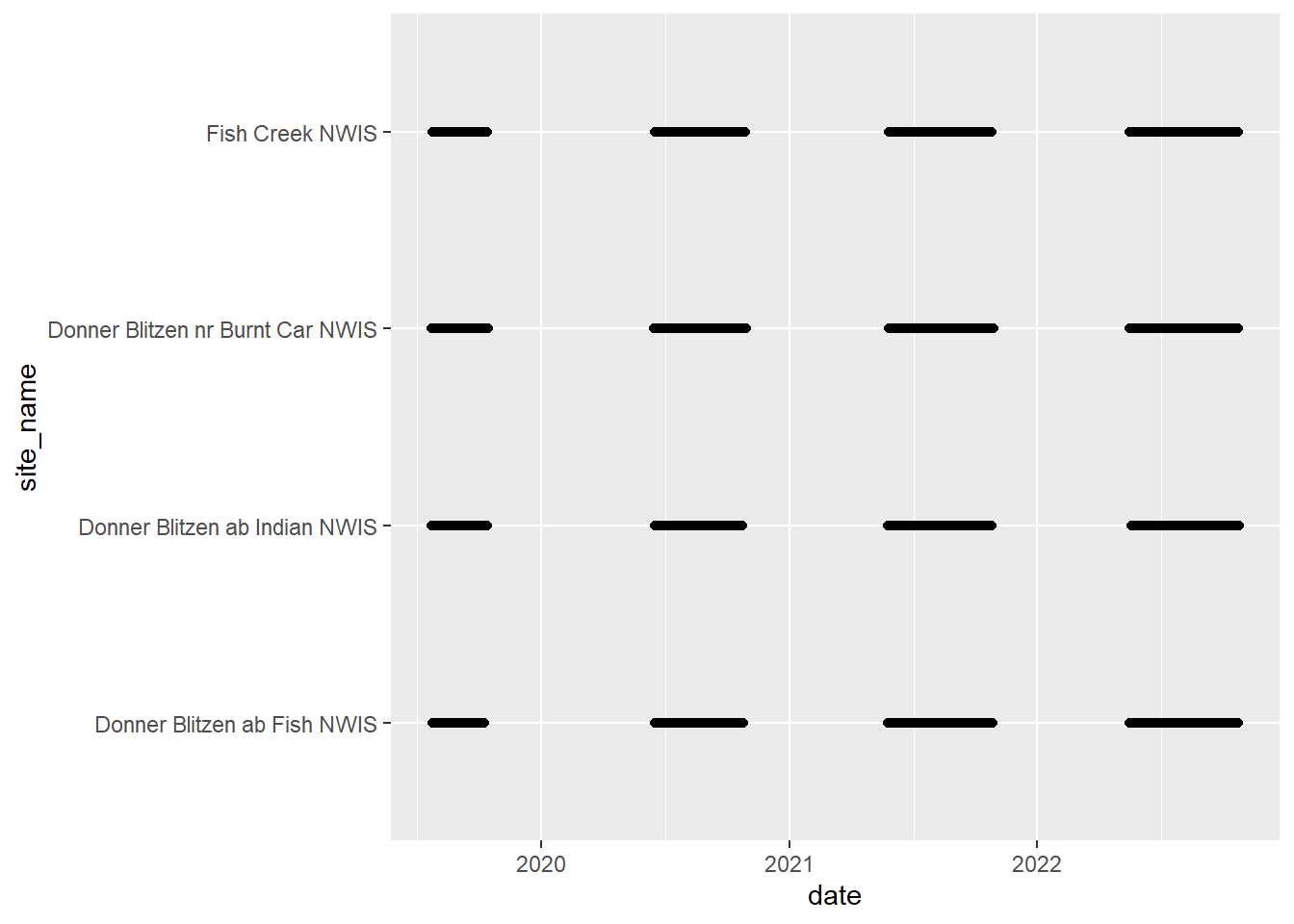

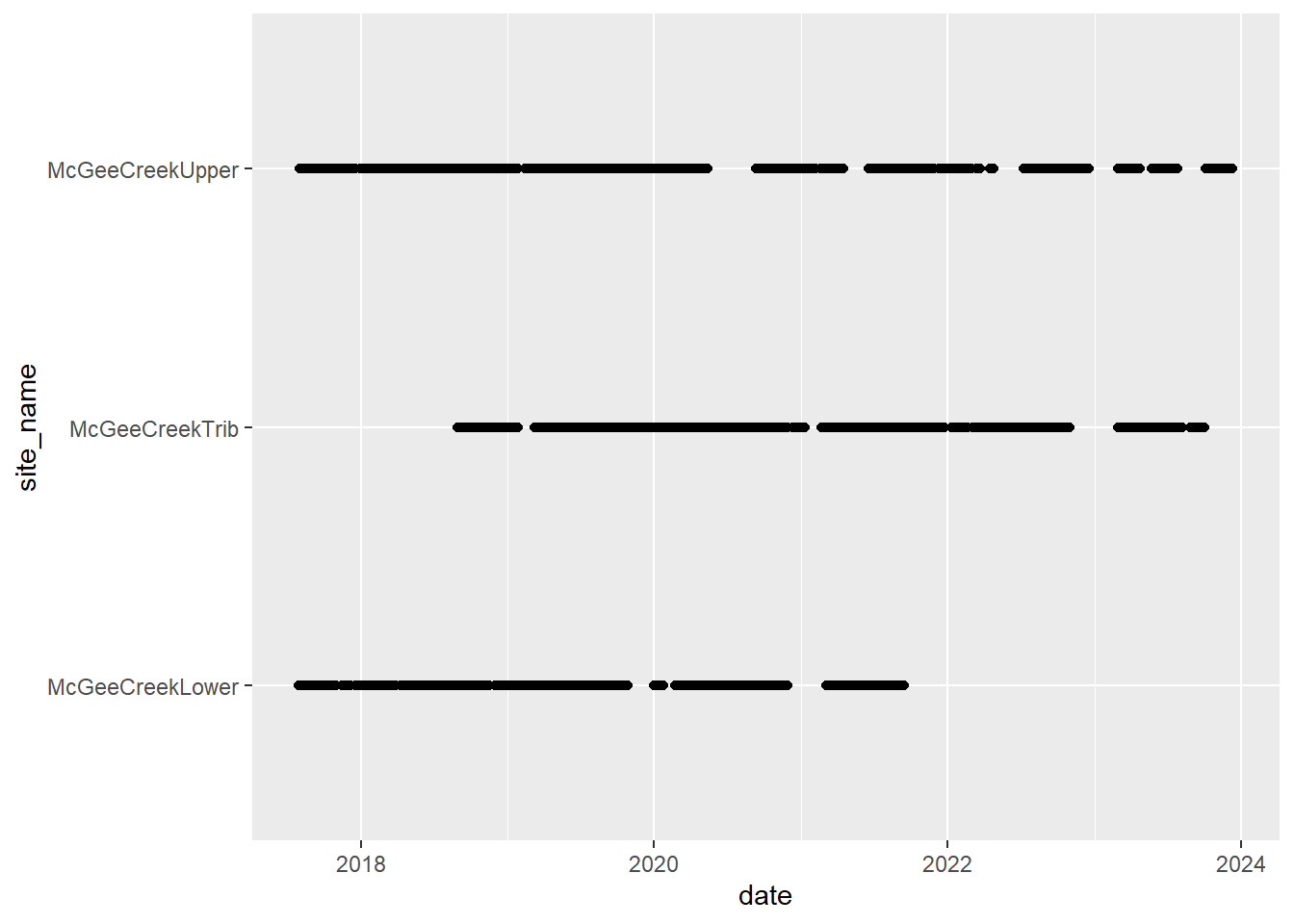

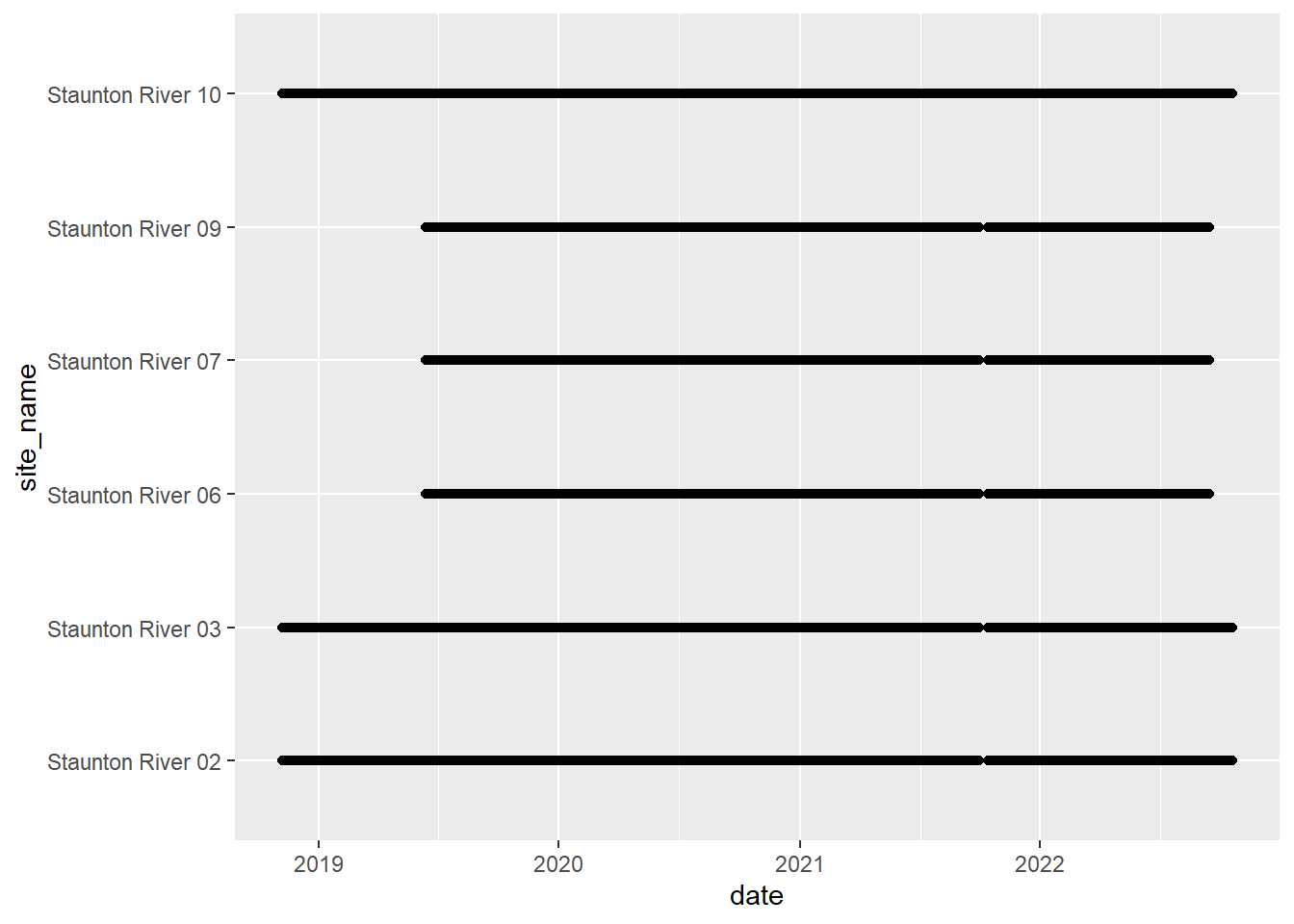

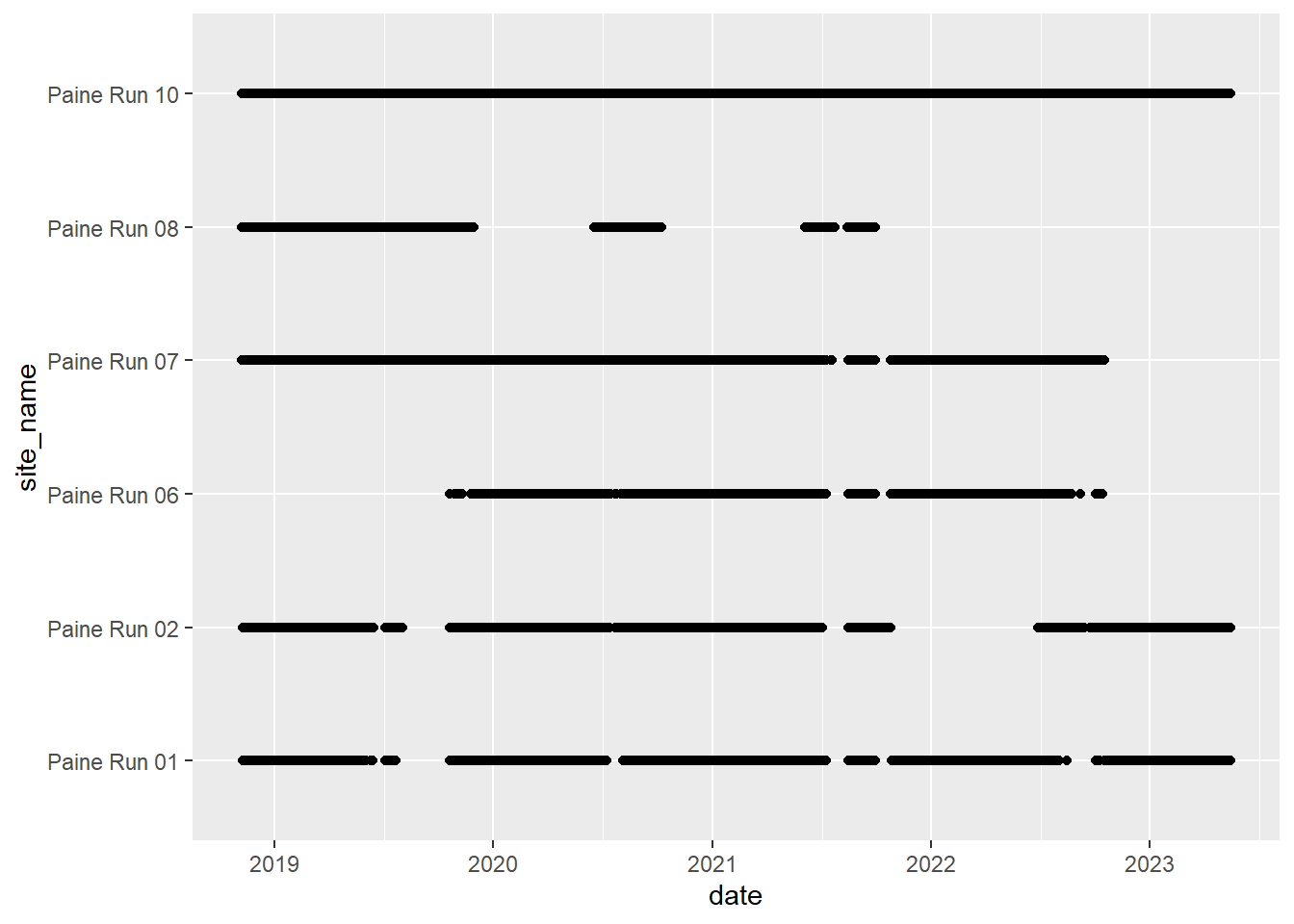

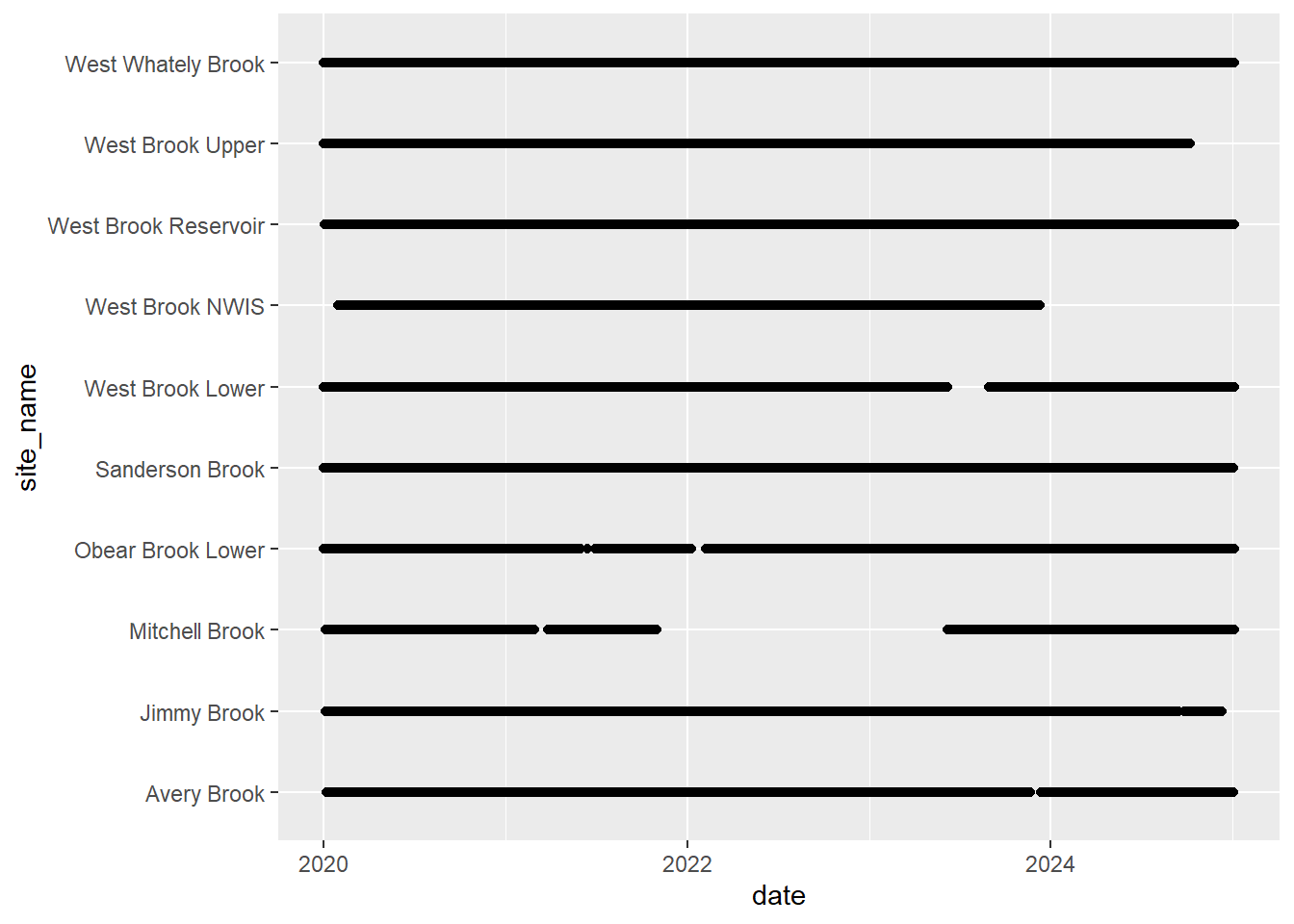

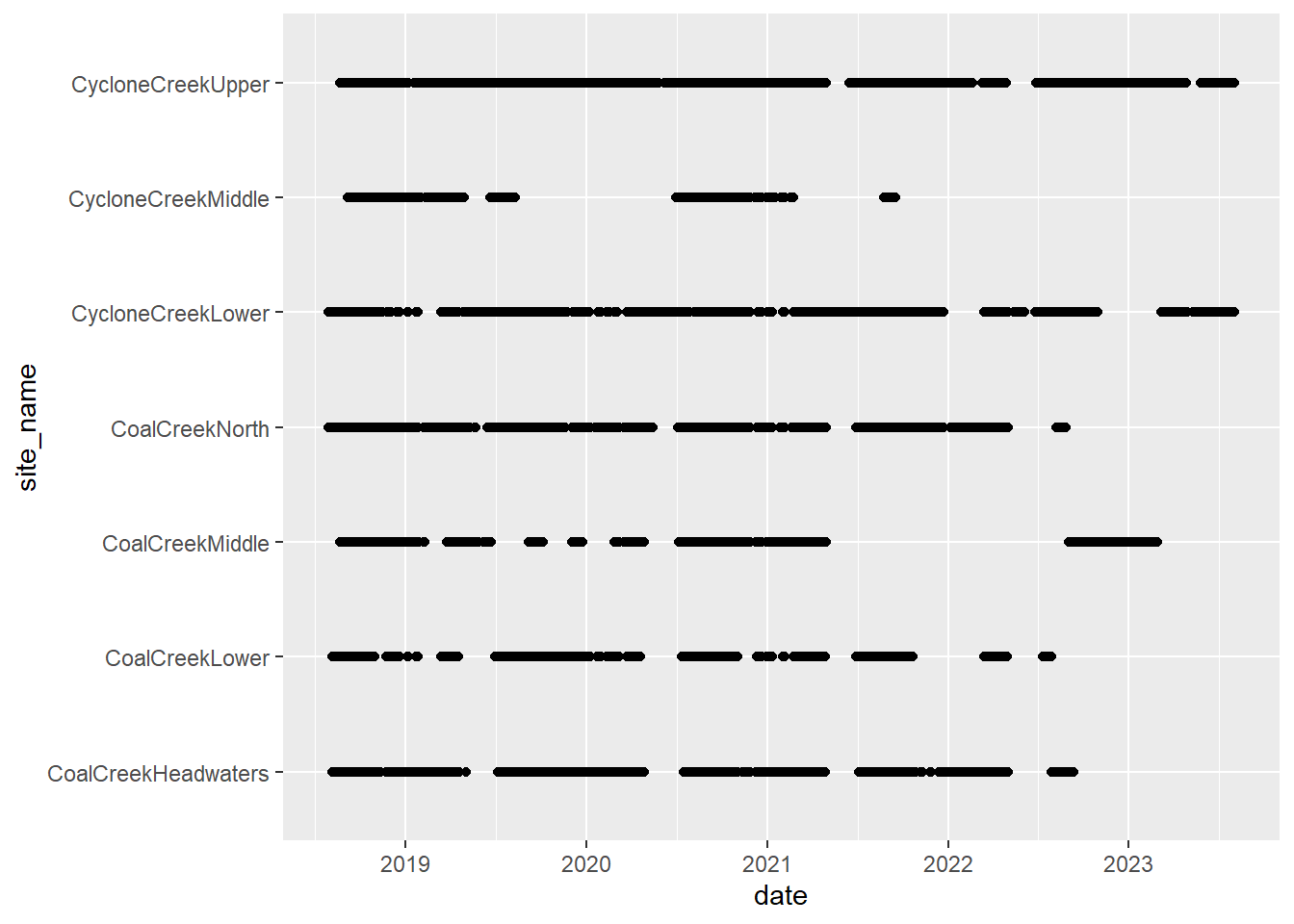

View streamflow data availability by subbasin and site

Write to file

Code
write_csv(dat_clean, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/LittleG_data_clean.csv")
Code
p1 <- siteinfo %>%
  filter(site_name %in% unique(dat_clean$site_name)) %>%
  mutate(area_sqkm = area_sqmi*2.58999,
         basin = factor(basin, levels = c("Donner Blitzen", "Snake River", "Flathead", "Shields River",
                                          "Paine Run", "Staunton River", "West Brook"))) %>%
  mutate(basin = recode(basin, "Shields River" = "Yellowstone River", "Flathead" = "Flathead River", "Donner Blitzen" = "Donner und Blitzen River")) %>%
  ggplot() +
  geom_boxplot(aes(y = basin, x = area_sqkm, fill = basin)) + scale_x_log10() +
  geom_point(aes(y = basin, x = area_sqkm)) +
  theme_bw() + theme(panel.grid = element_blank(), legend.position = "none", axis.text = element_text(color = "black")) +
  xlab(expression(paste("Catchment area, km"^2))) + ylab("Basin") +
  scale_fill_manual(values = rev(brewer.pal(7, "Set2")[c(1,2,3,5,4,6,7)]))

jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/CatchmentSize_boxplot.jpg", width = 5, height = 3, units = "in", res = 1000)
p1
dev.off()
png
  2

13.4 Big G data

Load big/super G data

Code
nwis_daily <- read_csv("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/EcoDrought_NWIS_FlowTempData_Raw_Daily.csv") %>%
  filter(designation == "big",
         year(date) >= 1970,
         site_name != "Shields River nr Livingston NWIS") %>%
  mutate(flowcfs = ifelse(site_name == "Rapidan River NWIS" & date > date("1995-06-26") & date < date("1995-07-01"), NA, flowcfs),
         flow_mean_cms = flowcfs*0.02831683199881,
         area_sqkm = area_sqmi*2.58999)

# sites
sites <- unique(nwis_daily$site_name)

# site-specific basin area in square km
basinarea <- nwis_daily %>% filter(!is.na(site_id)) %>% group_by(site_name) %>% summarize(area_sqkm = unique(area_sqkm))

# calculate yield
yield_list <- list()
for (i in 1:length(sites)) {
  d <- nwis_daily %>% filter(site_name == sites[i])
  ba <- unlist(basinarea %>% filter(site_name == sites[i]) %>% select(area_sqkm))
  yield_list[[i]] <-  add_daily_yield(data = d, values = flow_mean_cms, basin_area = as.numeric(ba))
}
nwis_daily_wyield <- do.call(rbind, yield_list)

dat_clean_big <- nwis_daily_wyield %>%
  select(site_name, basin, subbasin, region, date, Yield_mm, tempc, flowcfs) %>%
  mutate(logYield = log10(Yield_mm), doy_calendar = yday(date)) %>%
  rename(tempc_mean = tempc, flow_mean = flowcfs)

# add water/climate year variables and fill missing dates
dat_clean_big <- fill_missing_dates(dat_clean_big, dates = date, groups = site_name)
dat_clean_big <- add_date_variables(dat_clean_big, dates = date, water_year_start = 10)

head(dat_clean_big)
# A tibble: 6 × 15
  site_name       basin subbasin region date       Yield_mm tempc_mean flow_mean
  <chr>           <chr> <chr>    <chr>  <date>        <dbl>      <dbl>     <dbl>
1 South River Co… West… West Br… Mass   1970-01-01     1.81         NA        46
2 South River Co… West… West Br… Mass   1970-01-02     1.69         NA        43
3 South River Co… West… West Br… Mass   1970-01-03     1.61         NA        41
4 South River Co… West… West Br… Mass   1970-01-04     1.53         NA        39
5 South River Co… West… West Br… Mass   1970-01-05     1.49         NA        38
6 South River Co… West… West Br… Mass   1970-01-06     1.49         NA        38
# ℹ 7 more variables: logYield <dbl>, doy_calendar <dbl>, CalendarYear <dbl>,
#   Month <dbl>, MonthName <fct>, WaterYear <dbl>, DayofYear <dbl>

Write to file

Code
write_csv(dat_clean_big, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_data_clean.csv")

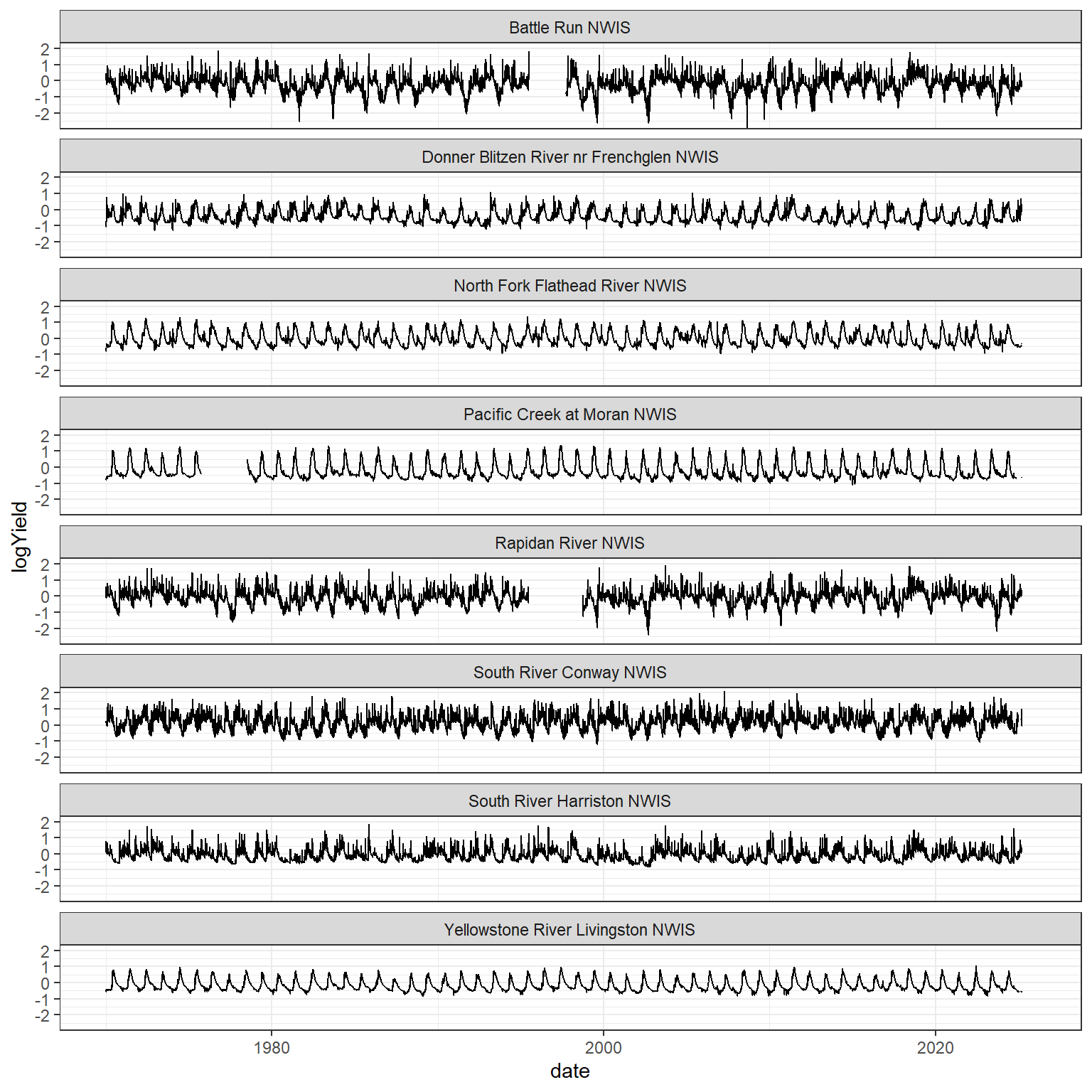

View big G streamflow time series data

Code
dat_clean_big %>% ggplot() + geom_line(aes(x = date, y = logYield)) + facet_wrap(~site_name, nrow = 8) + theme_bw()

13.5 Water availability

Download Daymet precip data and summarize by water year

Code
# big G site lat/long
mysites <- nwis_daily %>% group_by(site_name, basin, subbasin, region) %>% summarize(lat = unique(lat), long = unique(long)) %>% ungroup()

# download point location Daymet data
climlist <- vector("list", length = dim(mysites)[1])
for (i in 1:dim(mysites)[1]) {
  clim <- download_daymet(site = mysites$site_name[i], lat = mysites$lat[i], lon = mysites$long[i], start = 1980, end = 2024, internal = T)
  climlist[[i]] <- tibble(clim$data) %>%
    mutate(air_temp_mean = (tmax..deg.c. + tmin..deg.c.)/2,
           date = as.Date(paste(year, yday, sep = "-"), "%Y-%j"),
           site_name = mysites$site_name[i]) %>%
    select(12,2,11,10,4,6) %>% rename(precip_mmday = 5, swe_kgm2 = 6)
  print(i)
}
[1] 1
[1] 2
[1] 3
[1] 4
[1] 5
[1] 6
[1] 7
[1] 8
Code
# combine and add water years
climdf <- do.call(rbind, climlist) %>% left_join(mysites) %>% mutate(year = year(date))
climdf <- add_date_variables(climdf, dates = date, water_year_start = 10)

# calculate total annual precipitation in mm, by site and water year
climdf_summ <- climdf %>%
  group_by(site_name, basin, subbasin, region, WaterYear) %>%
  summarize(precip_total = sum(precip_mmday), sampsize = n()) %>%
  mutate(precip_total_z = scale(precip_total)[,1]) %>%
  ungroup() %>%
  filter(sampsize >= 350)

Write to file(s)

Code
write_csv(climdf, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/Daymet_climate.csv")

write_csv(climdf_summ, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/Daymet_climate_summary.csv")

Calculate annual water availability at big g as sum of daily yield values…retain only years with >95% data coverage (at least 350 days)

Code
wateravail_sum <- dat_clean_big %>%
  filter(!is.na(Yield_mm), Month %in% c(7:9)) %>%
  group_by(basin, site_name, WaterYear) %>%
  summarize(sampsize = n(), totalyield_sum = sum(Yield_mm, na.rm = TRUE)) %>%
  mutate(totalyield_sum_z = scale(totalyield_sum)[,1]) %>%
  ungroup() %>%
  filter(sampsize >= 85) %>%
  complete(basin, WaterYear = 1971:2024, fill = list(sampsize = NA, totalyield = NA)) %>%
  select(-sampsize)

wateravail <- dat_clean_big %>%
  filter(!is.na(Yield_mm)) %>%
  group_by(basin, site_name, WaterYear) %>%
  summarize(sampsize = n(), totalyield = sum(Yield_mm, na.rm = TRUE)) %>%
  mutate(totalyield_z = scale(totalyield)[,1]) %>%
  ungroup() %>%
  filter(sampsize >= 350) %>%
  complete(basin, WaterYear = 1971:2024, fill = list(sampsize = NA, totalyield = NA)) %>%
  left_join(wateravail_sum)

# get range of years for little g data
daterange <- dat_clean %>% group_by(basin) %>% summarize(minyear = year(min(date)), maxyear = year(max(date)))

# spread ecod years
mylist <- vector("list", length = dim(daterange)[1])
for (i in 1:dim(daterange)[1]) {
  mylist[[i]] <- tibble(basin = daterange$basin[i], WaterYear = seq(from = daterange$minyear[i], to = daterange$maxyear[i], by = 1))
}
yrdf <- do.call(rbind, mylist) %>% mutate(ecodyr = "yes")

Write water availability to file

Code
write_csv(wateravail, "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/EcoDrought-Analysis/Qualitative/BigG_wateravailability_annual.csv")

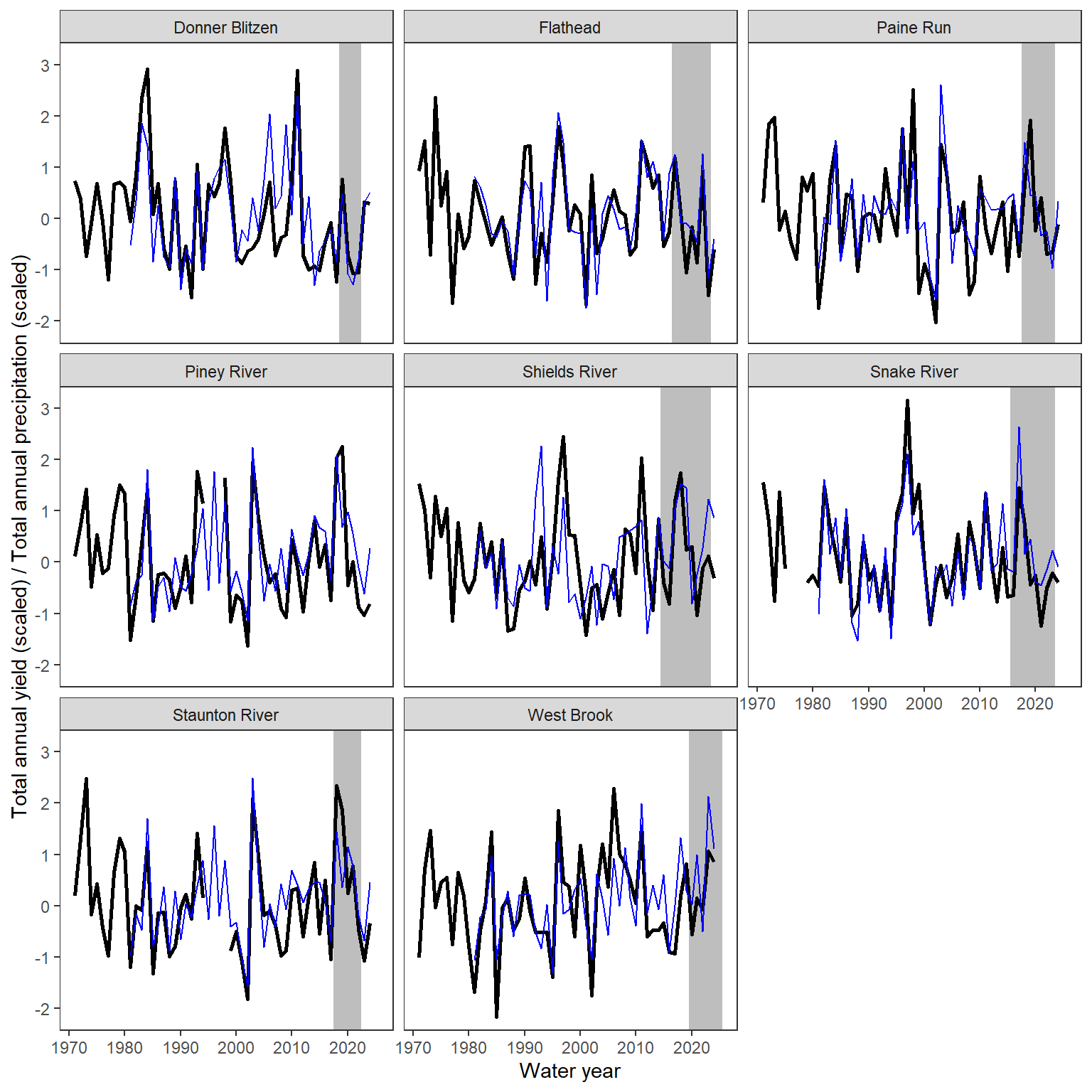

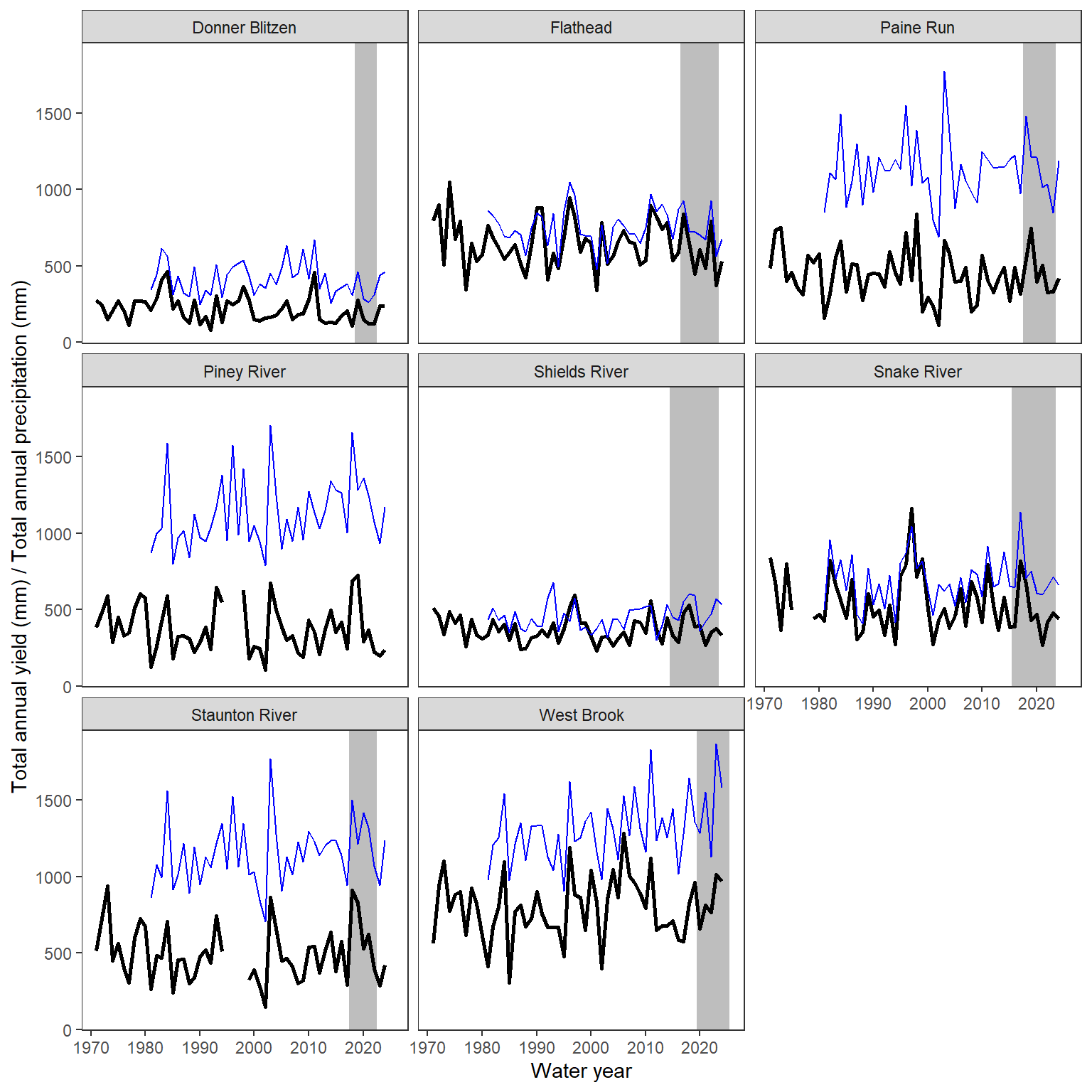

View time series and scatter plots of big G water availability (total annual yield, sum of daily values, black lines) and precipitation (total annual precip, blues lines). Note that the panel labels indicate basins, not NWIS gage names. In the manuscript, pair these plots with CONUS map and detailed inset maps of focal basins (Figure 1)

Code
ggplot() +
  geom_rect(data = daterange, aes(xmin = minyear-0.5, xmax = maxyear+0.5, ymin = -Inf, ymax = +Inf), fill = "grey") +
  geom_line(data = wateravail, aes(x = WaterYear, y = totalyield), linewidth = 1) +
  geom_line(data = climdf_summ, aes(x = WaterYear, y = precip_total), linewidth = 0.5, col = "blue") +
  facet_wrap(~basin) +
  xlab("Water year") + ylab("Total annual yield (mm) / Total annual precipitation (mm)") +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

Code
ggplot() +
  geom_rect(data = daterange, aes(xmin = minyear-0.5, xmax = maxyear+0.5, ymin = -Inf, ymax = +Inf), fill = "grey") +
  geom_line(data = wateravail, aes(x = WaterYear, y = totalyield_z), linewidth = 1) +
  geom_line(data = climdf_summ, aes(x = WaterYear, y = precip_total_z), linewidth = 0.5, col = "blue") +
  facet_wrap(~basin) +
  xlab("Water year") + ylab("Total annual yield (scaled) / Total annual precipitation (scaled)") +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank())

Code

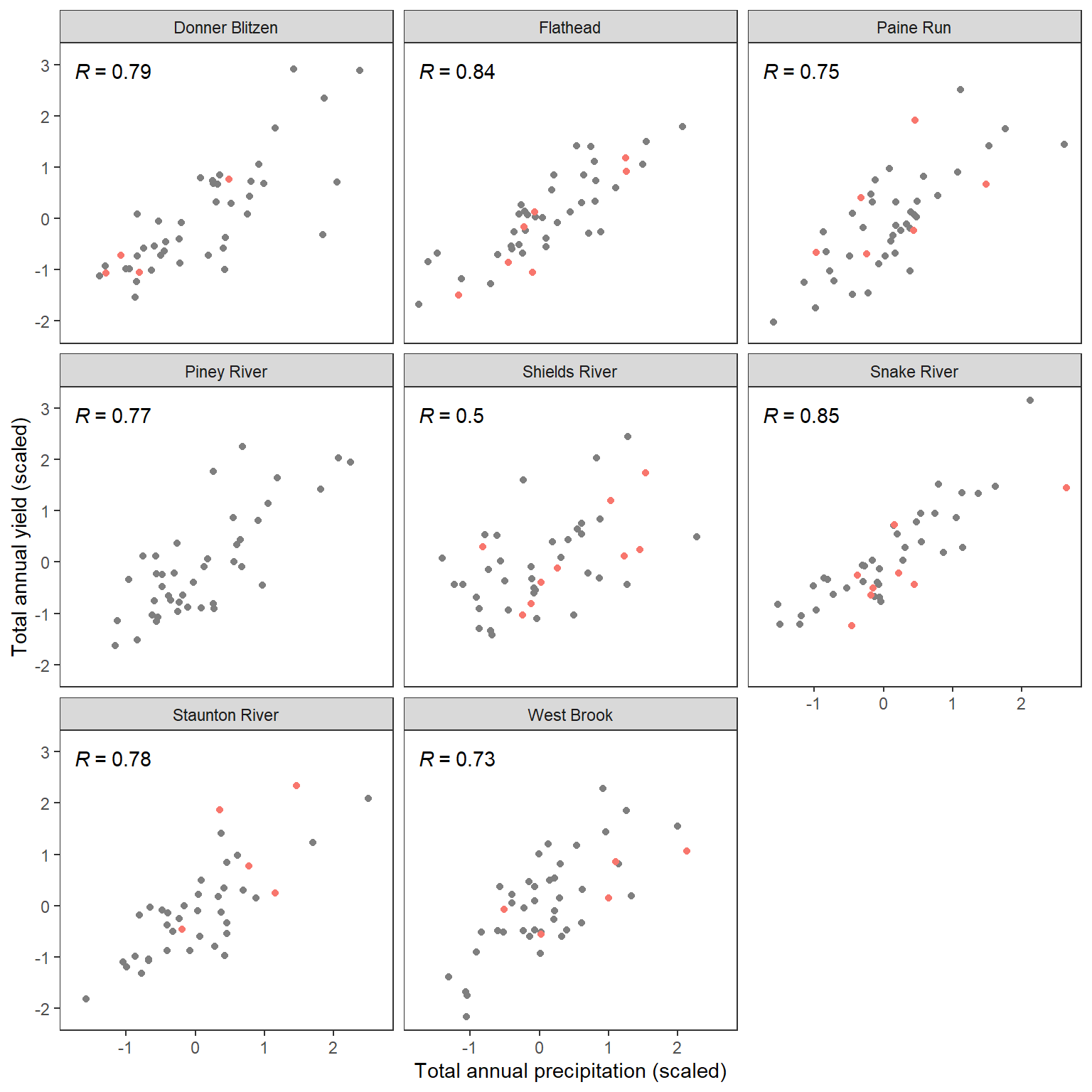

wateravail %>% select(-sampsize) %>% left_join(climdf_summ %>% select(-sampsize)) %>% left_join(yrdf) %>%
  ggplot(aes(x = precip_total_z, y = totalyield_z)) +
  geom_point(aes(color = ecodyr)) +
  facet_wrap(~basin) +
  xlab("Total annual precipitation (scaled)") + ylab("Total annual yield (scaled)") +
  theme_bw() + theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(), legend.position = "none") +
  stat_cor(method = "pearson", aes(label = ..r.label..))

13.6 Hydroclimatic context

13.6.1 Climate data and focal sites

Load the NETCDF climate data and convert to usable/raster format

Code
# Climate classification data loading and plotting in R
# Equivalent to the MATLAB script

library(ncdf4)      # for reading NetCDF
library(terra)      # for raster handling
library(ggplot2)    # for plotting
library(rasterVis)  # for nice levelplots of rasters
# library(rgdal)      # for geotiff/geoshow equivalents
library(rgl)

# 1. Data import from NetCDF file
filename <- "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Spatial data/HydrologicClimateClassification.nc"

# Open NetCDF
nc <- nc_open(filename)
print(nc)   # equivalent to MATLAB ncdisp
File C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Spatial data/HydrologicClimateClassification.nc (NC_FORMAT_NETCDF4_CLASSIC):

     11 variables (excluding dimension variables):
        double grid_aridity_Im[lat,lon]   (Chunking: [360,720])
        double grid_seasonalityOfAridity_Imr[lat,lon]   (Chunking: [360,720])
        double grid_annualSnowFraction_fs[lat,lon]   (Chunking: [360,720])
        double grid_latitude[lat,lon]   (Chunking: [360,720])
        double grid_longitude[lat,lon]   (Chunking: [360,720])
        double array_aridity_Im[length,width]   (Chunking: [67214,1])
        double array_seasonalityOfAridity_Imr[length,width]   (Chunking: [67214,1])
        double array_annualSnowFraction_fs[length,width]   (Chunking: [67214,1])
        double array_latitude[length,width]   (Chunking: [67214,1])
        double array_longitude[length,width]   (Chunking: [67214,1])
        double array_rgbColour[length,rgb]   (Chunking: [67214,3])

     5 dimensions:
        lat  Size:360 (no dimvar)
        lon  Size:720 (no dimvar)
        length  Size:67214 (no dimvar)
        width  Size:1 (no dimvar)
        rgb  Size:3 (no dimvar)
Code
# Variable names (must match those in the file)
varNames <- c(
  "grid_aridity_Im",
  "grid_seasonalityOfAridity_Imr",
  "grid_annualSnowFraction_fs",
  "grid_latitude",
  "grid_longitude",
  "array_aridity_Im",
  "array_seasonalityOfAridity_Imr",
  "array_annualSnowFraction_fs",
  "array_latitude",
  "array_longitude",
  "array_rgbColour"
)

# Extract variables into a list (like a struct in MATLAB)
ClimateClassification <- lapply(varNames, function(v) ncvar_get(nc, v))
names(ClimateClassification) <- varNames

nc_close(nc)

# 2a. Example maps of gridded climate indices ----------------------------

# Wrap into SpatRaster objects (terra) for plotting
grid_Im  <- rast(ClimateClassification$grid_aridity_Im)
grid_Imr <- rast(ClimateClassification$grid_seasonalityOfAridity_Imr)
grid_fs  <- rast(ClimateClassification$grid_annualSnowFraction_fs)

# Assign CRS and extent (need to use lat/lon arrays)
lat <- ClimateClassification$grid_latitude
lon <- ClimateClassification$grid_longitude
ext(grid_Im) <- c(min(lon), max(lon), min(lat), max(lat))
crs(grid_Im) <- "EPSG:4326"
ext(grid_Imr) <- ext(grid_Im); crs(grid_Imr) <- "EPSG:4326"
ext(grid_fs)  <- ext(grid_Im); crs(grid_fs)  <- "EPSG:4326"

# correct orientation
grid_Im  <- flip(grid_Im, direction = "vertical")
grid_Imr <- flip(grid_Imr, direction = "vertical")
grid_fs  <- flip(grid_fs, direction = "vertical")

# Plot rasters

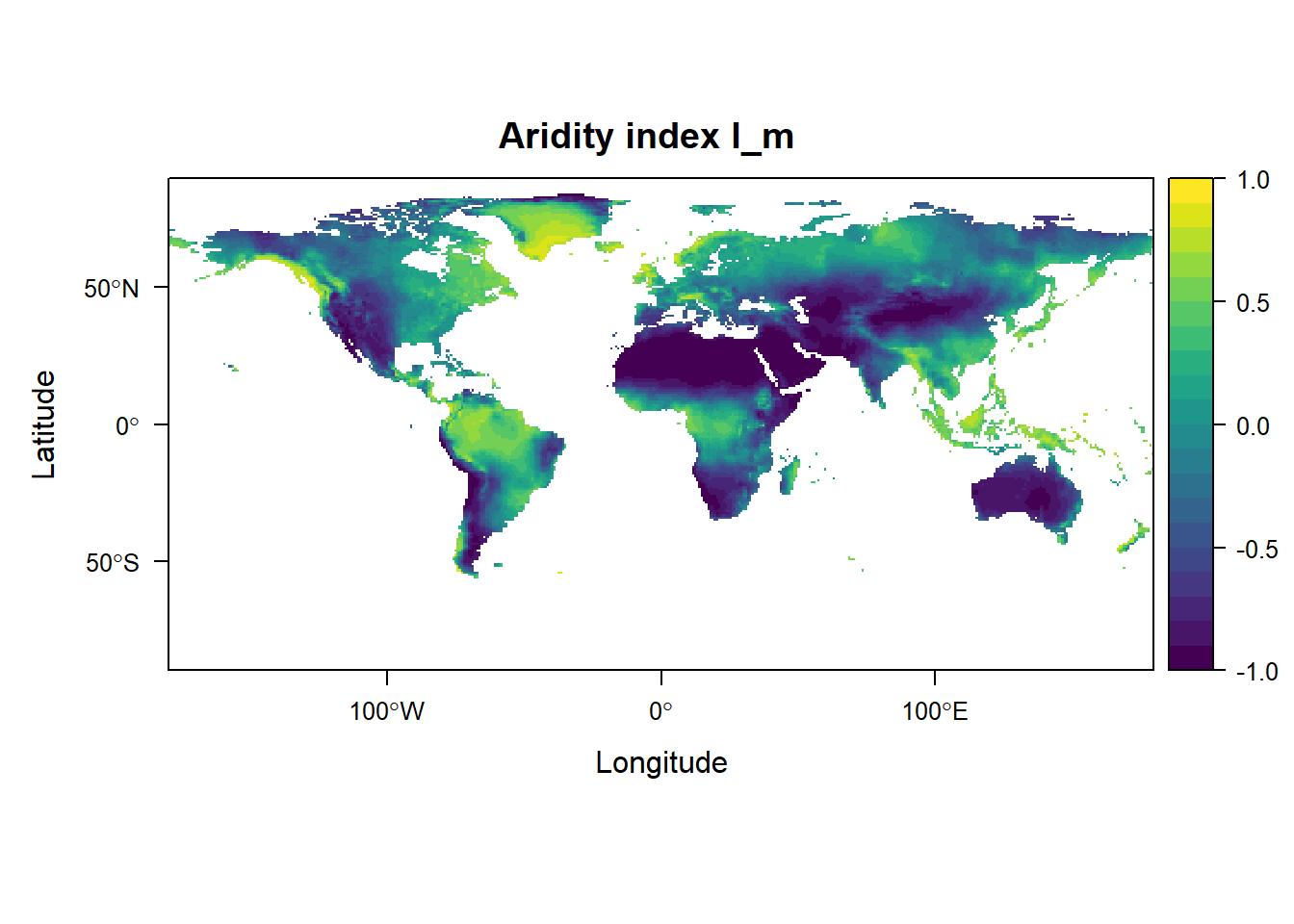

levelplot(grid_Im, margin = FALSE, main = "Aridity index I_m",
          at = seq(-1, 1, 0.1), col.regions = viridis::viridis(20))

Code

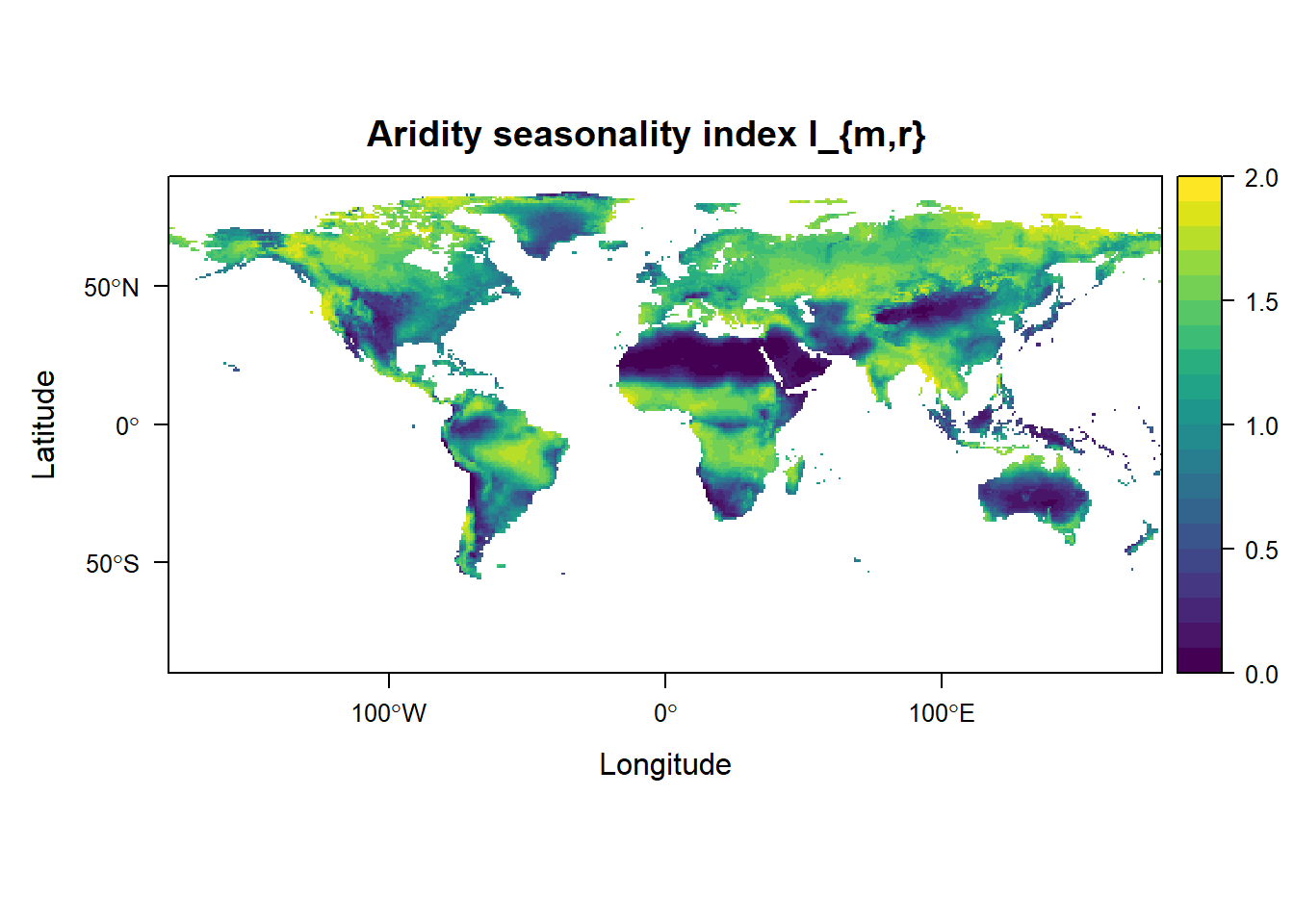

levelplot(grid_Imr, margin = FALSE, main = "Aridity seasonality index I_{m,r}",
          at = seq(0, 2, 0.1), col.regions = viridis::viridis(20))

Code

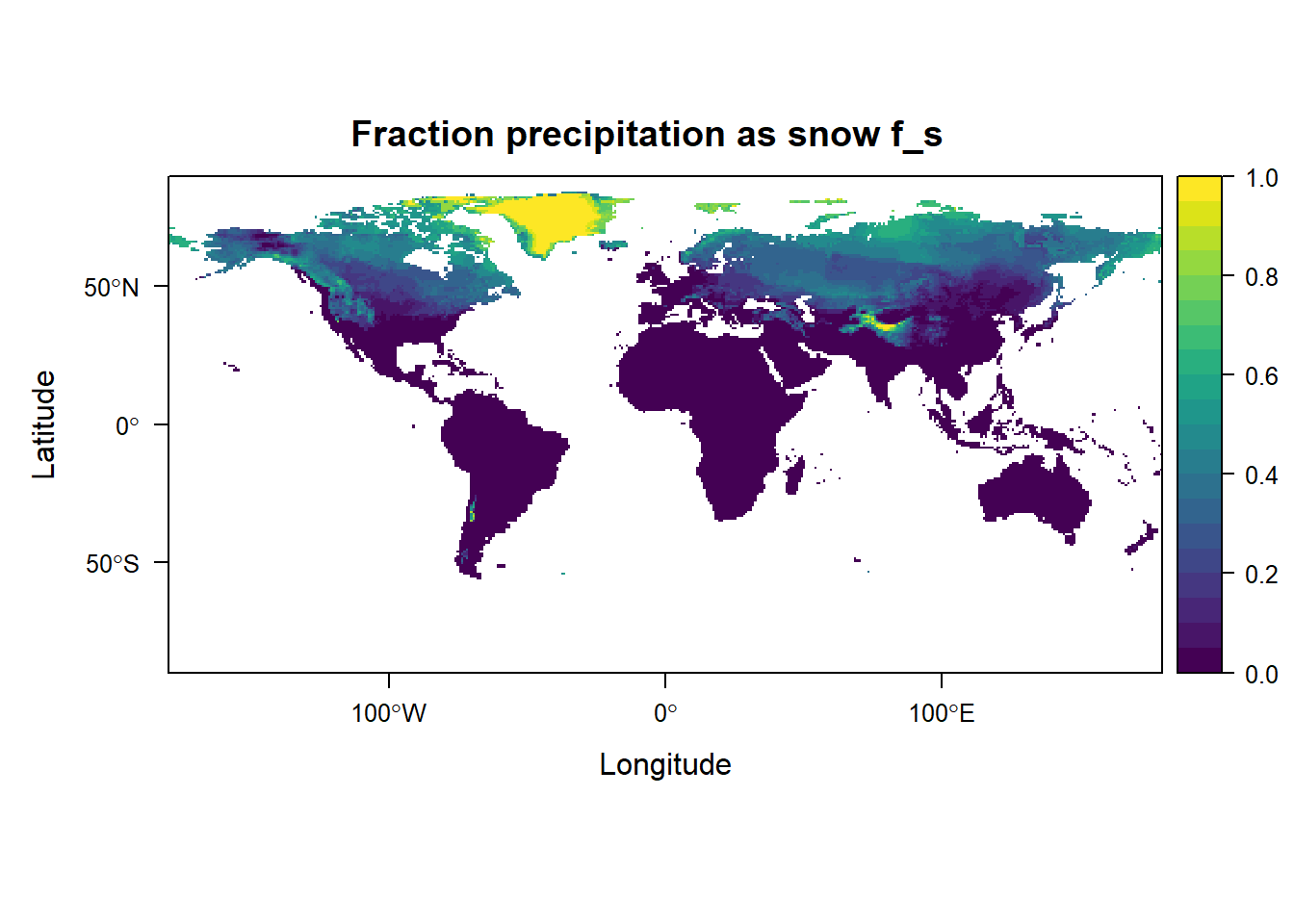

levelplot(grid_fs, margin = FALSE, main = "Fraction precipitation as snow f_s",
          at = seq(0, 1, 0.05), col.regions = viridis::viridis(20))

Code

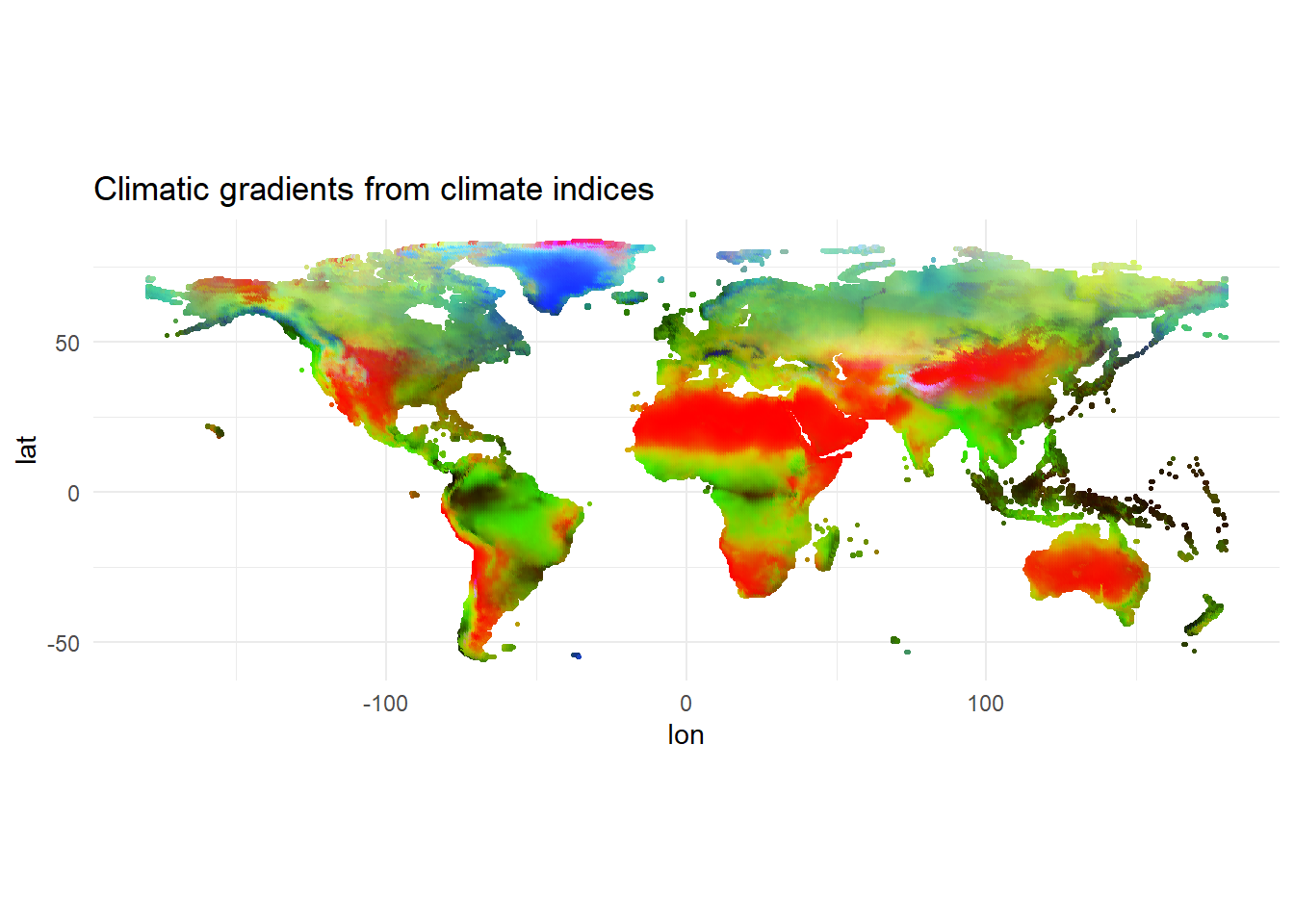

# 2b. Combined climate map -----------------------------------------------

df_array <- data.frame(
  lon = ClimateClassification$array_longitude,
  lat = ClimateClassification$array_latitude,
  col = rgb(
    ClimateClassification$array_rgbColour[,1],
    ClimateClassification$array_rgbColour[,2],
    ClimateClassification$array_rgbColour[,3],
    maxColorValue = 1
  )
)

ggplot(df_array, aes(x = lon, y = lat, color = col)) +
  geom_point(size = 0.5) +
  scale_color_identity() +
  coord_equal() +
  theme_minimal() +
  labs(title = "Climatic gradients from climate indices")

Code
# 2c. RGB colour legend (3D scatterplot) ---------------------------------

df_legend <- data.frame(
  Im  = ClimateClassification$array_aridity_Im,
  Imr = ClimateClassification$array_seasonalityOfAridity_Imr,
  fs  = ClimateClassification$array_annualSnowFraction_fs,
  col = df_array$col
)

# Using plotly for interactive 3D equivalent of MATLAB scatter3
library(plotly)
library(orca)
plot_ly(df_legend, x = ~Im, y = ~Imr, z = ~fs,
        type = "scatter3d", mode = "markers",
        marker = list(color = df_legend$col, size = 2, opacity = 0.5)) %>%
  layout(scene = list(
    xaxis = list(title = "Aridity"),
    yaxis = list(title = "Seasonality"),
    zaxis = list(title = "Snow fraction")
  ))
Code
plot_ly(df_legend, x = ~Im, y = ~Imr, z = ~fs,
        type = "scatter3d", mode = "markers",
        marker = list(color = "grey", size = 2, opacity = 0.5)) %>%
  layout(scene = list(
    xaxis = list(title = "Aridity"),
    yaxis = list(title = "Seasonality"),
    zaxis = list(title = "Snow fraction")
  ))
Code
# 2d. GeoTIFF plot of the main map ---------------------------------------

# geofile <- "C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Data/Spatial data/ClimateClassification_mainMap_geoReferenced.tif"
# map_rast <- rast(geofile)
#
# plot(map_rast, main = "Climatic gradients from climate indices")

Stack rasters and extract values for focal sites

Code
# combine the climate variables into a raster stack
# add 1 to Im to force positive (needed for expansion factors)
climate_stack <- c(grid_Im+1, grid_Imr, grid_fs)
names(climate_stack) <- c("Im", "Imr", "fs")


# convert to tibble
climate_df <- tidyterra::as_tibble(climate_stack)
# hydroclidf_noNA <- as_tibble(hydrocli) %>% filter(!is.na(aridity))
summary(climate_df)
       Im              Imr               fs
 Min.   :0.000    Min.   :0.000    Min.   :0.000
 1st Qu.:0.360    1st Qu.:0.736    1st Qu.:0.000
 Median :0.809    Median :1.270    Median :0.044
 Mean   :0.805    Mean   :1.110    Mean   :0.200
 3rd Qu.:1.222    3rd Qu.:1.526    3rd Qu.:0.361
 Max.   :1.880    Max.   :2.000    Max.   :1.000
 NA's   :191986   NA's   :191986   NA's   :191986
Code
# get site location data
sitevec <- vect(focalsites)

# extract climate data for each site
extracted_vals <- extract(climate_stack, sitevec)
range(extracted_vals$Im)
[1] 0.217410 1.304555
Code
range(extracted_vals$Imr)
[1] 0.6266317 1.5323583
Code
range(extracted_vals$fs)
[1] 0.0000000 0.4364088

Get centroid from base hull

Code
hull <- convhulln(extracted_vals[,-1])
hull_vertices <- extracted_vals[unique(as.vector(hull)), ]
centroid <- colMeans(hull_vertices[,-1])

13.6.2 Hydroclimatic envelope

Test pit: develop code to expand and estimate convex hulls, subset global points, and plot in 3d

Code
# set expansion factor
scf <- 2

# define hull
pts_expanded <- sweep(sweep(extracted_vals[,-1], 2, centroid, "-") * scf, 2, centroid, "+")
hull_indices <- geometry::convhulln(pts_expanded)

# subset global points in hull
points_in_hull <- inhulln(hull_indices, as.matrix(climate_df))
points_in_hull_num <- as.numeric(points_in_hull)
# points_in_hull_num[points_in_hull_num == 0] <- NA

# create new hydroclimate envelope layer
new_layer <- rast(climate_stack[[1]], vals = points_in_hull_num)
names(new_layer) <- "myhc"
# plot(new_layer)

#
# hydroclidf <- as_tibble(c(climate_stack, new_layer)) %>%
#   filter(!is.na(myhc)) %>%
#   # mutate(myhc = as.numeric(points_in_hull)) %>%
#   # mutate(myhc = if_else(is.na(snowfrac), NA, myhc)) %>%
#   mutate(color = if_else(myhc == 1, "red", if_else(myhc == 0, "grey", NA)))

hydroclidf <- as_tibble(c(climate_stack, new_layer)) %>%
  filter(myhc == 1)

# rgl::plot3d(x = hydroclidf$Im, y = hydroclidf$Imr, z = hydroclidf$fs, col = hydroclidf$color)

plot_ly() %>%
  add_markers(
    data = climate_df,
    x = ~Im, y = ~Imr, z = ~fs,
    marker = list(size = 1, opacity = 0.2, color = "grey"),
    name = "All points"
  ) %>%
  # Add highlighted global points in hull
  add_markers(
    data = hydroclidf,
    x = ~Im, y = ~Imr, z = ~fs,
    marker = list(size = 1, opacity = 0.5, color = "blue"),
    name = "All points"
  ) %>%
  #Add highlighted subset of points with different style
  add_markers(
    data = extracted_vals,
    x = ~Im, y = ~Imr, z = ~fs,
    marker = list(size = 5, opacity = 0.8, color = "black", symbol = "circle"),
    name = "Highlighted points"
  ) %>%
  layout(
    scene = list(
      xaxis = list(title = "Aridity"),
      yaxis = list(title = "Seasonality"),
      zaxis = list(title = "Snow fraction")
    )
  )

Subset global climate data using 3d convex hull fit to focal sites, with different percentage expansion factors.

Code
scale_factor <- seq(from = 1, to = 2, by = 0.1)
new_layer_list_raw <- list()
new_layer_list <- list()

for (i in 1:length(scale_factor)) {
  # Expand all original points relative to centroid
  pts_expanded <- sweep(sweep(extracted_vals[,-1], 2, centroid, "-") * scale_factor[i], 2, centroid, "+")
  # recompute convex hull
  hull_expanded <- geometry::convhulln(pts_expanded)
  # subset points/raster cells
  points_in_hull <- geometry::inhulln(hull_expanded, as.matrix(climate_df))
  points_in_hull_num <- as.numeric(points_in_hull)
  # create layer and save in list (for 3-d scatterplots and hulls)
  new_layer <- rast(climate_stack[[1]], vals = points_in_hull_num)
  names(new_layer) <- paste("expand_", scale_factor[i], sep = "")
  new_layer_list_raw[[i]] <- new_layer
  # for mapping, we need to set the 0's (cells not in hydroclimate zone) to NA
  points_in_hull_num[points_in_hull_num == 0] <- NA
  # create layer and save in list (for mapping)
  new_layer <- rast(climate_stack[[1]], vals = points_in_hull_num)
  names(new_layer) <- paste("expand_", scale_factor[i], sep = "")
  new_layer_list[[i]] <- new_layer
}

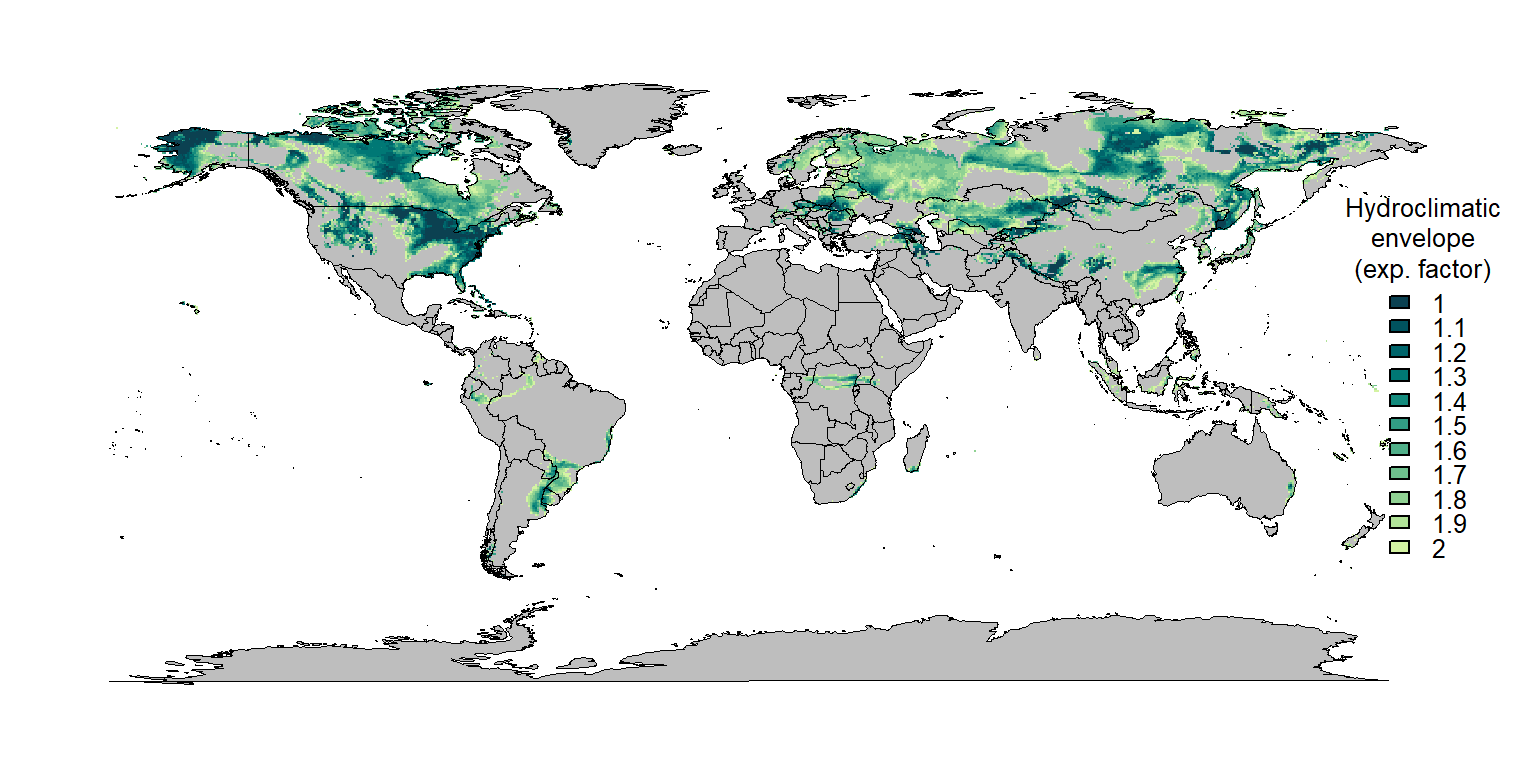

Draw the map

Code
mypal <- hcl.colors(length(scale_factor), palette = "Emrld")
maps::map("world", col="grey", fill=TRUE, lwd = 0.2, mar = c(0,0,0,5))
# box()
for (i in rev(1:length(scale_factor))) {
  plot(new_layer_list[[i]], add = TRUE, col = mypal[i], legend = FALSE)
}
maps::map("world", col = NA, fill=TRUE, add = TRUE, lwd = 0.2, mar = c(0,0,0,5))
legend("right", legend = scale_factor, fill = mypal, title = "Hydroclimatic\nenvelope\n(exp. factor)", bty = "n", xpd = TRUE, inset = c(-0.05,0), cex = 0.8)

Write to file

Code
# color palette
mypal <- hcl.colors(length(scale_factor), palette = "Emrld")

# write plot to file
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Fig1_WorldMap_ClimateContext_REDO.jpg", width = 8, height = 4, units = "in", res = 1000)
# par(mar = c(0,0,0,10), xpd = TRUE)
maps::map("world", col="grey", fill=TRUE, lwd = 0.2, mar = c(0,0,0,5))
# box()
for (i in rev(1:length(scale_factor))) {
  plot(new_layer_list[[i]], add = TRUE, col = mypal[i], legend = FALSE)
}
maps::map("world", col = NA, fill=TRUE, add = TRUE, lwd = 0.2, mar = c(0,0,0,5))
legend("right", legend = scale_factor, fill = mypal, title = "Hydroclimatic\nenvelope\n(exp. factor)", bty = "n", xpd = TRUE, inset = c(-0.05,0), cex = 0.8)
dev.off()
png
  2

Draw 3-d scatterplots with envelopes

Code
mylayer <- new_layer_list_raw[[1]]
names(mylayer) <- "myhc"

hydroclidf <- as_tibble(c(climate_stack, mylayer)) %>%
  filter(!is.na(fs)) %>%
  # mutate(myhc = as.numeric(points_in_hull)) %>%
  # mutate(myhc = if_else(is.na(snowfrac), NA, myhc)) %>%
  mutate(color = if_else(myhc == 1, "red", if_else(myhc == 0, "grey", NA)))

scatterplot3d(hydroclidf[,c(1:3)], color = hydroclidf$color, pch = 16, cex.symbols = 0.2, grid = FALSE, angle = 50)

rgl::plot3d(x = hydroclidf$Im, y = hydroclidf$Imr, z = hydroclidf$fs, col = hydroclidf$color)
Code
# define color palette
mycols <- brewer.pal(7, "Set2")
coltib <- tibble(basin = c("West Brook", "Staunton River", "Paine Run", "Flathead River", "Yellowstone River", "Snake River", "Donner und Blitzen River"),
                 color = brewer.pal(7, "Set2"))

# reconfigure extracted values (focal sites)
extracted_vals2 <- tibble(extracted_vals) %>%
  mutate(basin = recode(focalsites$basin, "Shields River" = "Yellowstone River", "Flathead" = "Flathead River", "Donner Blitzen" = "Donner und Blitzen River")) %>%
  left_join(coltib) %>%
  mutate(Im = Im - 1)

# color points in hull, expansion factor = 1.0
mylayer <- new_layer_list_raw[[1]]
names(mylayer) <- "myhc"
hydroclidf_1 <- as_tibble(c(climate_stack, mylayer)) %>%
  filter(myhc == 1) %>% mutate(Im = Im-1)

# color points in hull, expansion factor = 1.5
mylayer <- new_layer_list_raw[[11]]
names(mylayer) <- "myhc"
hydroclidf_2 <- as_tibble(c(climate_stack, mylayer)) %>%
  filter(myhc == 1) %>% mutate(Im = Im-1)


# Start with the base scatter of all points
p <- plot_ly() %>%
  add_markers(
    data = df_legend,
    x = ~Im, y = ~Imr, z = ~fs,
    marker = list(size = 1, opacity = 0.2, color = "grey"),
    name = "All points"
  ) %>%
  #Add convex hull mesh
  # add_trace(
  #   type = "mesh3d",
  #   x = pts[hull,1], y = pts[hull,2], z = pts[hull,3],
  #   i = hull[,1]-1, j = hull[,2]-1, k = hull[,3]-1,  # zero-based indexing
  #   opacity = 0.2,
  #   color = I("red"),
  #   name = "Convex hull"
  # ) %>%
  # Add highlighted global points in hull
  add_markers(
    data = hydroclidf_1,
    x = ~Im, y = ~Imr, z = ~fs,
    marker = list(size = 1, opacity = 0.3, color = "black"),
    name = "All points"
  ) %>%
  #Add highlighted subset of points with different style
  add_markers(
    data = extracted_vals2,
    x = ~Im, y = ~Imr, z = ~fs,
    marker = list(size = 5, opacity = 0.8, color = extracted_vals2$color, symbol = "circle"),
    name = "Highlighted points"
  ) %>%
  layout(
    scene = list(
      xaxis = list(title = "Aridity"),
      yaxis = list(title = "Seasonality"),
      zaxis = list(title = "Snow fraction")
    )
  )
p

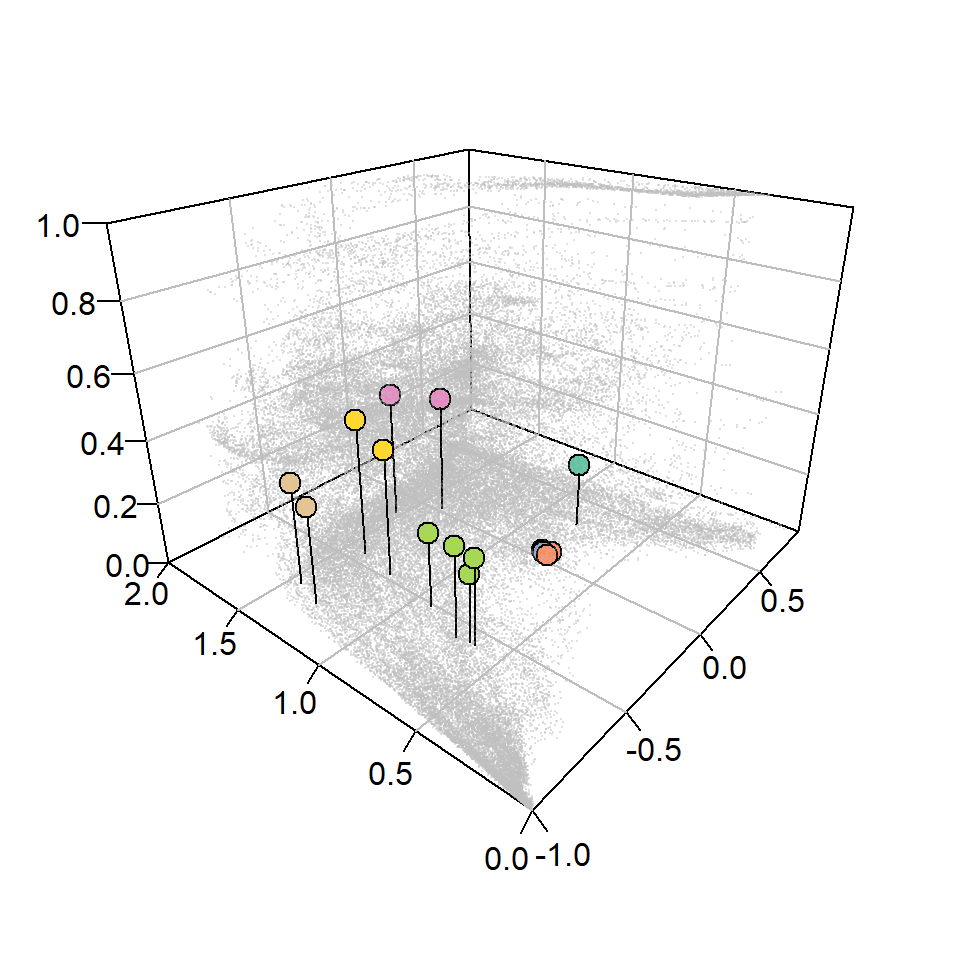

Static 3d scatterplot

Code
par(mar = c(2,2,2,2), mgp = c(5,1,0))
scatter3D(x = df_legend$Im, y = df_legend$Imr, z = df_legend$fs,
          col = alpha("grey", 0.2), cex = 0.15, pch = 16, bty = "b2",
          xlab = "", ylab = "", zlab = "",
          phi = 25, theta = -50, expand = 0.75, ticktype = "detailed")
scatter3D(x = extracted_vals2$Im, y = extracted_vals2$Imr, z = extracted_vals2$fs-0.03,
          col = "black", type = "h", add = TRUE, pch = NA)
scatter3D(x = extracted_vals2$Im, y = extracted_vals2$Imr, z = extracted_vals2$fs,
          bg = extracted_vals2$color, col = "black", cex = 1.5, pch = 21, add = TRUE)

Write 3d scatterplots to file

Code
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Fig1_3Dscatter_NoHull.jpg", width = 5, height = 5, units = "in", res = 1000)
par(mar = c(2,2,2,2), mgp = c(5,1,0))
scatter3D(x = df_legend$Im, y = df_legend$Imr, z = df_legend$fs,
          col = alpha("grey", 0.2), cex = 0.15, pch = 16, bty = "b2",
          xlab = "", ylab = "", zlab = "",
          phi = 25, theta = -50, expand = 0.75, ticktype = "detailed")
scatter3D(x = extracted_vals2$Im, y = extracted_vals2$Imr, z = extracted_vals2$fs-0.03,
          col = "black", type = "h", add = TRUE, pch = NA)
scatter3D(x = extracted_vals2$Im, y = extracted_vals2$Imr, z = extracted_vals2$fs,
          bg = extracted_vals2$color, col = "black", cex = 1.5, pch = 21, add = TRUE)
dev.off()

jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Fig1_3Dscatter_basehull.jpg", width = 5, height = 5, units = "in", res = 1000)
par(mar = c(2,2,2,2), mgp = c(5,1,0))
scatter3D(x = df_legend$Im, y = df_legend$Imr, z = df_legend$fs,
          col = alpha("grey", 0.2), cex = 0.15, pch = 16, bty = "b2",
          xlab = "", ylab = "", zlab = "",
          phi = 25, theta = -50, expand = 0.75, ticktype = "detailed")
scatter3D(x = hydroclidf_1$Im, y = hydroclidf_1$Imr, z = hydroclidf_1$fs,
          col = alpha("black", 0.4), cex = 0.2, pch = 16, add = TRUE)
scatter3D(x = extracted_vals2$Im, y = extracted_vals2$Imr, z = extracted_vals2$fs,
          bg = extracted_vals2$color, col = "black", cex = 1.5, pch = 21, add = TRUE)
dev.off()

jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Fig1_3Dscatter_BIGhull.jpg", width = 5, height = 5, units = "in", res = 1000)
par(mar = c(2,2,2,2), mgp = c(5,1,0))
scatter3D(x = df_legend$Im, y = df_legend$Imr, z = df_legend$fs,
          col = alpha("grey", 0.2), cex = 0.15, pch = 16, bty = "b2",
          xlab = "", ylab = "", zlab = "",
          phi = 25, theta = -50, expand = 0.75, ticktype = "detailed")
scatter3D(x = hydroclidf_2$Im, y = hydroclidf_2$Imr, z = hydroclidf_2$fs,
          col = alpha("black", 0.4), cex = 0.2, pch = 16, add = TRUE)
scatter3D(x = extracted_vals2$Im, y = extracted_vals2$Imr, z = extracted_vals2$fs,
          bg = extracted_vals2$color, col = "black", cex = 1.5, pch = 21, add = TRUE)
dev.off()

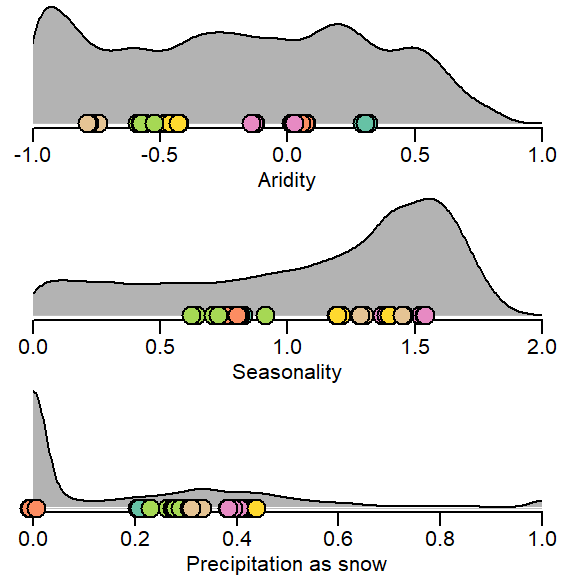

View global and focal site distributions of climate data

Code
par(mfrow = c(3,1), mar = c(2.5,0.5,0.1,0.5), mgp = c(1.5,0.5,0), xpd = TRUE)

dens <- density(df_legend$Im)
plot(dens, type = "n", xlab = "Aridity", ylab = "", main = "", bty = "n", xlim = c(-1, 1), axes = FALSE)
polygon(dens, col = "grey70", border = NA)
lines(dens, bty = "n")
polygon(x = c(-10, -1, -1, -10), y = c(-10, -10, 10, 10), border = NA, col = "white")
polygon(x = c(10, 1, 1, 10), y = c(-10, -10, 10, 10), border = NA, col = "white")
axis(1)
points(x = jitter(extracted_vals2$Im, factor = 20), y = rep(0, times = dim(extracted_vals2)[1]), pch = 21, bg = extracted_vals2$color, cex = 2)


dens <- density(df_legend$Imr)
plot(dens, type = "n", xlab = "Seasonality", ylab = "", main = "", bty = "n", xlim = c(0, 2), axes = FALSE)
polygon(dens, col = "grey70", border = NA)
lines(dens, bty = "n")
polygon(x = c(-10, 0, 0, -10), y = c(-10, -10, 10, 10), border = NA, col = "white")
polygon(x = c(10, 2, 2, 10), y = c(-10, -10, 10, 10), border = NA, col = "white")
axis(1)
points(x = jitter(extracted_vals2$Imr, factor = 20), y = rep(0, times = dim(extracted_vals2)[1]), pch = 21, bg = extracted_vals2$color, cex = 2)

dens <- density(df_legend$fs)
plot(dens, type = "n", xlab = "Precipitation as snow", ylab = "", main = "", bty = "n", xlim = c(0, 1), axes = FALSE)
polygon(dens, col = "grey70", border = NA)
lines(dens, bty = "n")
polygon(x = c(-10, 0, 0, -10), y = c(-10, -10, 10, 10), border = NA, col = "white")
polygon(x = c(10, 1, 1, 10), y = c(-10, -10, 10, 10), border = NA, col = "white")
axis(1)
points(x = jitter(extracted_vals2$fs, factor = 20), y = rep(0, times = dim(extracted_vals2)[1]), pch = 21, bg = extracted_vals2$color, cex = 2)

Write to file

Code
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Fig1_ClimateDensityDistributions2.jpg", width = 3, height = 3, units = "in", res = 1000)
par(mfrow = c(3,1), mar = c(2.5,0.5,0.1,0.5), mgp = c(1.5,0.5,0), xpd = TRUE)

dens <- density(df_legend$Im)
plot(dens, type = "n", xlab = "Aridity", ylab = "", main = "", bty = "n", xlim = c(-1, 1), axes = FALSE)
polygon(dens, col = "grey70", border = NA)
lines(dens, bty = "n")
polygon(x = c(-10, -1, -1, -10), y = c(-10, -10, 10, 10), border = NA, col = "white")
polygon(x = c(10, 1, 1, 10), y = c(-10, -10, 10, 10), border = NA, col = "white")
axis(1)
points(x = jitter(extracted_vals2$Im, factor = 20), y = rep(0, times = dim(extracted_vals2)[1]), pch = 21, bg = extracted_vals2$color, cex = 2)


dens <- density(df_legend$Imr)
plot(dens, type = "n", xlab = "Seasonality", ylab = "", main = "", bty = "n", xlim = c(0, 2), axes = FALSE)
polygon(dens, col = "grey70", border = NA)
lines(dens, bty = "n")
polygon(x = c(-10, 0, 0, -10), y = c(-10, -10, 10, 10), border = NA, col = "white")
polygon(x = c(10, 2, 2, 10), y = c(-10, -10, 10, 10), border = NA, col = "white")
axis(1)
points(x = jitter(extracted_vals2$Imr, factor = 20), y = rep(0, times = dim(extracted_vals2)[1]), pch = 21, bg = extracted_vals2$color, cex = 2)

dens <- density(df_legend$fs)
plot(dens, type = "n", xlab = "Precipitation as snow", ylab = "", main = "", bty = "n", xlim = c(0, 1), axes = FALSE)
polygon(dens, col = "grey70", border = NA)
lines(dens, bty = "n")
polygon(x = c(-10, 0, 0, -10), y = c(-10, -10, 10, 10), border = NA, col = "white")
polygon(x = c(10, 1, 1, 10), y = c(-10, -10, 10, 10), border = NA, col = "white")
axis(1)
points(x = jitter(extracted_vals2$fs, factor = 20), y = rep(0, times = dim(extracted_vals2)[1]), pch = 21, bg = extracted_vals2$color, cex = 2)

dev.off()

13.6.3 Repeatability by climate

Plot monthly estimates of repeatability by climate indices

Code
mysites <- as_tibble(focalsites) %>%
  mutate(Im = extracted_vals$Im,
         Imr = extracted_vals$Imr,
         fs = extracted_vals$fs) %>%
  group_by(basin) %>%
  summarize(Im = mean(Im), Imr = mean(Imr), fs = mean(fs)) %>%
  ungroup() %>%
  filter(basin != "Donner Blitzen") %>%
  mutate(basin = ifelse(basin == "Paine Run", "Paine",
                        ifelse(basin == "Staunton River", "Staunton",
                               ifelse(basin == "Snake River", "Snake",
                                      ifelse(basin == "Shields River", "Yellowstone", basin))))) %>%
  mutate(basin = factor(basin, levels = rev(c("West Brook", "Staunton", "Paine", "Flathead", "Yellowstone", "Snake")))) %>%
  mutate(R = c(0.55, 0.56, 0.71, 0.94, 0.44, 0.47))

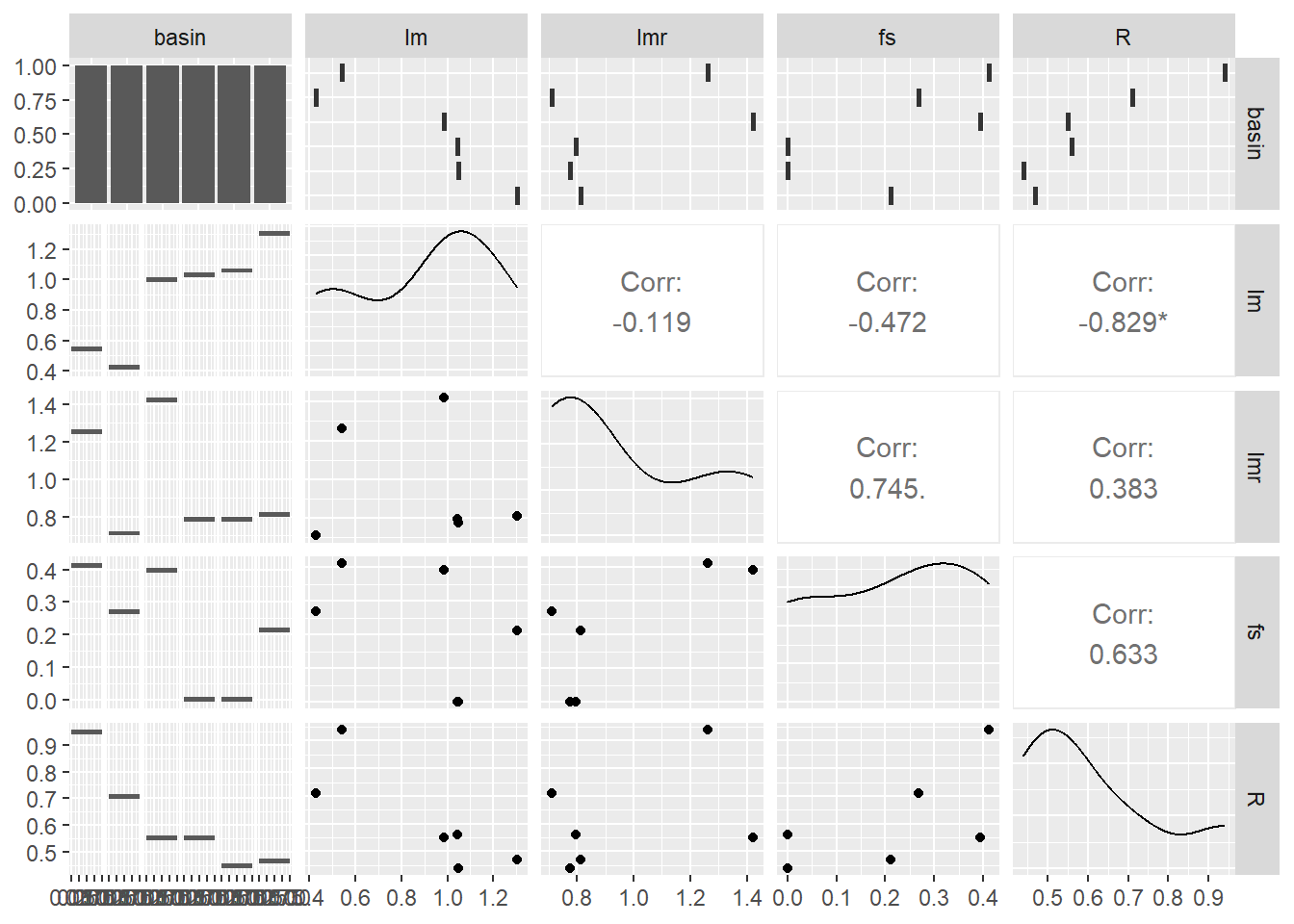

ggpairs(mysites)

Plot

Code

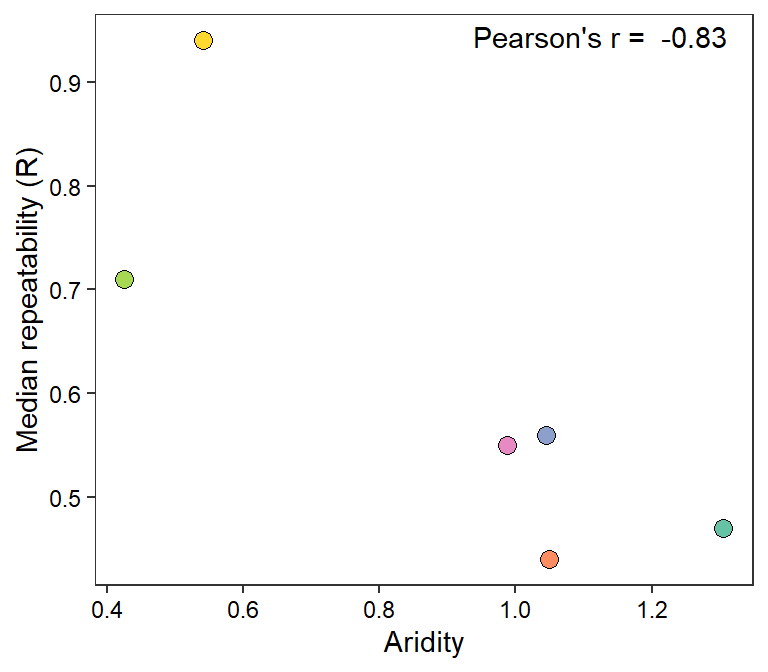

myr <- cor(mysites$Im, mysites$R)
mysites %>% ggplot(aes(x = Im, y = R)) +
  geom_point(aes(fill = basin), shape = 21, size = 3) +
  annotate("text", x = Inf, y = Inf, hjust = 1.1, vjust = 1.5,
           label = paste("Pearson's r = ", round(myr, digits = 2))) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  theme_bw() + theme(legend.position = "none", panel.grid = element_blank(),
                     axis.text = element_text(color = "black")) +
  xlab("Aridity") + ylab("Median repeatability (R)")

Code

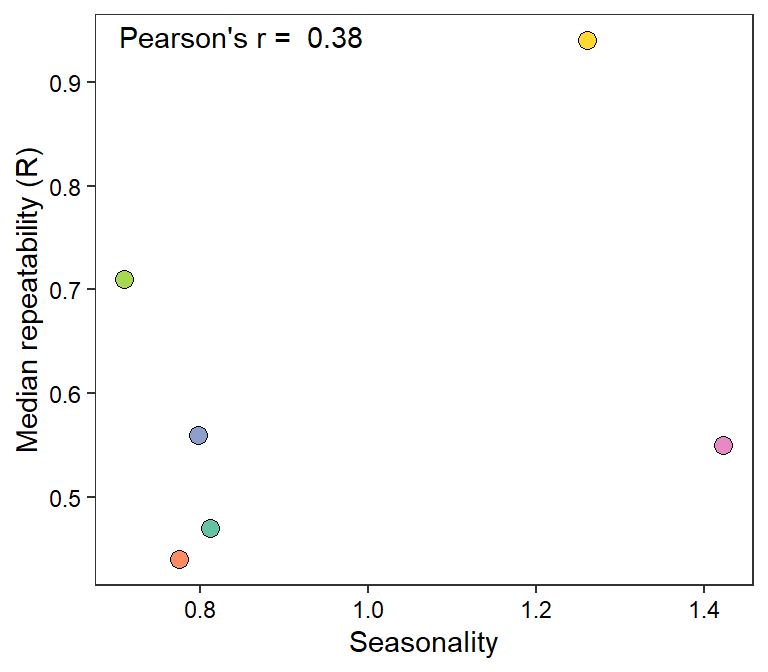

myr <- cor(mysites$Imr, mysites$R)
mysites %>% ggplot(aes(x = Imr, y = R)) +
  geom_point(aes(fill = basin), shape = 21, size = 3) +
    annotate("text", x = -Inf, y = Inf, hjust = -0.1, vjust = 1.5,
           label = paste("Pearson's r = ", round(myr, digits = 2))) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  theme_bw() + theme(legend.position = "none", panel.grid = element_blank(),
                     axis.text = element_text(color = "black")) +
  xlab("Seasonality") + ylab("Median repeatability (R)")

Code

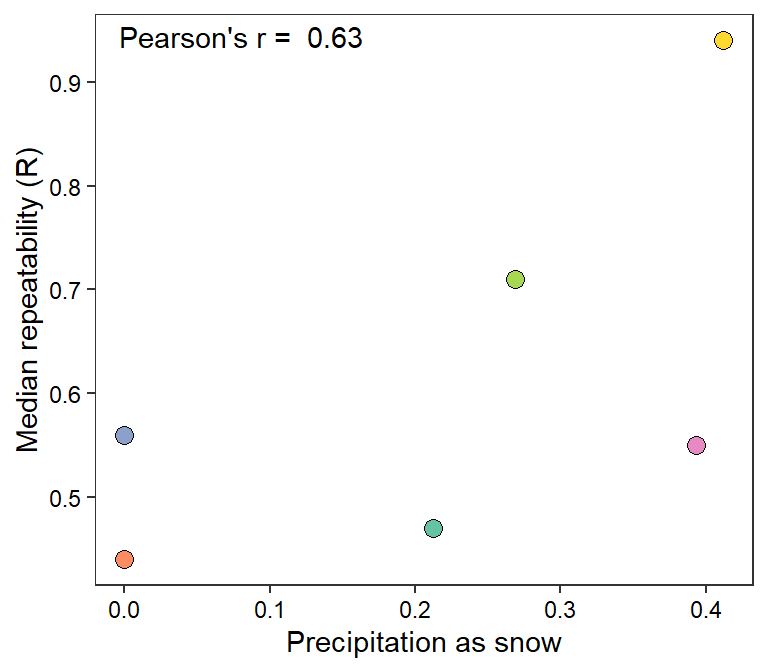

myr <- cor(mysites$fs, mysites$R)
mysites %>% ggplot(aes(x = fs, y = R)) +
  geom_point(aes(fill = basin), shape = 21, size = 3) +
    annotate("text", x = -Inf, y = Inf, hjust = -0.1, vjust = 1.5,
           label = paste("Pearson's r = ", round(myr, digits = 2))) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  theme_bw() + theme(legend.position = "none", panel.grid = element_blank(),
                     axis.text = element_text(color = "black")) +
  xlab("Precipitation as snow") + ylab("Median repeatability (R)")

Write to file

Code
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Repeatability_Aridity.jpg", width = 4, height = 3.5, units = "in", res = 1000)
myr <- cor(mysites$Im, mysites$R)
mysites %>% ggplot(aes(x = Im, y = R)) +
  geom_point(aes(fill = basin), shape = 21, size = 3) +
  annotate("text", x = Inf, y = Inf, hjust = 1.1, vjust = 1.5,
           label = paste("Pearson's r = ", round(myr, digits = 2))) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  theme_bw() + theme(legend.position = "none", panel.grid = element_blank(),
                     axis.text = element_text(color = "black")) +
  xlab("Aridity") + ylab("Median repeatability (R)")
dev.off()
png
  2
Code
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Repeatability_Seasonality.jpg", width = 4, height = 3.5, units = "in", res = 1000)
myr <- cor(mysites$Imr, mysites$R)
mysites %>% ggplot(aes(x = Imr, y = R)) +
  geom_point(aes(fill = basin), shape = 21, size = 3) +
    annotate("text", x = -Inf, y = Inf, hjust = -0.1, vjust = 1.5,
           label = paste("Pearson's r = ", round(myr, digits = 2))) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  theme_bw() + theme(legend.position = "none", panel.grid = element_blank(),
                     axis.text = element_text(color = "black")) +
  xlab("Seasonality") + ylab("Median repeatability (R)")
dev.off()
png
  2
Code
jpeg("C:/Users/jbaldock/OneDrive - DOI/Documents/USGS/EcoDrought/EcoDrought Working/Presentation figs/Repeatability_SnowFraction.jpg", width = 4, height = 3.5, units = "in", res = 1000)
myr <- cor(mysites$fs, mysites$R)
mysites %>% ggplot(aes(x = fs, y = R)) +
  geom_point(aes(fill = basin), shape = 21, size = 3) +
    annotate("text", x = -Inf, y = Inf, hjust = -0.1, vjust = 1.5,
           label = paste("Pearson's r = ", round(myr, digits = 2))) +
  scale_fill_manual(values = rev(brewer.pal(6, "Set2"))) +
  theme_bw() + theme(legend.position = "none", panel.grid = element_blank(),
                     axis.text = element_text(color = "black")) +
  xlab("Precipitation as snow") + ylab("Median repeatability (R)")
dev.off()
png
  2
